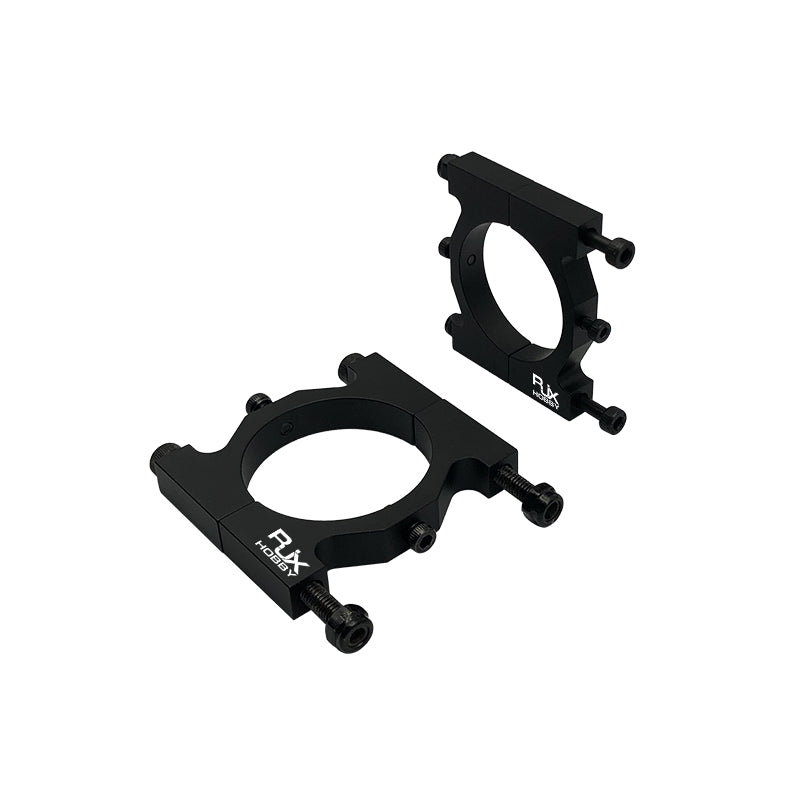

• Black RJX aluminum alloy split tube clamp bracket with four bolts, circular pipe fixture clip

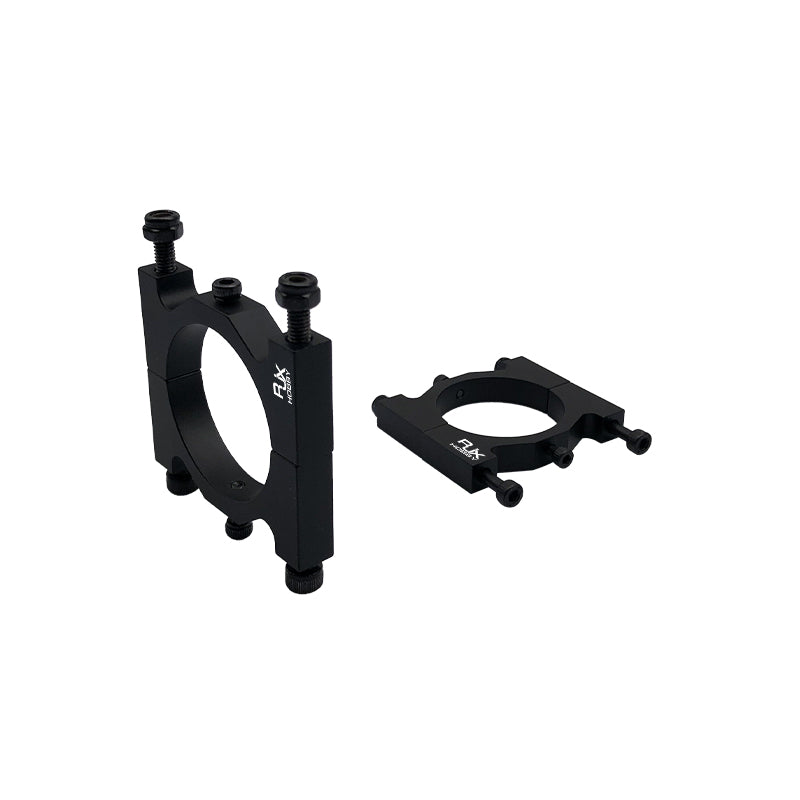

  • Black RJX aluminum alloy split tube clamp fixture with adjustable screws, shown as two clamp pieces

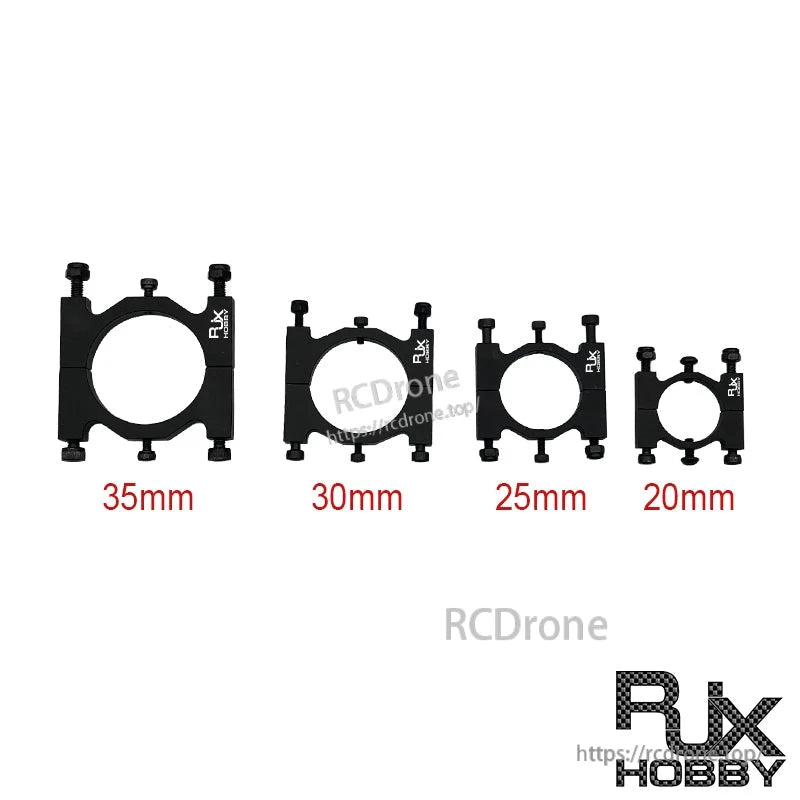

  • RJX Hobby aluminum alloy tube clamp fixture clip in black, shown in 20mm, 25mm, 30mm and 35mm sizes

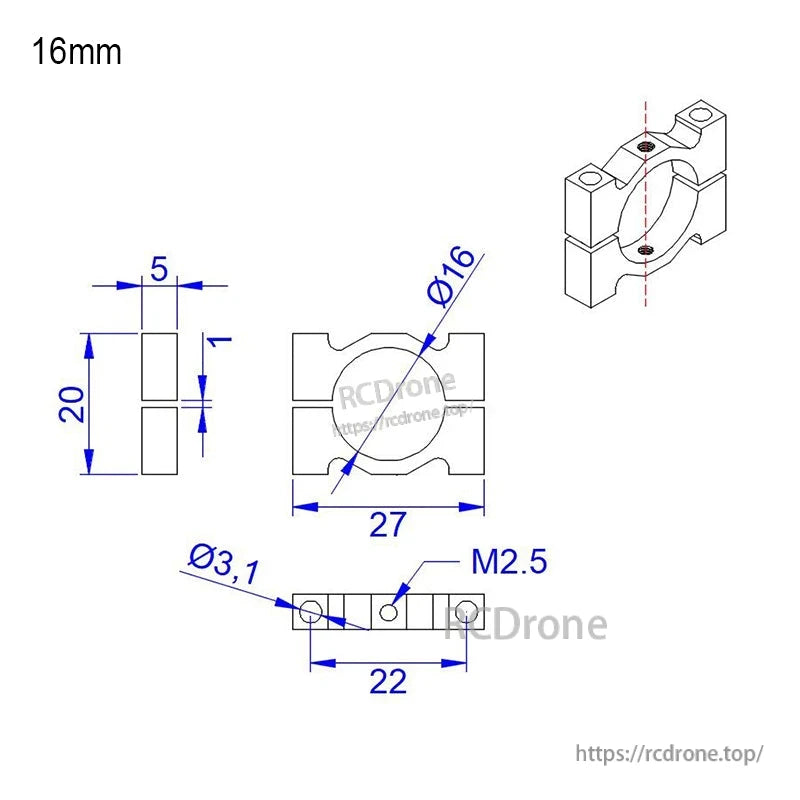

  • Technical drawing of a 16mm aluminum tube clamp bracket with 27mm width, 20mm height, and M2.5 holes

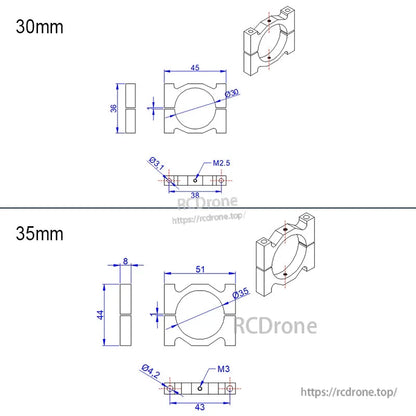

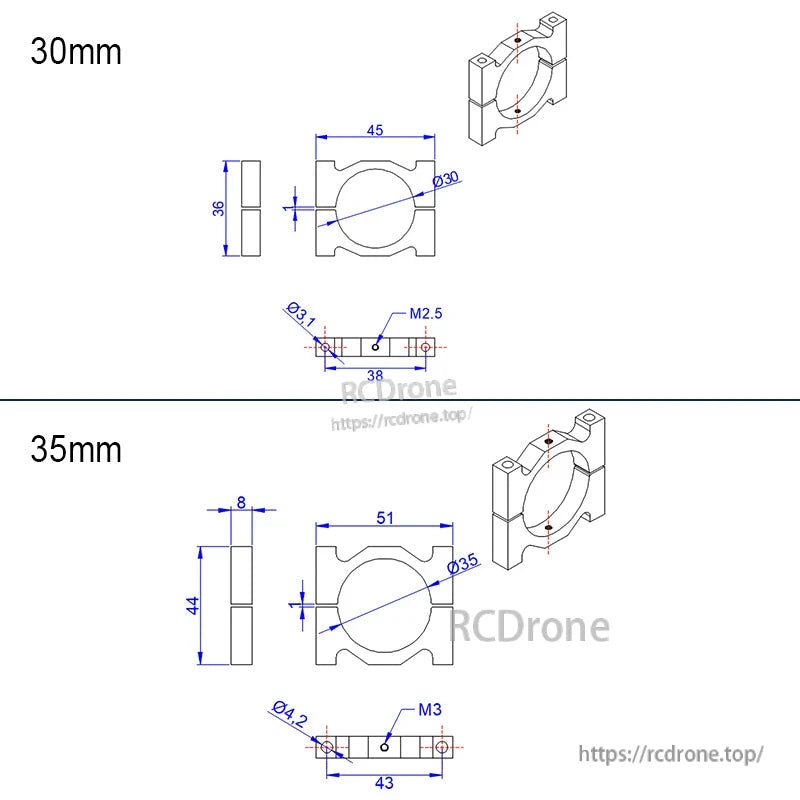

  • Technical drawing of aluminum tube clamp bracket with 30mm and 35mm inner diameters and mounting hole sizes

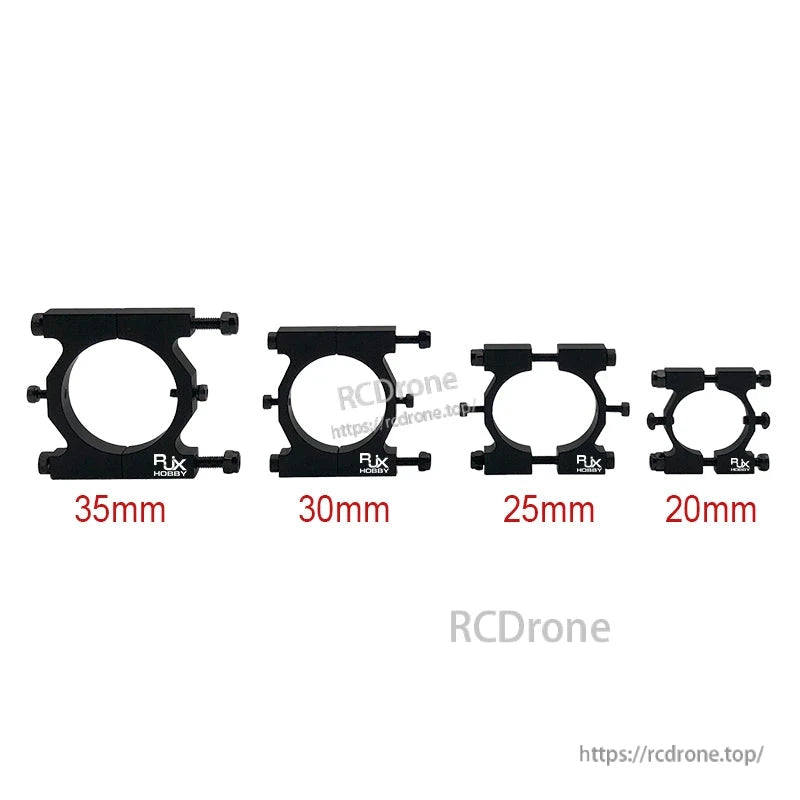

  • RJX Hobby black aluminum tube clamp brackets in 20mm, 25mm, 30mm and 35mm sizes with bolt mounts

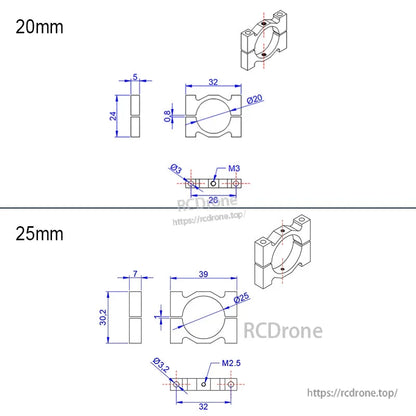

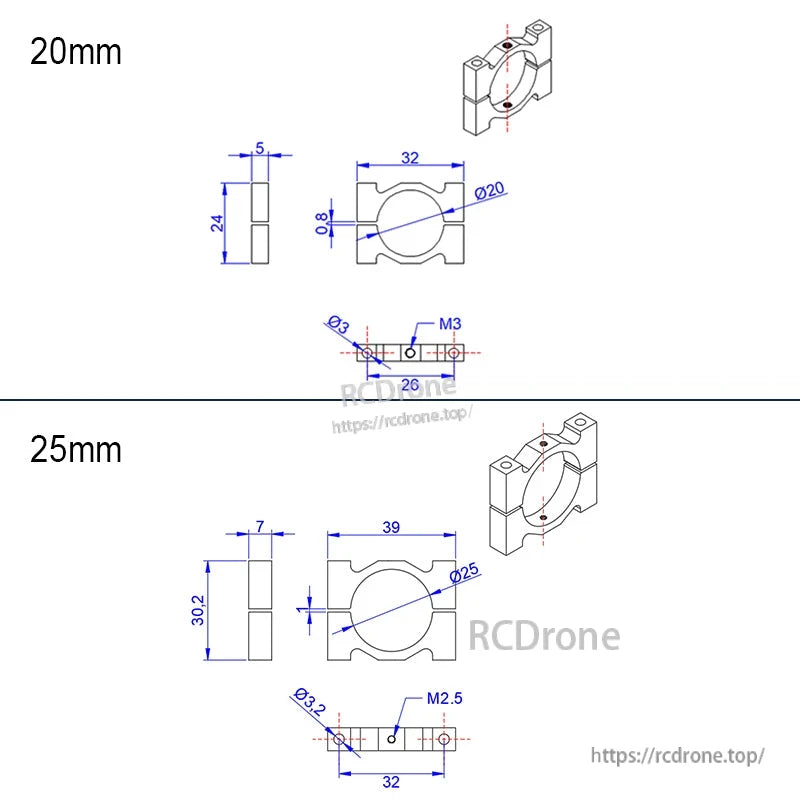

  • Dimension drawing of aluminum tube clamp bracket, 20mm and 25mm inner diameter versions with mounting hole specs

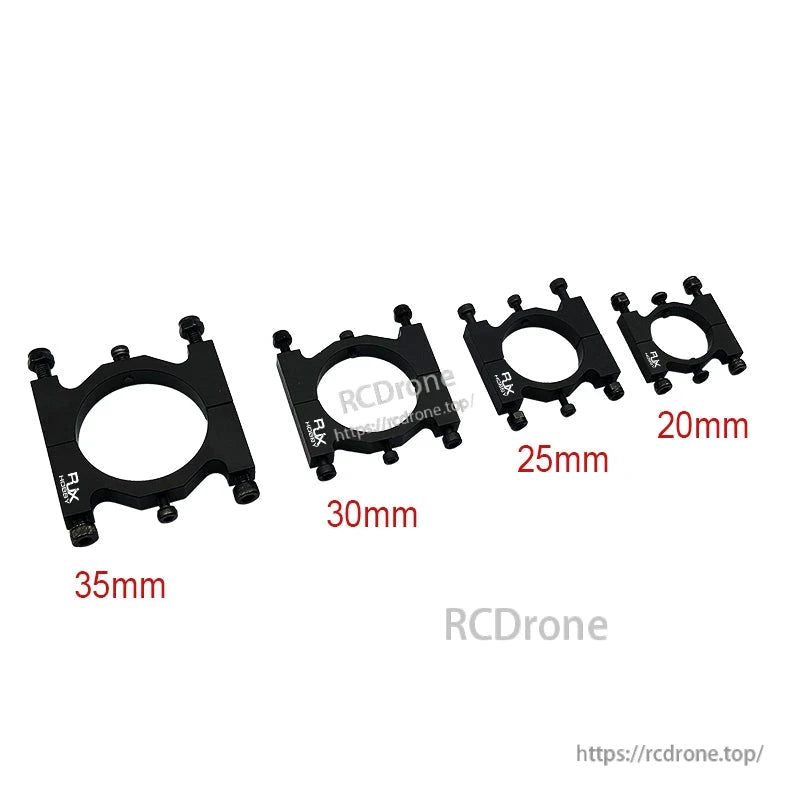

  • Black aluminum alloy tube clamp fixture clips labeled 35mm, 30mm, 25mm and 20mm diameters

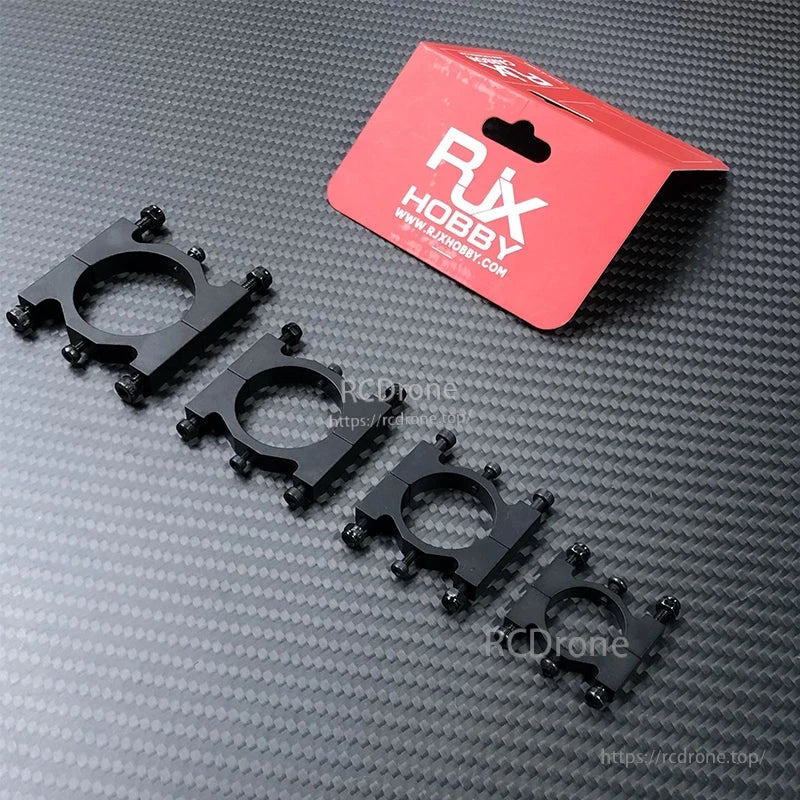

  • Black RJX aluminum alloy tube clamp fixture clips with bolt hardware, shown in multiple sizes

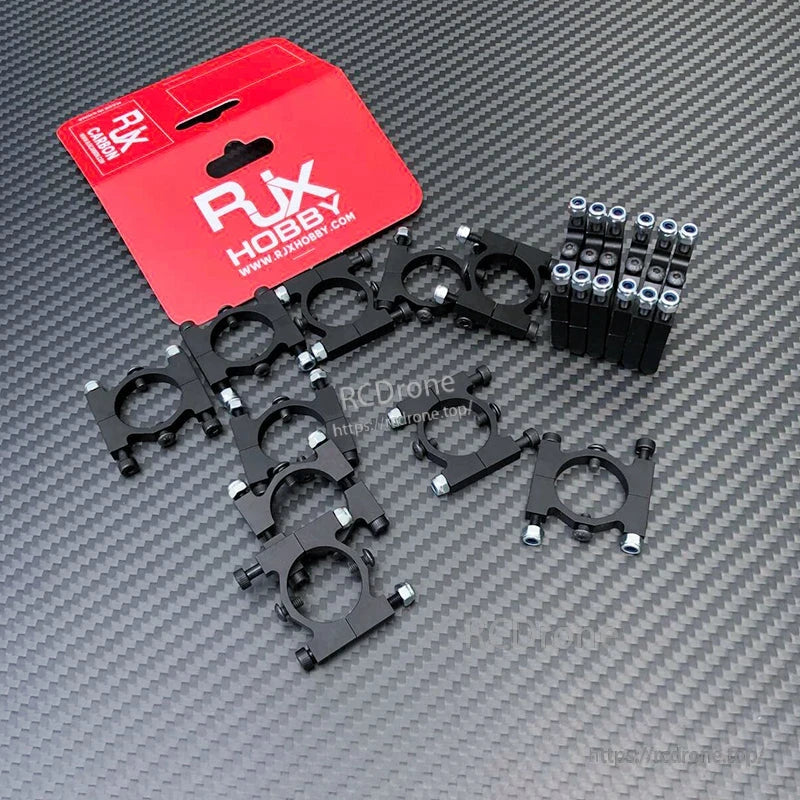

  • RJX Hobby black aluminum tube clamp brackets with bolt hardware for mounting on round pipes
1 10

RJX Aluminum Alloy Tube Clamp Fixture Clip Pipe Bracket 16/20/22/25/30/35/40mm 1pc

RJX Aluminum Alloy Tube Clamp Fixture Clip Pipe Bracket 16/20/22/25/30/35/40mm 1pc

RJXHobby

$11.19 USD
$11.19 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
size
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

RJX aluminum alloy tube clamp fixture clip / pipe bracket for UAV drone spare parts. Designed for mounting to round pipes/tubes in multiple diameter options from 16 mm to 40 mm.

Key Features

  • Aluminum alloy tube clamp / pipe bracket design
  • Multiple applicable pipe diameter options: 16 mm / 20 mm / 22 mm / 25 mm / 30 mm / 35 mm / 40 mm
  • Weights are specified without screws

Specifications

Applicable Pipe Diameter Weight (without screws) Height Width Thickness Pitch
16mm 3.1g 20mm 27mm 5mm 22mm
20mm 4.2g 24mm 32mm 5mm 26mm
22mm 5.1g 26mm 33.5mm 5.5mm 28mm
25mm 10.2g 30mm 39mm 7mm 32mm
30mm 13.7g 36mm 45mm 7mm 38mm
35mm 22.3g 43mm 51mm 8mm 43mm
40mm 22.51g 48mm 56mm 8mm 48mm

What’s Included

  • 1pcs x Tube Clamp

Applications

  • UAV drone frame pipe/tube mounting and general drone spare parts replacement

For compatibility questions (pipe diameter selection, fitment, or ordering support), contact support@rcdrone.top or visit https://rcdrone.top/.
