RJX 5 Pairs 8-Pin Drone Battery Connector for DJI Mavic 3, 2.5mm Pitch, 7A 30V Male/Female

Overview

The RJX 8-pin drone battery connector plug set is designed for DJI Mavic 3 battery connection/repair work, providing a male and female interface with 2.5mm pin pitch and an electrical rating of 7A, 30V. Supplied as 5 pairs for spares, maintenance, or production use.

Key Features

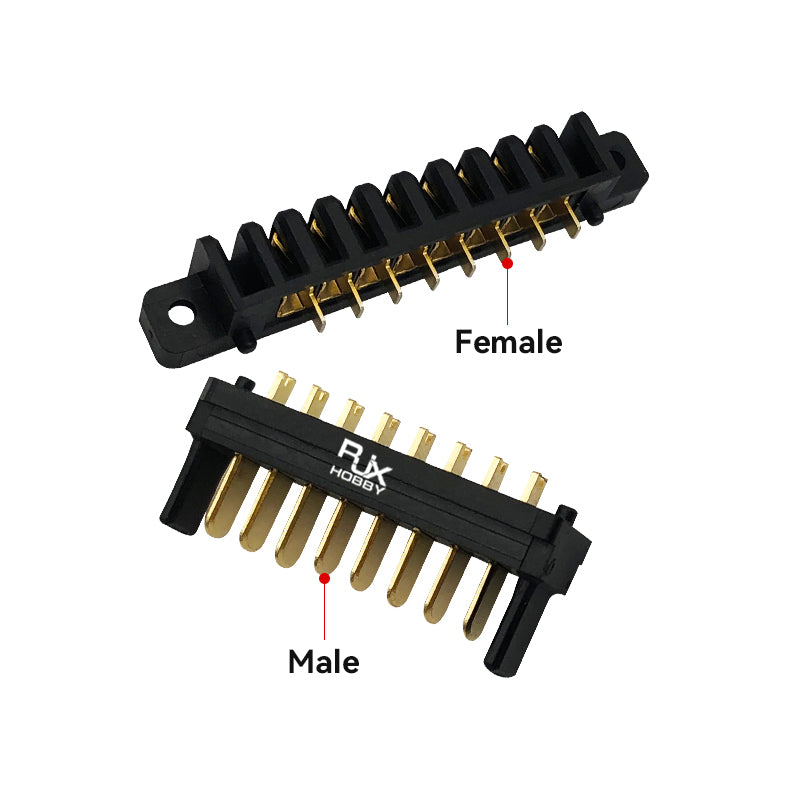

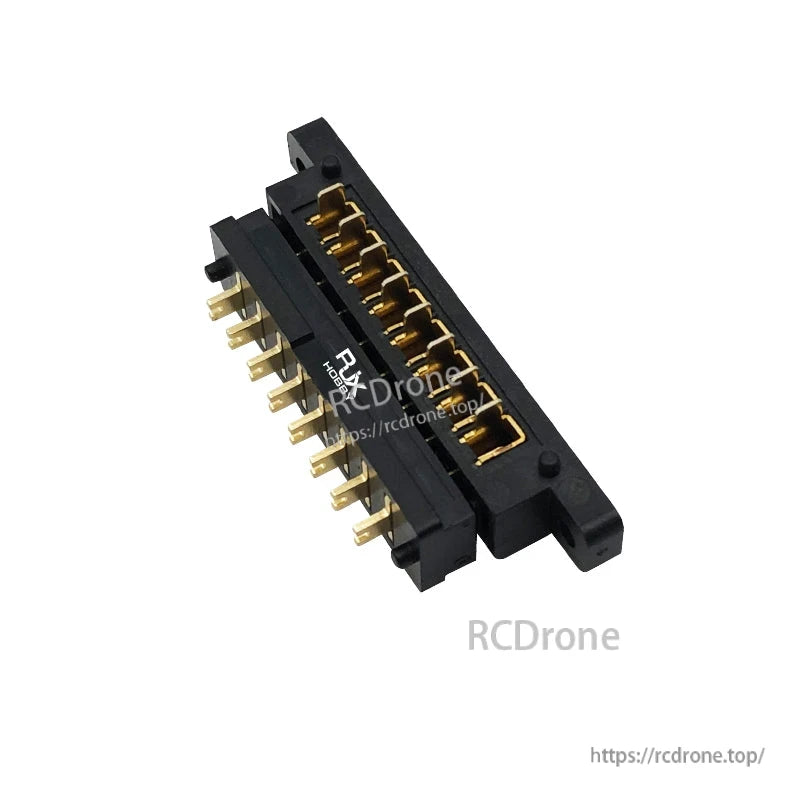

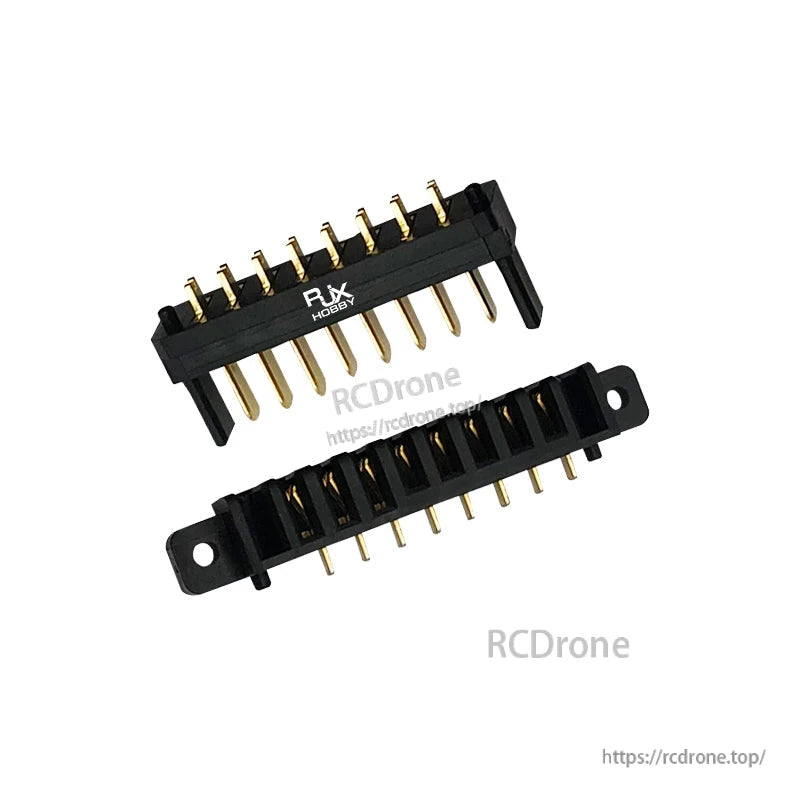

• 8-pin connector set (male + female)
• Pin pitch: 2.5mm
• Rated current/voltage: 7A, 30V

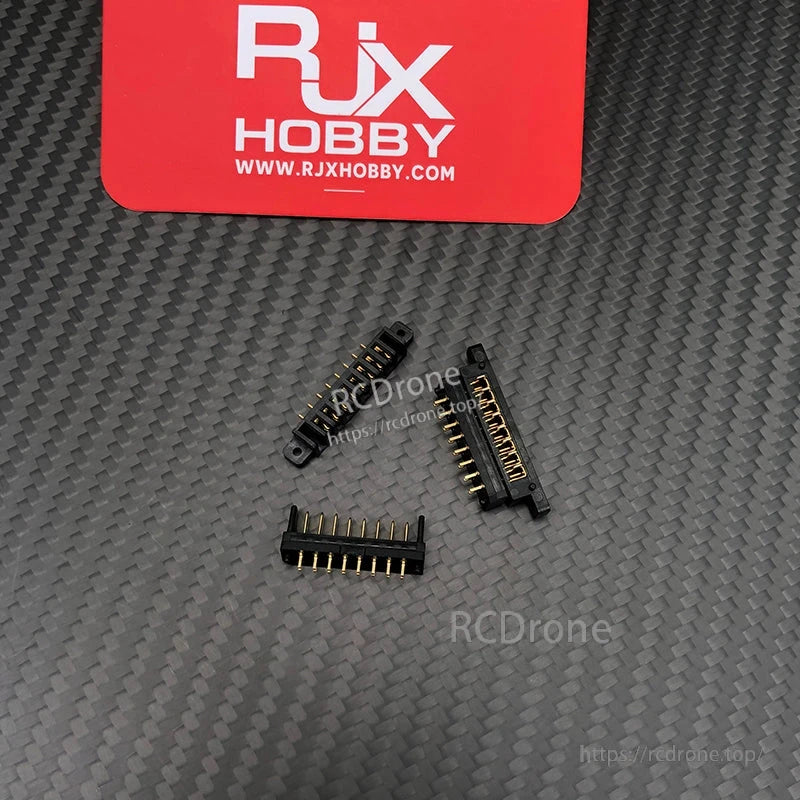

• RJX branding (RJX HOBBY) on the connector body
• Mounting-hole style housings (dimensions provided below)

Specifications

Mechanical Dimensions (drawing units not specified)

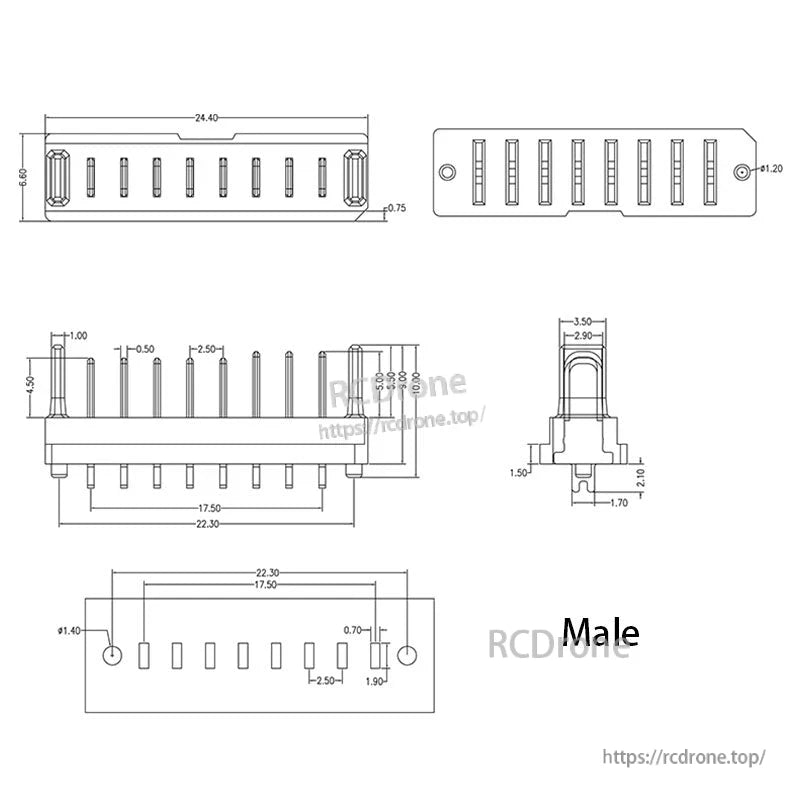

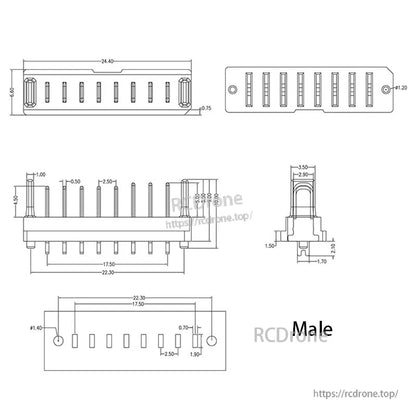

Male connector

• Overall length: 24.40
• Overall height: 6.60
• Corner/edge callout: 0.75
• Pin pitch callout: 2.50
• Additional callouts shown: 1.00, 0.50, 4.50, 5.00, 5.50, 10.00, 17.50, 22.30, 0.70, 1.90, Φ1.40

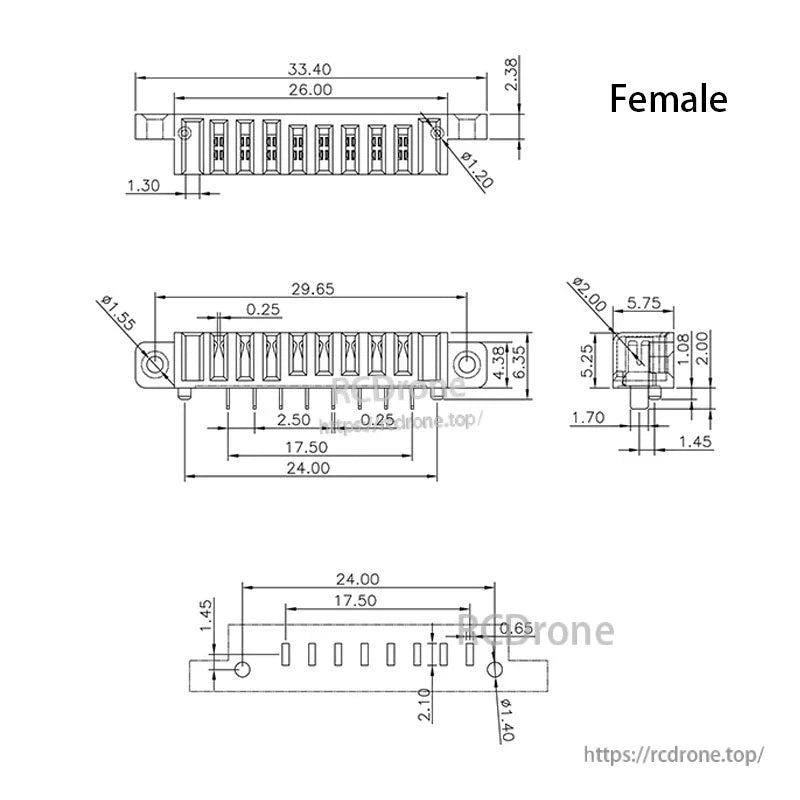

Female connector

• Top view overall length: 33.40
• Top view inner length: 26.00
• Height callout: 2.38
• Main body length callout: 29.65
• Body height callouts: 4.38, 6.35
• Pin pitch callout: 2.50
• Additional callouts shown: 1.30, 0.25, 17.50, 24.00, 5.75, 5.25, 1.70, 1.45, 1.08, 2.00, 0.65, 2.10, Φ1.55, Φ1.20, Φ2.00, Φ1.40

What’s Included

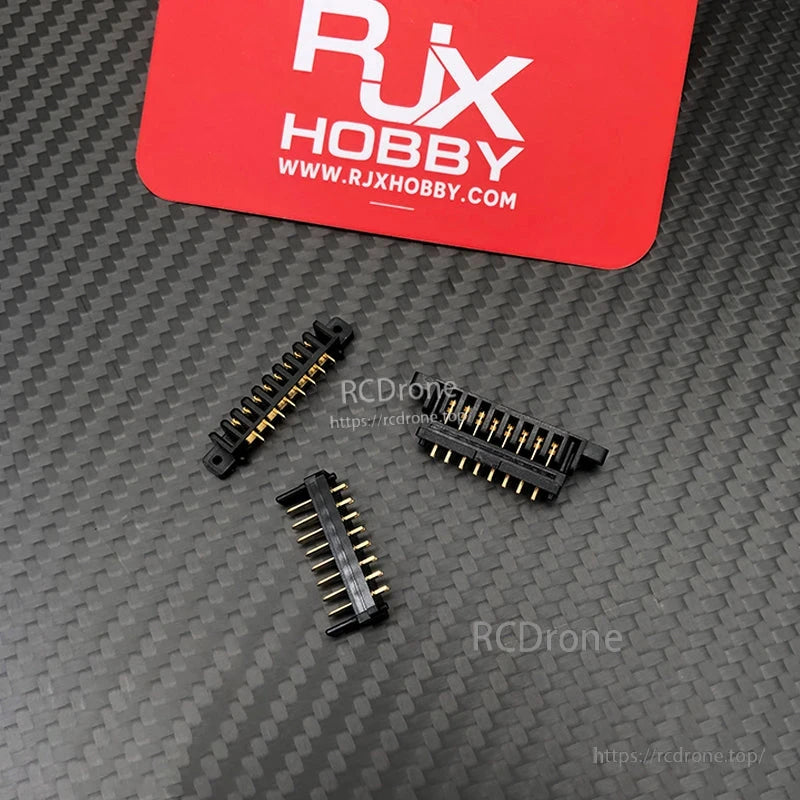

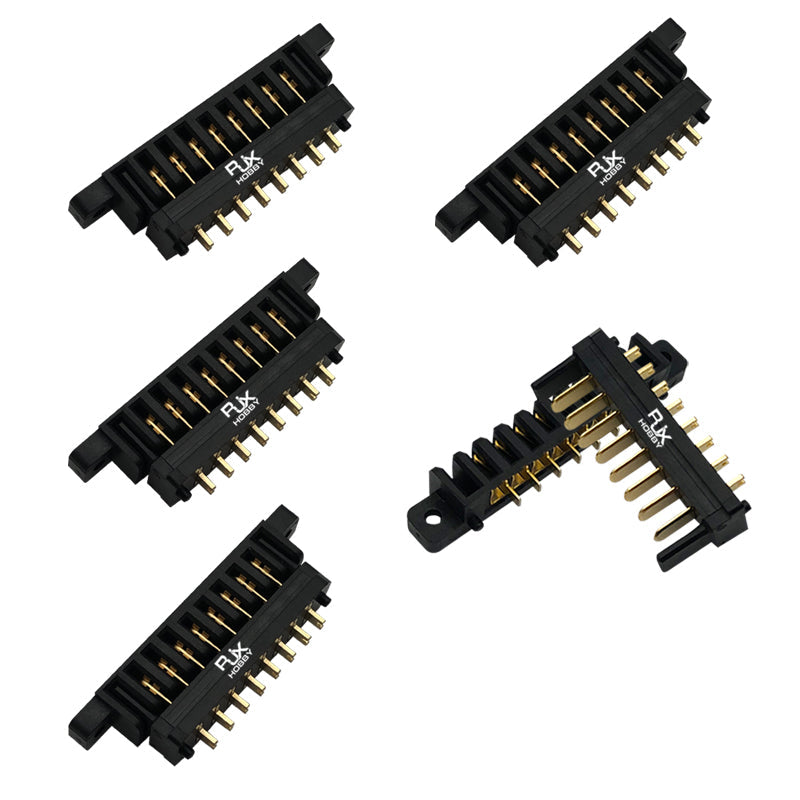

• 5 pairs (5x male + 5x female) RJX 8-pin battery connectors

For compatibility questions before ordering, contact support at support@rcdrone.top or visit https://rcdrone.top/.
