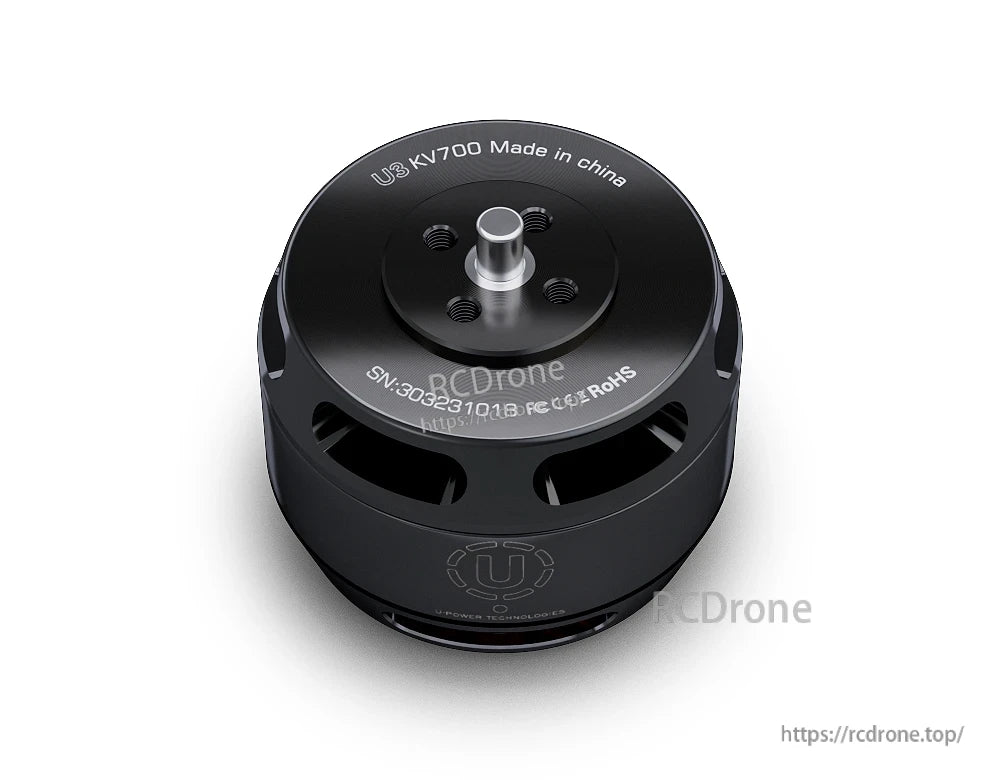

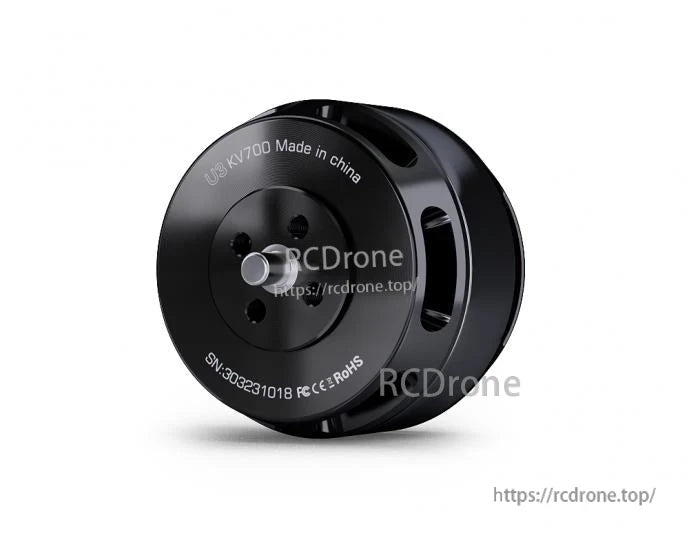

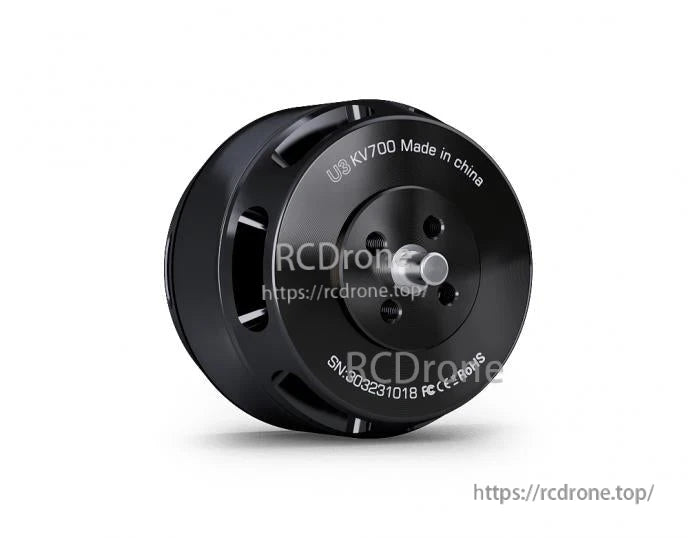

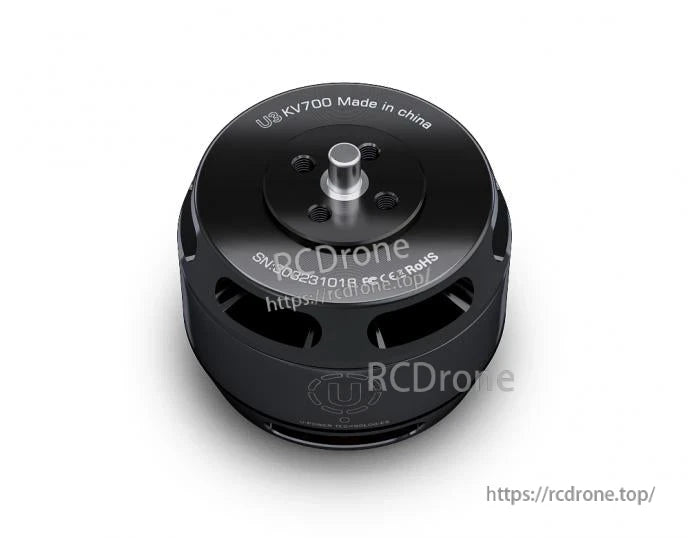

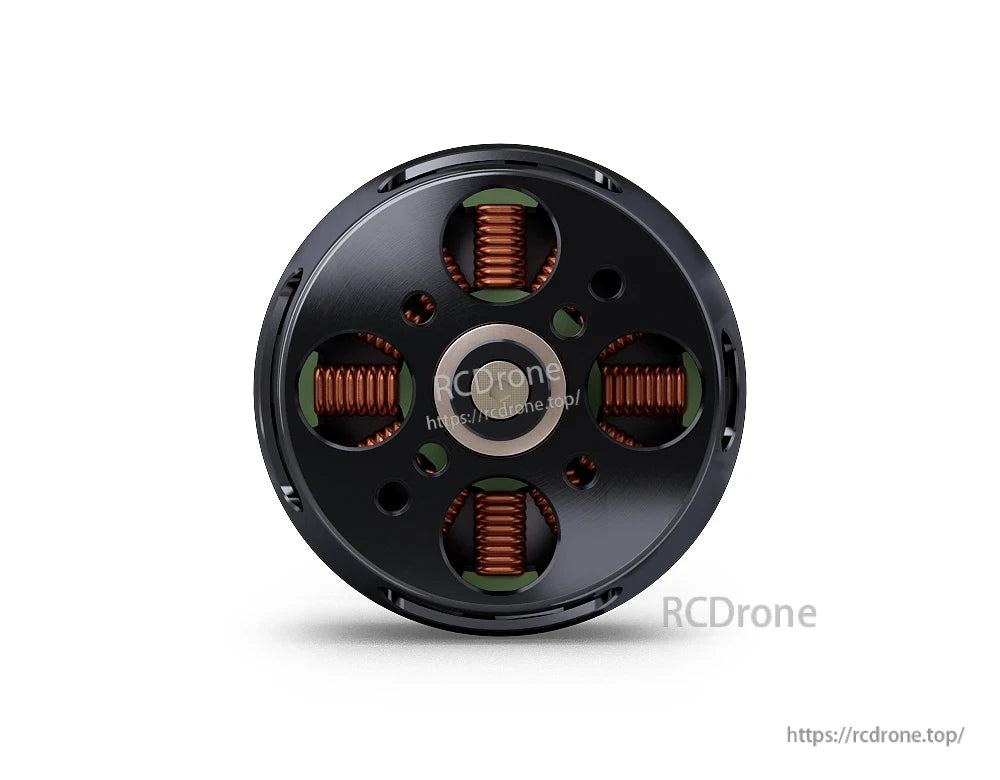

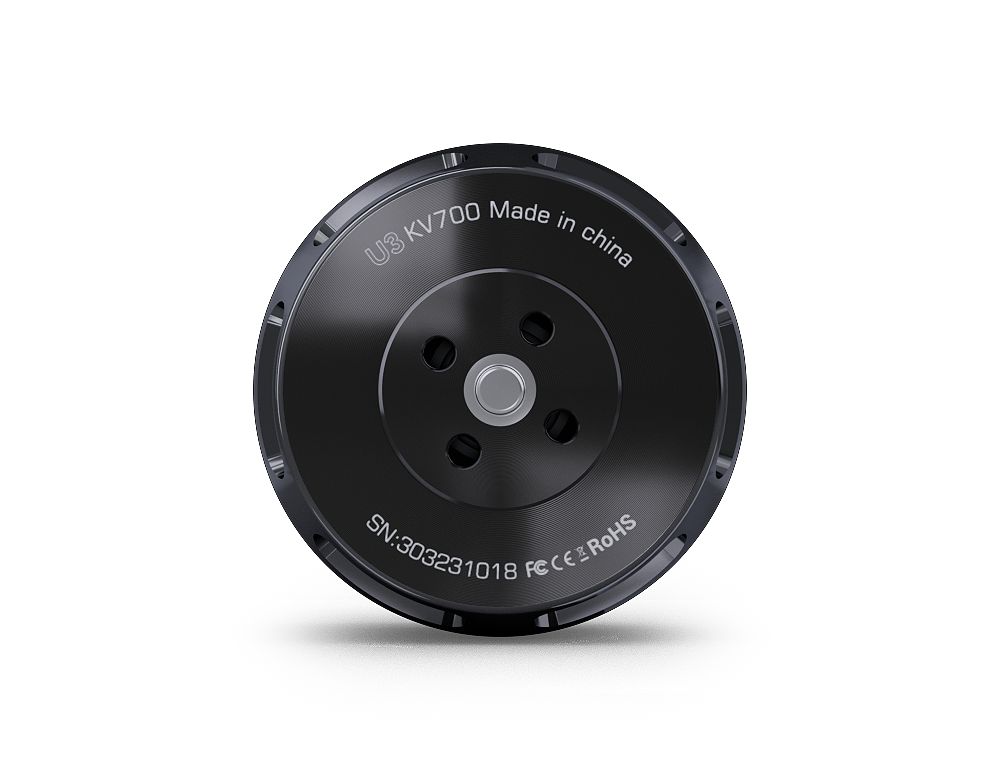

T-Motor U3 KV700 Waterproof Power Type UAV Motor (700rpm/V), Dustproof Industrial Grade, 4S AUW 3-8KG

T-Motor U3 KV700 Waterproof Power Type UAV Motor (700rpm/V), Dustproof Industrial Grade, 4S AUW 3-8KG

T-MOTOR

$153.86 USD
$153.86 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

T-Motor U3 Power Type UAV Motor (KV700 / 700rpm/V) is a waterproof, dustproof UAV motor designed for industrial-grade multirotor platforms. It is specified for AUW 3–8KG multi-copter setups and is intended for high-end UAVs requiring big thrust for applications such as aerial photography, filming, delivery service, and agriculture.

For product selection help or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Key Features

  • Water-resistant & dust-resistant; industrial grade positioning (waterproof / dustproof)
  • Precision bearing design for smoother running and lower noise
  • Low power consumption
  • Unique side hole design for swift airflow; motor cools 2.5 times faster than others
  • Six holes beveling upward for waterproof and sand-resistant features
  • Abnormal shaft: special screw used for stator and rotor installation, avoiding looseness of circlip
  • High-quality varnished wire: imported oxygen-free copper coil tolerates 180°C to enhance short circuit resistance
  • High-standard silicon steel sheet precision winding to reduce copper loss and improve utilization
  • Advanced 0.2mm silicon steel sheet reduces heat and eddy, improving efficiency
  • Larger bearing / lower noise: imported bearing design claims service life over 1600 hours under trouble-free operation
  • Stable / Durable (as labeled)

Specifications

Model / Series T-Motor U3 Power Type (U-series)
KV KV700 (700rpm/V)
Industrial protection Waterproof, dustproof
Max. thrust 1.8kg
MTBF About 1600hours
Recommended voltage 4S
Recommended ESC 4S ESC
Recommended propeller 12 or 13 inch props; T-MOTOR CF12*4 prop / Carbon Fiber P12*4 propeller
Recommended AUW (multirotor) For AUW 3-8KG multi-copter; Quadcopter--4KG; Hexacopter--6KG; Octocopter--8KG
Coil material Imported oxygen-free copper coil (tolerates 180°C)
Stator material detail 0.2mm silicon steel sheet
Markings (on motor) U-POWER TECHNOLOGIES; Made in china; CE; RoHS; SN:303131008

Applications

  • Aerial photography
  • Filming
  • Delivery service
  • Agriculture applications

What’s Included

  • 1x T-MOTOR U3 Motor
  • 1x Hardware pack
