T-Motor VZ29x9.5 29in VTOL Propeller, PMI Carbon Fiber Composite, Flange Mount Ø10/Ø20 4xØ3

Overview

The T-Motor VZ29x9.5 is a VTOL propeller designed to address traditional multi-rotor propeller limitations in VTOL (vertical takeoff and landing) applications. The VZ Series combines advanced composite materials with aerodynamic design to provide efficient, reliable, and controllable power output for VTOL fixed-wing UAVs operating in multicopter mode.

Key Features

• High strength: Withstands centrifugal loads and maneuver-induced alternating loads at high RPM to help prevent structural failure.
• High stiffness: Supports safe blade-tip clearance in compact layouts, suppresses aeroelastic deformation, and helps prevent flutter.
• Lightweight design: Reduces moment of inertia for rapid thrust response and higher attitude control bandwidth for the flight control system.
• VTOL-focused aerodynamics:
  • Vertical takeoff/landing phase: designed for high thrust and power within limited blade area.
  • Cruise phase: when rotation stops, blade shape is intended to minimize profile drag to reduce power consumption.
• Transition stability focus: Developed to resist complex flow field interference at high angle of attack, low speed, and unsteady flow.
• Composite and structure design:

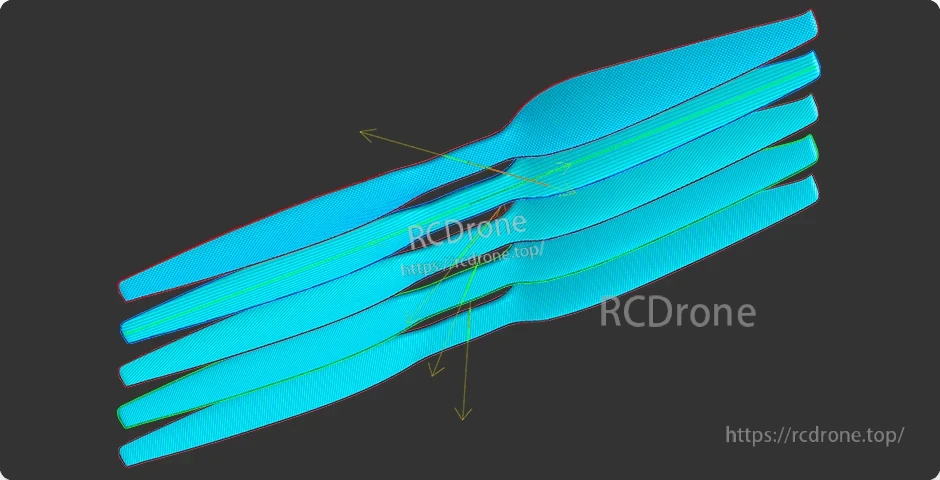

  • Bending & torsion resistant layup design (optimized fiber orientation and ratio).

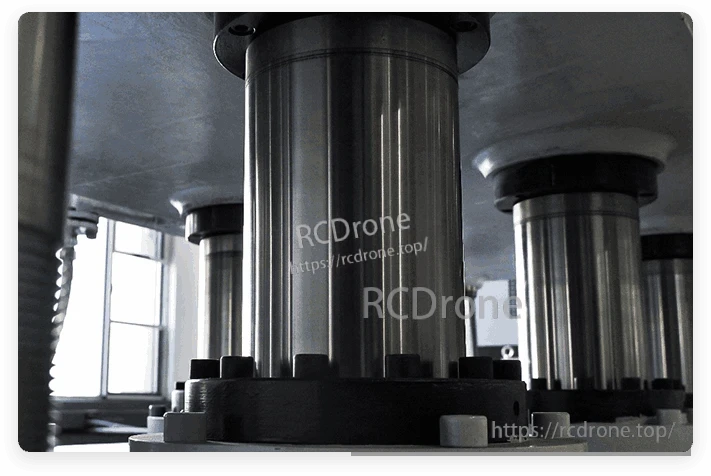

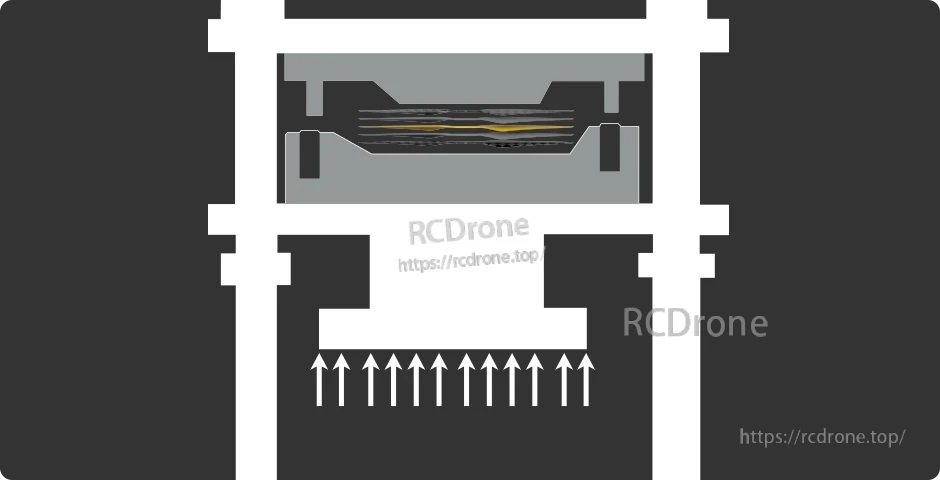

  • Prepreg compression molding for integrated forming; product porosity below 1%.

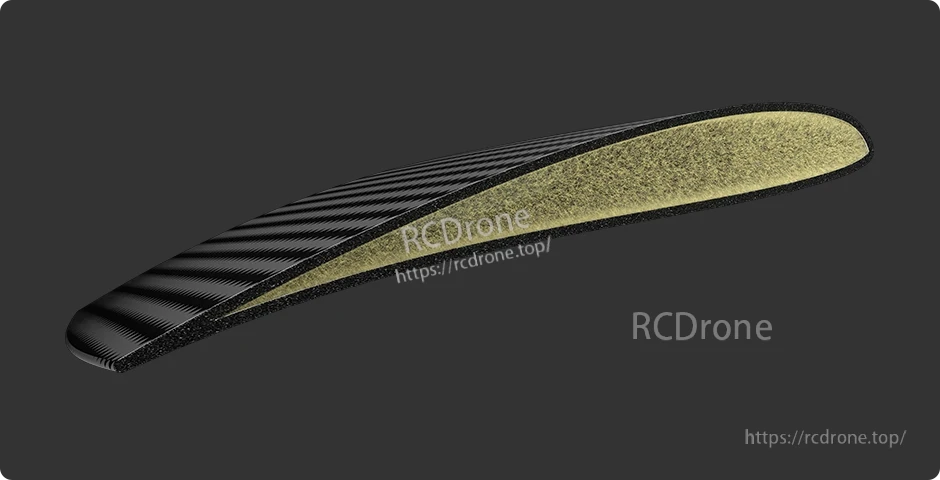

  • PMI foam core to increase stiffness while controlling total weight.
• Reported performance improvements (comparative tests): 30% flexural strength and 20% torsional stiffness (VZ Series vs G Series propellers).
• Blade root optimization: Optimized blade root thickness provides structural redundancy and reduces loads on connecting bolts.
• Custom VTOL propeller service: 10 to 100 inches; supports matching with various pitch specifications and motors.

Specifications

For order support, configuration help, or bulk inquiries, contact support@rcdrone.top or visit https://rcdrone.top/.

What’s Included

• Propeller CW x 1
• Propeller CCW x 1

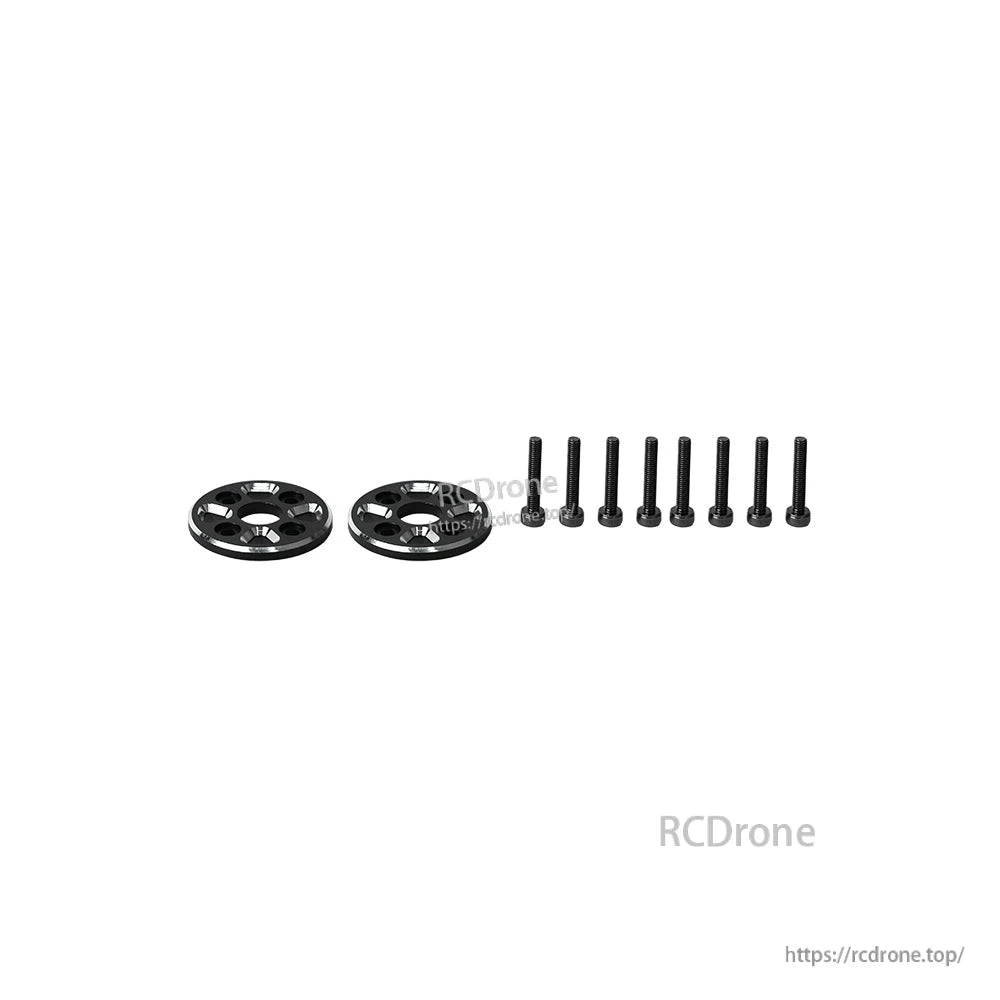

• Propeller cover plate (Φ32*3mm) x 2
• Socket head screws (M3*18mm) x 8

Applications

• VTOL fixed-wing UAVs (multicopter mode lift rotors)
• Heavy-lift VTOL platforms requiring a 29in class propeller and flange mounting interface

Notes

• Appearance diagrams and product renderings are for reference only; the actual product shall prevail.
• Flexural strength and torsional stiffness improvement data are from comparative testing between VZ Series propellers and G Series propellers.

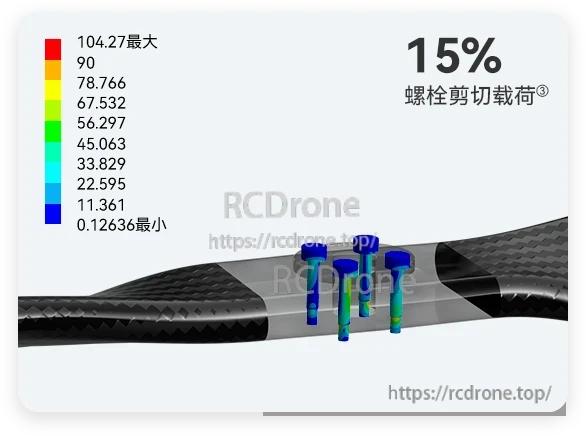

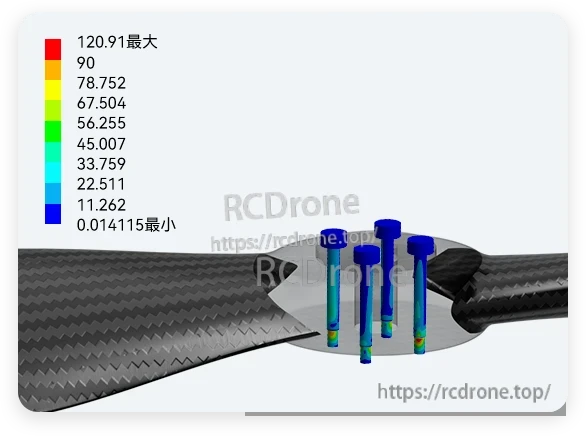

• Bolt shear load reduction data are from simulation comparisons between installation bolts for VZ Series propellers and those for V Series propellers.
• Test data were obtained under specific laboratory conditions; actual parameters may vary with environment, platform, software, and other factors.

Details

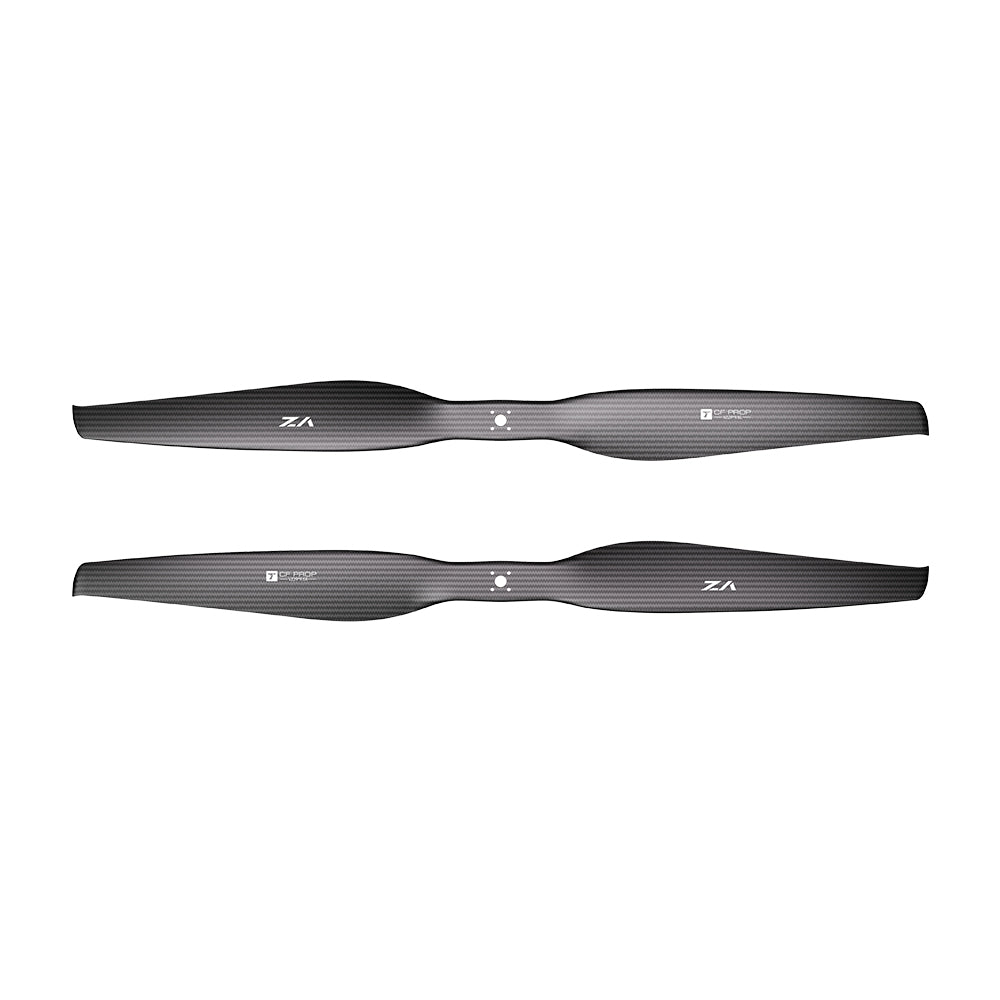

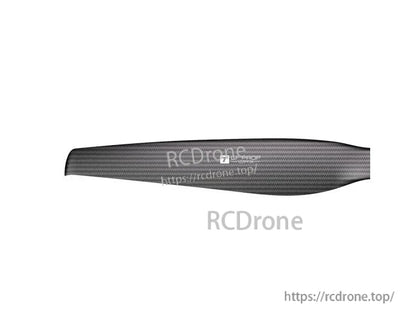

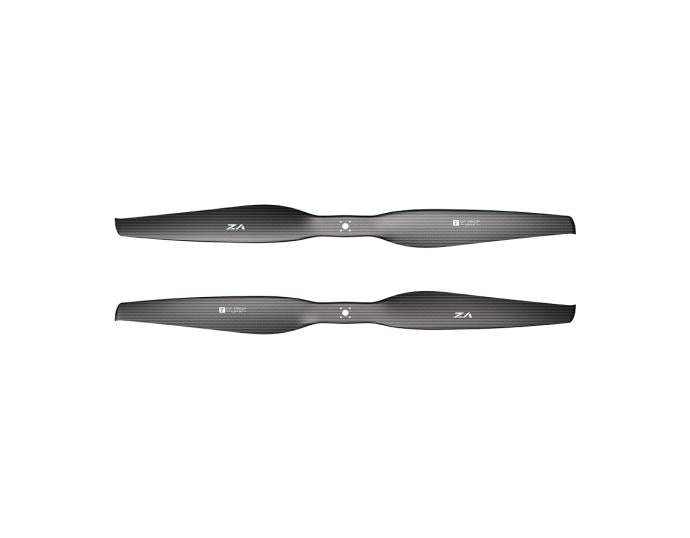

The VZ29x9.5 29-inch VTOL propeller features a carbon-fiber weave finish for a clean, professional fit on large fixed-wing VTOL builds.

The VZ29x9.5 VTOL propeller blade profile is shown with airflow direction arrows to help confirm correct rotation and mounting.

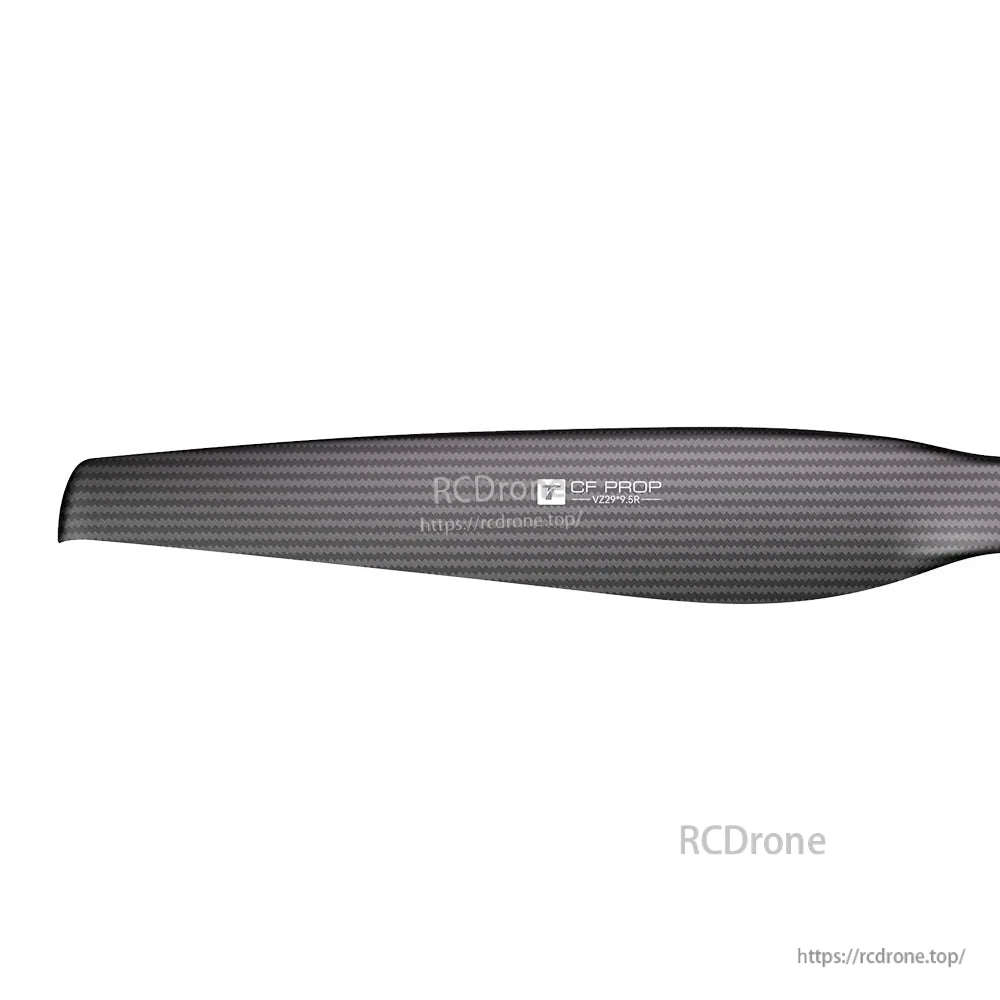

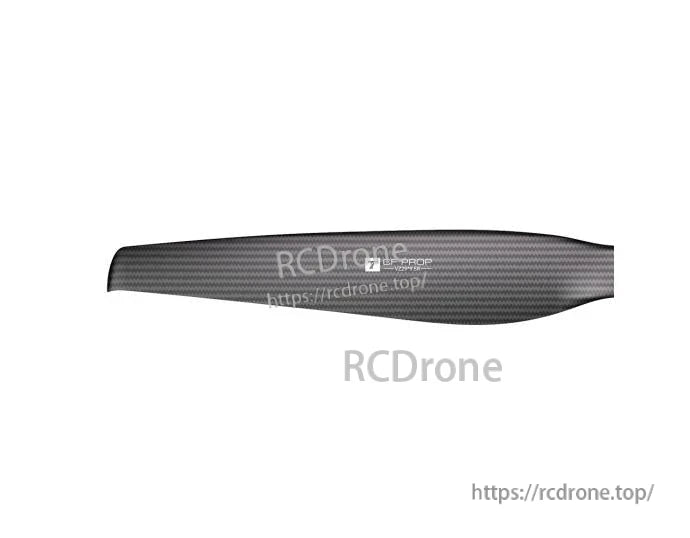

The T-Motor VZ29x9.5 VTOL propeller uses a long, tapered blade profile with a carbon-fiber weave finish for lightweight builds.

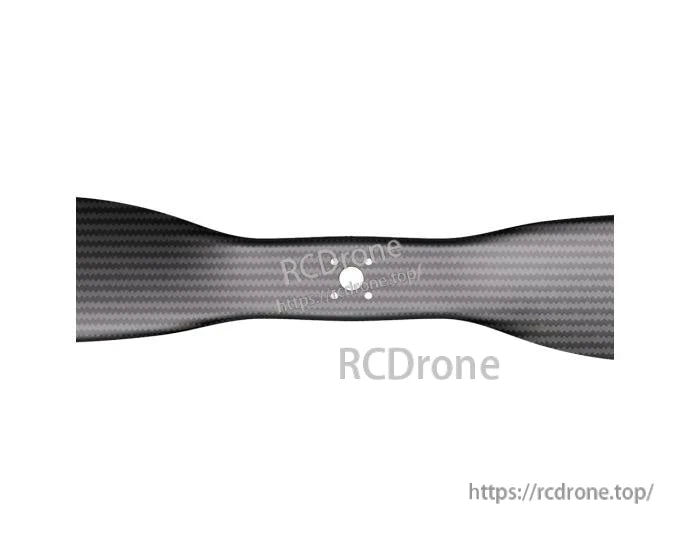

The VZ29x9.5 VTOL propeller uses a multi-bolt hub mounting pattern for secure installation on compatible motor adapters.

The VZ series VTOL propeller uses a multi-bolt hub mounting layout for secure attachment at the blade root.

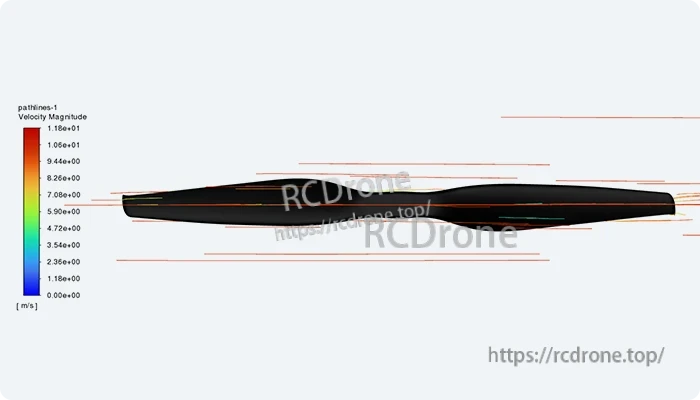

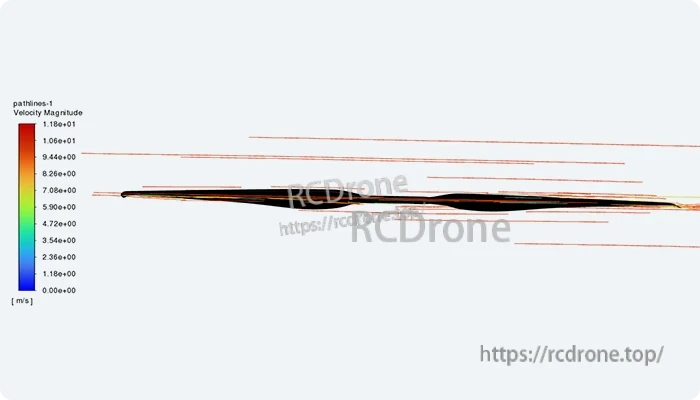

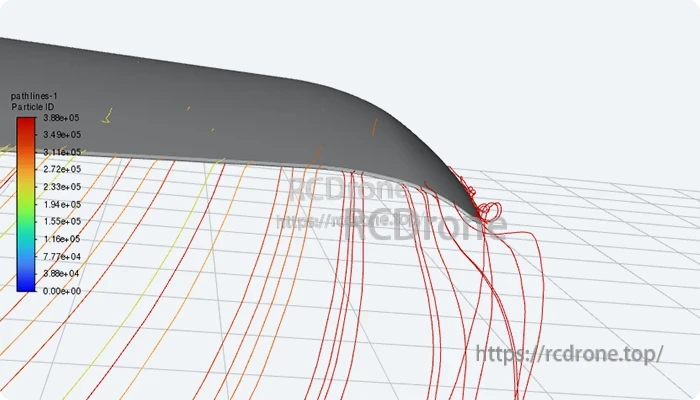

Airflow pathlines around the propeller blade help visualize how the VTOL prop design guides air along the span.

The T-Motor VZ29x9.5 29-inch VTOL propeller features an optimized blade profile designed for efficient airflow and stable thrust.

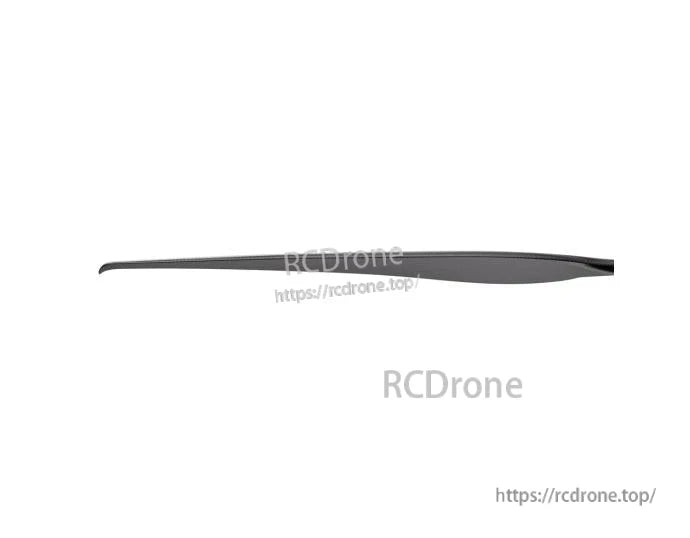

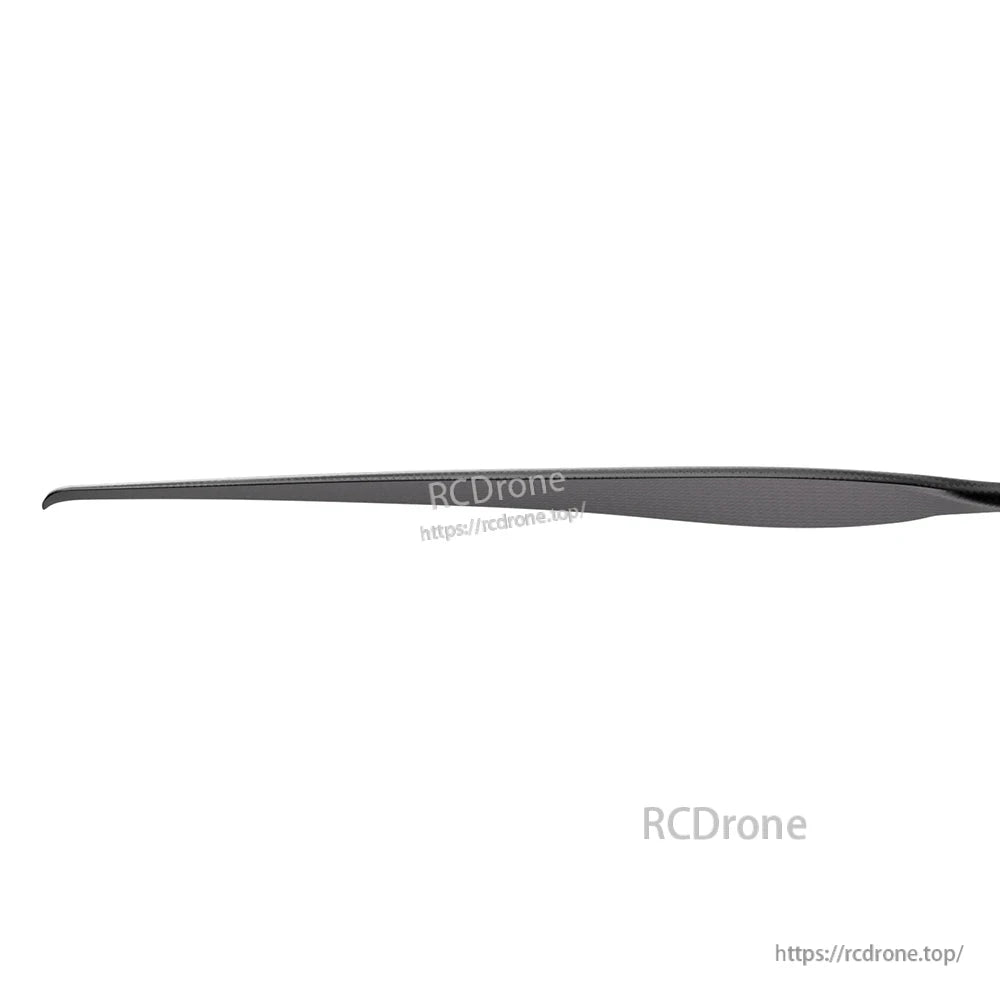

The T-Motor VZ29x9.5 propeller uses a curved airfoil profile with a tapered tip for VTOL propeller setups.

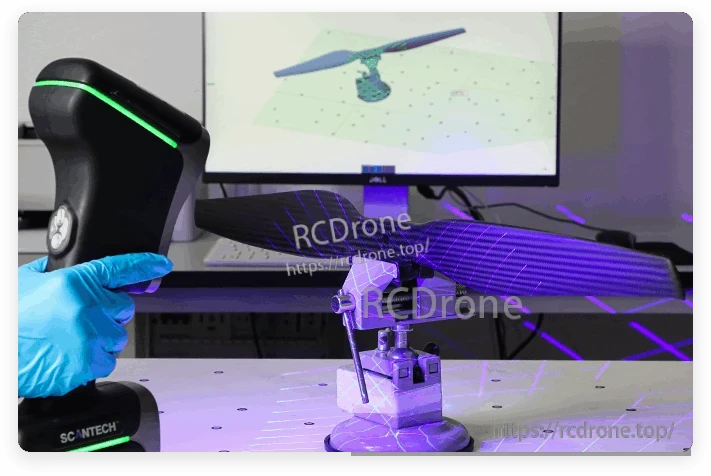

The T-Motor VTOL propeller can be mounted on a fixture while a handheld 3D scanner captures its blade geometry.

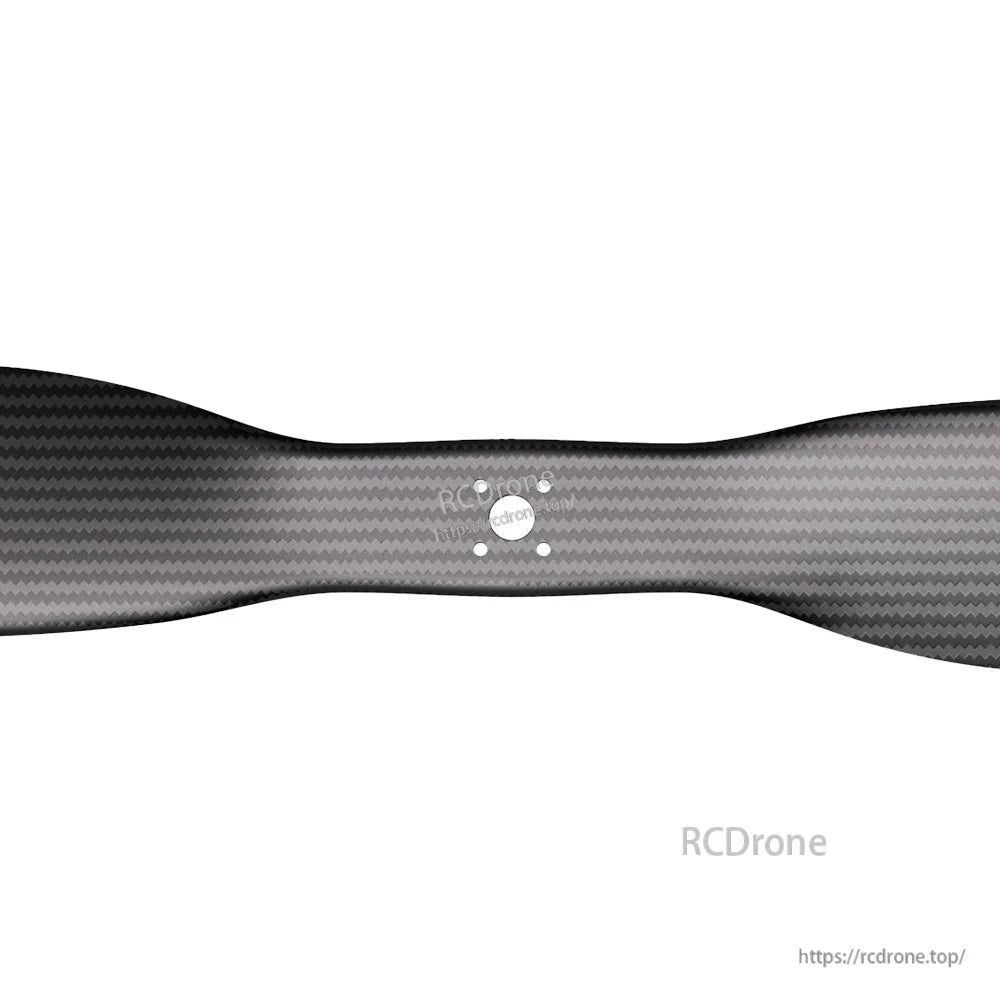

The VZ29x9.5 VTOL propeller uses a centered hub with a Ø10 mm bore and 4×Ø3 mm mounting holes for straightforward fitment.

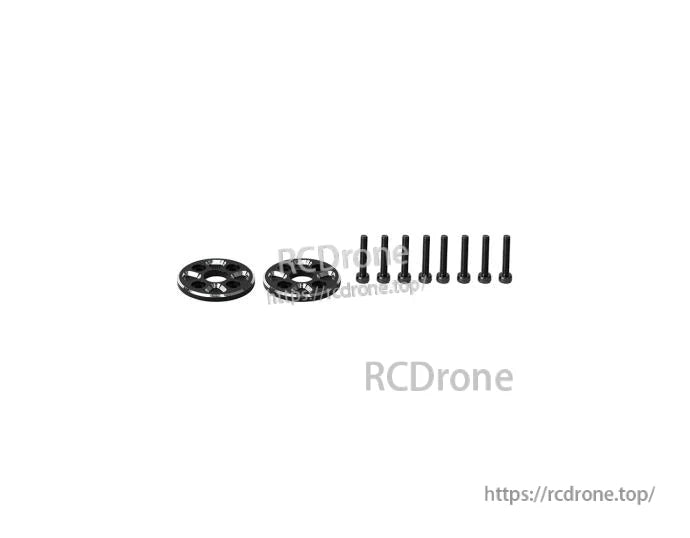

The VZ29x9.5 propeller set includes one CW and one CCW 29-inch blade plus two cover plates and eight M3×18mm socket head screws.
