Sub250 1804 2450KV 3450KV Ultra-light 2-4S Brushless Motor Suitable for 3.5-5 Inch FPV Drone

Sub250 1804 2450KV 3450KV Ultra-light 2-4S Brushless Motor Suitable for 3.5-5 Inch FPV Drone

Sub250

$26.74 USD
$26.74 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Ships From
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details
Feature

1. Lightweight design, only 13.g (13CM Wire)

2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.

3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely fast response speed.

4. High-strength motor structure, outstanding durability.

5. Compatible with 3.5-inch and 5-inch FPV drones



Specification：


Item: Sub250 1804-2450KV

Configuration: 12N14P

Magnet: N52H ARC

Stator Diameter: 18mm

Stator Height: 4mm

Shaft Diameter: Φ2mm(in)Φ1.5mm(out)

Size: Φ22.74mm*13.2mm

Lead Wires: 24#AWG 150mm

No. of Cells (LiPo) : 4-6S

Max Continuous Power(W) (3S): 452.2W

Max Current (5S) : 18.8A

Mounting Holes: 12mm x 12mm(M2 Screw)

Color: Dark + Green

Weight: 13.2 g （13CM Wire）

Suitable Quadcopter: 3″ whoop FPV, 3-5″ Freestyle & Long Range FPV



Item: Sub250 1804-3450KV

Configuration: 12N14P

Magnet: N52H ARC

Stator Diameter: 18mm

Stator Height: 4mm

Shaft Diameter: Φ2mm(in)Φ1.5mm(out)

Size: Φ22.74mm*13.2mm

Lead Wires: 24#AWG 150mm

No. of Cells (LiPo) : 2-4S

Max Continuous Power(W) (3S): 404.8W

Max Current (5S) : 25.3A

Mounting Holes: 12mm x 12mm(M2 Screw)

Color: Dark + Green

Weight: 13.2 g （13CM Wire）

Compatible with 3.5-inch and 5-inch FPV drones


Includes

1 x Sub250 1804 Motor

5 x M2*6mm Screw

5 x M2*8mm Screw

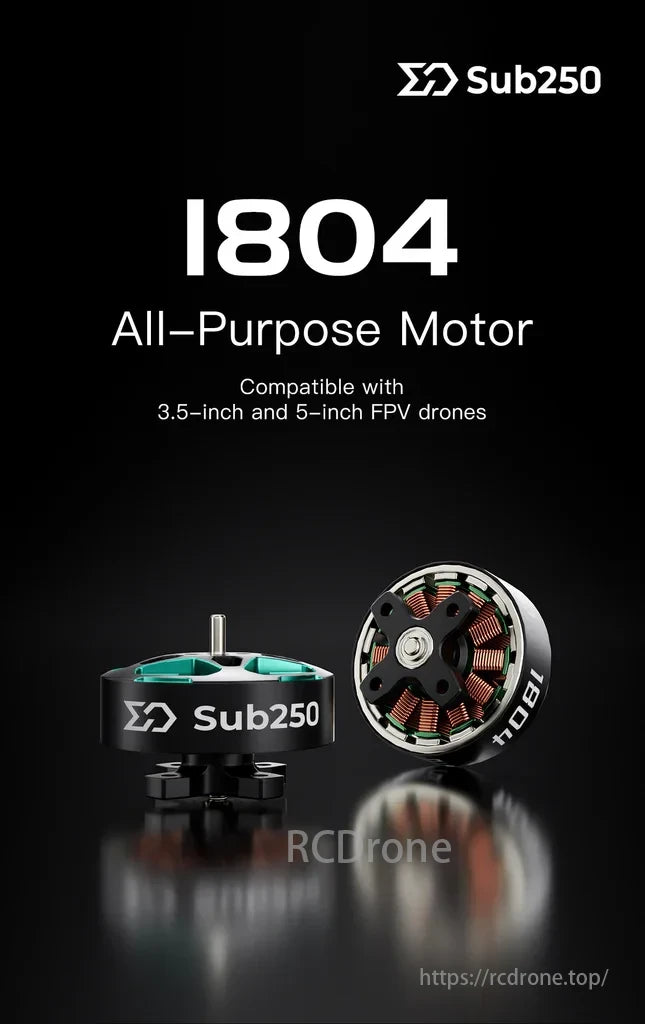

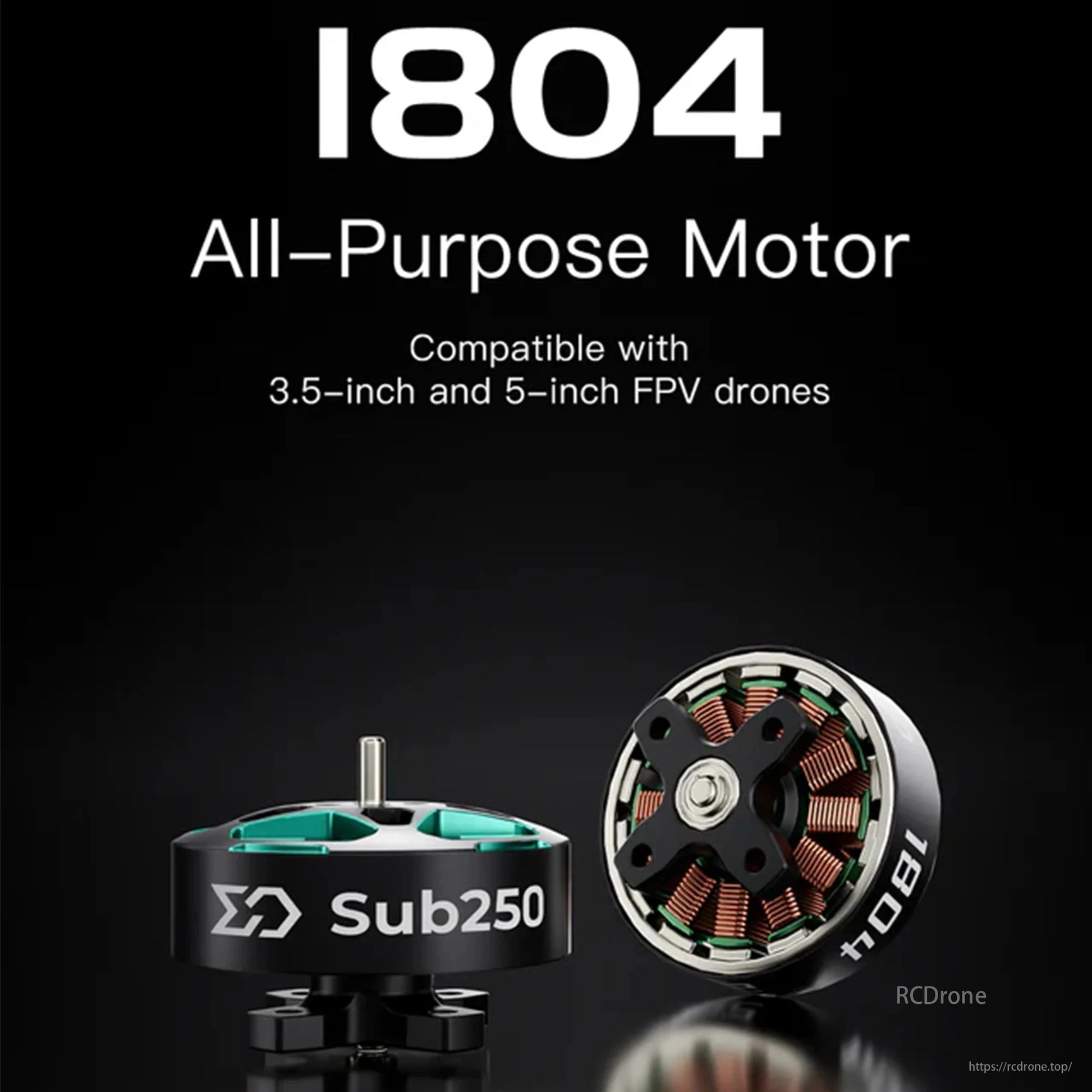

Sub250 Brushless Motor, Sub250 I804 All-Purpose Motor for FPV drones.

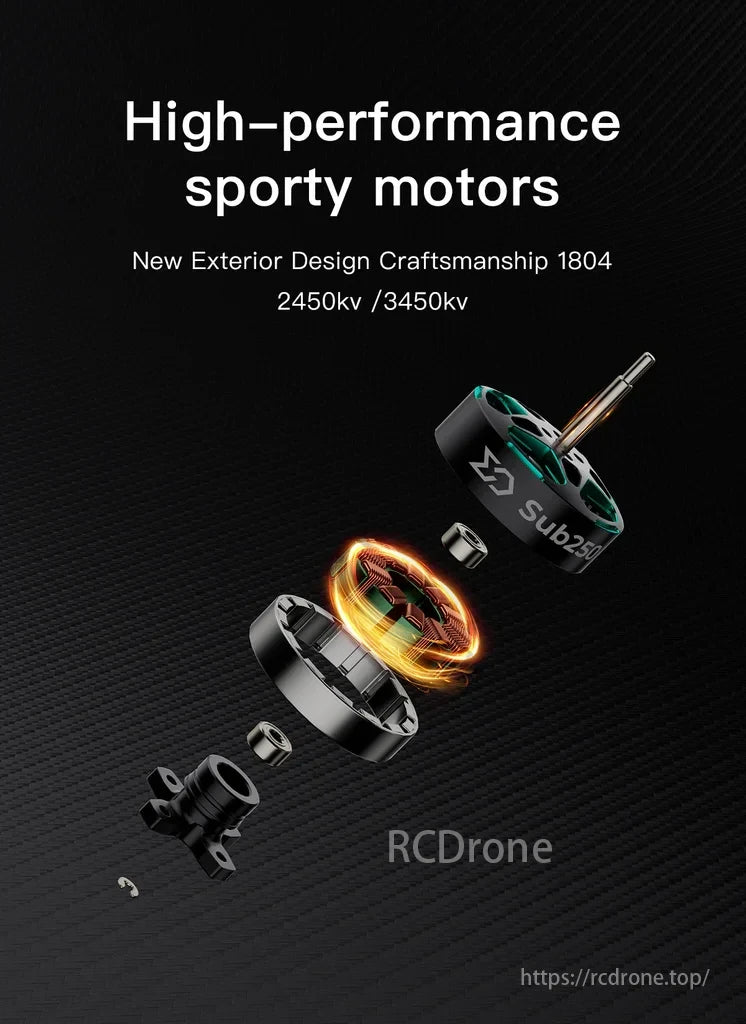

Sub250 Brushless Motor, High-performance 1804 motors with new design, Sub250 branding, available in 2450kv and 3450kv options.

High-performance sporty motors with new exterior design craftsmanship 1804. Available in 2450kv and 3450kv options, featuring Sub250 branding.

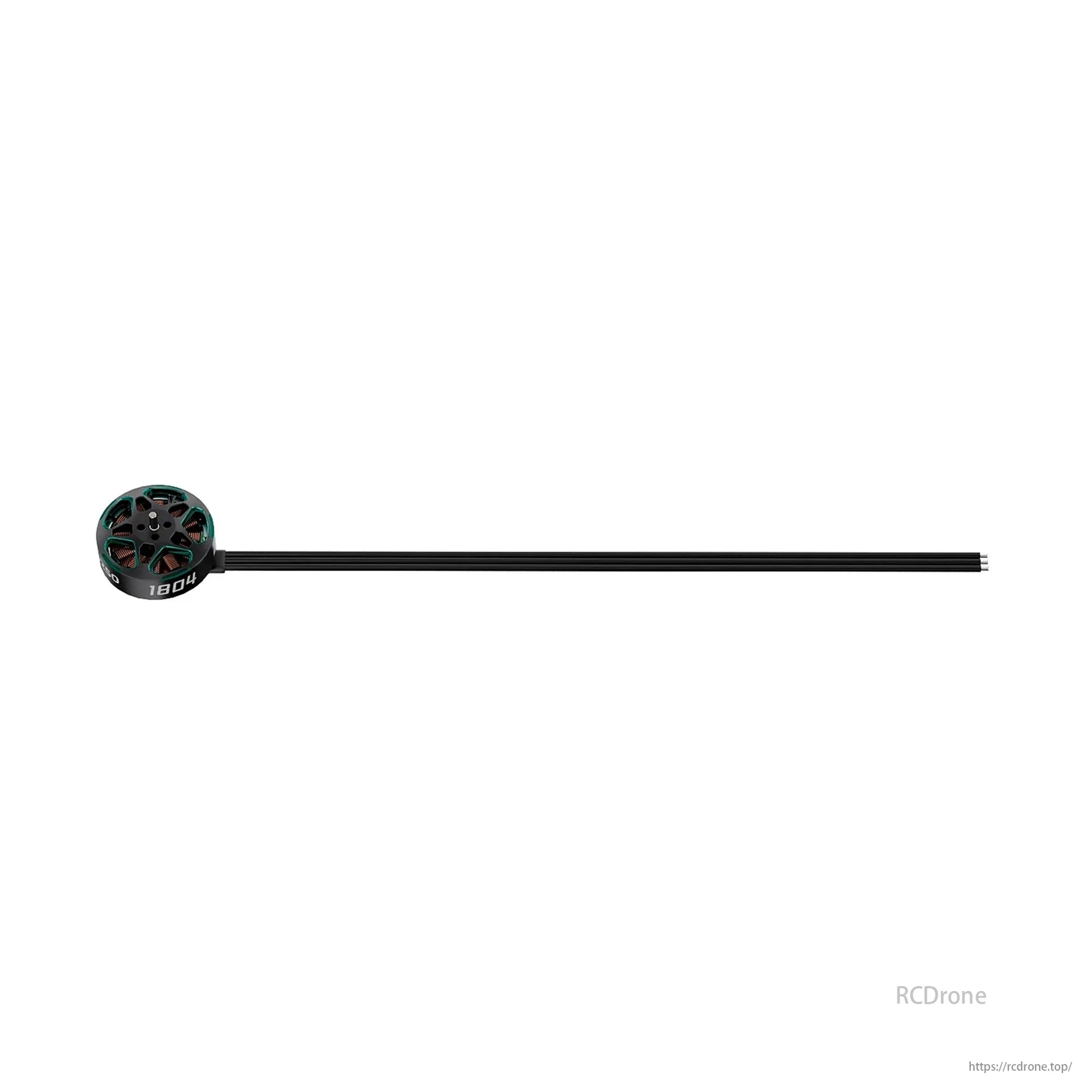

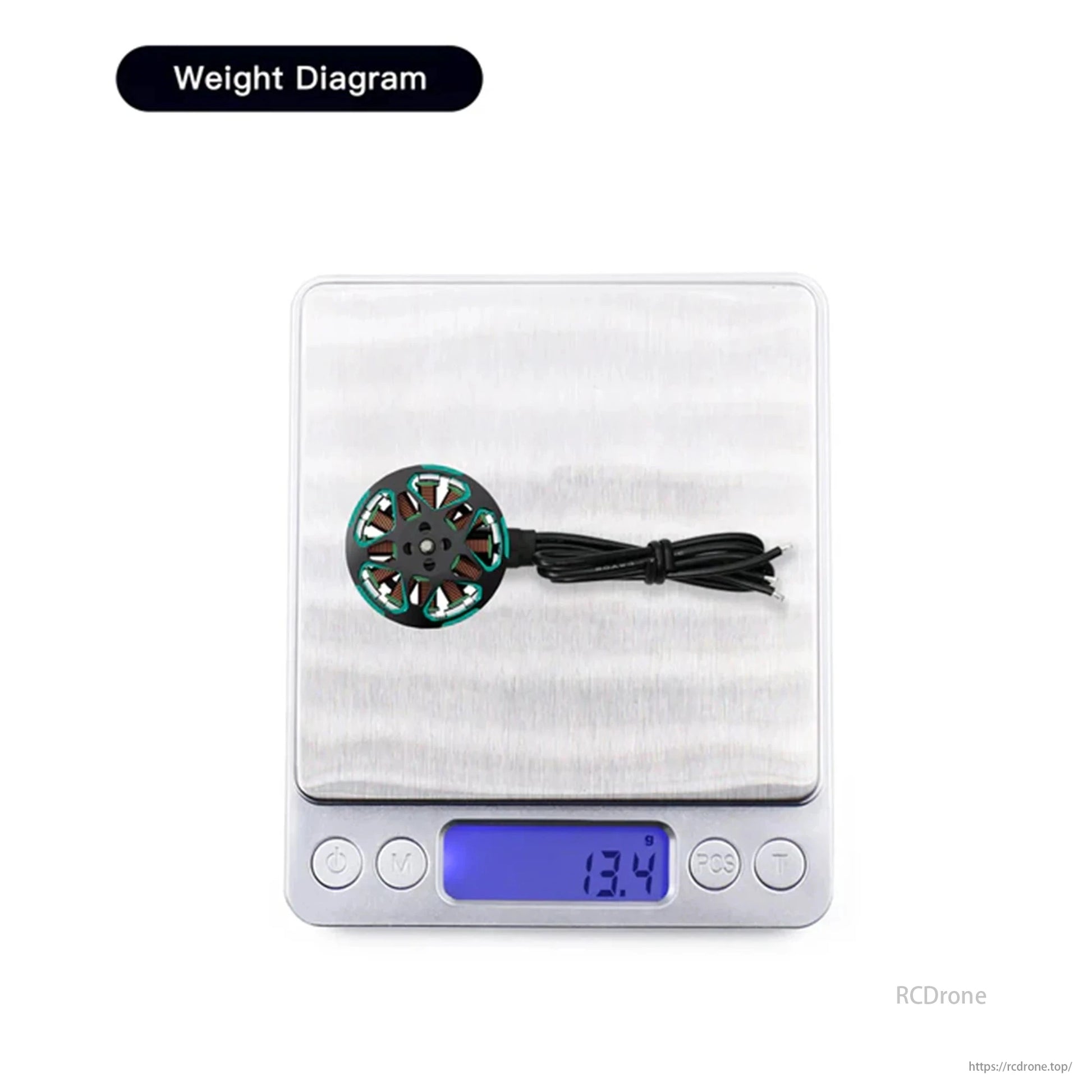

The Sub250 brushless motor, weighing 13.4g with wires, features a sleek black and teal design.

Ultra-light Sub250 brushless motor, 13.4g with wire, boasts sleek black and teal design.

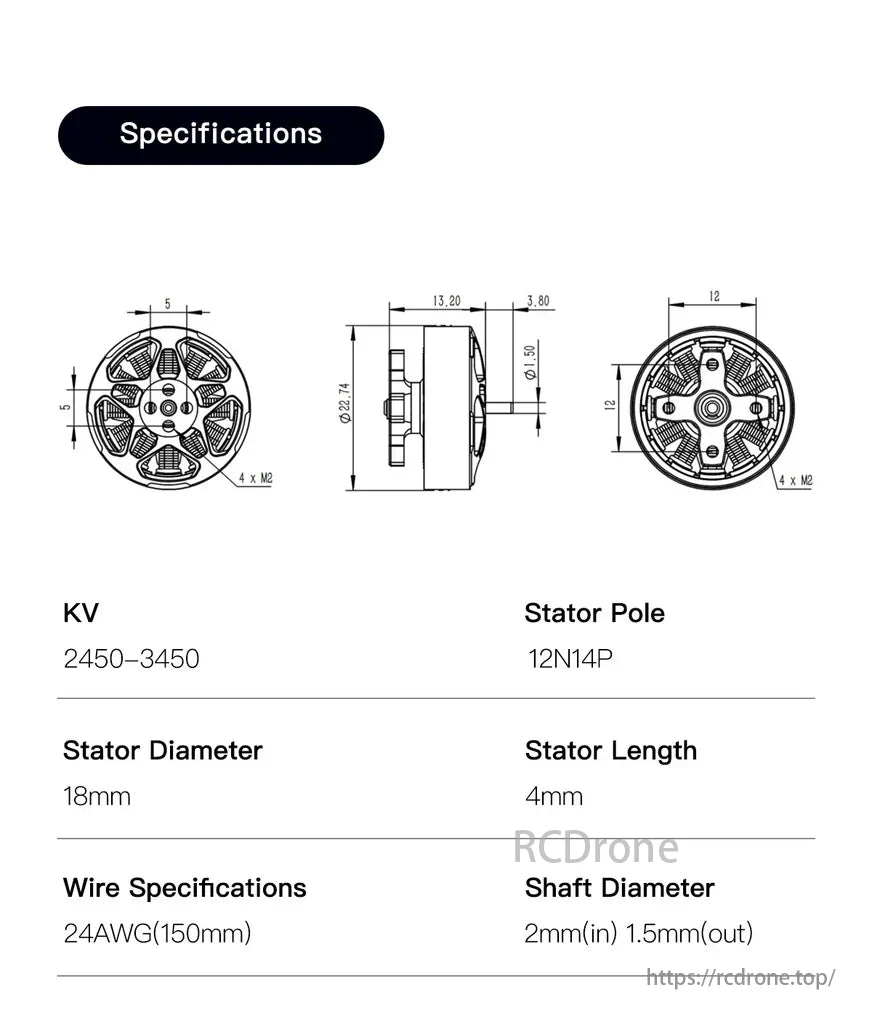

Sub250 brushless motor features: KV 2450-3450, 12N14P stator, 18mm diameter, 4mm length, 24AWG wire, 2mm/1.5mm shaft diameters.

Sub250 Brushless Motor: KV 2450-3450, 12N14P stator, 18mm diameter, 4mm length, 24AWG wire, 2mm/1.5mm shaft diameters.

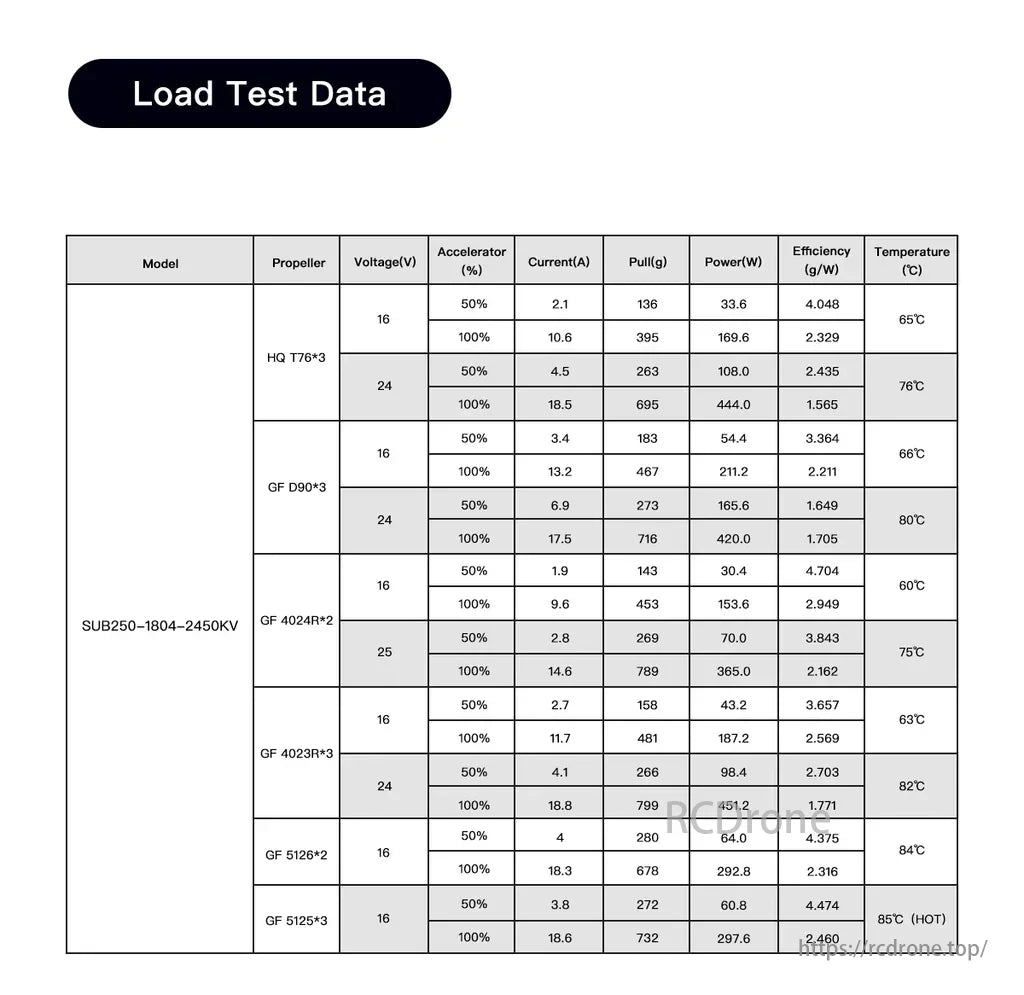

Sub250 Brushless Motor, Sub250-1804-2450KV motor test data includes voltage, current, pull force, power, efficiency, and temperature for different propellers at 50% and 100% throttle.

Sub250-1804-2450KV motor load test data includes voltage, accelerator percentage, current, pull force, power, efficiency, and temperature for various propellers at 50% and 100% settings.


Sub250 Brushless Motor, Motor data for HQ T76*3 and GF D90*3 propellers includes voltage, current, power, efficiency, and temperature in a structured table.

Motor data includes voltage, current, power, efficiency, and temperature for propellers (HQ T76*3, GF D90*3) in a structured table.

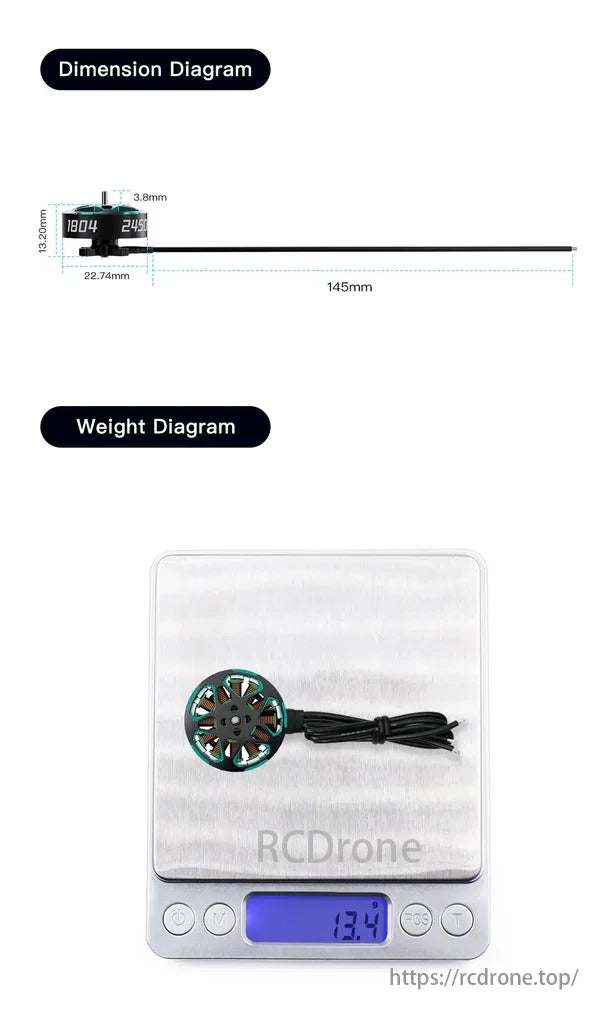

Sub250 Brushless Motor dimensions: 145mm x 22.74mm, weight: 13.4 grams. Ideal for miniature drones and RC projects.

Sub250 Brushless Motor dimensions: 145mm length, 22.74mm width; weight: 13.4 grams.

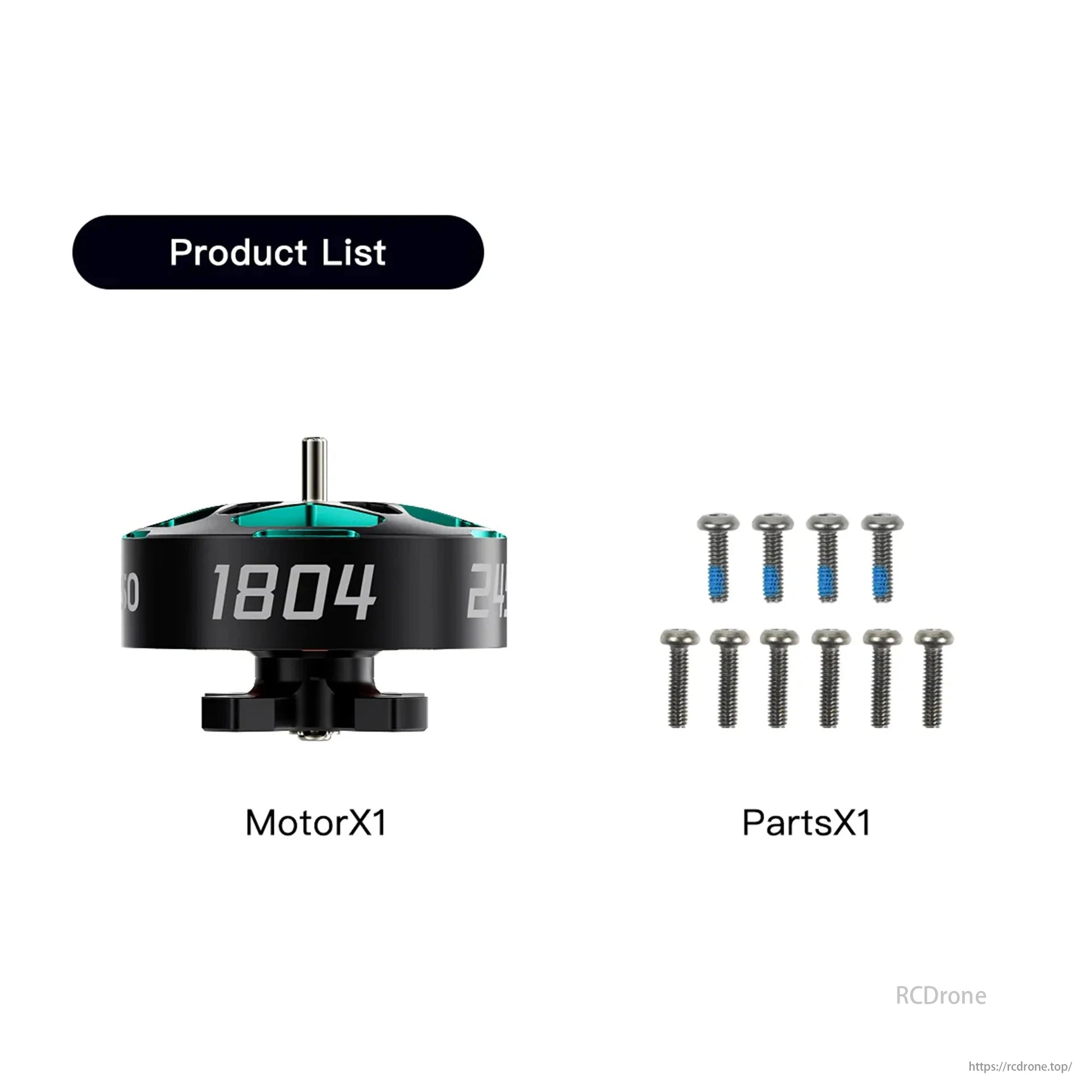

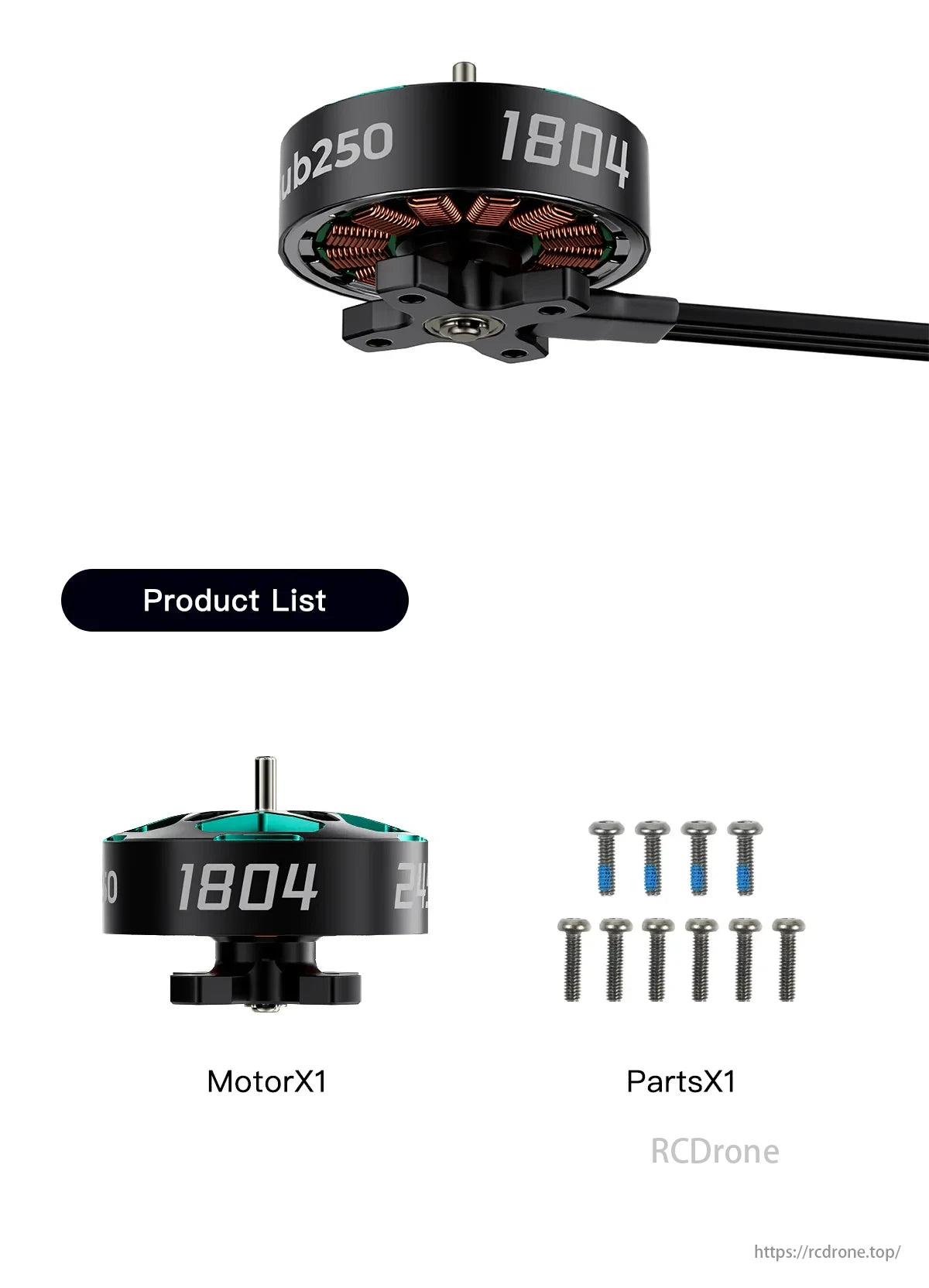

Sub250 Brushless Motor 1804 product list includes MotorX1, PartsX1 with screws; compact design for efficiency.

Sub250 Brushless Motor 1804 product list includes MotorX1 and PartsX1 with screws. Compact design for efficiency.
