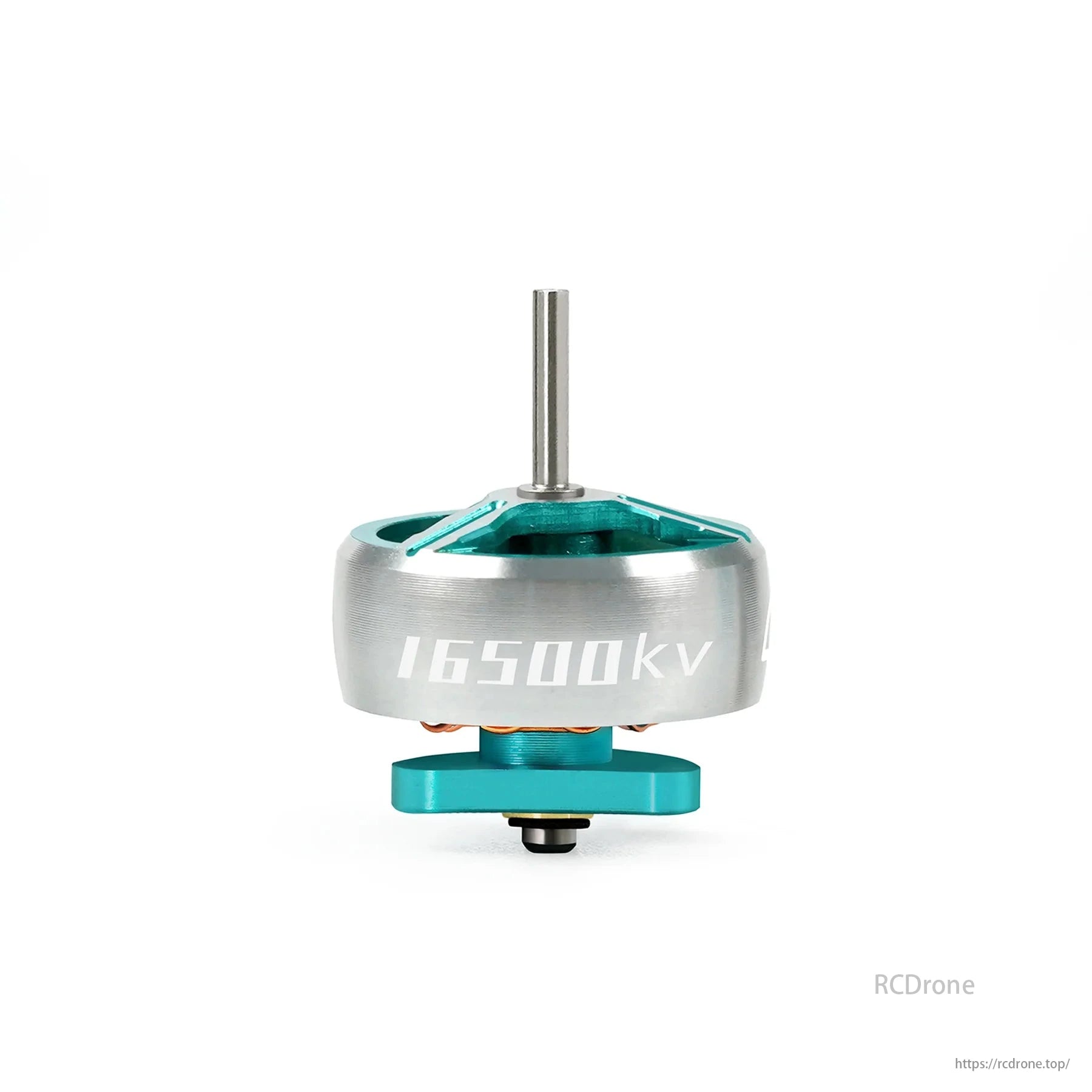

Sub250 M1 0803 1S Brushless Motor for 1.6" FPV Drone – 16500KV (1.0mm) / 19000KV (1.5mm)

Overview

The Sub250 M1 0803 Series is a lightweight, high-efficiency brushless motor line designed for 1.4" to 1.6" 1S micro FPV drones. Weighing just 2.2g, it offers exceptional thrust-to-weight ratio and reliability, making it perfect for toothpick builds and tight-space freestyle flying. Available in two variants, each optimized for specific use cases:

• 16500KV with 1.0mm shaft: Ideal for flexible prop compatibility, low-vibration setups, and general-purpose indoor builds.

• 19000KV with 1.5mm shaft: Built for aggressive flying styles and racing drones like the Nanofly16, offering stronger durability and higher RPM performance.

Both models feature a 9N12P stator, N52H magnets, and custom low-loss winding for maximum efficiency with minimal heat.

Key Features

• Super lightweight: only 2.2g per motor

• Two performance-tuned variants:

  • 16500KV with 1.0mm shaft – versatile, fits more props

  • 19000KV with 1.5mm shaft – more rigid, built for speed

• Designed for 1S LiPo setups (4.2V)

• Supports 1.4" to 1.6" propellers

• Durable 9N12P stator with high-temp copper windings

• High-efficiency design: low heat, consistent power

• Perfect match for frames like Sub250 Whoopfly16, Nanofly16

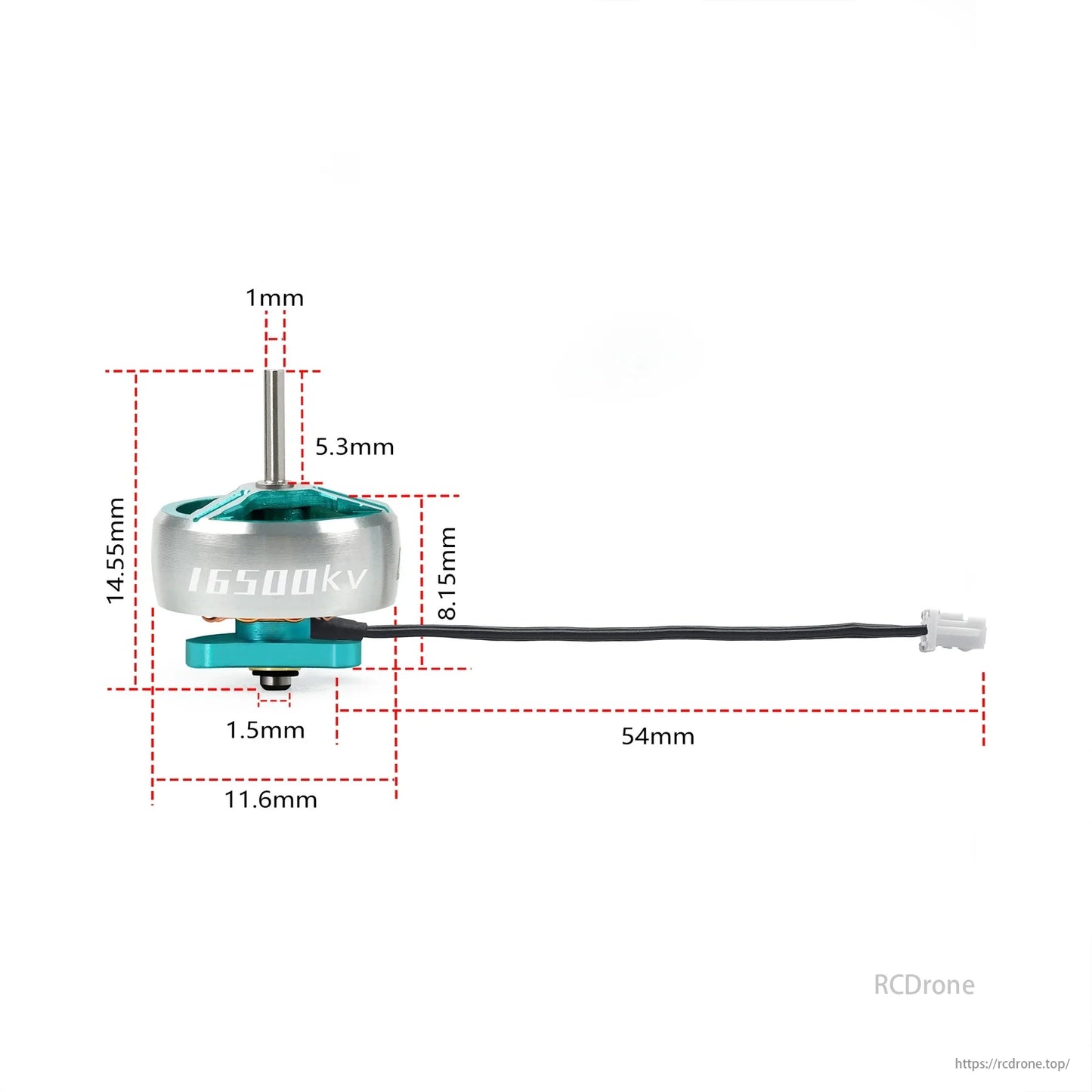

Technical Specifications

Package Options

Single Motor Includes

• 1 × M1 0803 Motor (Select KV/Shaft version)

• 4 × M1.4×3mm Mounting Screws

4-Pack Includes

• 4 × M1 0803 Motors (Same KV/Shaft version)

• 16 × M1.4×3mm Mounting Screws
