Sunnysky Motor X2212 980KV/1250KV/KV1400/2450KV 2-4S Brushless Motor (Short shaft) For RC Multi-rotor Aircraft Aerobatic Quadcopter

Sunnysky X2212 980KV/1250KV/KV1400/2450KV 2-4S Brushless Motor (Short shaft)

Sunnysky X2212 KV980 Motor:
Stator Diameter: 22mm;
Stator Thickness: 12mm;
No. Of Stator Slots: 12;
No. Of Rotor Poles: 14;
Motor KV:980;
No-load Current (A/10V): 0.6A;
Motor Resistance: 92mΩ；
Max Continuous Current: 26A/30S;
Max Continuous Power: 385W;
Weight: 57g;
Rotor Diameter: 27.5mm;
Body Length: 30mm;
Max Lipo Cell: 3-4S;
ESC: 20-30A;
Recommend Pro(Inch): APC8038/APC1047/APC1038/APC9047/APC9045;
Suitable For Multi-rotor Single Shaft Weight: 400g 3-4S 1038\1047;
Suitable For Multi-rotor Single Shaft Weight: 500g(4S 8038\8043\8045\9047);
Trainer (Suitable For Trainer Weight): 750g 3S 1047;
Suitable For 3D Aircraft Weight: 550g(3S 1047);

Sunnysky X2212 KV1250 Motor:
Stator Diameter: 22mm;
Stator Thickness: 12mm;
No. Of Stator Slots: 12;
No. Of Rotor Poles: 14;
Motor KV:1250;
No-load Current (A/10V): 0.8A;
Motor Resistance: 54mΩ；
Max Continuous Current: 35A/30S;
Max Continuous Power: 518W;
Weight: 59g;
Rotor Diameter: 27.5mm;
Body Length: 30mm;
Max Lipo Cell: 3-4S;
ESC: 30-40A;
Recommend Pro(Inch): APC9047/APC9060/APC8060/APC7060;
Aerobatic(Suitable For Aerobatic Weight): 750g (3S 9047\9060\9045\8060);
Suitable For 3D Aircraft Weight: 550g(3S 9047\9045);

Sunnysky X2212 KV1400 Motor:
Stator Diameter: 22mm;
Stator Thickness: 12mm;
No. Of Stator Slots: 12;
No. Of Rotor Poles: 14;
Motor KV:1400;
No-load Current (A/10V): 1A;
Motor Resistance: 43mΩ；
Max Continuous Current: 35A/30S;
Max Continuous Power: 560W;
Weight: 57g;
Rotor Diameter: 27.5mm;
Body Length: 30mm;
Max Lipo Cell: 3-4S;
ESC: 30-40A;
Recommend Pro(Inch): APC9047/APC9045/APC8038/APC7060/APC8060;
Aerobatic(Suitable For Aerobatic Weight): 750g (3S 9047\9045\8060) (4S 7060);

Sunnysky X2212 KV2450 Motor:
Stator Diameter: 22mm;
Stator Thickness: 12mm;
No. Of Stator Slots: 12;
No. Of Rotor Poles: 10;
Motor KV:2450;
No-load Current (A/10V): 1.6A/10V;
Motor Resistance: 32mΩ；
Max Continuous Current: 40A/30S;
Max Continuous Power: 450W;
Weight: 57g;
Rotor Diameter: 27.5mm;
Shaft Diameter: 3.175mm;
Body Length: 30mm;
Max Lipo Cell: 2-3S;
ESC: 40A;
Recommend Pro(Inch): APC6040;
Weight For Tail-pushed Aerobatics: 550g(3S 6040);

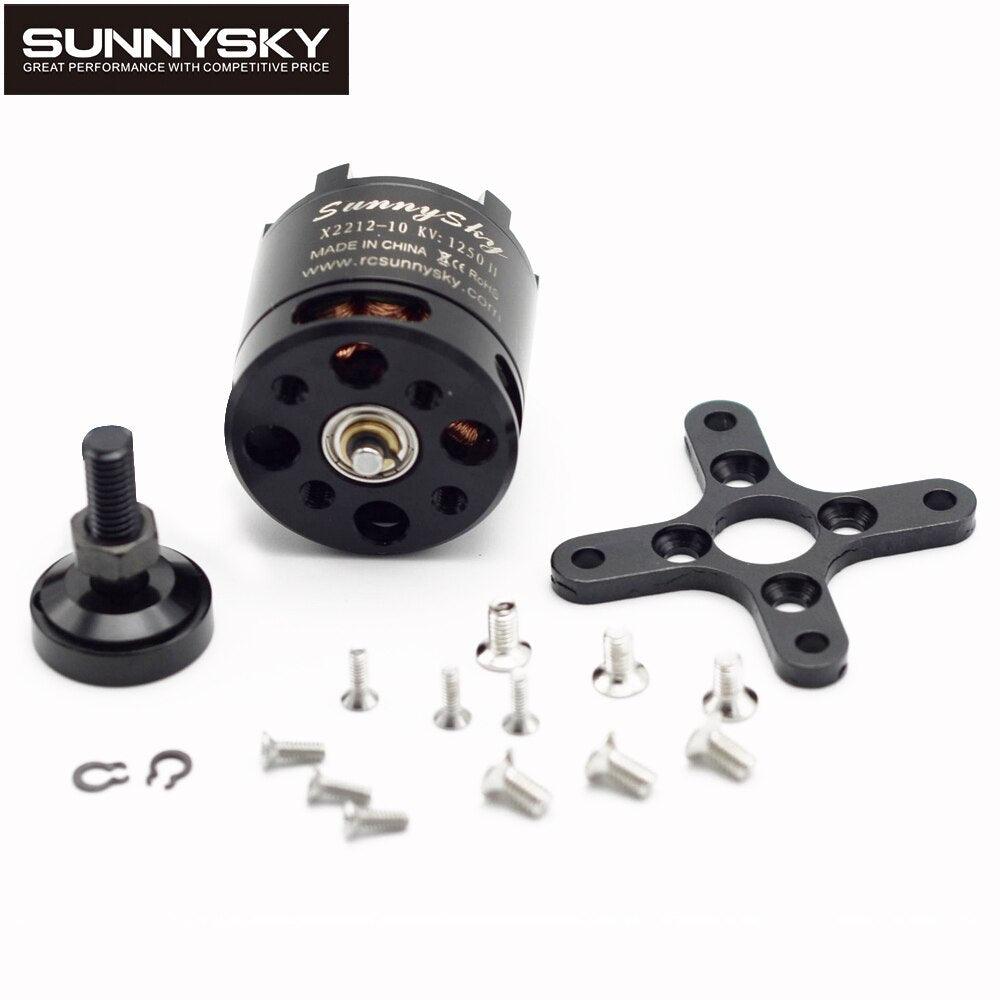

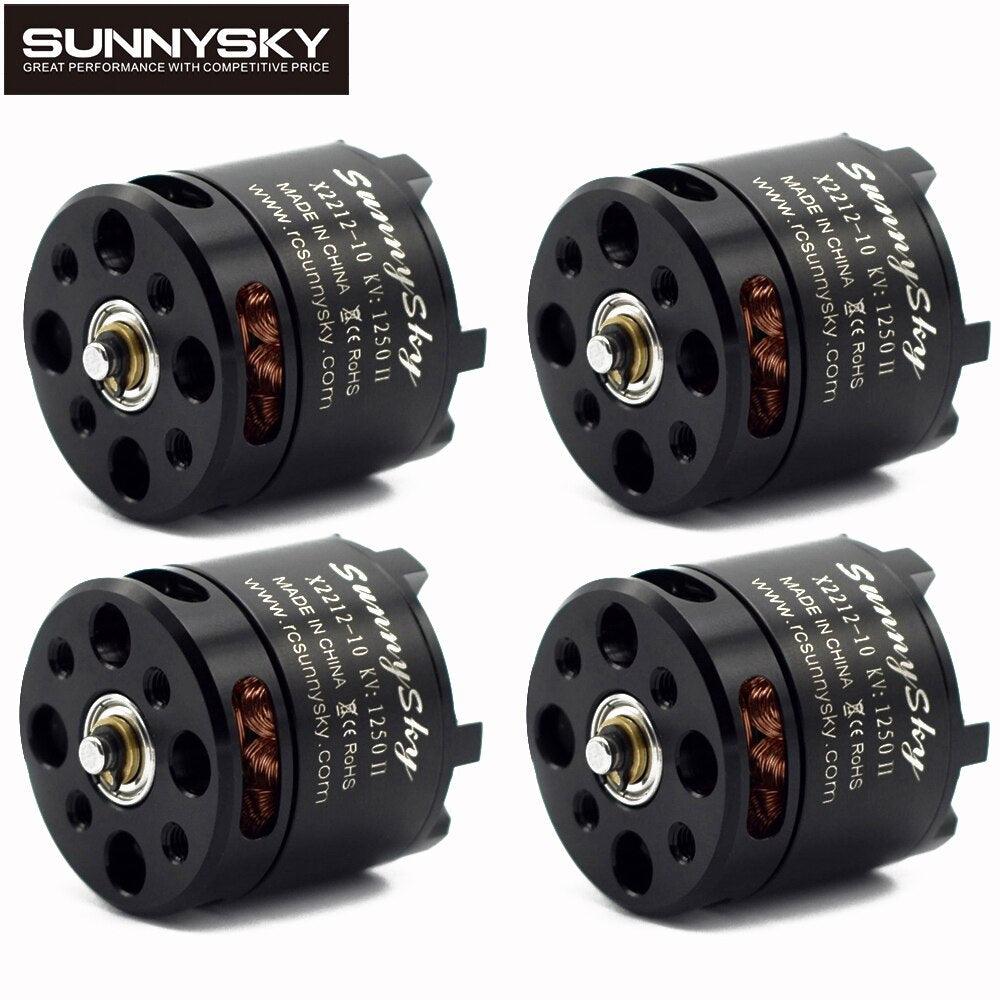

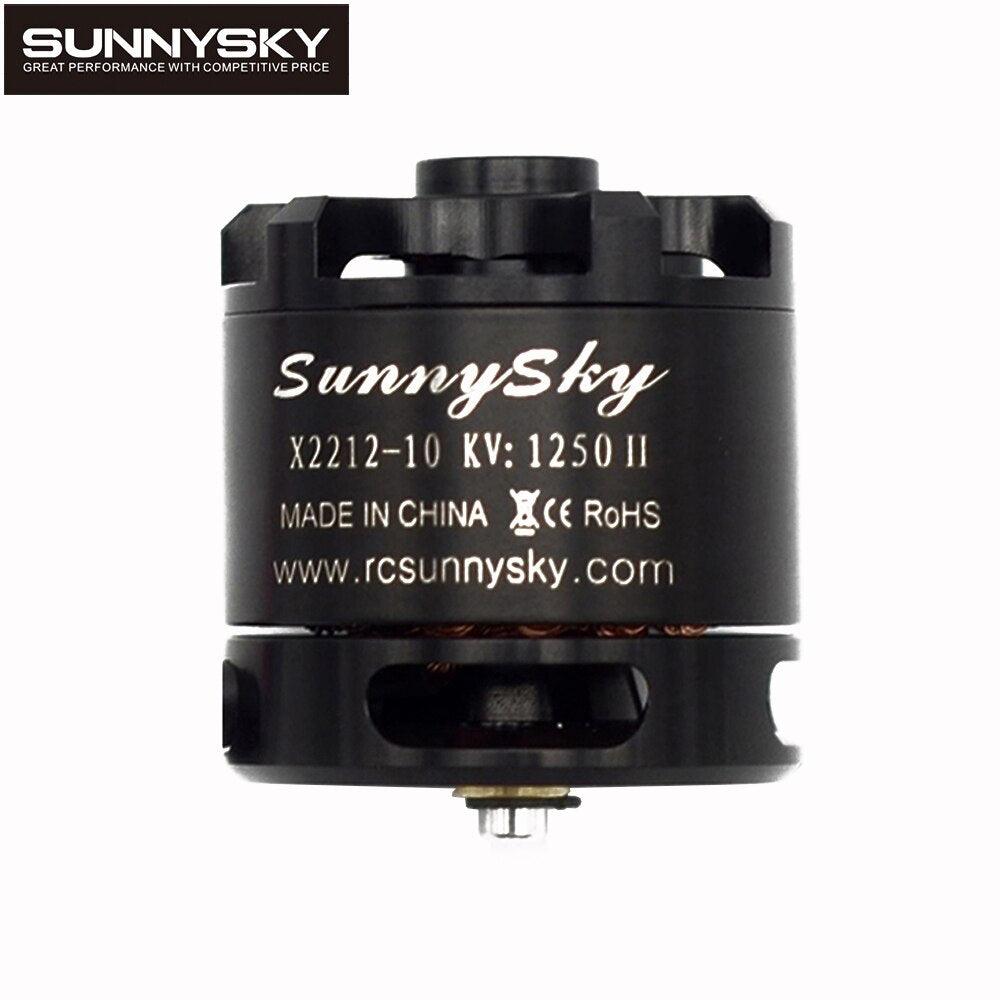

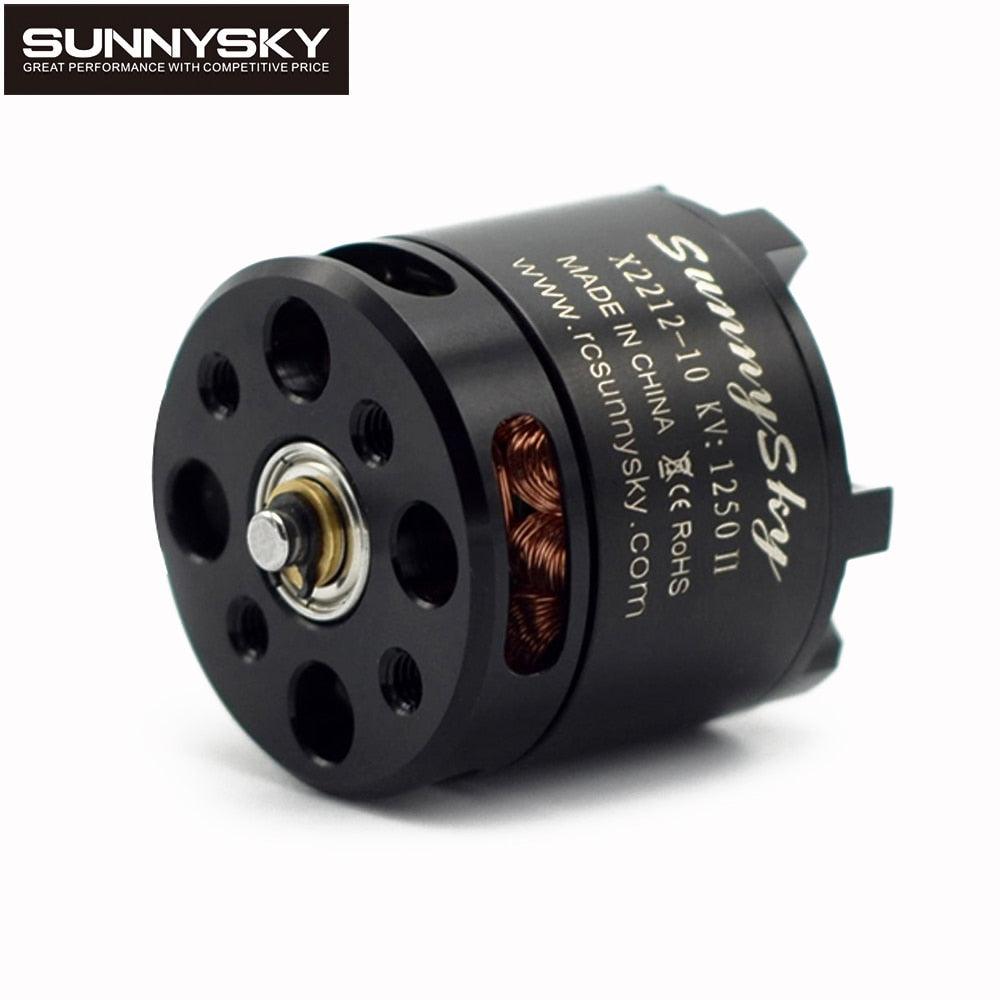

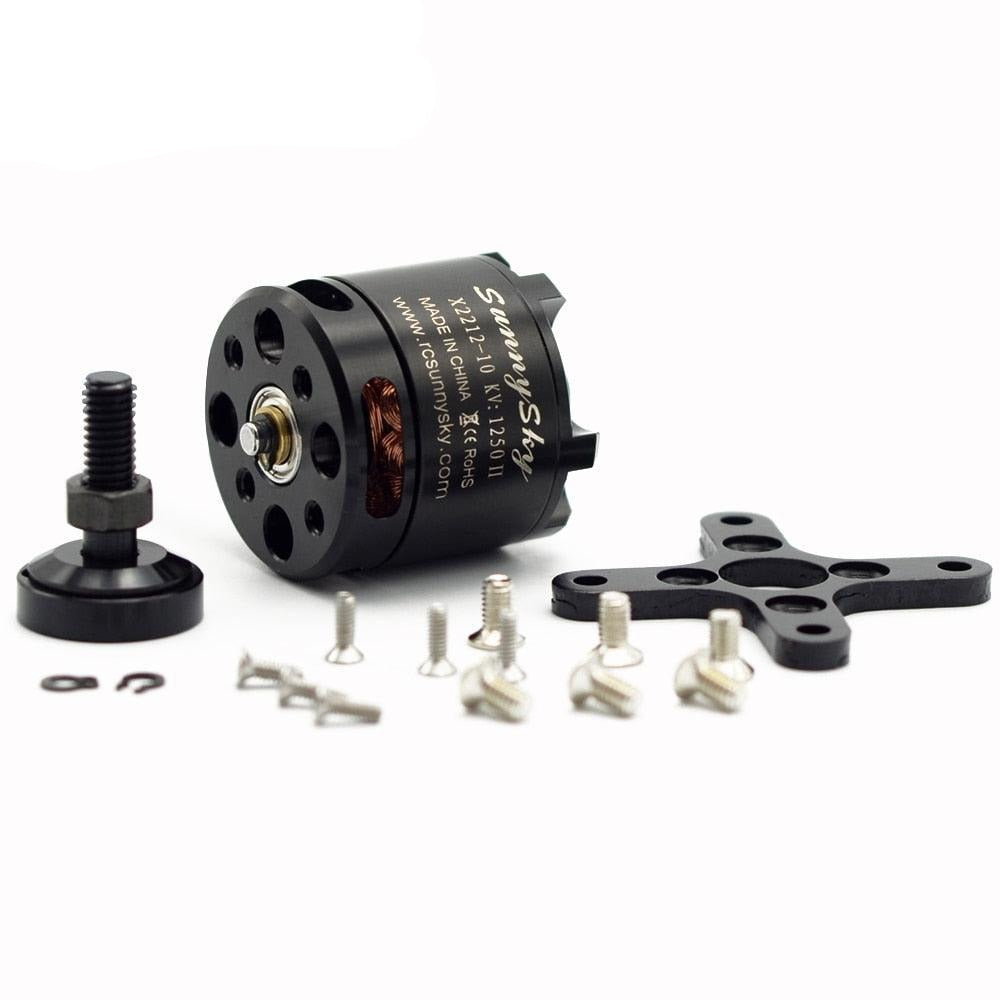

SunnySky presents a great performance brushless motor, model X2212-10 JN C2 (5411852), with a KV rating of 1250.

Introducing Sunnysky's Great Performance, a competitively priced motor that offers excellent value for its performance. The X2212-10 model features 1250KV and is made in China.
