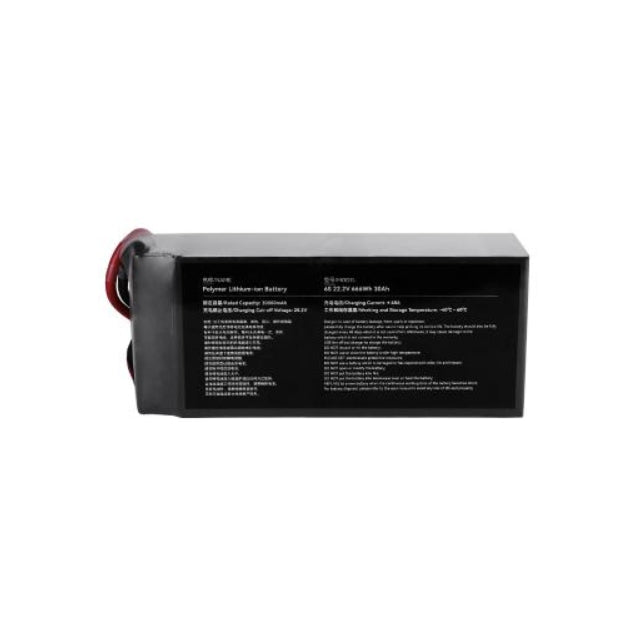

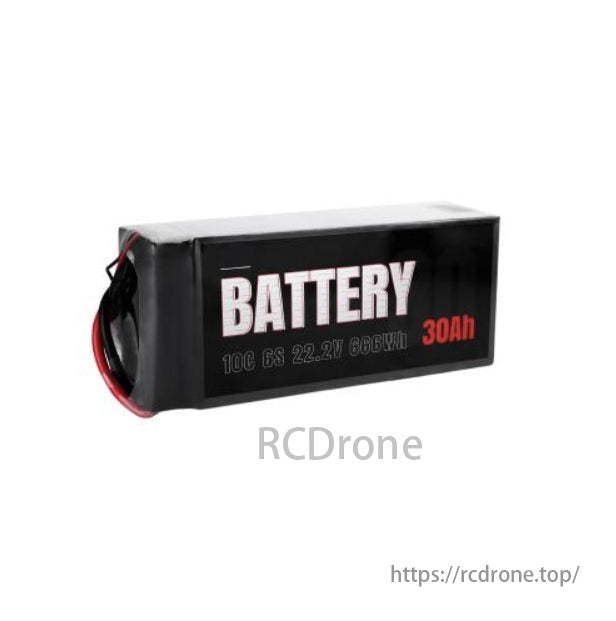

T-Drones 6S 22.2V 30Ah Solid-State Li-ion Drone Battery
T-Drones 6S 22.2V 30Ah Solid-State Li-ion Drone Battery
T-Drones
Couldn't load pickup availability
Overview
The T-Drones 6S 22.2V 30Ah Solid-State Li-ion Battery is engineered for professional UAV applications, offering a high energy-to-weight ratio, extended flight endurance, and improved efficiency. Designed specifically for multi-rotor and VTOL drones, this solid-state lithium-ion battery provides consistent power output and long operational life, making it ideal for demanding aerial missions such as surveying, mapping, inspections, and agricultural operations.
With 30Ah capacity, 666Wh energy output, and a 10C continuous discharge rate, this battery ensures stable, high-performance operation while keeping overall drone weight manageable. It also features extended temperature tolerance, making it suitable for diverse environments and harsh conditions.
Key Features
- High Energy Efficiency: 30Ah capacity and 666Wh energy output for extended UAV flight times.
- Solid-State Li-ion Technology: Enhanced safety, energy density, and longevity over traditional LiPo alternatives.
- Optimized Weight-to-Capacity Ratio: Designed for long-endurance flights while minimizing payload impact.
- 10C Continuous Discharge Rate: Delivers a steady 150A power output for stable drone performance.
- Temperature Resilience: Operates in extreme environments with a discharge range of -40°C to 60°C.
- Long Cycle Life: Maintains optimal performance for 500+ charge cycles, reducing replacement costs.
Specifications
| Parameter | Details |
|---|---|
| Model | T-Drones 6S 30Ah |
| Nominal Voltage | 22.2V |
| Operating Voltage | 25.2V - 16.5V |
| Capacity | 30Ah |
| Energy | 666Wh |
| Size (T × W × L) | 59mm × 88mm × 215mm |
| Weight | 2290g |
| Energy Density | 291 Wh/kg |
| Charging Current (Max) | 60A (2C) |
| Continuous Discharge (Max) | 150A (10C) |
| Operating Temperature | Charging: 0°C - 45°C / Discharging: -40°C - 60°C |
| Cycle Life | ≥500 cycles |
Why Choose the T-Drones 6S 30Ah Battery?
- Optimized for Professional UAVs: Ideal for surveying, mapping, inspections, and agriculture drones, ensuring stable, extended operation.
- Reliable Power Output: The 10C continuous discharge rate provides consistent, high-efficiency performance, reducing voltage drops.
- Compact & Lightweight Design: High energy density (291Wh/kg) helps drones achieve longer flight durations without excessive weight.
- Temperature Tolerance for Any Mission: Reliable performance in extreme cold (-40°C) and high-heat (60°C) environments.
- Long-Lasting Battery Life: 500+ charge cycles ensure low maintenance costs and extended operational lifespan.
Designed for endurance-focused UAV operations, the T-Drones 6S 30Ah battery offers industry-leading power efficiency, safety, and durability, making it an essential upgrade for commercial and industrial drone applications.
Image Details
High performance: High energy density improves battery performance, stores more power, extends endurance. T-DRONES Battery offers higher energy density with the same specifications compared to other batteries.
Smaller and lighter battery saves device space, enhancing design flexibility and adaptability for various applications.
LONGEVITY LIFE. It carries out up to 500+ complete charging and discharging cycles, maintaining high capacity and performance after multiple cycles.
Parameter list for 6S batteries with capacities from 22000mAh to 36000mAh. Nominal voltages range from 21.9V to 22.2V, operating voltages from 16.5V to 25.5V. Sizes and weights vary, with energy densities between 271Wh/kg and 313Wh/kg. Charging currents up to 60A, continuous discharge up to 180A. Cycle life exceeds 500 times.
