Please contact us before you you make purchase of our ARMSET.

AND inform us the color and rotation

CW rotation, red LED:

CCW rotation, red LED:

CW rotation, green LED:

CCW rotation, green LED:

Tube size:

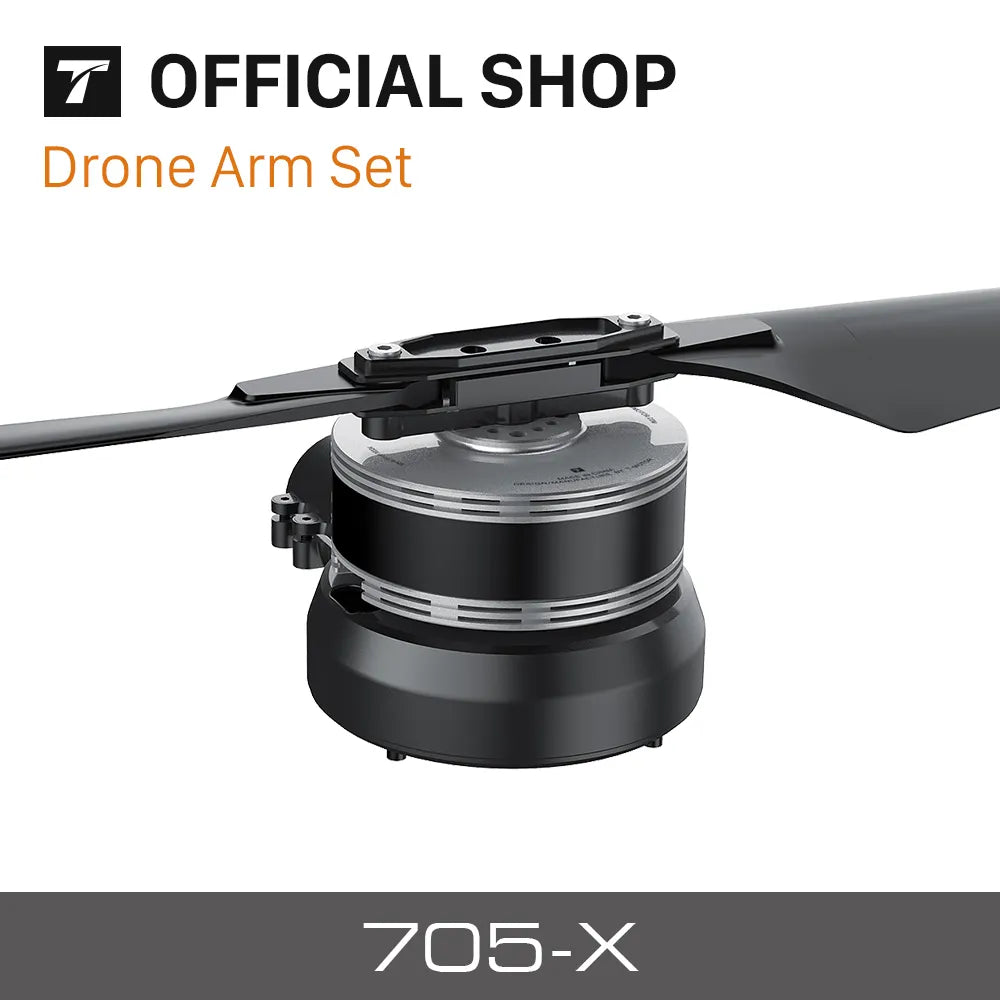

T-MOTOR  705-X Arm Set Details

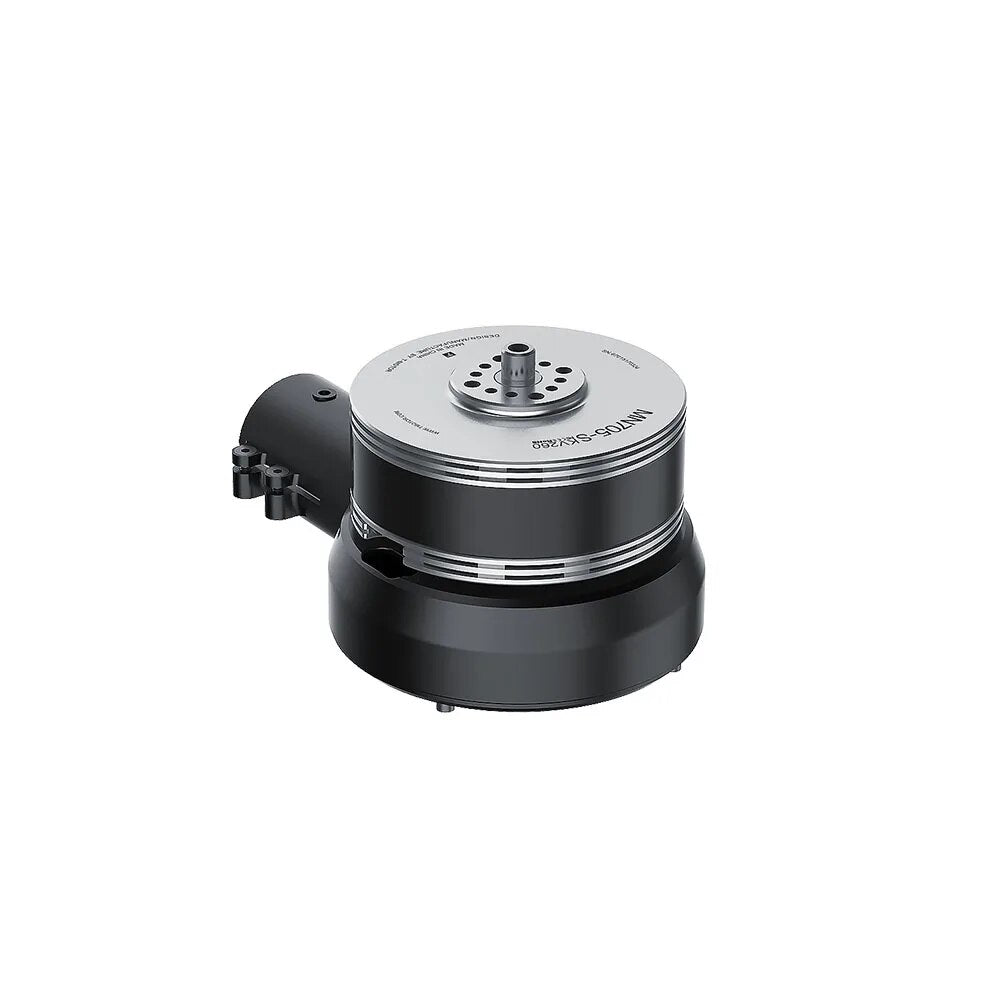

X-standard This is an arm set series for industrial drones with motors, FOC ESCs and X-carbon props integrated in one. ( The tube sizes available are 30mm and 25mm with an adapter ring to switch from one to another.)

T-Motor different series Arm Set

50-X MOTOR MN501-S MN505-S ESC Alpha 60A HV Alpha 40A LV Alpha 60A LV Polymer Folding Propeller 15", 20", 18", 22", 18"

60-X MOTOR MN601-S MN605-S ESC Alpha 60A HV Alpha 60A LV Polymer Folding Propeller 20", 22"

70-X MOTOR MN701-S MN705-S Polymer Folding Propeller 24", 26" ESC Alpha 80A HV Round

U8-X MOTOR U8II U8Lite ESC Alpha 60A HV Alpha 60A LV Polymer Folding Propeller 28"

Smart and Efficient

FOC (sine wave) ESCs are default match for the arm sets. The efficient, accurate and stable motor control from intelligent algorithm meets the demand of various applications. (T-MOTOR square wave ESCs are available for custom arm sets) KIN505-S 5/230 GEOLICIOSONS

High RPM, High Efficiency, Strong Power

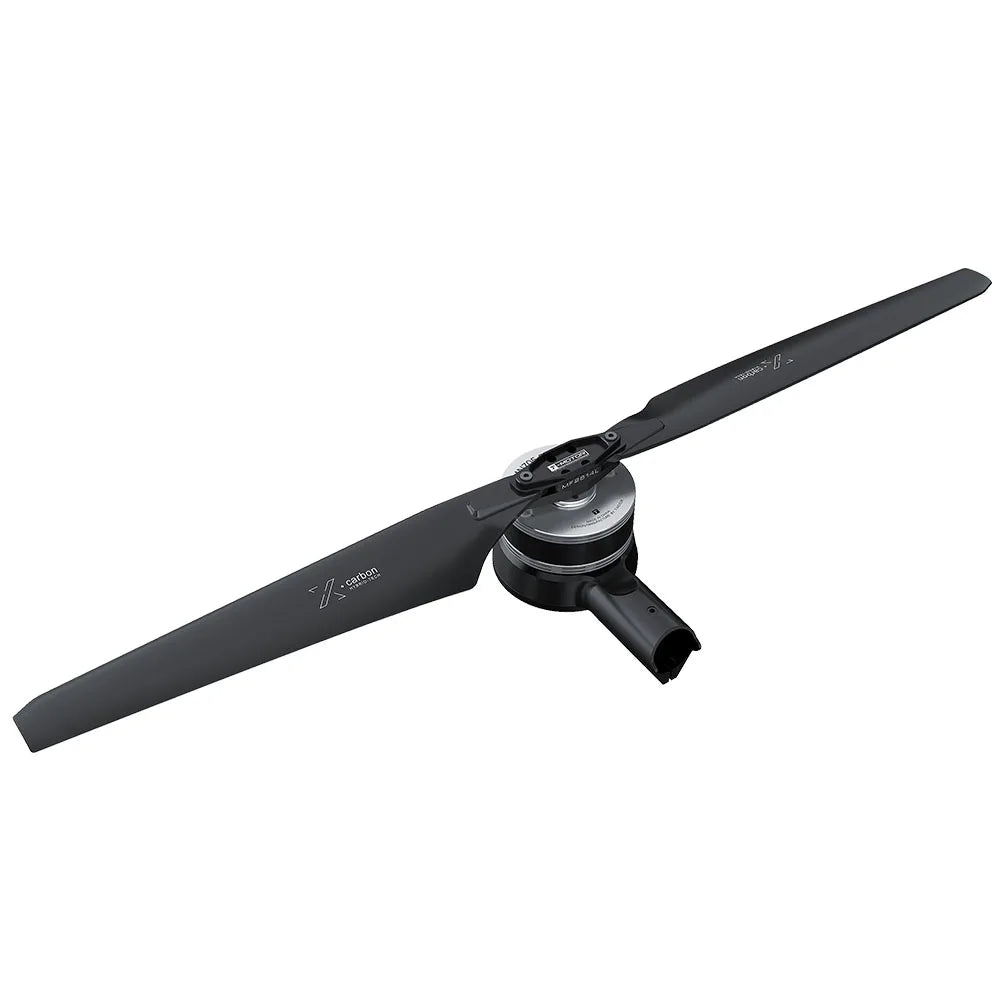

X• carbon is a new patent polymer folding prop series of high RPM, high efficiency, and strong power. (X• carbon props are the default match. Other props from T-MOTOR are available) carbien

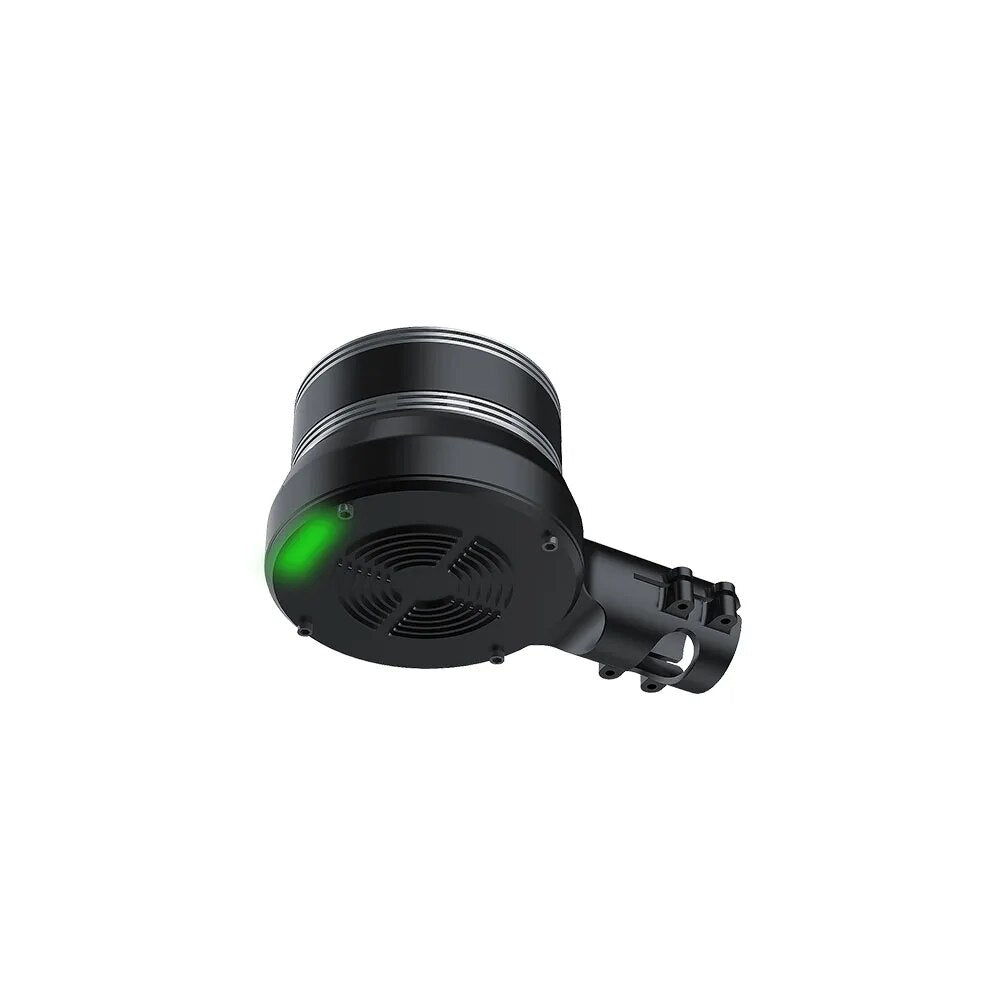

LED light

LED light The built-in LED light for better maneuverability.

Convenient installation Free of complicated mounting process

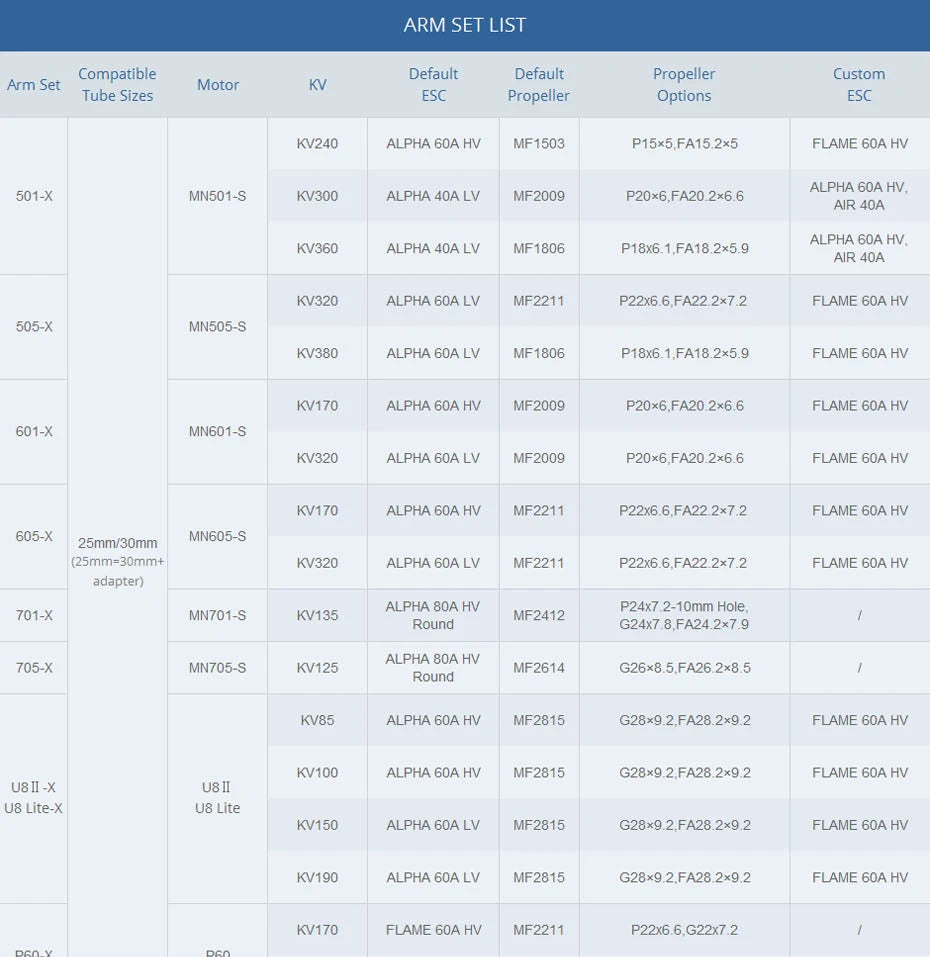

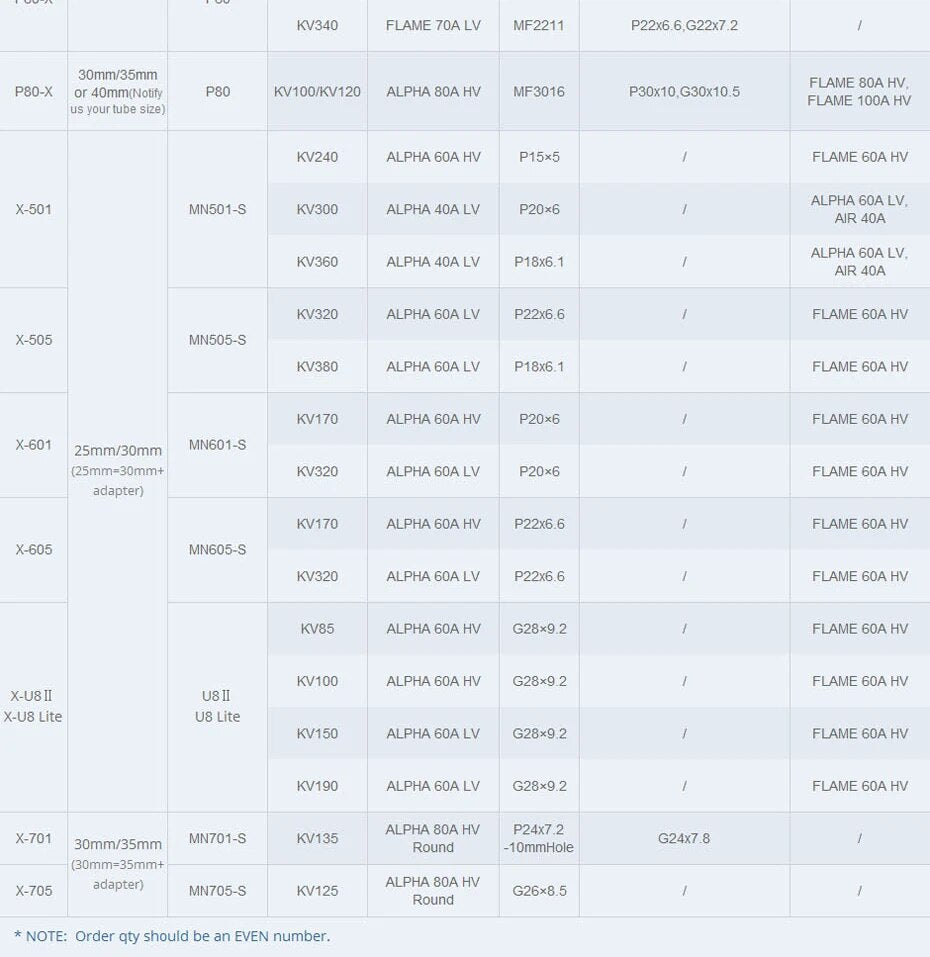

ARM SET LIST Compatible Default Default Propeller Custom Arm Set Motor Tube Sizes ESC Propeller Options ESC KV240 ALPHA G0A HV MF1503 P1sx5 FA15.2x5 FAZO 2*6 .6 FLAME .60a HV 605-X 25mn1/30mm MN6O5-S (25mm-30mmt)

This motor and ESC combo fits tubes with sizes of 25mm, 30mm, or 35mm. For your tube size, use KV340 FLAME LV MF2211 P22x6.6 for 30mm/35mm tubes, KV240 ALPHA 60A HV for 25mm tubes, or X-501 MN705S for all three sizes.
