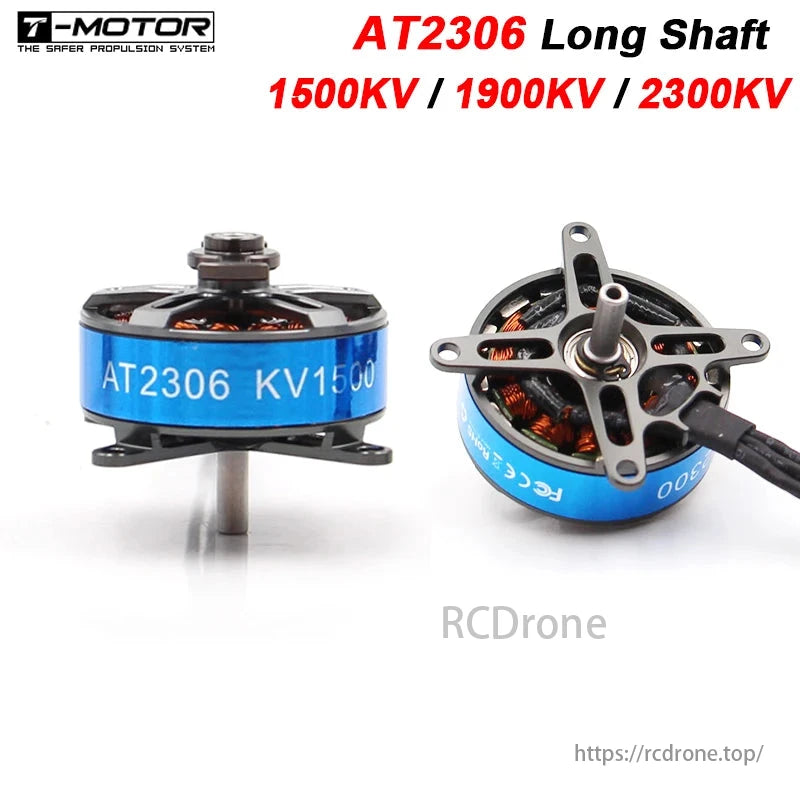

  • T-motor, T-MOTOR AT2306 brushless motor, 1500KV/1900KV/2300KV, perfect for RC F3P 3D/4D fixed-wing models.

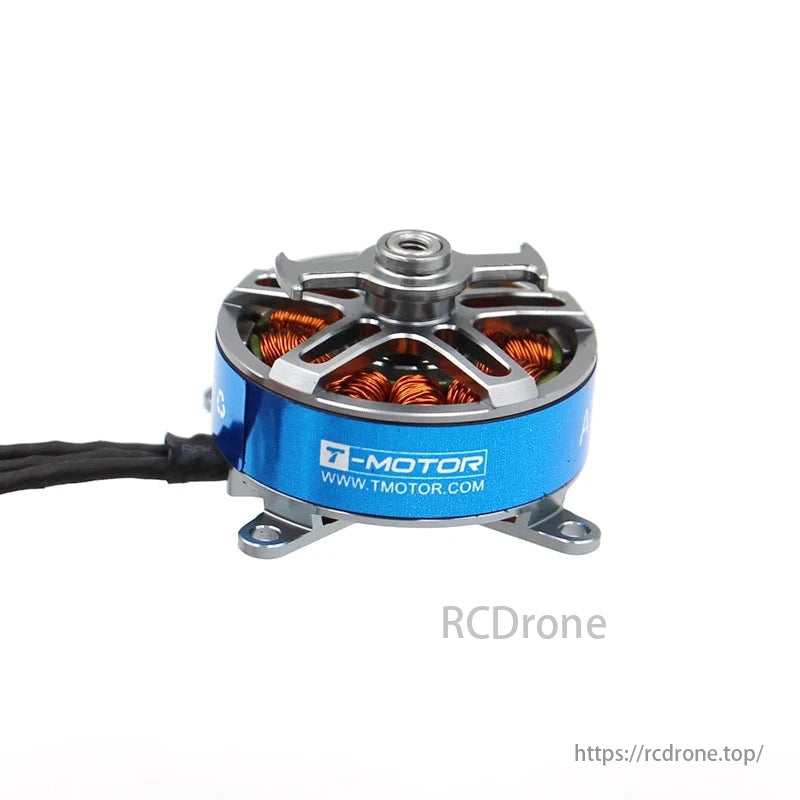

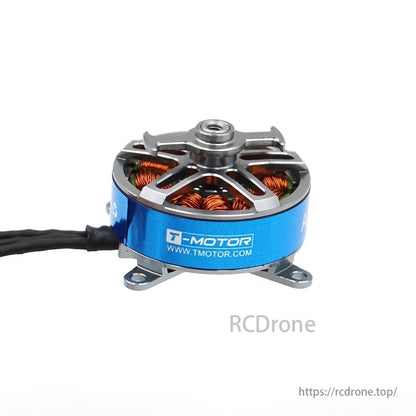

  • T-motor, T-Motor AT2306, 1500KV-2300KV, 2-3S, long shaft; perfect for RC F3P 3D/4D fixed-wing models.
  • T-motor AT2306 1500KV 1900KV 2300KV 2-3S Long Shaft Brushless Motor Suitable for RC Model F3P 3D 4D Fixed-Wing Parts

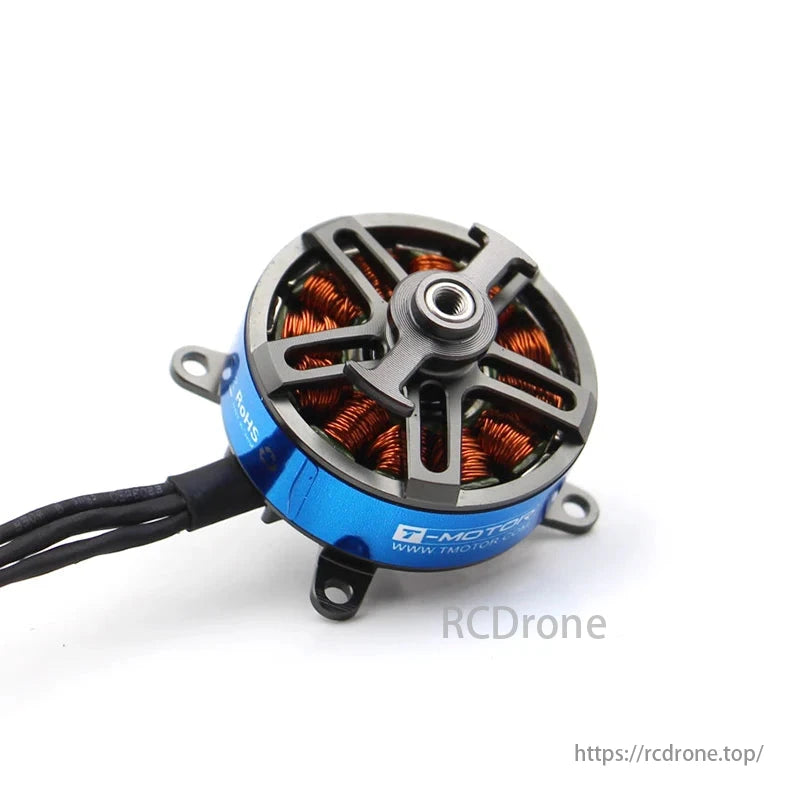

  • T-motor AT2306 brushless motor, 1500KV-2300KV, 2-3S, long shaft, for RC F3P 3D fixed-wing aircraft.

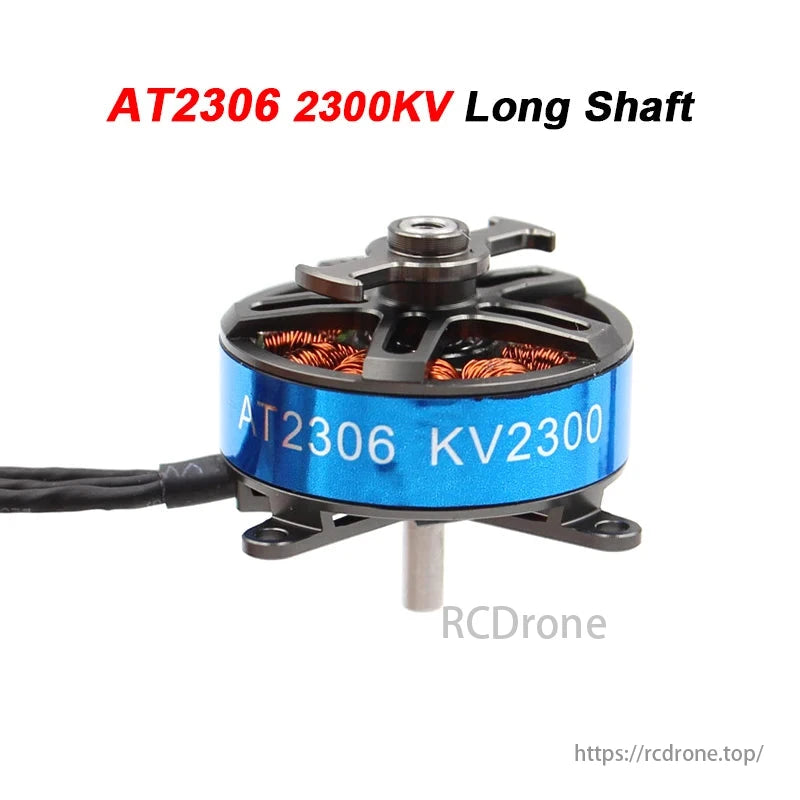

  • T-motor, AT2306 2300KV Long Shaft brushless motor for RC models.

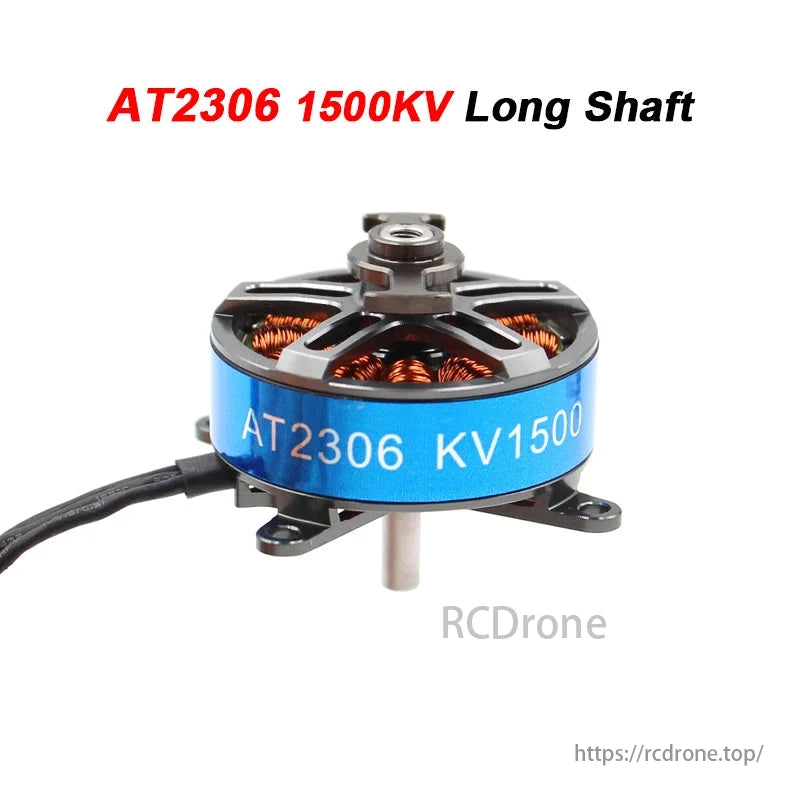

  • T-motor AT2306 1500KV brushless motor for RC F3P 3D/4D fixed-wing models, with robust design and high performance.

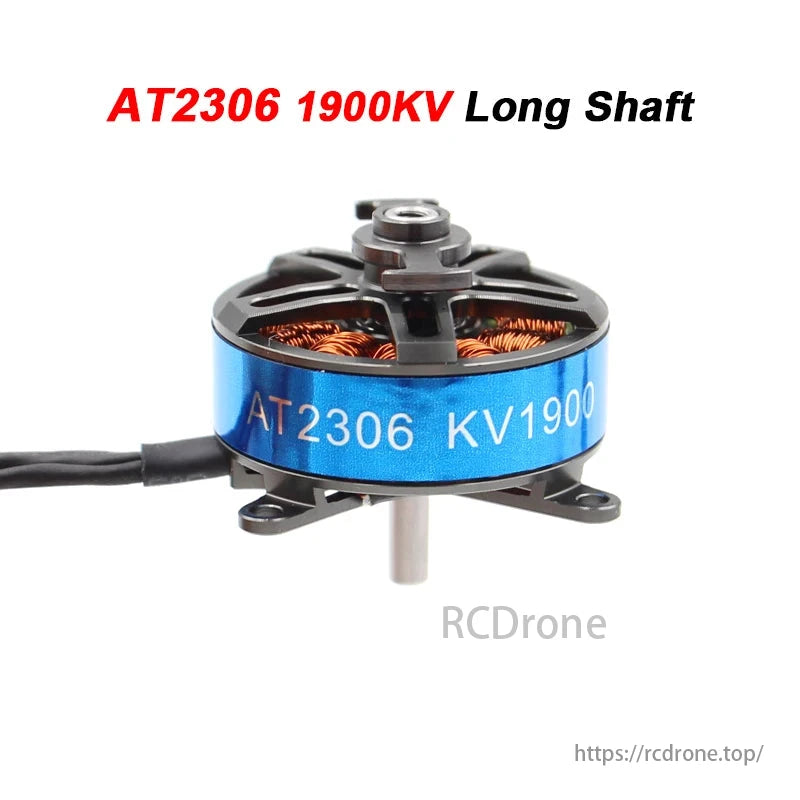

  • T-motor, AT2306 1900KV motor for RC F3P 3D/4D fixed-wing models, offering high performance and reliability.
1 9

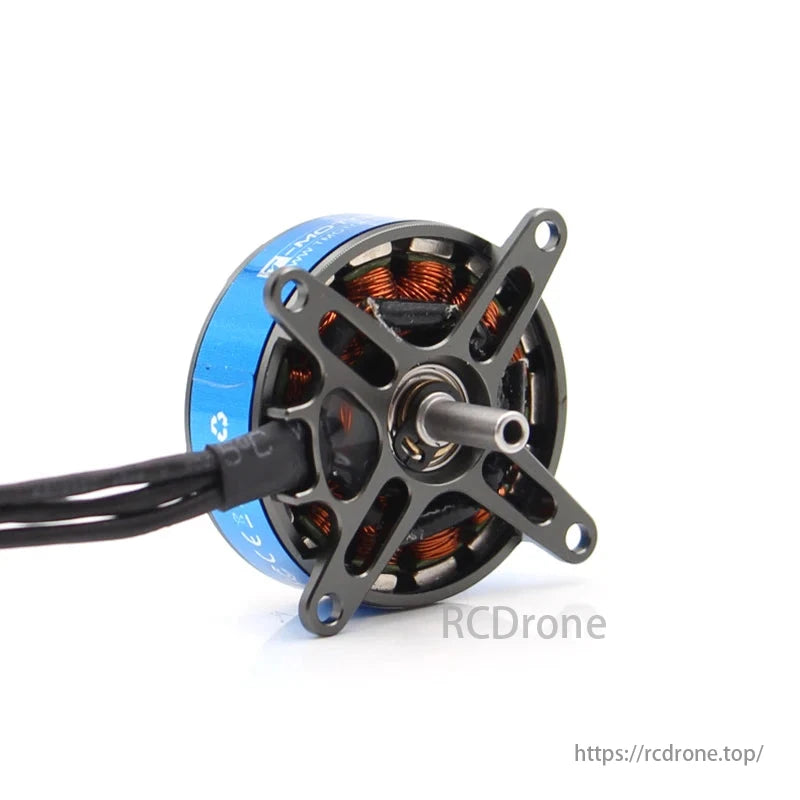

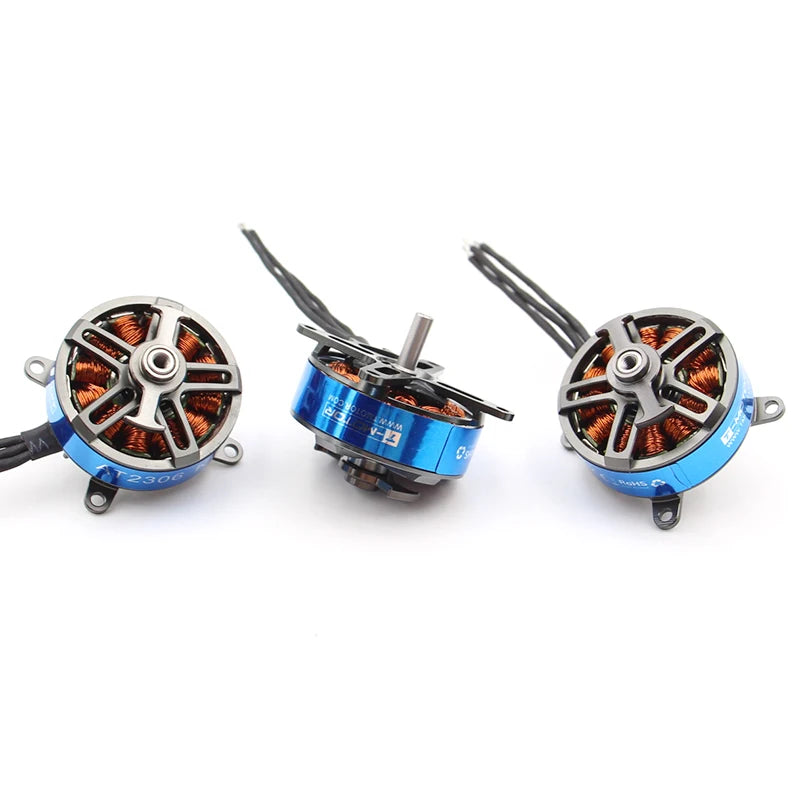

T-motor AT2306 1500KV 1900KV 2300KV 2-3S Long Shaft Brushless Motor Suitable for RC Model F3P 3D 4D Fixed-Wing Parts

T-motor AT2306 1500KV 1900KV 2300KV 2-3S Long Shaft Brushless Motor Suitable for RC Model F3P 3D 4D Fixed-Wing Parts

T-Motor

$17.52 USD
$17.52 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details



Item:  T-motor AT2306 Long Shaft Brushless Motor
Parameters:
Long Shaft 1500KV
Size: φ 28 * 28.5m
Lead: Enamed Wire 40mm
Shaft diameter: IN 4mm
No-load current (10V): 0.7A
Maximum power (180S): 170W
Weight: 28.5g
Internal resistance between phases: 96.5m Ω
Configuration: 12N14P
Rated working voltage (Lipo): 2~3S
Maximum current (180S): 15A

Long Shaft 1900KV
Size: φ 28 * 28.5mm
Lead: Enamed Wire 40mm
Shaft diameter: IN 4mm
No-load current (10V): 0.95A
Maximum power (180S): 140W
Weight: 28.5g
Internal resistance between phases: 59m Ω
Configuration: 12N14P
Rated working voltage (Lipo): 2~3S
Maximum current (180S): 18A

Long Shaft 2300KV
Size: φ 28 * 28.5mm
Lead: Enamed Wire 40mm
Shaft diameter: IN 4mm
No-load current (10V): 1.2A
Maximum power (180S): 230W
Weight: 28.5g
Interphase internal resistance: 41m Ω
Configuration: 12N14P
Rated working voltage (Lipo): 2~3S
Maximum current (180S): 25A

Package Included:
T-motor AT2306 Long Shaft Brushless Motor X 1

 T-motor, AT2306 light motor, favored by F3P champions, offers thrust options of 360g, 543g, and 897g for impressive performance.

AT2306 Light Motor: Carrying Big Miracle, F3P Champion's first Choice. 360g, 543g, 897g thrust options available.

T-motor, Upgraded AT Series for fixed-wing and VTOL UAVs, offering high-temperature resistance, stable performance, safety, and power balance for advanced applications.

Upgraded AT Series for fixed-wing models, VTOL UAVs, and industrial use. Offers high-temperature resistance, stable performance, flame resistance, safety, craftsmanship, and power balance. Ideal for advanced applications.

T-motor, Military-grade wire with high-temperature enamel coating is fireproof, anti-aging, and extends motor lifespan.

Military-grade wire with high-temperature enamel coating ensures fireproof, anti-aging properties, extending motor lifespan.

T-motor with anti-high temperature magnets ensures optimal performance and stability at full throttle.

T-motor with anti-high temperature magnets ensures optimal performance and stability at full throttle.

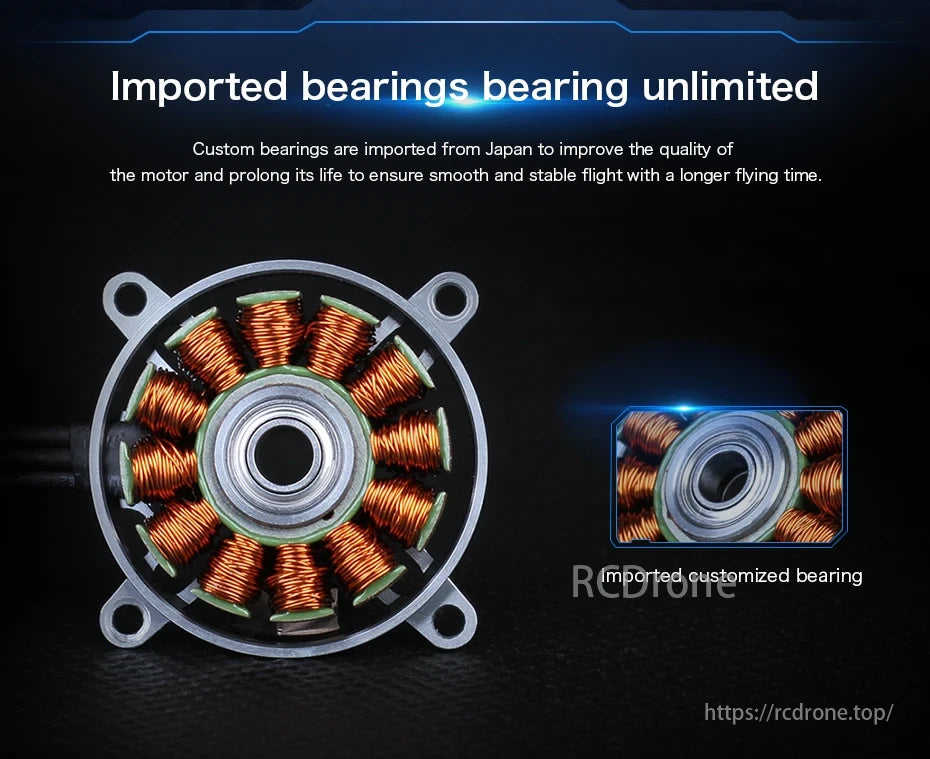

T-motor uses Japanese bearings for smooth, stable flight and longer lifespan.

T-motor uses Japanese bearings for smooth, stable flight and longer lifespan.

T-motor features peacock blue and titanium design, exquisite appearance, perfect quality.

T-motor features peacock blue and titanium design, exquisite appearance, perfect quality.

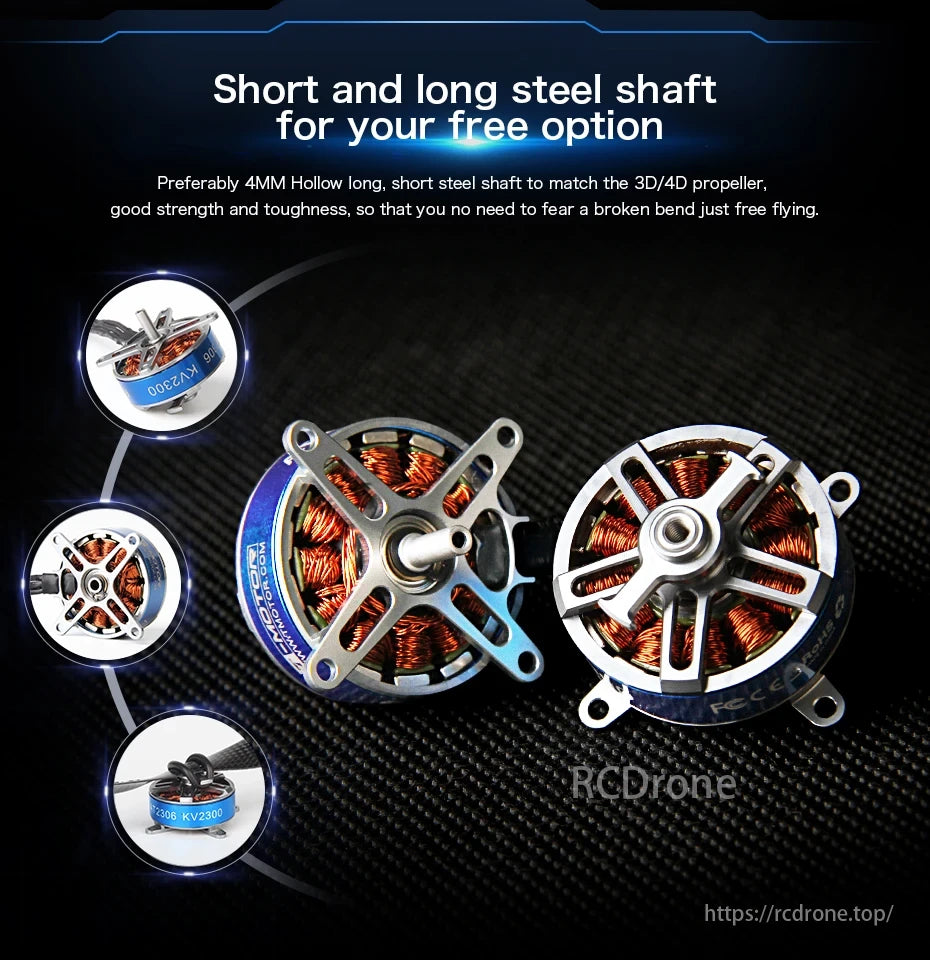

T-motor offers short/long steel shafts, 4MM hollow design for 3D/4D propellers, ensuring strength and safe free flying.

T-motor with short and long steel shaft options. 4MM hollow design for 3D/4D propellers, ensuring strength and toughness for safe free flying.

T-Motor KV1500, KV1900, KV2300 specs detail dimensions, performance, and compatibility, with data on RPM, torque, thrust, efficiency, and temperature for various propellers.

T-motor KV1500, KV1900, KV2300 specs cover dimensions, resistance, voltage, current, power, and ESCs. The report includes RPM, torque, thrust, efficiency, and temperature data for multiple propellers.

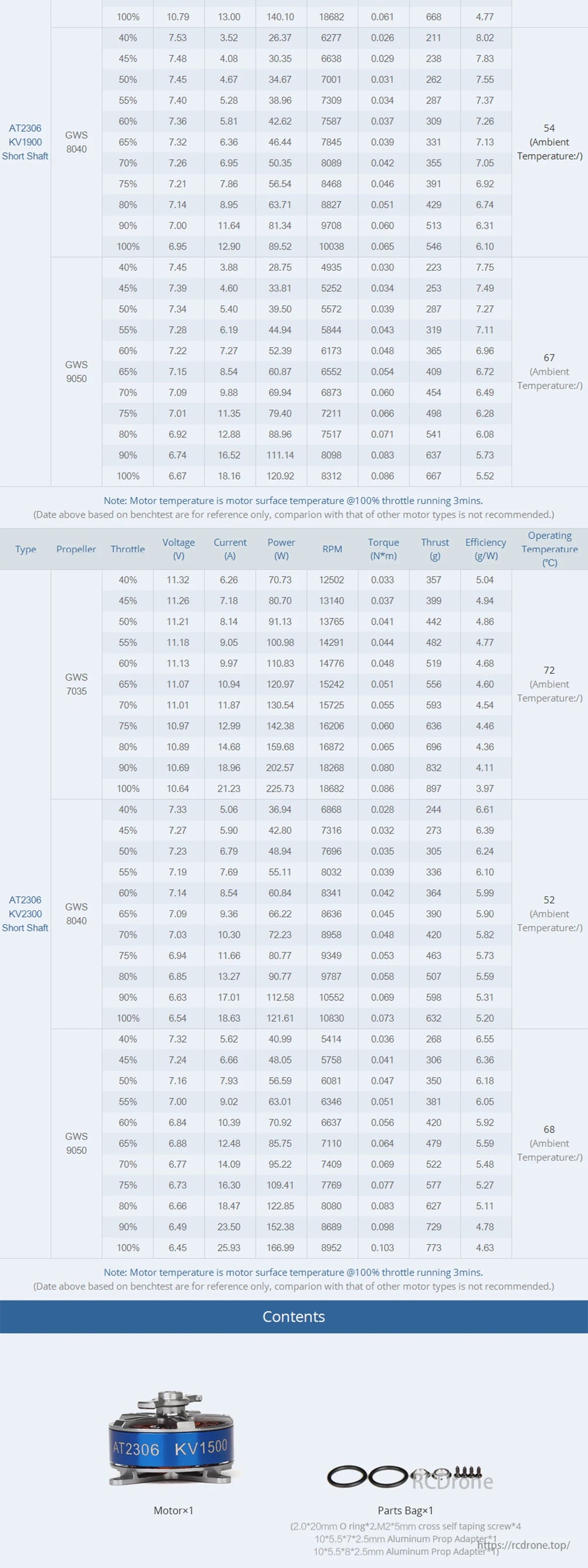

T-motor AT2306 KV1500 data with GWS propellers, covering voltage, current, power, RPM, torque, thrust, efficiency, and temperature at various throttles.

T-motor AT2306 KV1500 data for GWS 7035, 8040, 9050 propellers at various throttles. Voltage, current, power, RPM, torque, thrust, efficiency, and temperature details included.

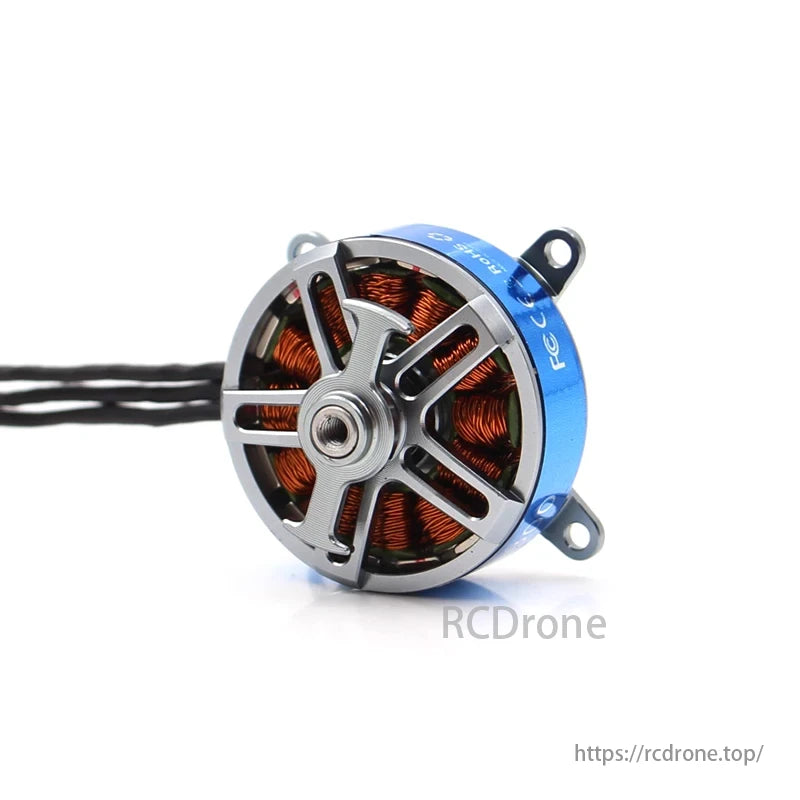

T-motor AT2306 brushless motor parameters and specifications.T-motor AT2306 brushless motor parameters include long shaft options with different KV ratings and specifications for no-load current, maximum power, weight, and internal resistance.The T-motor AT2306 brushless motor has three variants with different KV ratings and specifications, including no-load current, maximum power, weight, and rated working voltage.T-motor AT2306 Long Shaft Brushless Motor with varying KV levels and specifications for no-load current, maximum power, weight, and configuration.T-motor AT2306 brushless motor with different KV options and specifications.T-motor AT2306 brushless motor parameters include long shaft options with different KV ratings and specifications.T-motor AT2306 Long Shaft Brushless Motor with various specifications for different KV ratings and configurations.T-motor AT2306 long shaft brushless motor with different KV options and specifications.T-motor AT2306 brushless motor parameters including size, KV rating, current, power, weight, and configuration options.
