T-motor MN7005 KV230 Light Efficient Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: Antigravity MN7005 KV230

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

ANTIGRAVITY 7005 LIGHT EFFICIENT ENERGY-SAVING 1.Skg thrust with efficiency of 13g/W 5 kg 188 MAX THRUST MOTOR WEIGHT #MNZOO5 is for thrust requirement 1.5kg/

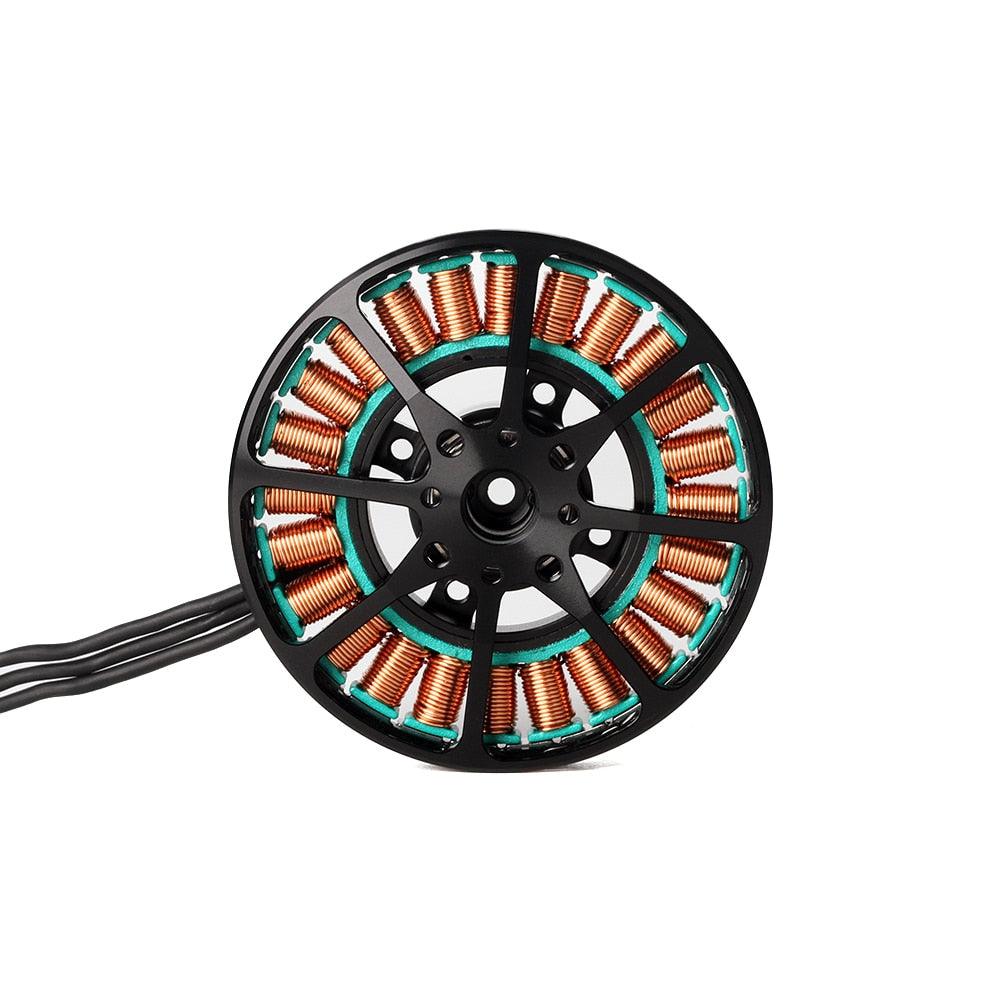

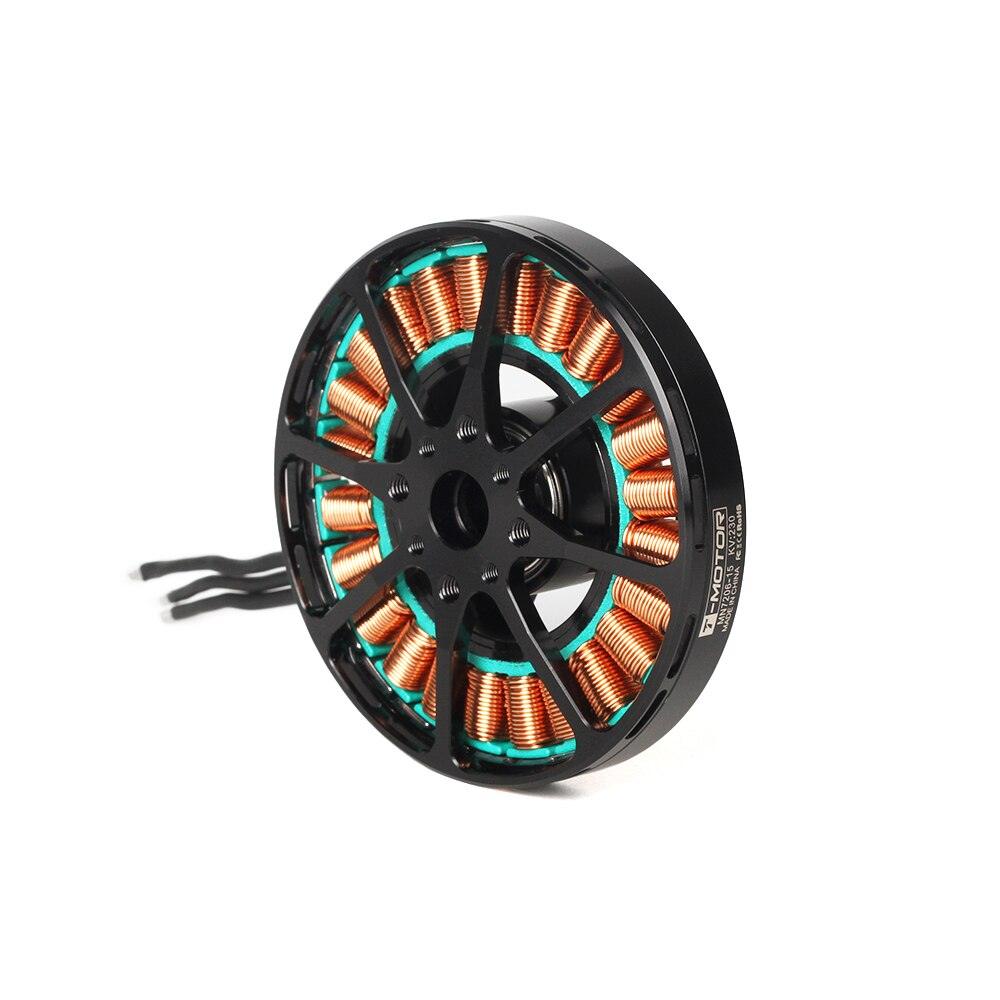

The T-Motor MN7005 features a lightweight design made from durable 7075 aluminum alloy, which enhances the motor cap's structural integrity while promoting better cooling performance through its open design.

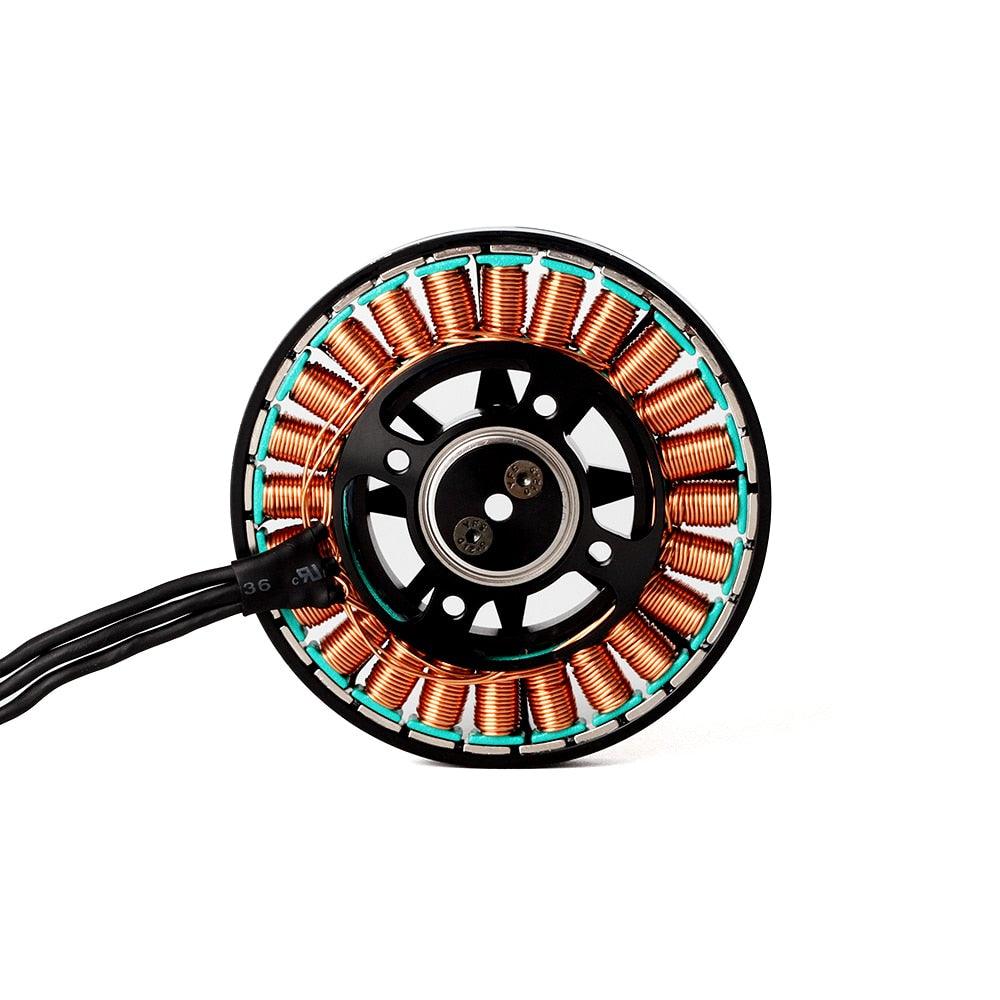

Curved Magnet Design: This motor features single- or dual-copper wire winding, which reduces internal resistance and improves high-temperature performance, minimizing current interference and increasing overall efficiency by up to 5%.

Featuring a 1mm aluminum shaft and a 24mm diameter bearing, this motor design enhances stability and extends its lifespan.

The MN7005 motor, when paired with a 24-inch carbon fiber propeller and an FOC Alpha 60A ESC, is capable of delivering up to 1.5 kg of thrust while maintaining an energy-efficient performance of 13g per watt (W) and a high conversion rate of 80% or more.

Specifications Motor Size 079*21mm Imported silicon steel sheet; Anti-rust treatment; 180'C Stator high temperature-resisting coatings Configuration 24N28P Shaft Diameter IN: 1Smm Bearing Imported 6802ZZ Magnet evel 150'C high temperature resistance: Level E Lead Cable 60mm Copper Wire 180FC high temperature resistant coatings
