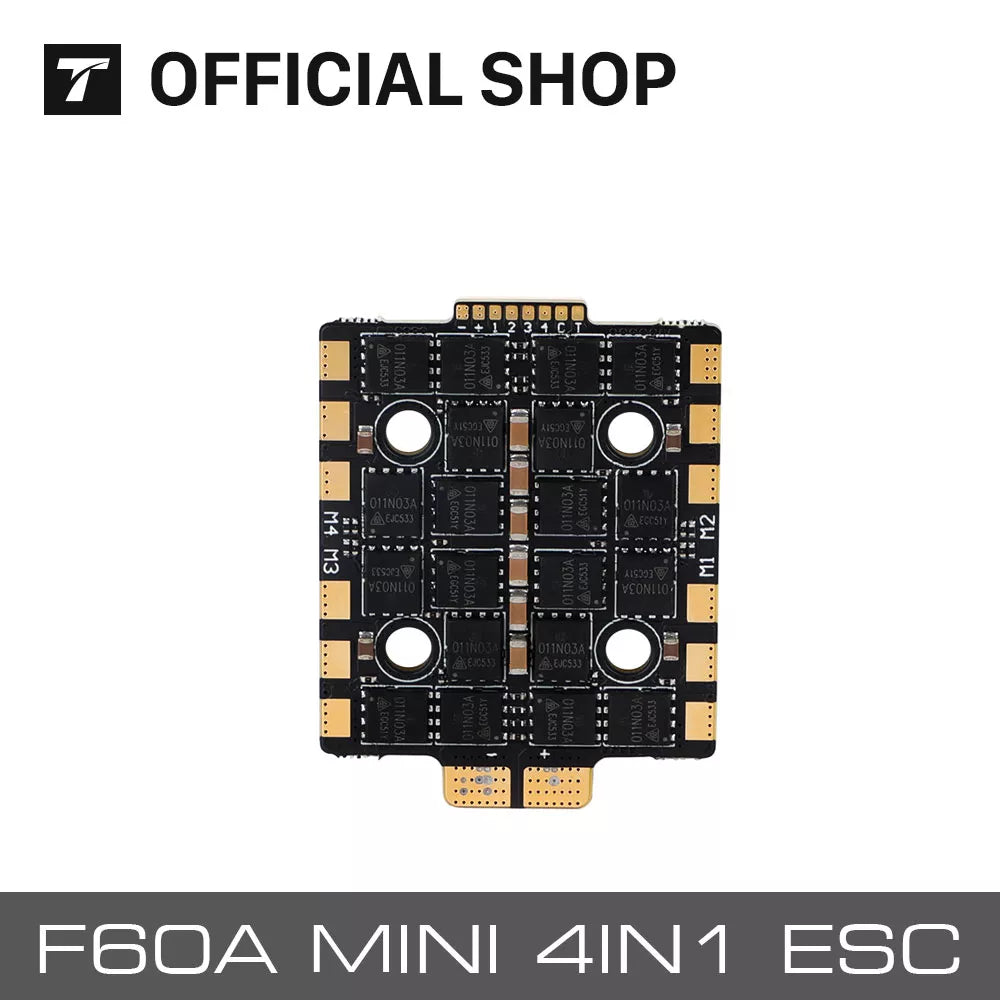

T-MOTOR F60A mini 8S 4IN1 20X20 Racing ESC SPECIFICATIONS
Brand Name: T-MOTOR
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Connectors/Wiring
Use: Vehicles & Remote Control Toys
U LARGE SIZE MOS INCREASED LIFESPAN Using larger MOSFETs, increases the heat dissipation area by over 60% .
This T-MOTOR F60A mini 8S 4IN1 20x20 Racing ESC features high current, withstanding up to 40V in voltage, low internal resistance at approximately 0.75mΩ, and a MOSFET with a corresponding voltage of 2V.

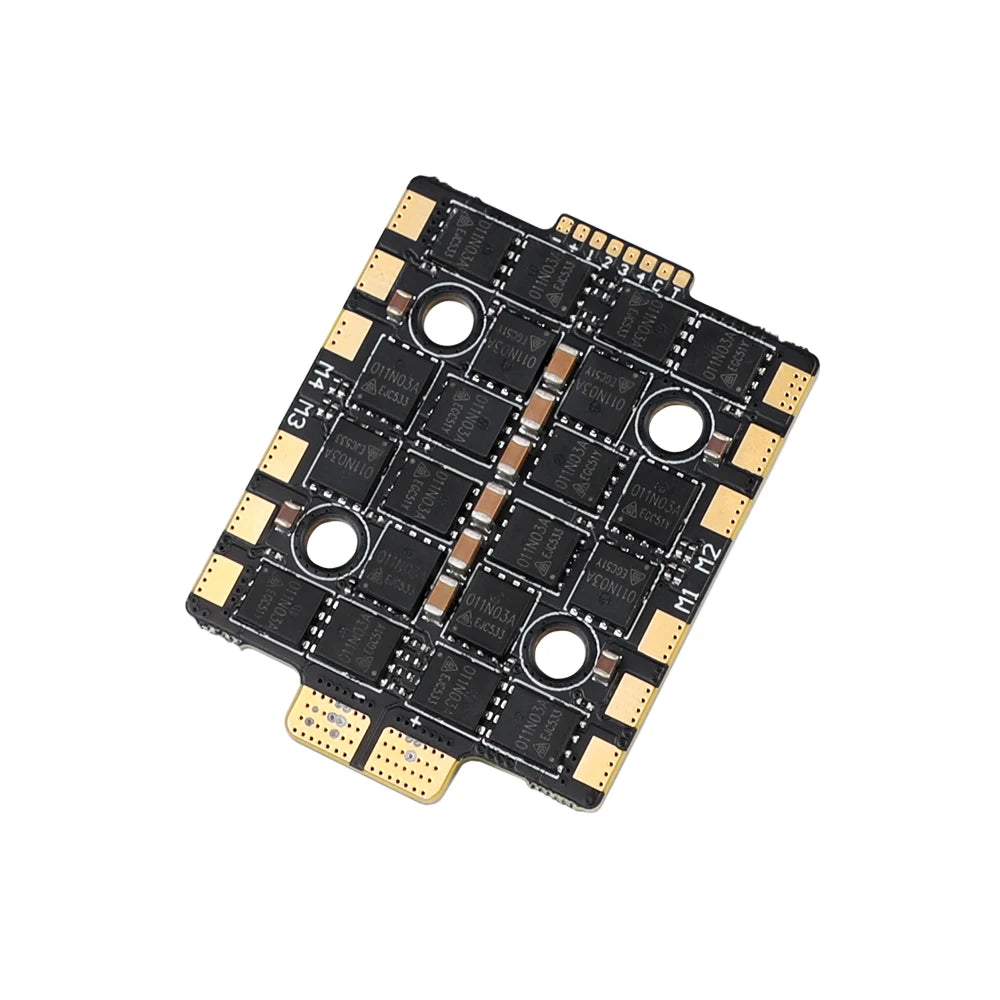

Featuring a symmetrical MOS (Metal-Oxide-Semiconductor) layout design, this ESC (Electronic Speed Controller) ensures highly consistent signal transmission over shorter tracks.
Output: 32V, Con 11.0N, 032 IO1 IN-OSA; Rear-Wheel Esc (RWE) - Efficient Symmetrical Design for Shorter Tracks.
The package includes: Short silicone shock-absorbing material (5 pieces), Tall silicone shock absorber (5 pieces), 32mm dual-side and 6mm single-side signal harnesses (1 piece each), MRO-Lpac 35V/470uF capacitor (1 piece), and 10mm XT60 Power lead (1 piece).
Specifications: - Input Voltage: 4-8S (Series) LiPo - PWM Frequency: 16kHz - 96kHz (default: 24kHz) - Continuous Current Rating: 60A - Amperage Scale: 200A - Burst Current: 70A - Dimensions: 36mm x 47mm - Mounting Holes: 20mm x 20mm (d4)
