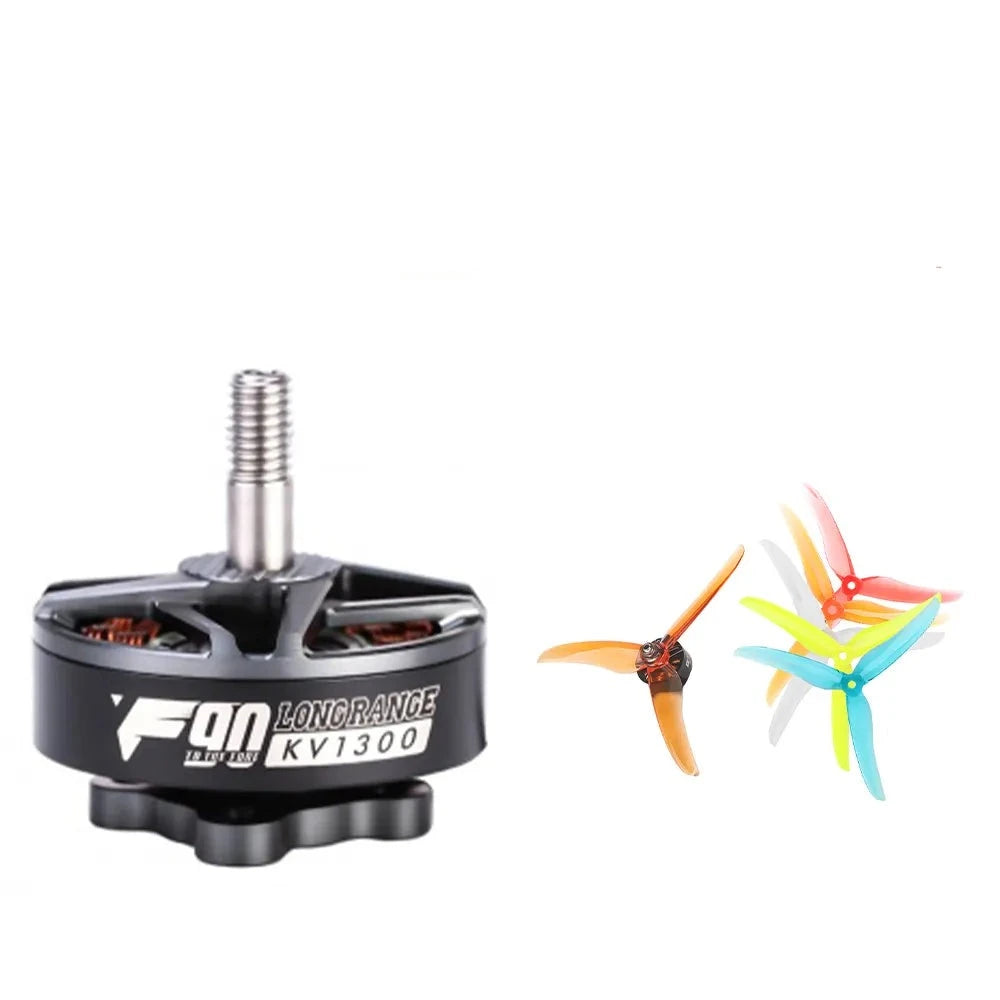

T-MOTOR F90 KV1300/KV1500 Motor For Cinelifter X8 Long Range FPV Build, T6143 Propeller orange/red/blue/yellow for F90 Motor

T-Motor

$9.56 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color 2Pairs T6143 Prop (Orange) 2Pairs T6143 Prop (Red) 2Pairs T6143 Prop (Yellow) 2Pairs T6143 Prop (Blue) 4 x KV1300 Motor + 2Pairs T6143 Prop 4 x KV1500 Motor + 2Pairs T6143 Prop 4 x KV1950 Motor + 2Pairs T6143 Prop

Quantity

View full details

T-Motor F90 Motor Specifications

Specification	KV1300	KV1500	KV1950
Motor Dimensions	Φ33.4 × 34.7 mm	Φ33.4 × 34.7 mm	Φ33.4 × 34.7 mm
Weight Including Cable	46.6 g	46.7 g	46.6 g
Lead Wire	20 AWG, 230 mm	20 AWG, 230 mm	20 AWG, 230 mm
Shaft Diameter	4 mm	4 mm	4 mm
Internal Resistance	76 mΩ	62 mΩ	45 mΩ
Configuration	12N14P	12N14P	12N14P
Rated Voltage	5–6S LiPo	5–6S LiPo	5–6S LiPo
Idle Current at 10V	0.95 A	1.2 A	1.5 A
Peak Current for 60 Seconds	45.1 A	47.1 A	53.6 A
Maximum Power for 60 Seconds	1059 W	1089 W	1302 W

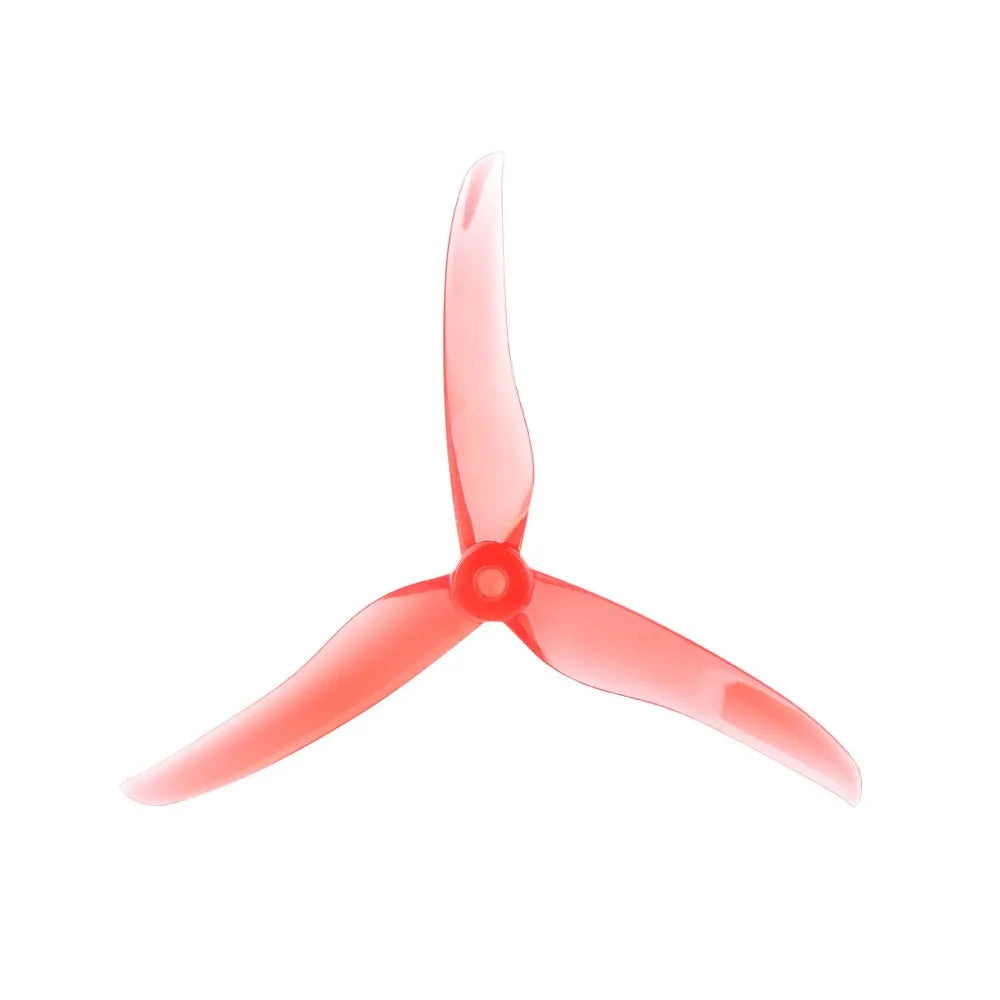

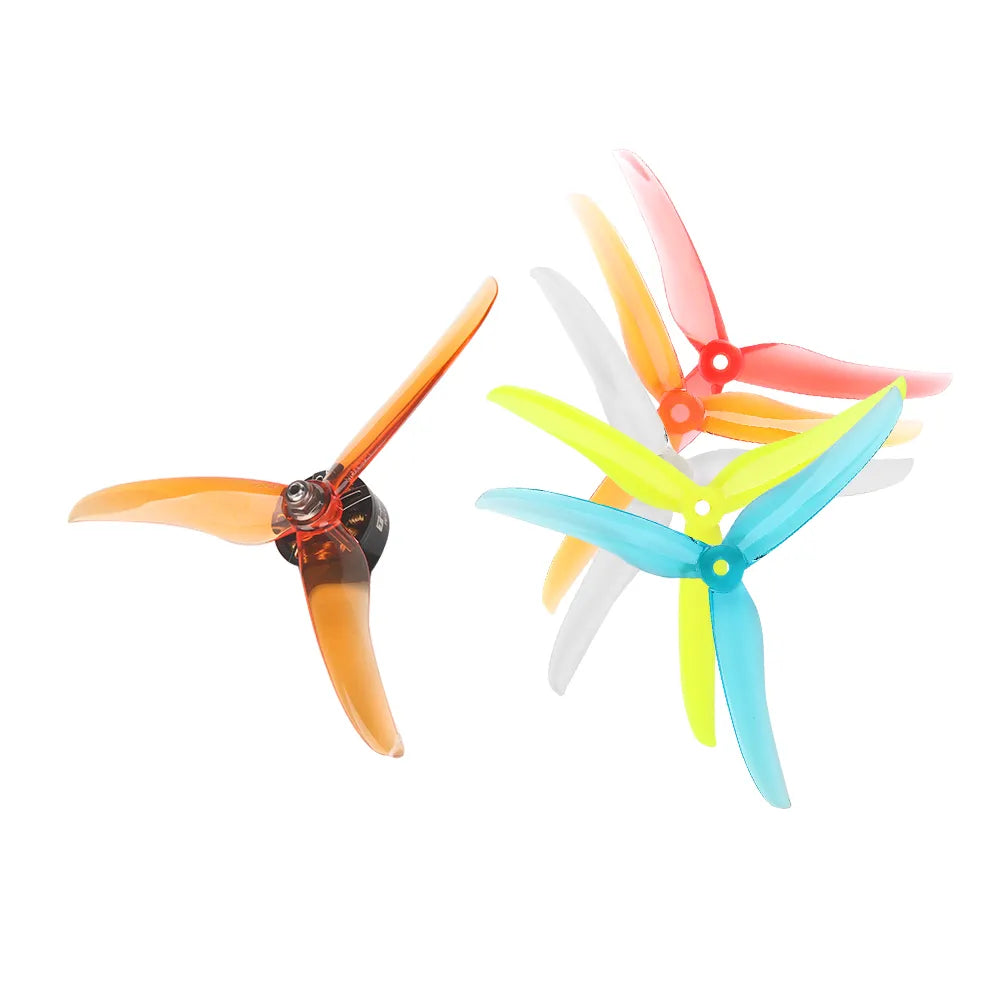

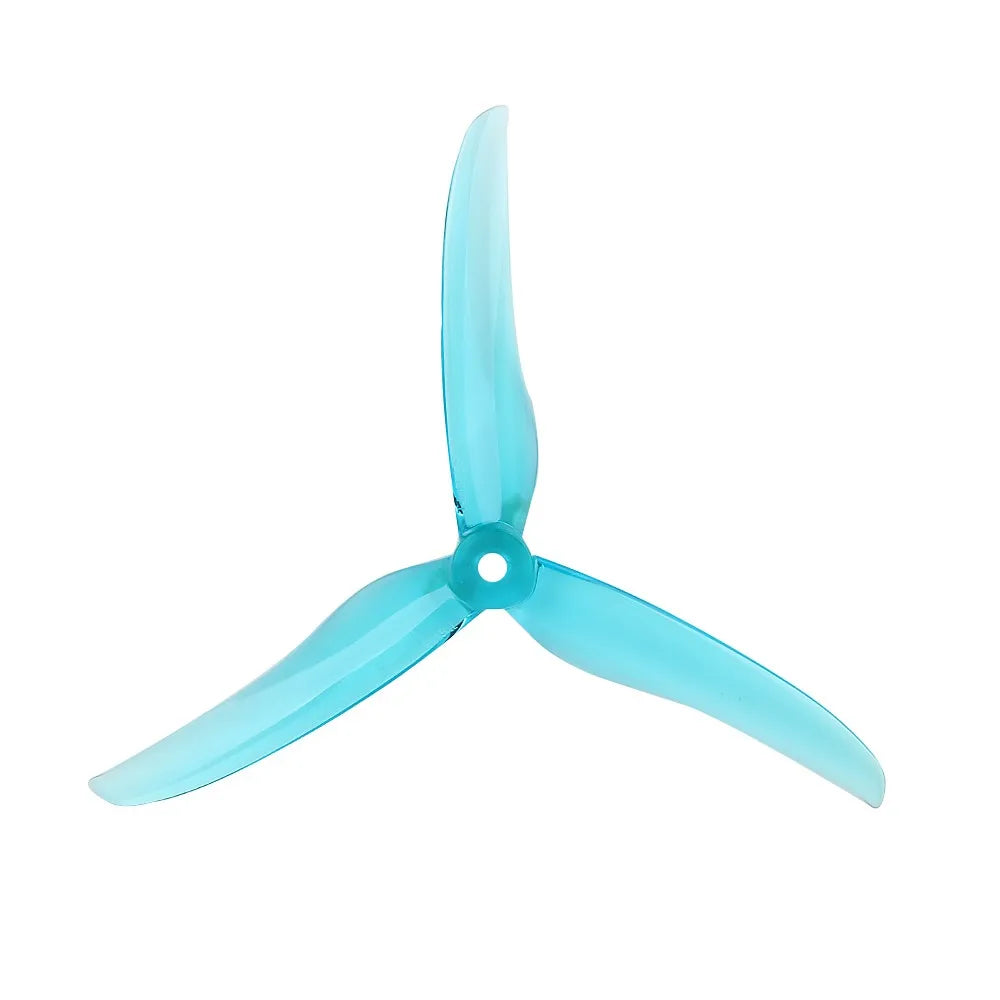

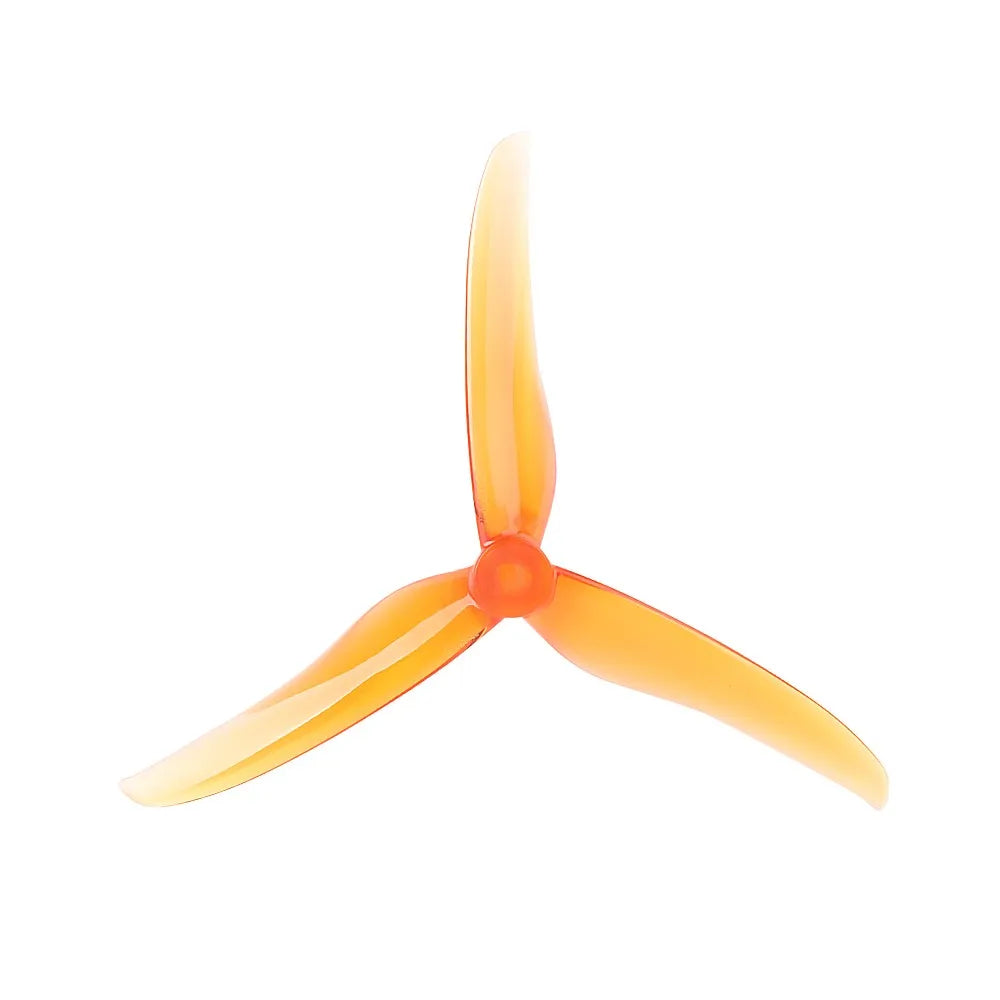

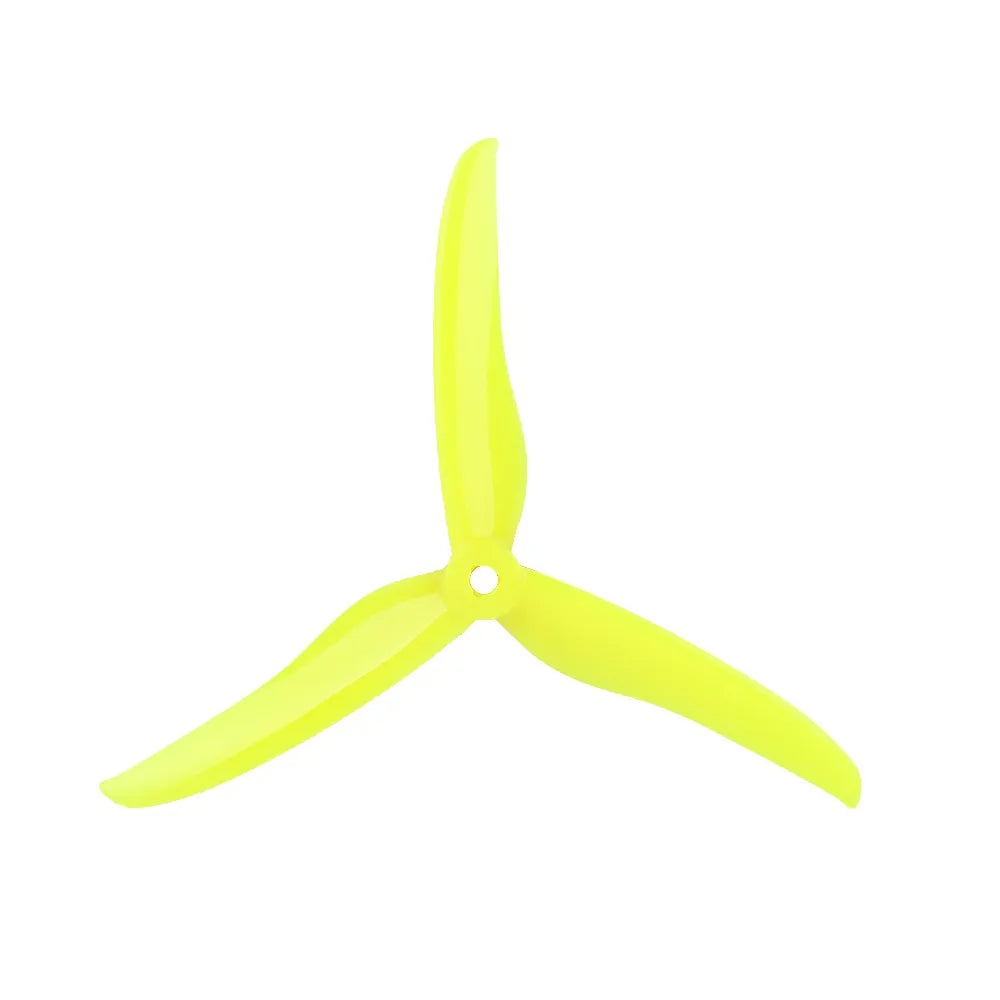

T-Motor T6143 Propeller Specifications

Length: 6.1"
Pitch: 4.3"
Material: Polycarbonate
Mounting Hole: 5mm
Usage: 6" or greater frame

Details

T-MOTOR, F9O LONCER FLIGHT TIMC WEICHT: 416 ( T-MOTOR, BETTER FOR MOUNTAIN SURFING, COASTLINE, CINEMA T-MOTOR, DESIGN FOR FPV CINELIFTER X8 BUILD, EAS T-MOTOR, STABLE SMOOTH EONORaO FOR LONG FLOWING LINE T-MOTOR, check that your package contains all the above items before use . if something is missing,
