T-motor MN5208 KV340 Motor SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Remote Control Peripherals/Devices: ESC
Recommend Age: 14+y
RC Parts & Accs: Motors
Origin: Mainland China
Model Number: MN5208 KV340
Material: Metal
For Vehicle Type: Airplanes
Brand Name: T-MOTOR
MN5208 It is not only a motor,but also a work of art with precisely processing and nicer dynamic balanced
![T-motor MN52O8 follow MN series external design,utilize the special](https://rcdrone.top/cdn/shop/files/H7a995fe57e00449d8b227814d8c84159A_11628f6d-4149-434c-a865-10b66e1372ec.webp?v=1715455378)
The T-motor MN5208 features an exterior design that follows the MN series aesthetic, incorporating a unique air-extracting cooling system to ensure stable airflow around the rotors.
![T-motor, Compared with the loose winding motor, the instant current would be lower 15% and the load](https://rcdrone.top/cdn/shop/files/Hacb9007fef814453aa5af6998b490473n_ae478fb2-7c62-497c-b5b0-c197005f06c1.webp?v=1715455381)
In comparison to loose-wound motors, our motor exhibits a 15% reduction in instant current and a 5-10% decrease in load current, resulting in higher efficiency and more torque. Additionally, our standard and delicate winding process ensures a seamless connection with ESC, providing customers with both convenience and a superior experience.
![T-motor, the bearings used for T- MOTOR MNSZxX series are of the double](https://rcdrone.top/cdn/shop/files/H8f2ce3d312894d3cbf0b0e8d9906c3d2S_e4237f4e-c10e-4fb8-bcea-38004fb1de77.webp?v=1715455385)

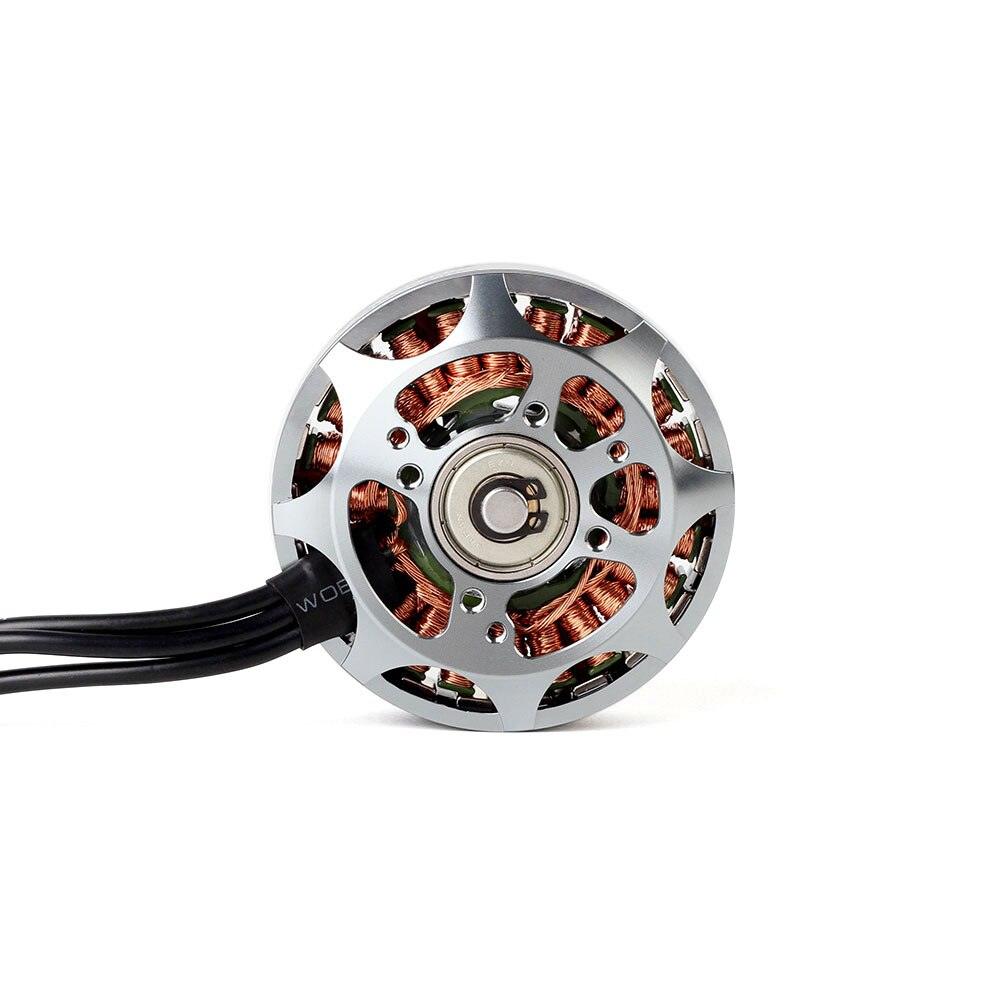

The T-MOTOR MN5208 KV340 motor features double-sized bearings compared to those found in similar-sized motors from other manufacturers.
![T-motor, the 8 M3*12 screw is intended for the installation of propeller, propeller adapt](https://rcdrone.top/cdn/shop/files/H4e5746a9077e4e778f00a2b998ed2b7at_e7e3d90e-5105-4a2a-877d-5776b4009a60.webp?v=1715455388)

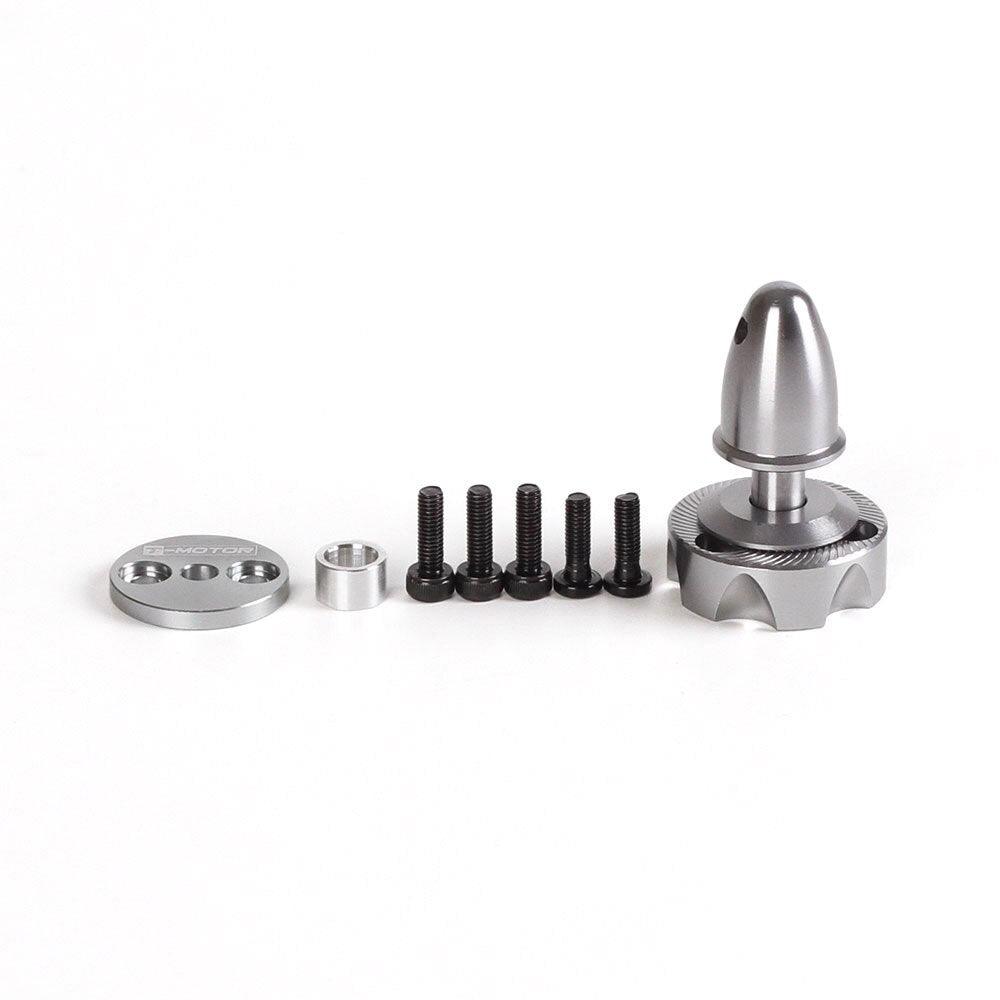

The MN5208 KV340 motor requires an M3*12 screw for installing the propeller, propeller adapter, and carbon fiber propeller in conjunction with the covering plate. Please note that screws for securing the bracket and motor are not included.
![T-motor, Test Report Test Item MN5208 KV340 Report NO. MN.000](https://rcdrone.top/cdn/shop/files/Hf9d633bc4bd84a9791b543c19443c6a6n_b63f1155-ace2-46f1-9dde-b12d8d6861f2.webp?v=1715455391)
Test Report Test Item MN5208 KV340 Report NO. MN.00029 Specifications Internal Resistance 93mn Configuration 24NZZP Shat Diameter 4mm Motor Dimensions 059*29.5mm . Stator Diameter 52mm Stator Height 8mm AWG 16# Cable Length 600mm Weight Including Cables 196g Weight Excluding Cables 150g Noof Cells(Lipo) 4-6S Idle Current@1Ov
![T-motor MN5208 KV340 Motor SPECIFICATIONS Use](https://rcdrone.top/cdn/shop/files/H16f817b45c5a421a91fc1b5ccb6a531dC_695d276b-c22c-410f-917e-7ca702141d2f.webp?v=1715455401)
![T-motor MN5208 KV340 Motor SPECIFICATIONS Use](https://rcdrone.top/cdn/shop/files/Hb9c016c0d8af4600aaaf2abbb4a242b9t_ae4fb954-2fb0-43e6-86d1-f509320209c3.webp?v=1715455410)
![T-motor High quality Tiger brushless motor MN5208 KV340 for UAV drones quadcopters multi-rotor professional boats - RCDrone](http://rcdrone.top/cdn/shop/products/HTB1q1SARXXXXXX4XFXXq6xXFXXXK.jpg?v=1712128391&width=1445)

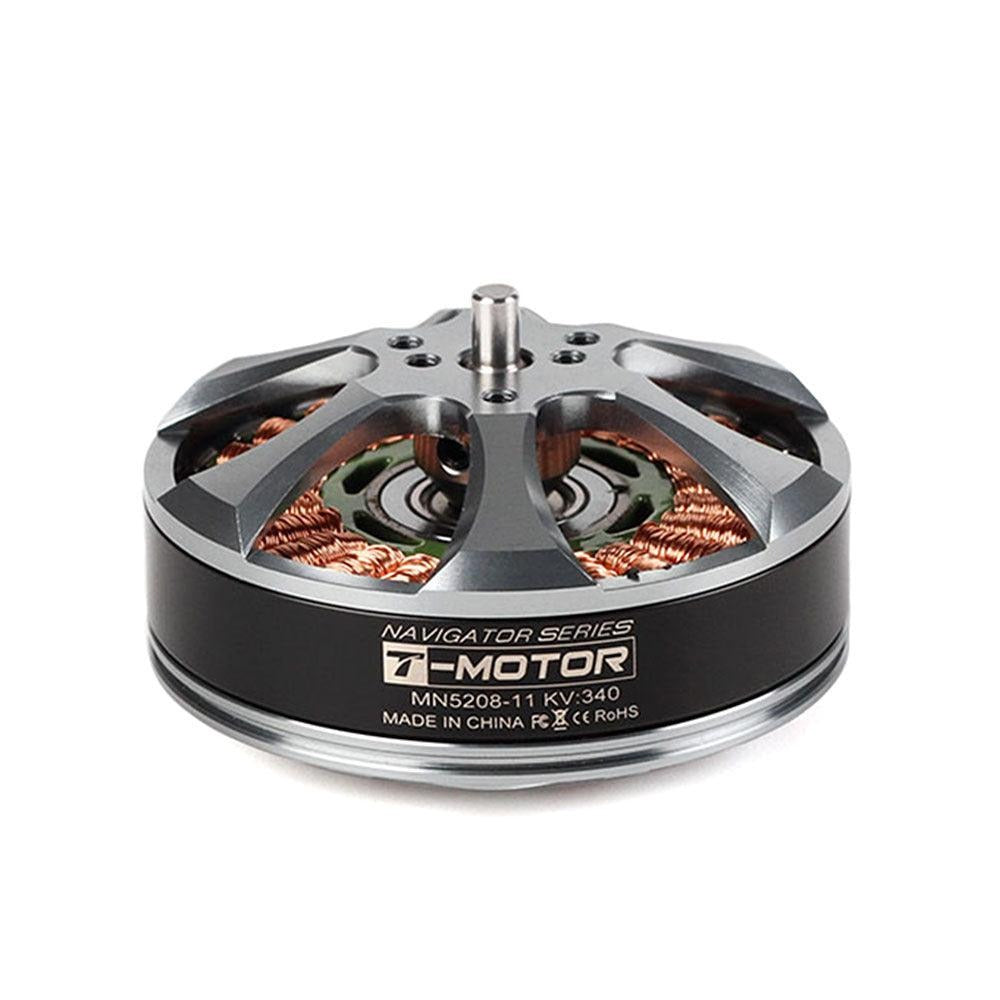

![T-motor, NAVIGATOR EMOTOR MN5208-11 Kv.340 MADE IN](http://rcdrone.top/cdn/shop/files/HTB1q1SARXXXXXX4XFXXq6xXFXXXK_1.jpg?v=1712128406&width=1445)
![T-motor High quality Tiger brushless motor MN5208 KV340 for UAV drones quadcopters multi-rotor professional boats - RCDrone](http://rcdrone.top/cdn/shop/files/HTB1bHylRXXXXXceXVXXq6xXFXXXa.jpg?v=1712128391&width=1445)
![T-motor High quality Tiger brushless motor MN5208 KV340 for UAV drones quadcopters multi-rotor professional boats - RCDrone](http://rcdrone.top/cdn/shop/files/HTB1OkWnRXXXXXamXVXXq6xXFXXXk.jpg?v=1712128391&width=1445)
![T-motor High quality Tiger brushless motor MN5208 KV340 for UAV drones quadcopters multi-rotor professional boats - RCDrone](http://rcdrone.top/cdn/shop/files/HTB1wASwRXXXXXXeXFXXq6xXFXXXL.jpg?v=1712128391&width=1445)
![T-motor High quality Tiger brushless motor MN5208 KV340 for UAV drones quadcopters multi-rotor professional boats - RCDrone](http://rcdrone.top/cdn/shop/files/HTB1vWuCRXXXXXc1XpXXq6xXFXXX7.jpg?v=1712128391&width=1445)
![T-motor High quality Tiger brushless motor MN5208 KV340 for UAV drones quadcopters multi-rotor professional boats - RCDrone](http://rcdrone.top/cdn/shop/files/HTB1iI9ERXXXXXceXpXXq6xXFXXXJ.jpg?v=1712128391&width=1445)
