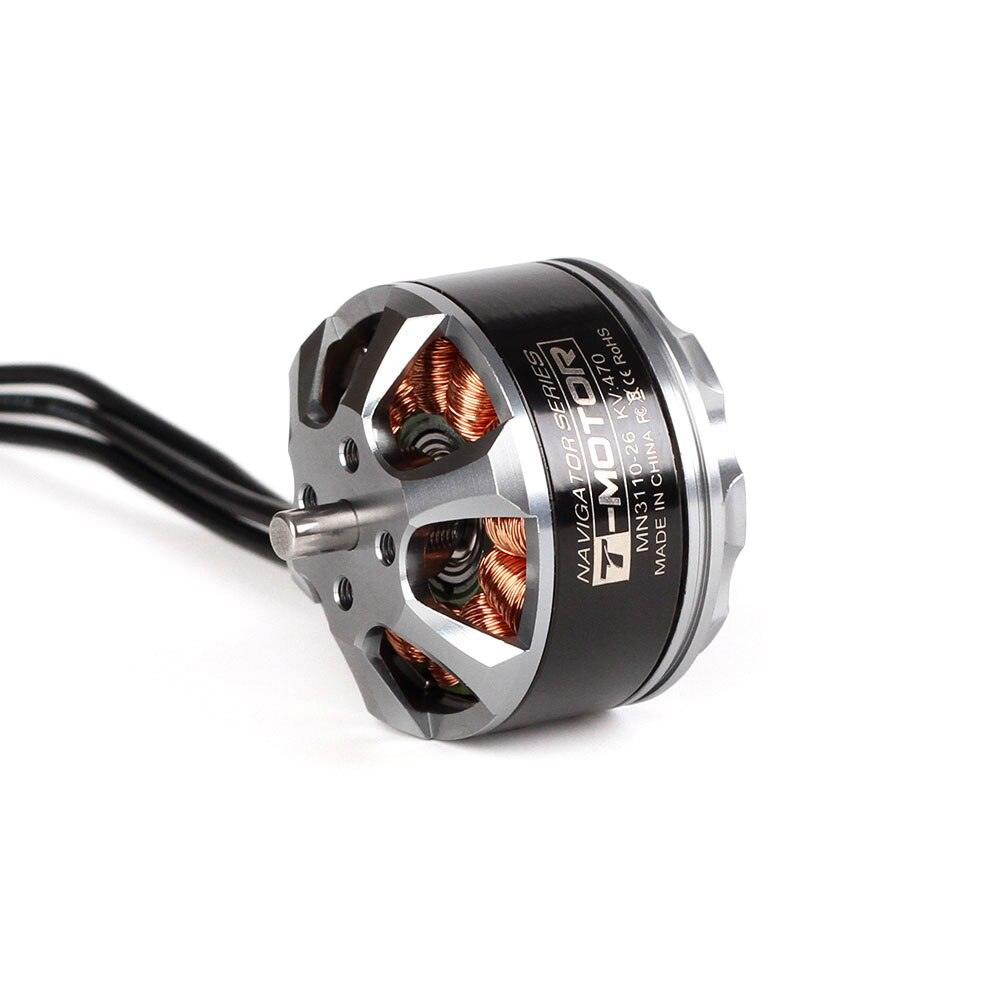

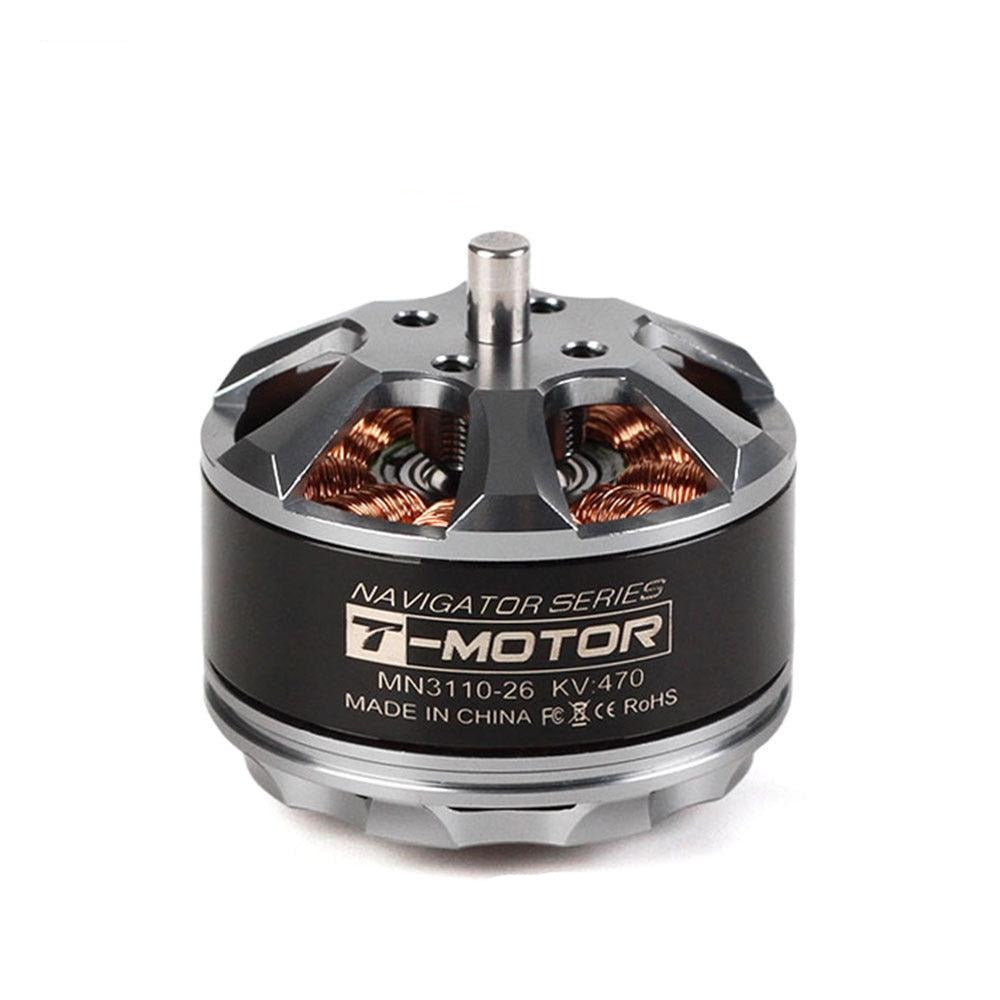

T-motor MN3110 KV470 KV700 KV780 Brushless Motor 1.2KG Thrust for Multirotor Copter Quadcopter Helicopter Hexacopter Drone

T-motor MN3110 KV470 KV700 KV780 Brushless Motor 1.2KG Thrust for Multirotor Copter Quadcopter Helicopter Hexacopter Drone

T-Motor

Regular price $90.90 USD
Regular price $136.34 USD Sale price $90.90 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

159 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

T-motor MN3110 KV470 KV700 KV780 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN3110 KV470

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

T-motor, T-Motor Navigator Series is a high quality, smooth running, durable

introduction of T-Motor Navigator Series . the motor is a high quality, smooth running, durable brushless motor built for multirotor UAV application.

T-motor, MOTOR THE SAFEST PAOPULSION SYSTEM Providing the

Motor with Safe Propulsion System: Provides reliable performance for dependable aerial applications.

T-motor, MN3110 is Hlawless motor which from 2216, 2217,2808,

The T-Motor MN3110 is a high-performance brushless motor that was first introduced in models 2216, 2217, 2808, and 2810. According to numerous test data sets, this motor has been upgraded.

T-motor, T-MOTOR MN3XXX Series adopt high standard bearing EZO which

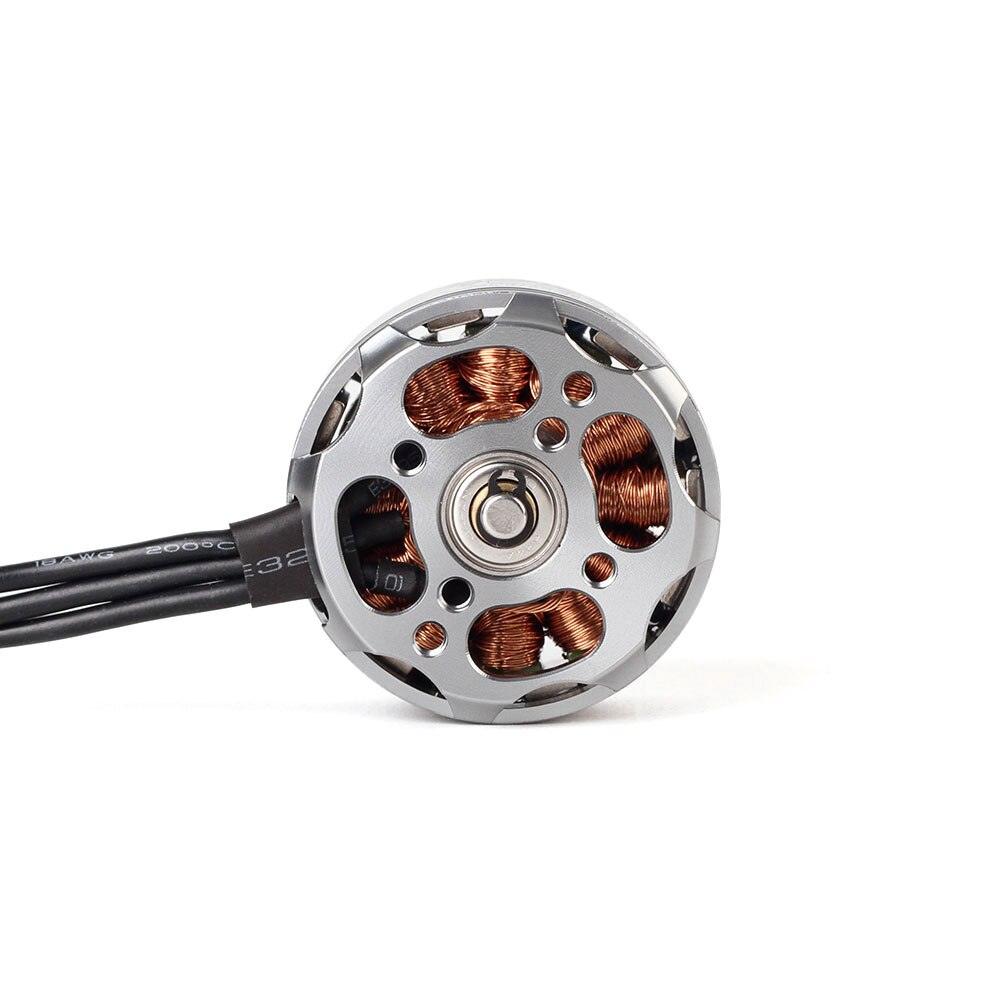

The T-MOTOR MN3XXX series features high-standard bearings, originally imported as EZO, ensuring high-quality and reliability. This results in stable motor performance even at low velocities.

T-motor, Dontorar LMOTOR Tdd Flexible mount holes design to match different .

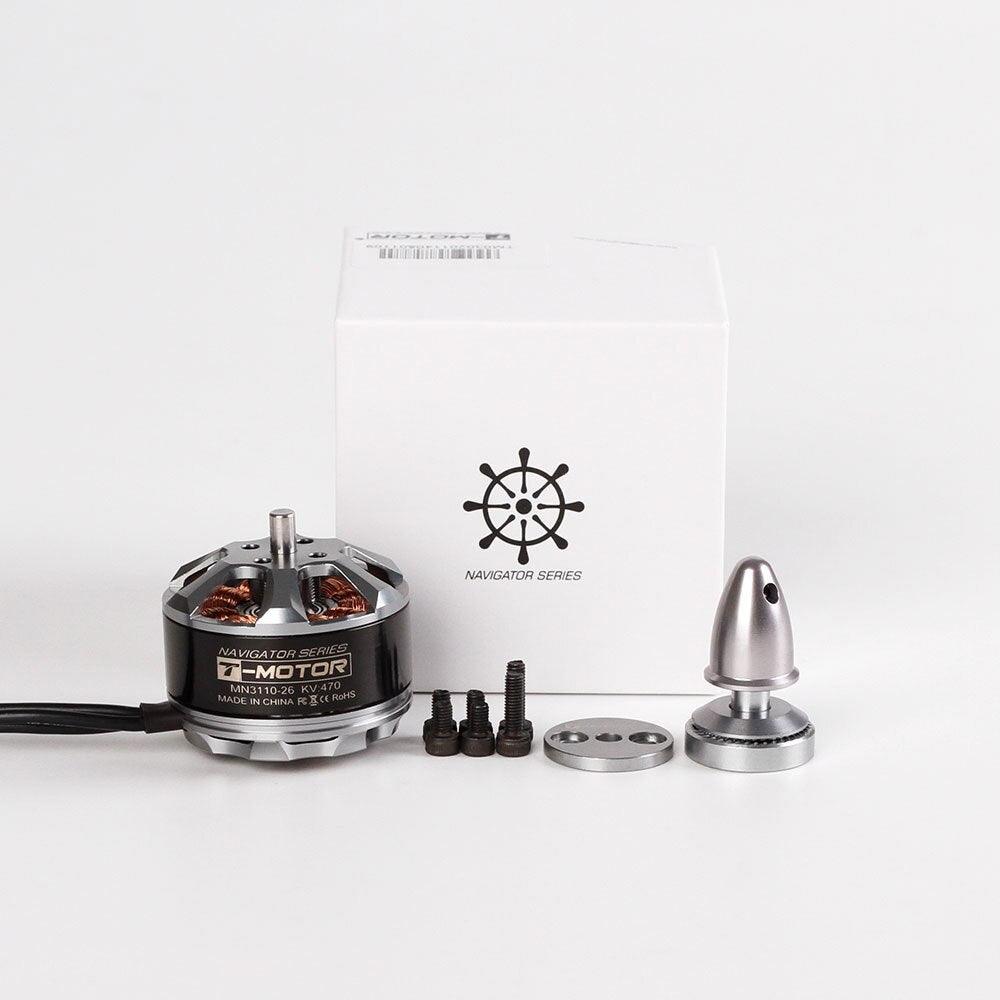

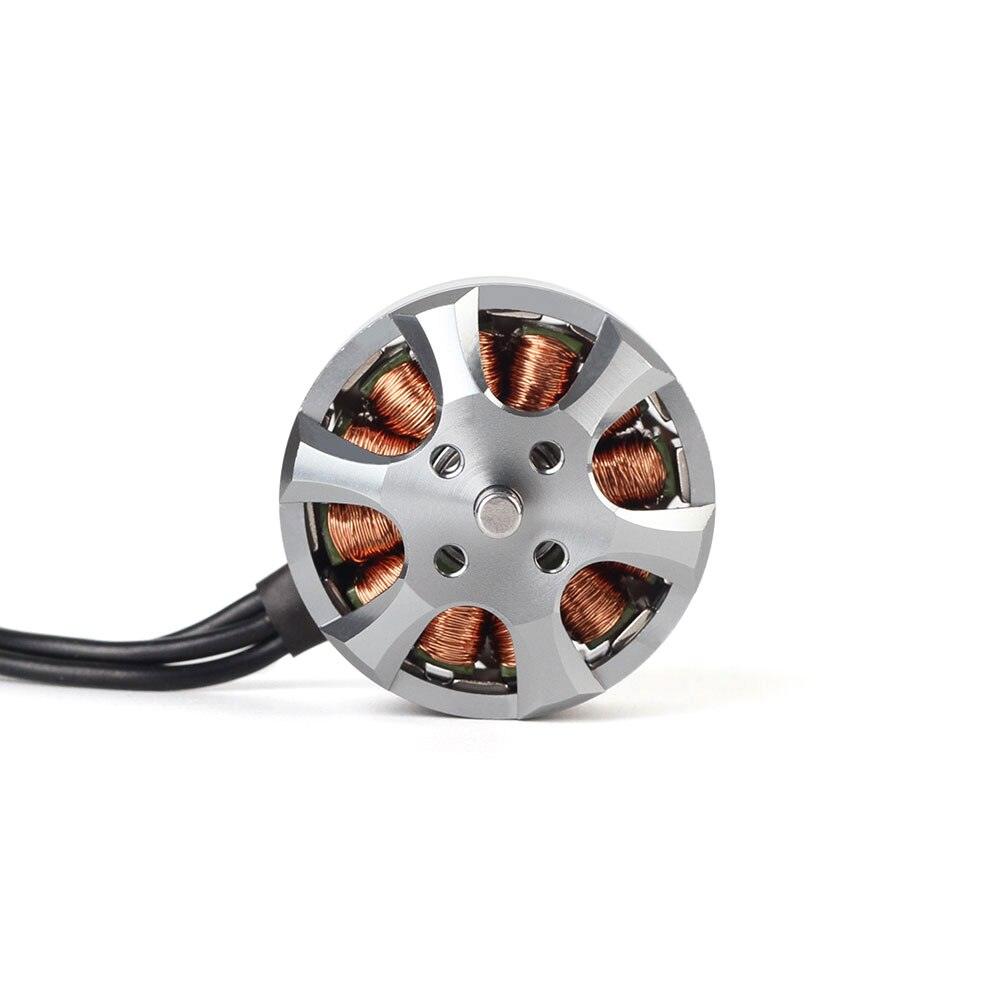

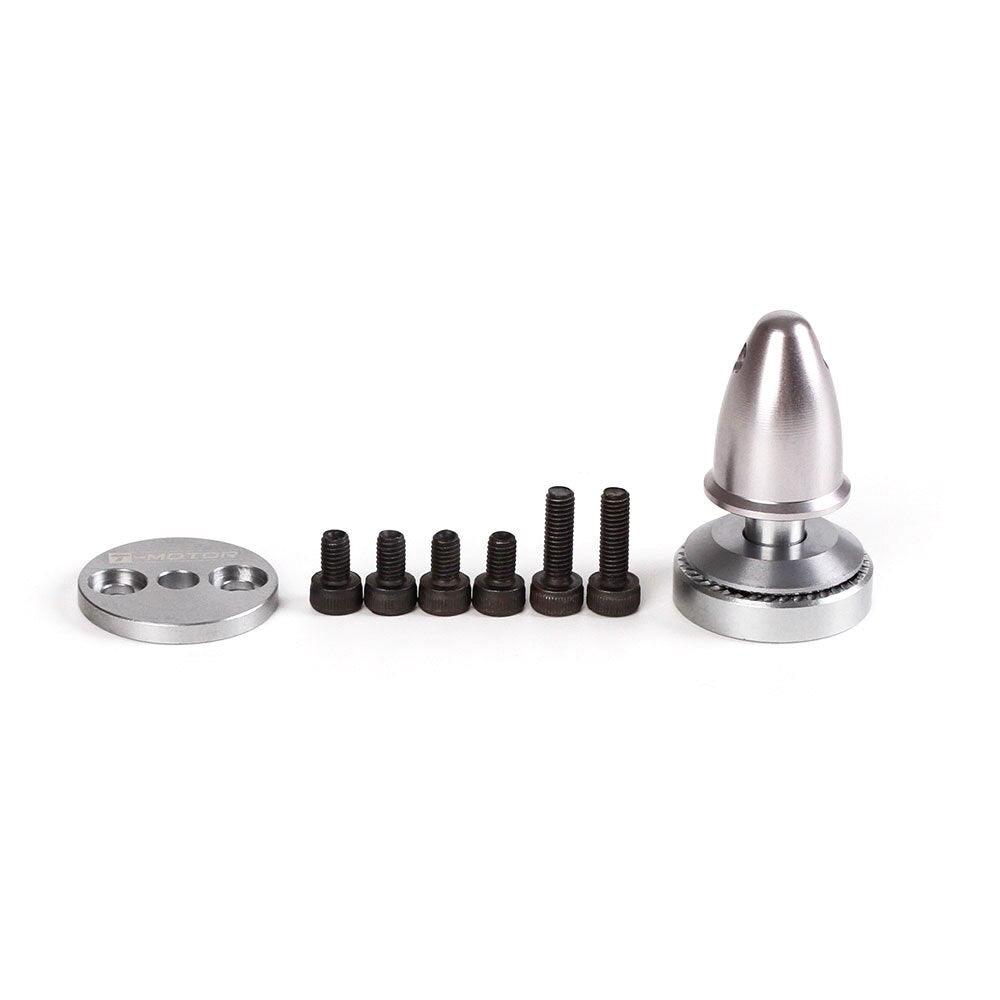

Motor T-Donar LMOTOR features a flexible mount design with various holes to match different frame types, allowing for easy installation of standard-sized propellers (16x1mm or 9x25mm).

T-motor MN3110 KV470 KV700 KV780 BrushlessT-motor, Test Report Test Item MN3110 KV47O Report NO. MN.

Test Report: MN3110 KV470 Motor Specifications. Internal Resistance: 135mΩ. Configuration: 12N14P. Shaft Diameter: 4mm. Motor Dimensions: 37.7mm x 28.5mm. Stator Diameter: 31mm, Stator Height: 10mm. AWG Cable: 18#. Cable Length: 60mm. Weight (including cables): 98g. Weight (excluding cables): 80g. Number of cells (Lipo): 3-6S. Idle Current: [insert value].

T-motor MN3110 KV470 KV700 KV780 BrushlessT-motor, Test Report Test Item MN3110 KVZOO Report NO. MN.

Test Report Test Item MN3110 KVZOO Report NO. MN.00009 Specifications Internal Resistance 92m0 Configuration 12N14P Shaf Diameter 4mm Stator Height 10mm AWG 18# Cable Length G00mm Weight Including Cables 99g Weight Excluding Cables 80g Noe of Cells(Lipo) 3-6S Idle Current@1v 0.3A Max Continuous Power 180S 466WN Max Continuous Current 180S 21A Max

T-motor MN3110 KV470 KV700 KV780 BrushlessT-motor, Test Report Test Item MN3110 KV780 Report NO. MN.

MN3110 KV780 Brushless Motor Report Test Item: MN00010 Specifications. Internal Resistance: 71mΩ. Configuration: 12Ni4P. Shaft Diameter: 4mm. Stator Height: 10mm. AWG: 18#. Cable Length: 600mm. Weight (including cables): 100g. Weight (excluding cables): 80g. Number of Cells (Lipo): 3-6S. Idle Current at 10V: 0.4A. Maximum Continuous Power: 180S, 481W. Maximum Continuous Current: 180S, 26A.
