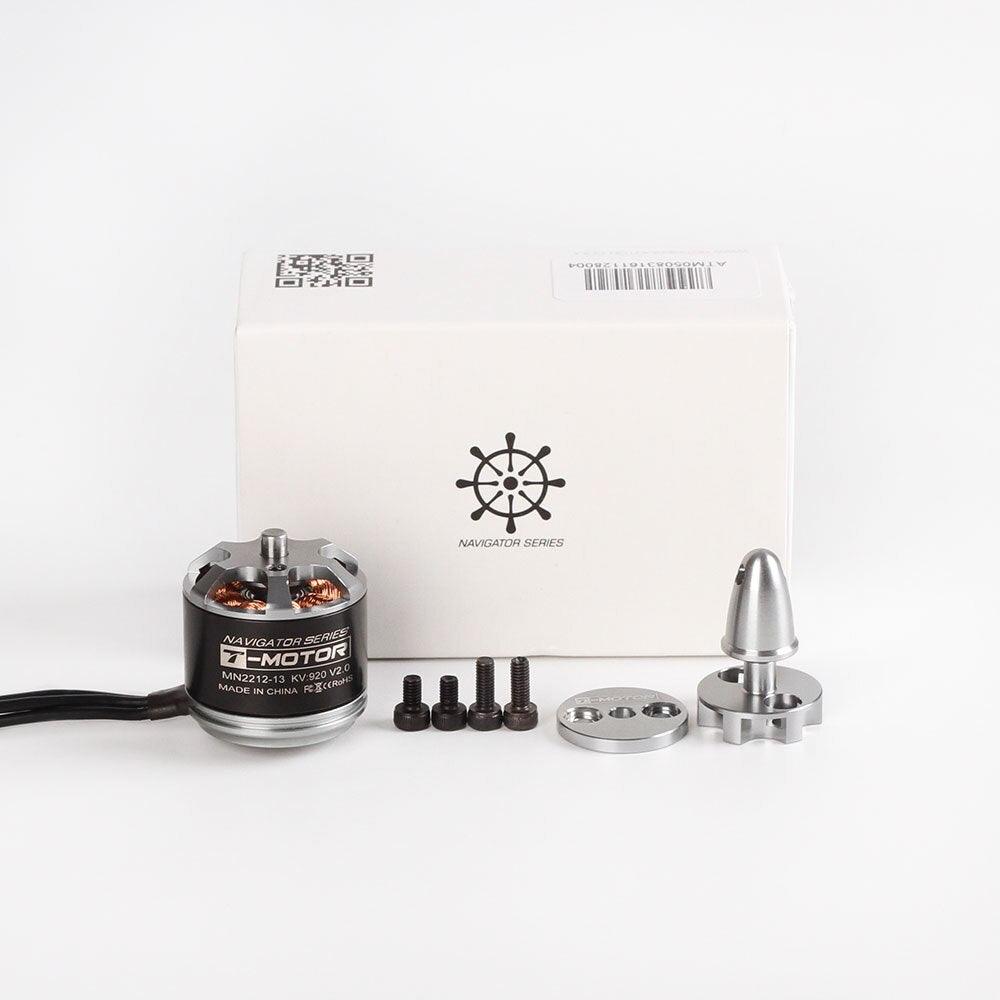

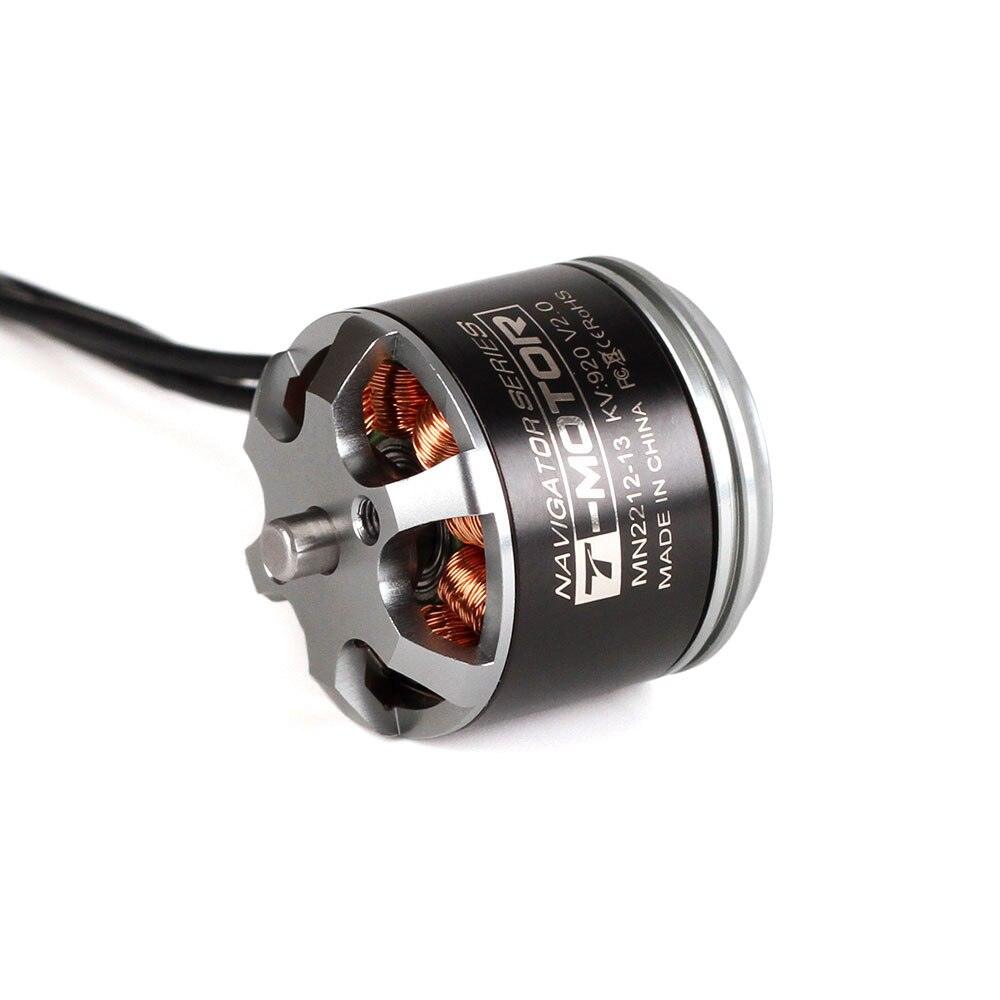

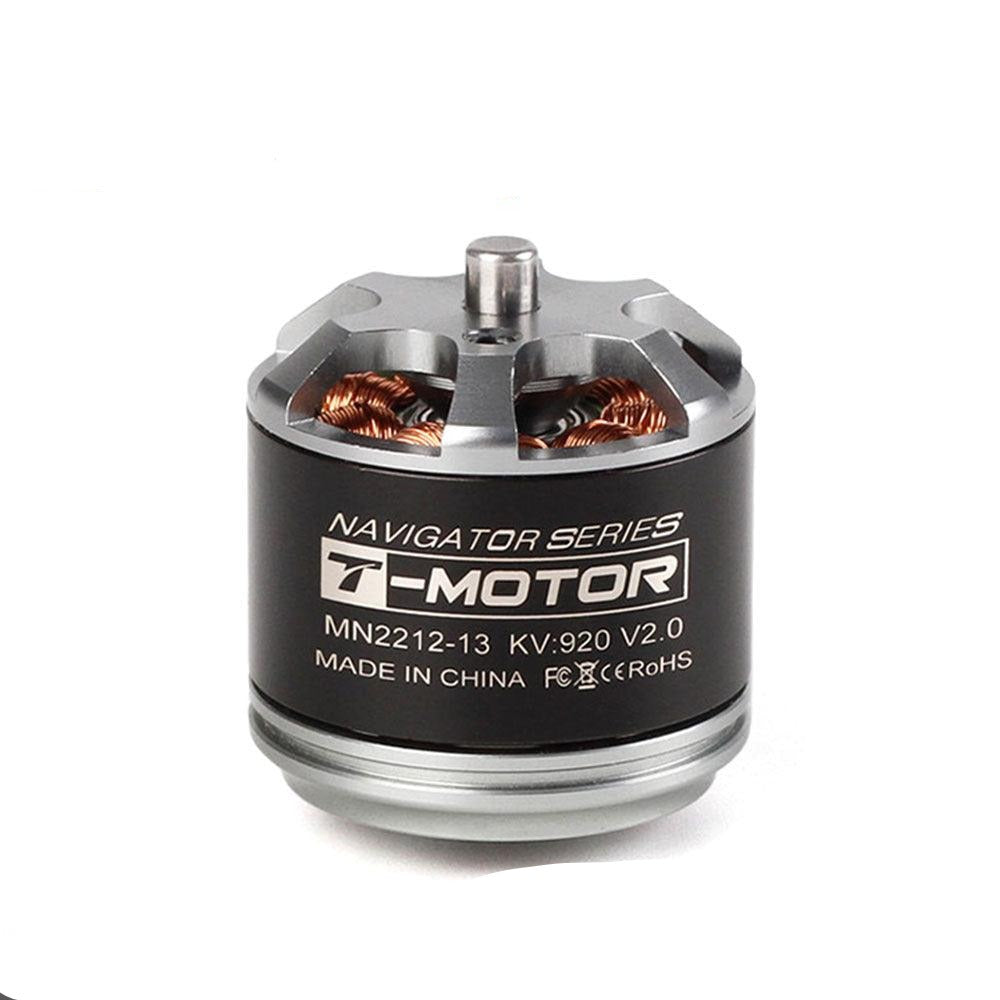

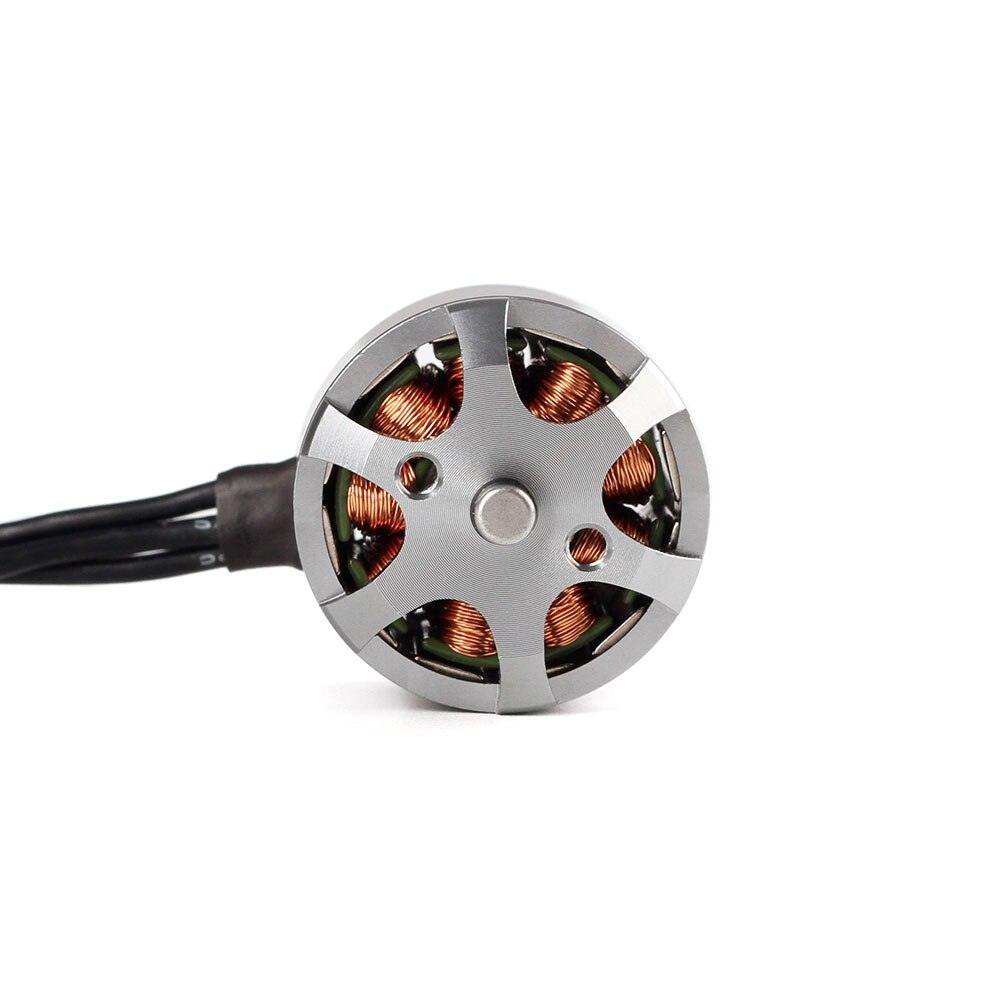

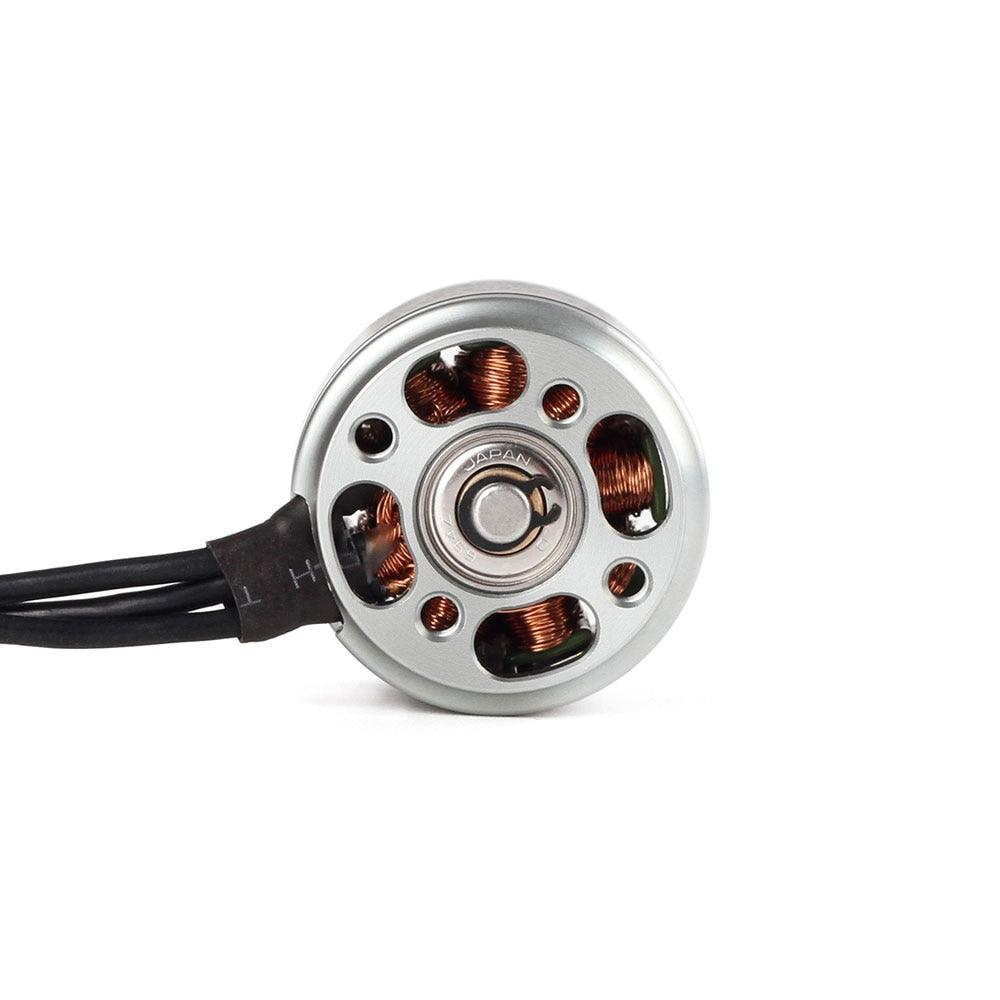

T-motor MN2212 KV780 KV920 Brushless Motor 2-4S 0.92KG Thrust for multi-rotor copter drones

T-motor MN2212 KV780 KV920 Brushless Motor 2-4S 0.92KG Thrust for multi-rotor copter drones

T-Motor

Regular price $69.79 USD
Regular price $104.69 USD Sale price $69.79 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

72 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN2212 KV780

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

T-motor, the motor is high quality, smooth running durable brushless motor built for multirotor UAVT-motor, leveraging many test data we can ensure MN2ZI2 is flawless motor of 22T-motor, MNZxxx series motors come with bearing twice as large as the same size motorT-motor, the motors come with higher lever EZO bearing to improve the life of the motor T-motor, Flexible mount holes design to match different . standard 16*19mm and 19*25mmT-motor, Installation of matching M5 prop Adapter CF Senote Prop:T-motor, 55g ldle current(10)@10v(A)........................................................T-motor, MN2212 T-MOTOR 14.8 7596 5.6 82.88 60T-motor, MN2212 V2 KV920 Report NO. MN.00007 Specifications

Specifications:
KV..........................................................................................................780
Configu ration......................................................................................9N12P
Stator Diameter....................................................................................22mm
Stator Length.......................................................................................13mm
Shaft Diameter.......................................................................................4mm
Motor Dimensions(Dia.*Len).....................................................Φ27.5×26.5mm
Weight (g)...............................................................................................55g
ldle current(10)@10v(A)...........................................................................0.5A
No.of Cells(Lipo).....................................................................................2-4S
Max Continuous current(A)180S...............................................................13A
Max Continuous Power(W)180S.............................................................200W
Max. efficiency current..................................................................(2-5A)>85%
internal resistance...............................................................................173ohm
