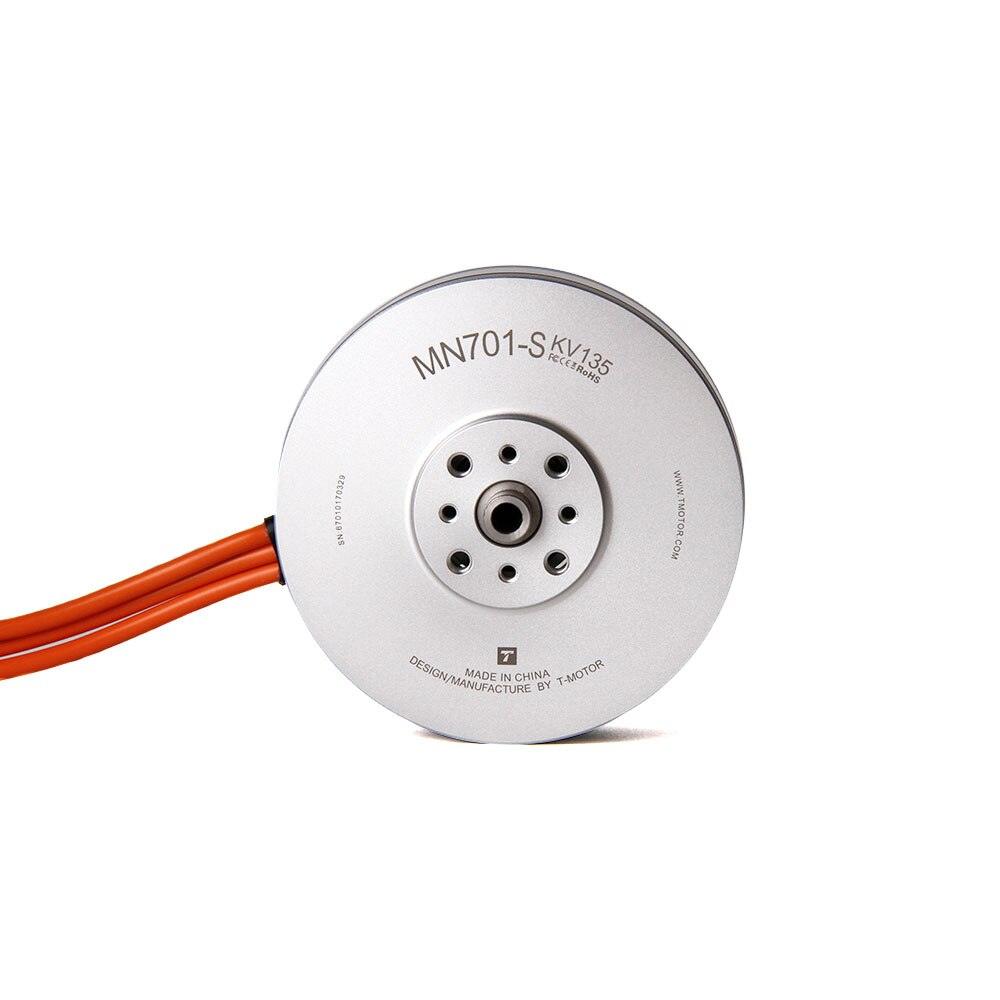

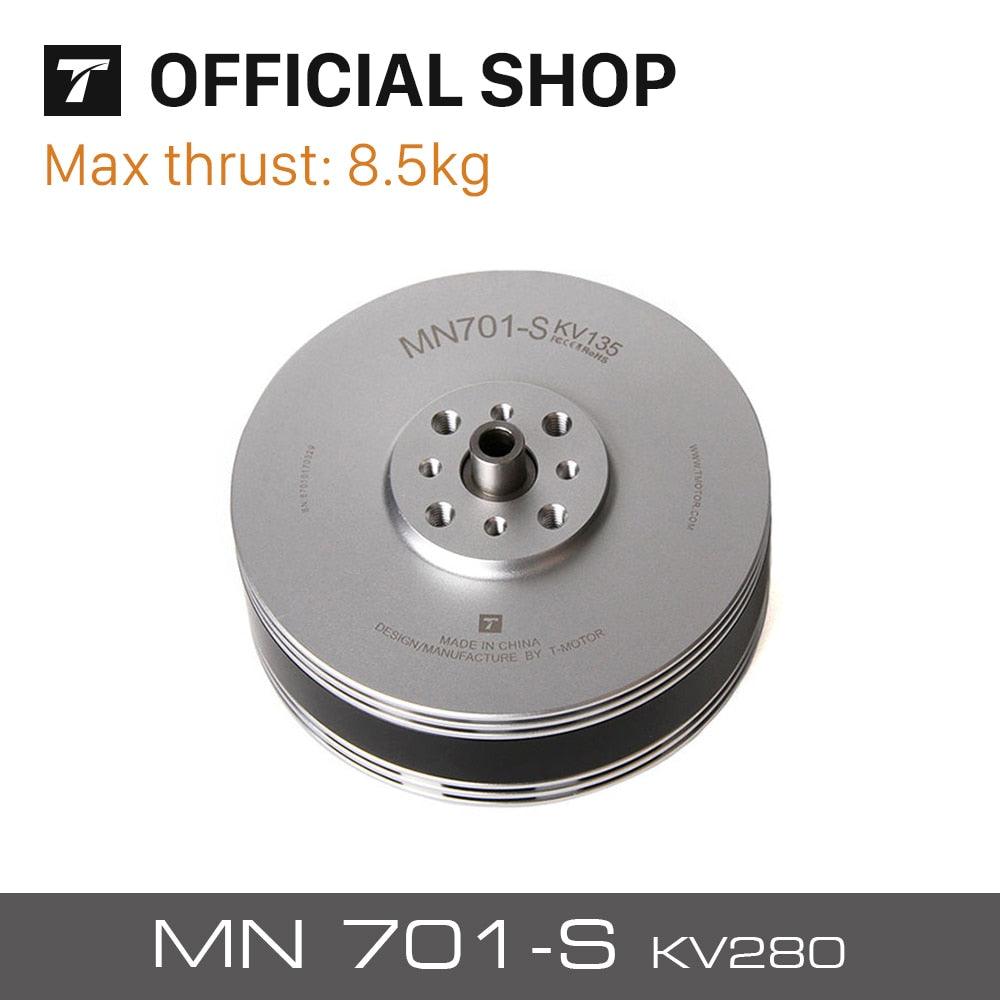

T-motor MN701-S KV135 KV280 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN701-S KV280

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

9.5 KG 9.5+ Thrust Stable & Reliable Safe Impact resistant IP55 MN7O1-S KV280 (Cc(Rohs 1 T-MoToR china)

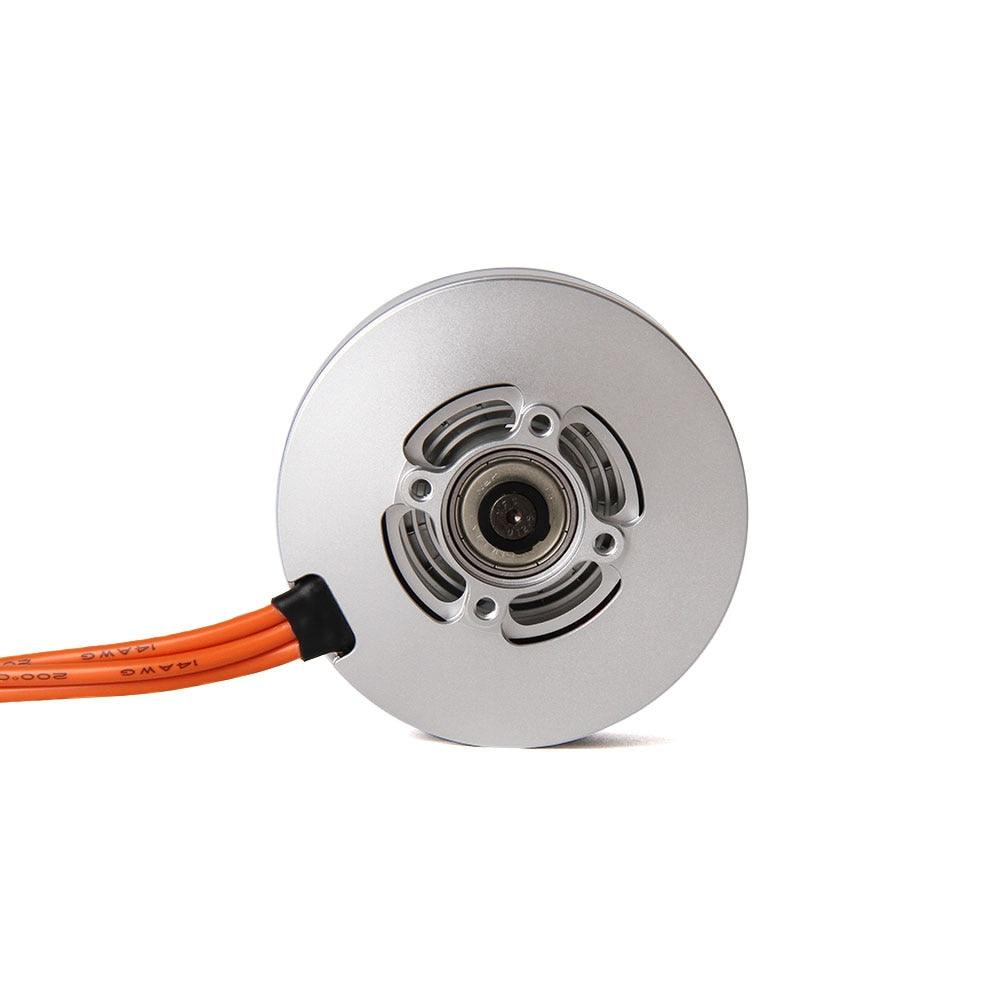

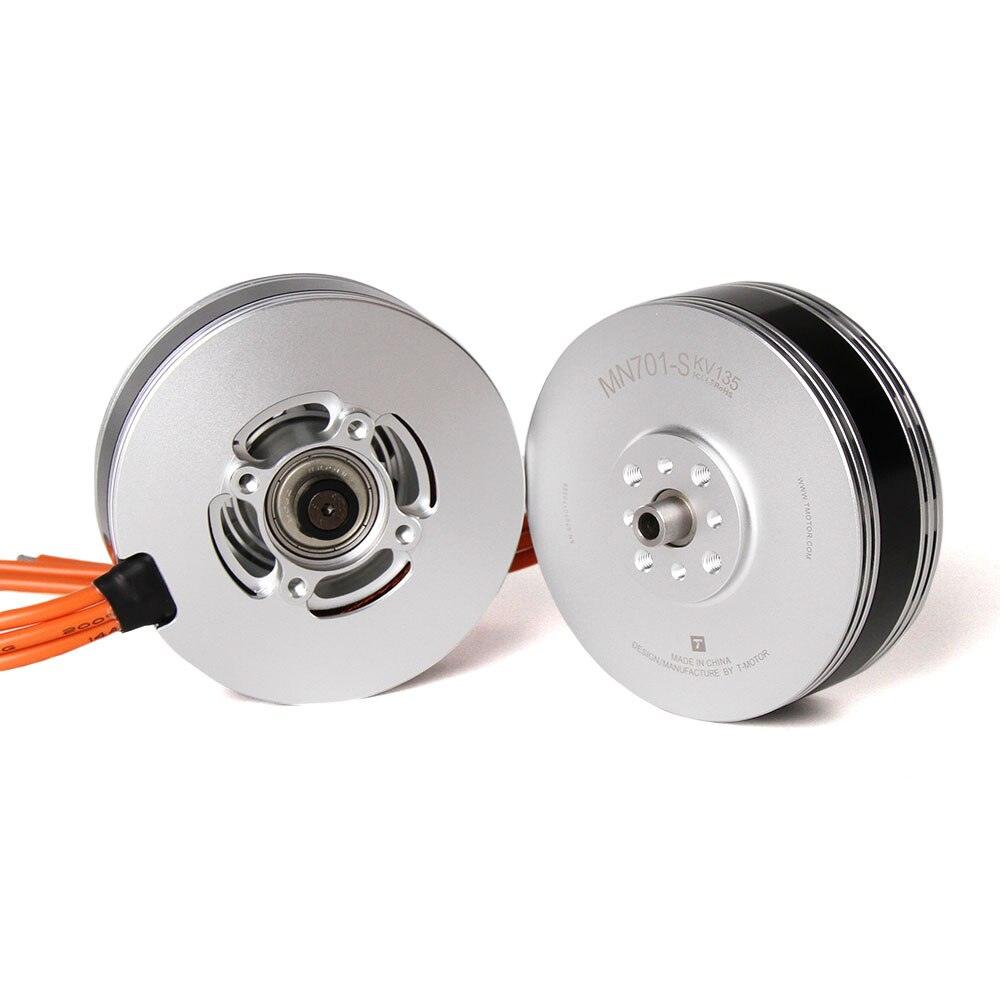

The bell-shaped cap actively cools the motor, while the diverging and upward-facing fins on the motor base increase the heat dissipation area.

The grid-like structure of the bell cap and base enables efficient ventilation, effectively protecting the motors from dust and debris. Additionally, the alloy shaft, bearings, varnished wires, silicon steel sheet, magnet, and bell are all treated with cutting-edge anti-rust and anti-corrosion technology to ensure long-lasting performance and durability.

The MN701-S motor features a T-shaped shaft that is securely fastened using a circlip and screw, providing double-layered protection against rotor loosening and ensuring reliable performance even under high RPM and power conditions.

Featuring a robust design, the MN701-S motor offers exceptional performance with its large thrust output and long lifespan. A 6mm steel shaft and oversized bearings are used to create an outstanding resistance to impacts, ensuring stability and durability for up to 300 minutes of continuous operation.

The MN701- S motor features anti-high temperature curved magnets with precise tolerance control and optimized magnet spacing, resulting in an improved magnetic circuit that enhances motor performance by up to 5%.

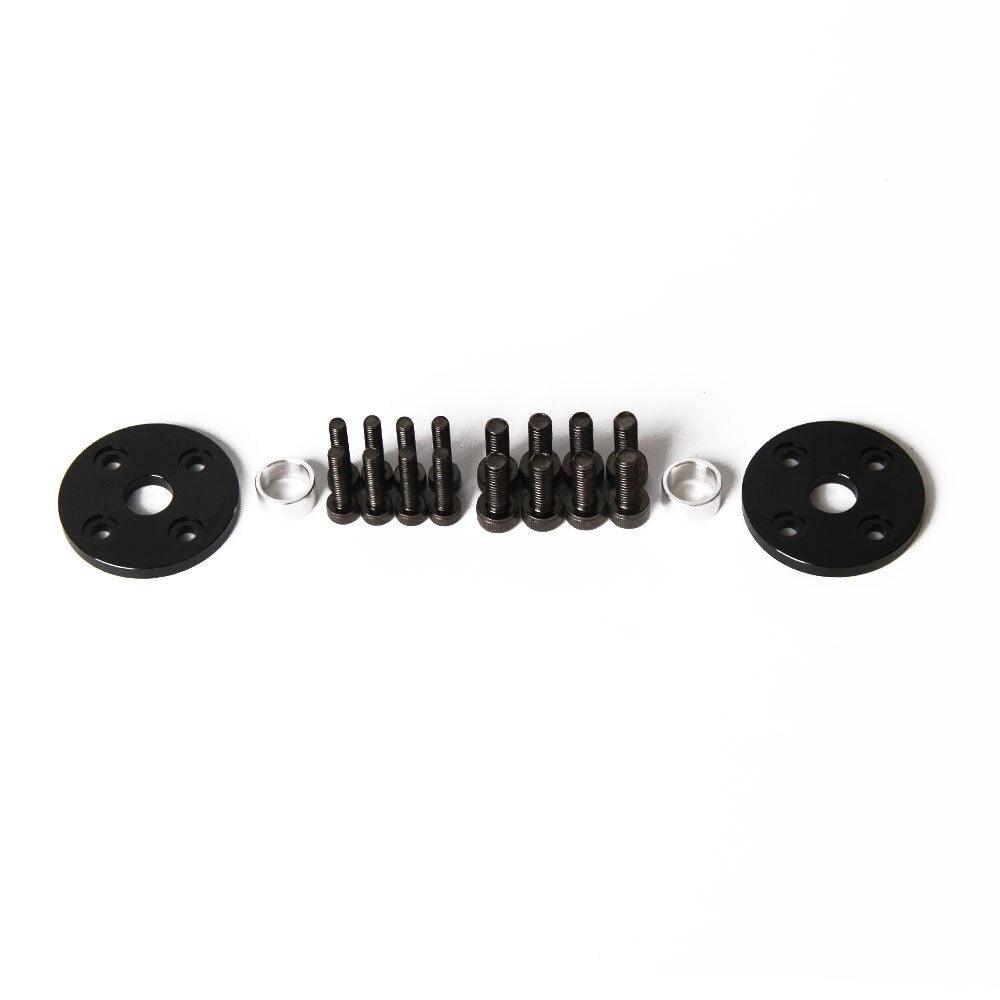

Note that the following accessories are not included and require separate purchase: * Prop adapter installation screw (10-4, $3.0) * Prop adapter (1 piece) Please note the following prop size limits: * For props up to 22 inches in diameter (inclusive) * For props above 24 inches in diameter (inclusive)

Foldable Prop Installation Method For prop below 22" (Incl: 22") For prop above 26" (incl. 26") M3'12mm Mounting Screw'2 I [ M4' 1Omm Motor Mounting screw'4 M3 8mm adpater installation screw'4" Prop adapter Note: Accessories above require Additional purchase Additional purchase Prop adapters above require

Specifications Motor Size p79.2*37.4mm Imported silicon steel sheet; Anti-rust treatment; Stator 180Chigh temperature-resisting coatings Configuration 24N28P Shaft Diameter IN 8mm OUT 8mm Bearing Imported 608ZZ Magnet Leve 150C high temperature resistance Lead Cable 14AWG*15Omm Copper Wire 220C High temperature resistance: Level € Coil Insulation Test 50ov Centrifugal Cooling Design YES Rotor Dynamic

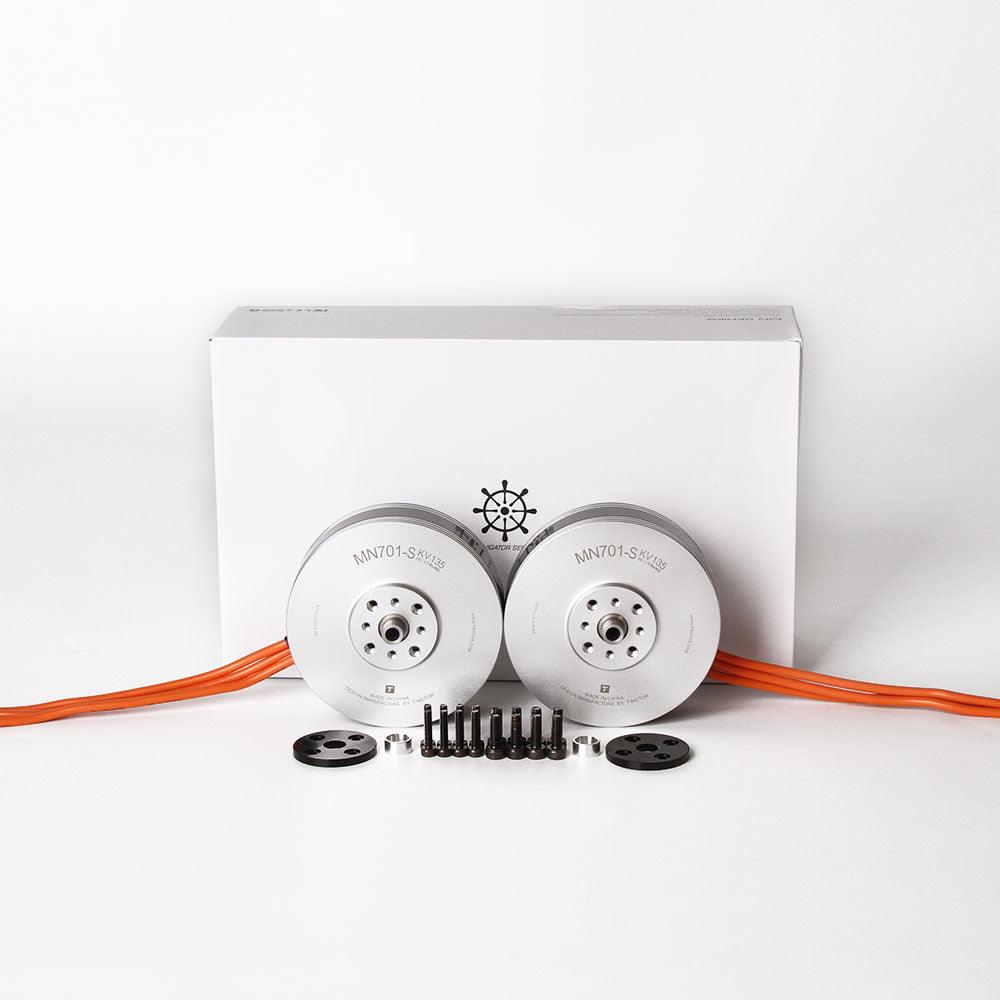

FLAME 80A 12S V2.0 Peak Current (180s) 42A Propeller Recommendation 24-26" Max. Power 80s) 900w Motor Weight ( Incl. Cable) 350g Internal Resistance 94mn Package Weight 1050g(2PCS/SET)

If you are missing any components or have any questions, please feel free to contact our online customer service or leave a message at onlinesales@tmotorcom.
