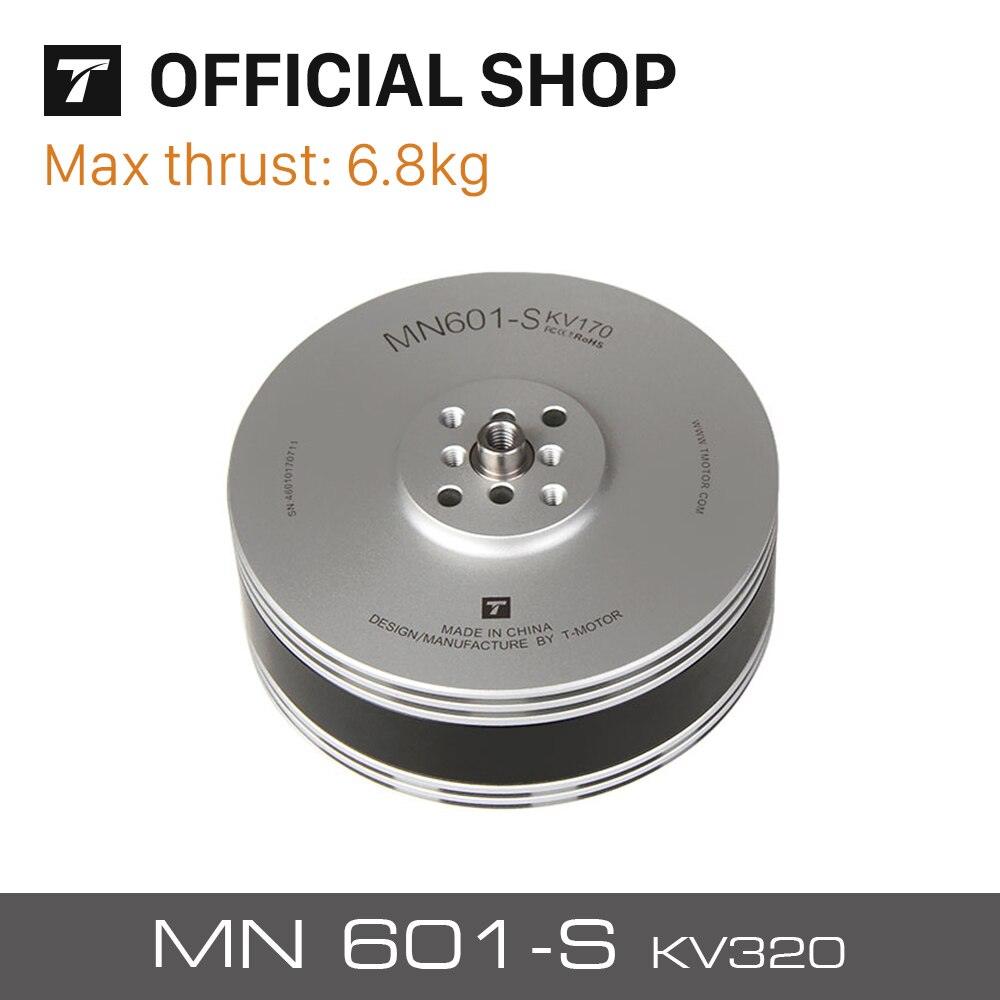

T-motor MN601-S KV320 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN601-S KV320

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

MANAPALNRE 6.8 KG 6.8+ Thrust Stable & Reliable Safe Impact resistant IP5S MN6O1-St KV17o TC( 'Roms Tmotor GHINA')

Heat dissipation performance is improved by 15% compared to regular motors, allowing for more efficient cooling and increased reliability.

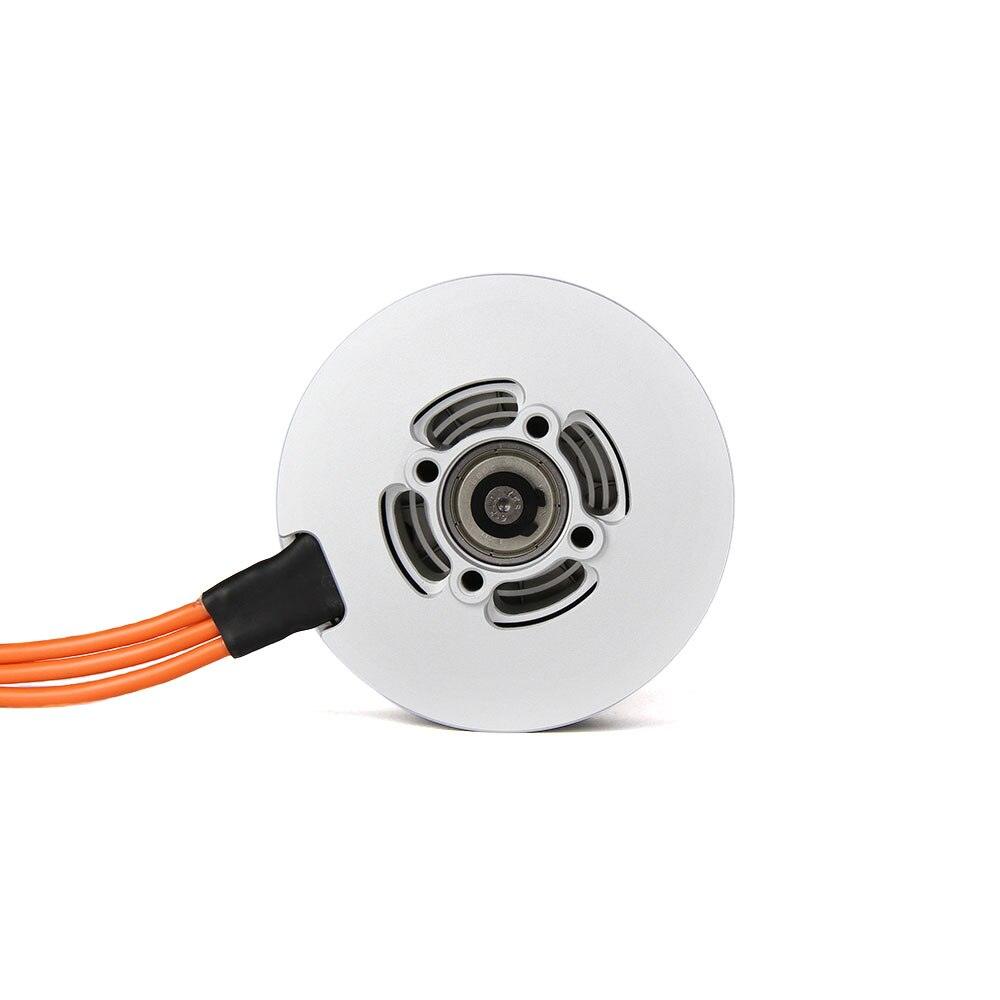

The grid-shaped structure of the bell cap enables efficient ventilation, while also protecting the motor from dust and debris. Additionally, the HINA FTNC BY waterproof and dust-resistant design features an anti-corrosion locking method, ensuring safe and reliable operation even at high RPM and power levels without compromising rotor stability.

The T-motor MN601-S features a double-secure circlip operation system, ensuring a long lifespan with maximum thrust. The motor also boasts a robust construction, featuring a 6mm steel shaft and large bearings that provide exceptional impact resistance, stability, and overall lifetime. Additionally, the curved magnet design optimizes performance for enhanced efficiency.

The V-shaped anti-high temperature curved magnets, featuring precise tolerance control and optimized magnet spacing, enhance the magnetic circuit's efficiency. This design improvement helps boost motor performance by up to 5%.

Specifications: • Motor Size: 68.8 x 34.9 mm • Material: Imported silicon steel sheet with anti-rust treatment • Stator Configuration: 24N28P • Shaft Diameter: 6mm (outer) and 5mm (inner) • Bearings: Imported 626ZZ • Magnet Level: 150°C high temperature resistance • Lead Cable: 16AWG x 1.0mm copper wire with 180°C high temperature resistance • Coil Insulation Test: 500V centripetal cooling design: YES • Rotor Dynamic Balance: Standard

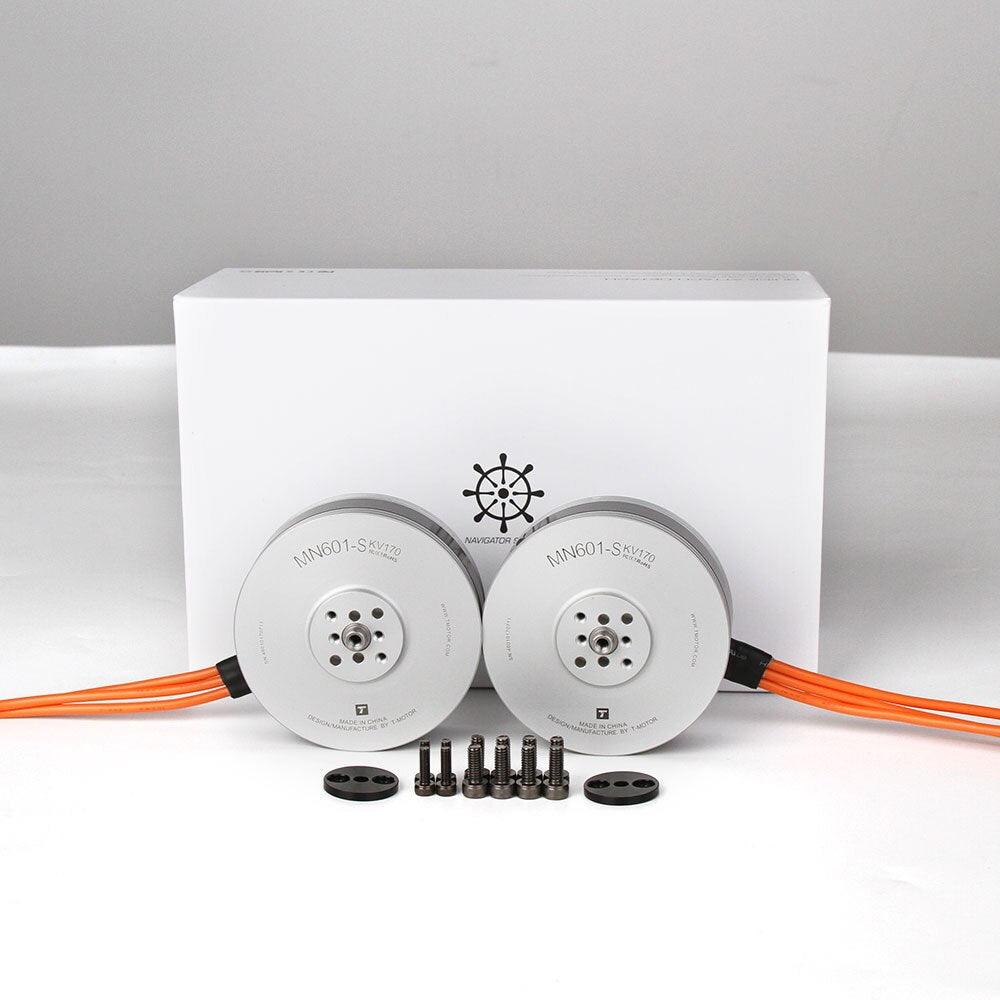

Recommended ESC: FLAME 604, compatible with 12S power systems. Specifications: • Peak Current: 180 seconds • Internal Resistance: 115mΩ • Package Weight (2PCS/SET): 820g • Rated Voltage (Lipo): 17V • Idle Current: 0.84A

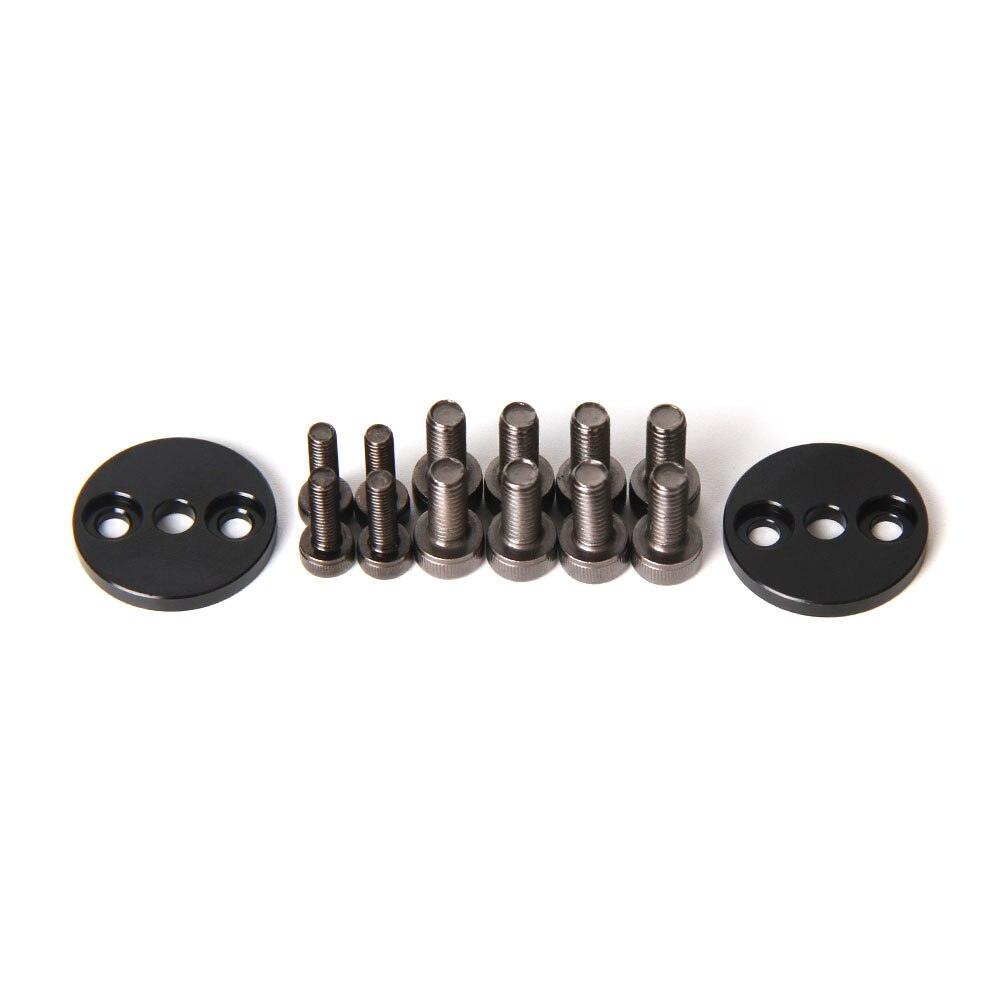

Please verify that your package includes all the components listed above prior to use. If any item is missing, kindly reach out to our online customer service team for assistance.
