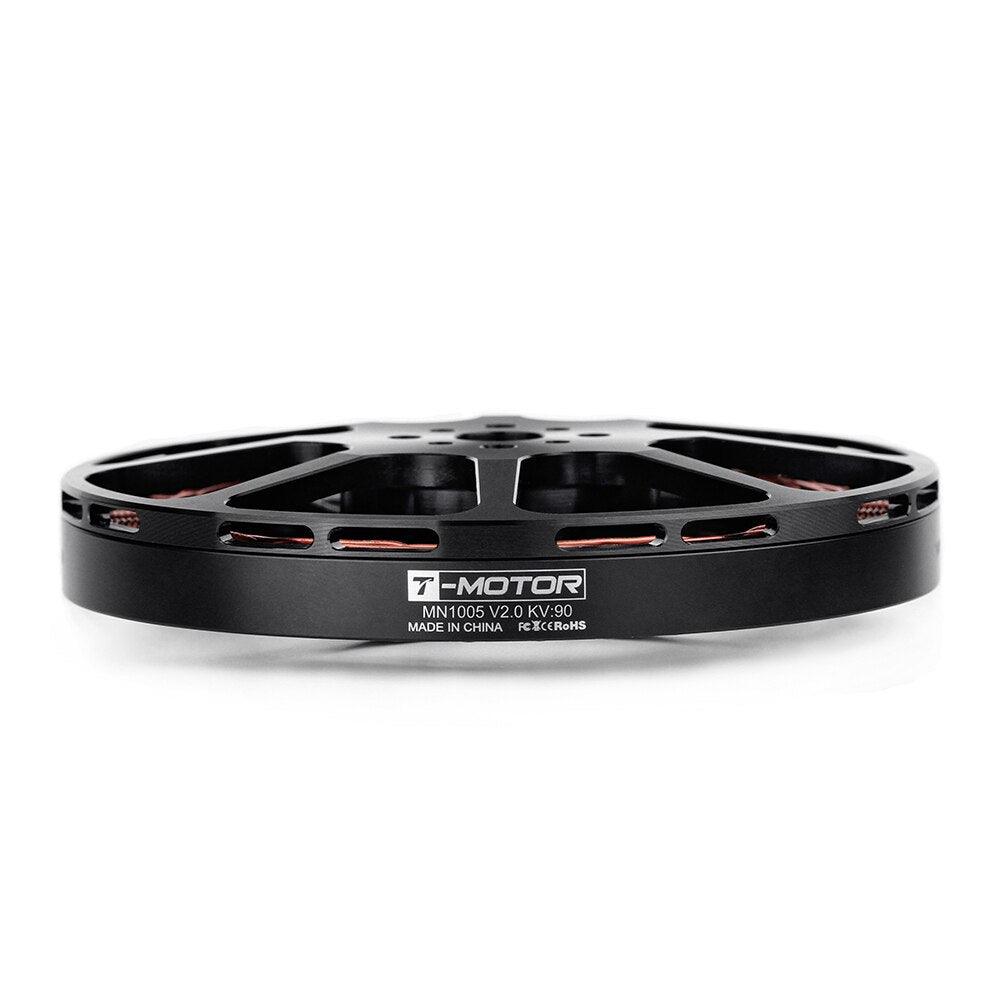

T-MOTOR MN1005 V2.0 KV90 Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: esc

Tool Supplies: Battery

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN1005 V2.0

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

• Service life of 1000 hours

• Eifficiency up to 11.5g/W at 3kg

• Imported German 7075 aviation alumimum

• Motor weighs only 282g

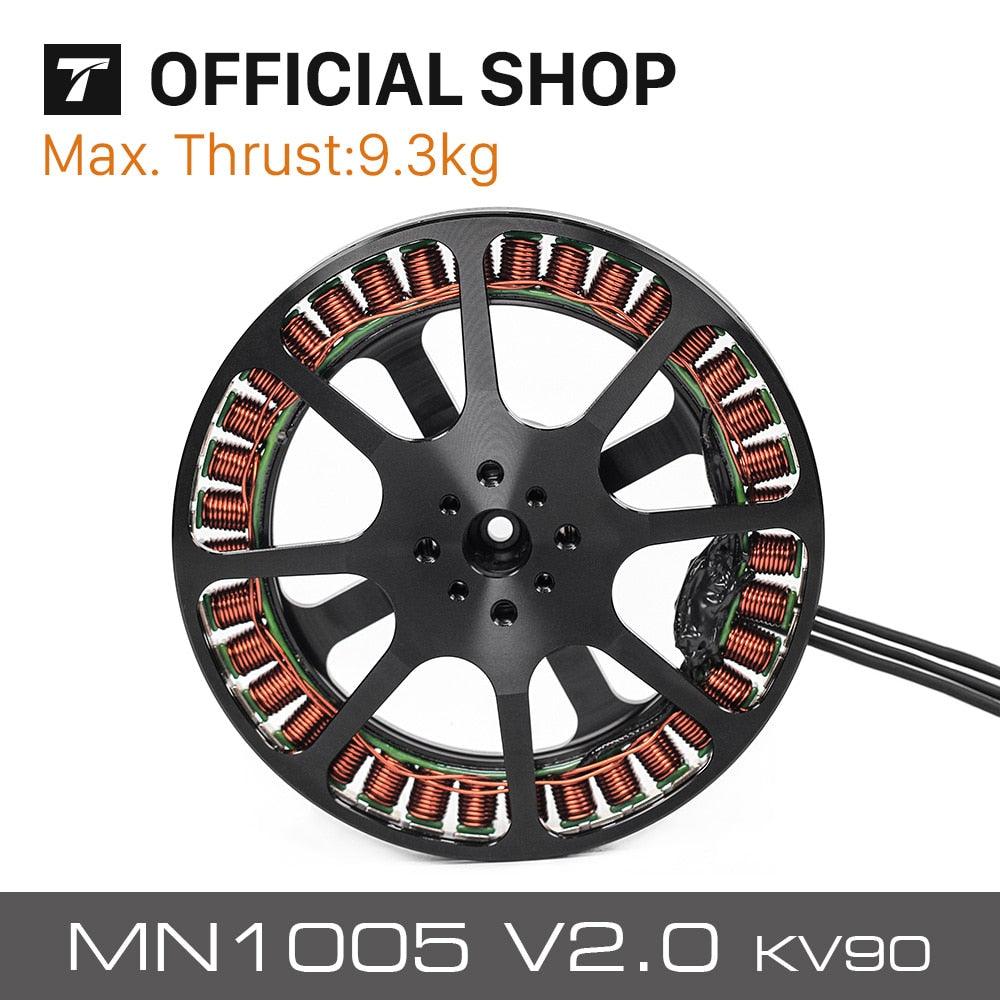

Eff iciency up to 11.5g/W @ 3kg thrust 9.3Kg+ 282 MaxThrust Motor Weight EMOTOR MN1O0S V2.0 KV:90 MADE IN CHINA FeZ((RoHs)

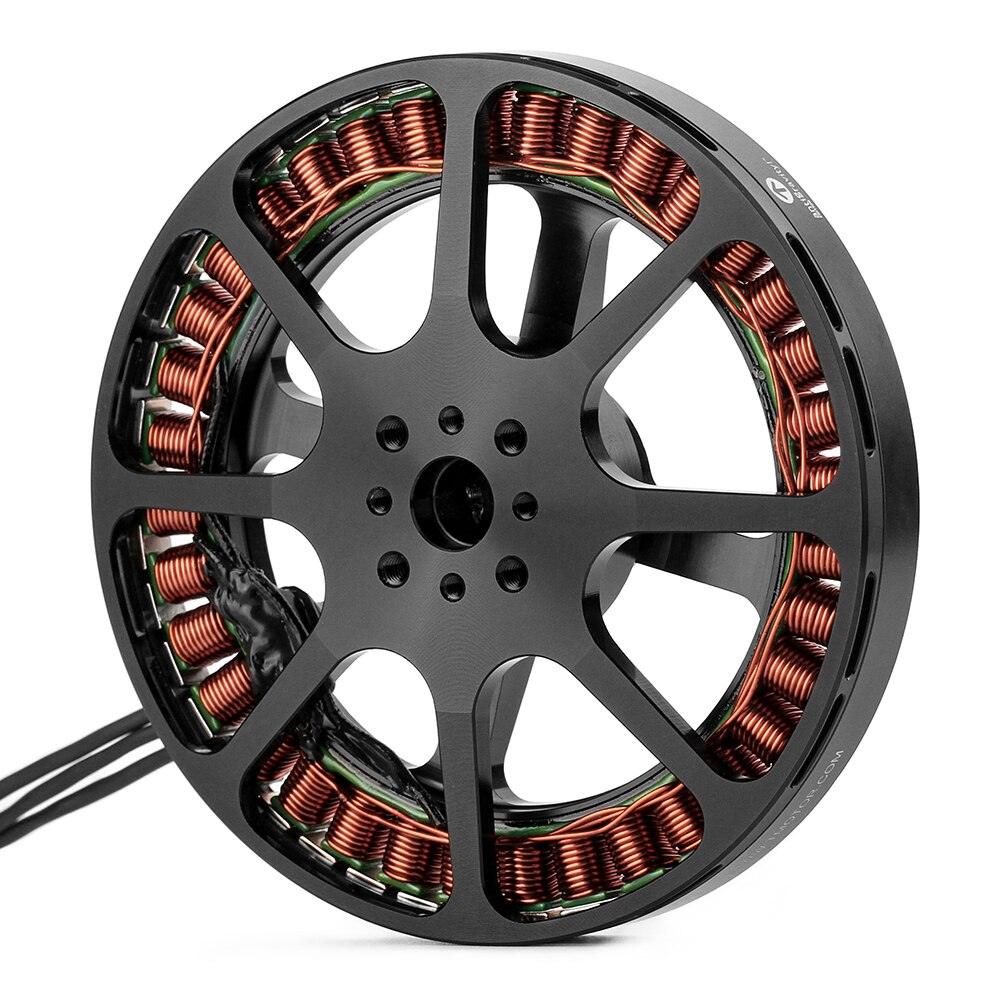

Featuring an antigravity design, this motor incorporates high-quality materials, including imported German 7075 aviation-grade aluminum alloy in its casing, which enhances durability and ruggedness. The open structure also optimizes heat dissipation for improved cooling performance.

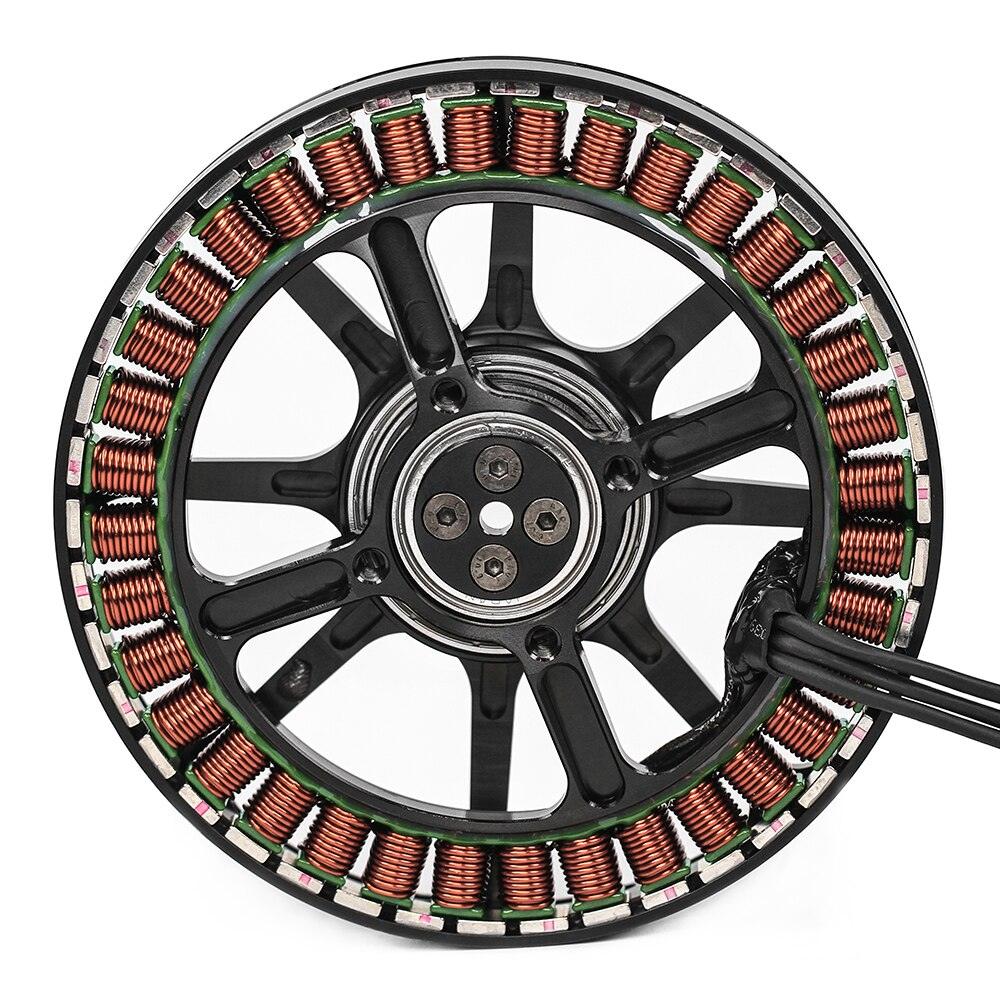

The motor features single-layer copper wire windings with low internal resistance and high temperature tolerance, designed to minimize current interference and increase efficiency by at least 5%.

This motor features two 2mm bearings and one 37mm bearing, designed to improve stability and extend its lifespan to approximately 1000 hours.

The T-MOTOR MN1005 V2.0, when paired with a 30-inch carbon fiber propeller and a FLAME 60A 12S V1.2 ESC, is capable of delivering a maximum thrust of 3kg while achieving an impressive efficiency of 11.5g/W.

Product Specifications: MN1005 V2.0 Motor: - Size: 10.07mm (length) x 23mm (diameter) - Stator: High-temperature-resistant coating, 180°C - Configuration: 36N42P - Shaft Diameter: 17mm - Bearing: Imported, part number 68032Z - Magnet Level: 1809°C, high heat resistance - Cable: Enamelled wire, 1.0mm Copper Wire, 220PC high temperature resistance - Coil Insulation Test: 50ov (ovolt), centrifugal cooling design - Rotor Dynamic Balance: Standard, not required - Motor Dynamics: Balanced to standard SSMg specifications
