T-motor MN3508 KV380/KV580/KV700 Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 18+

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: MN3508 KV380/KV580/KV700

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

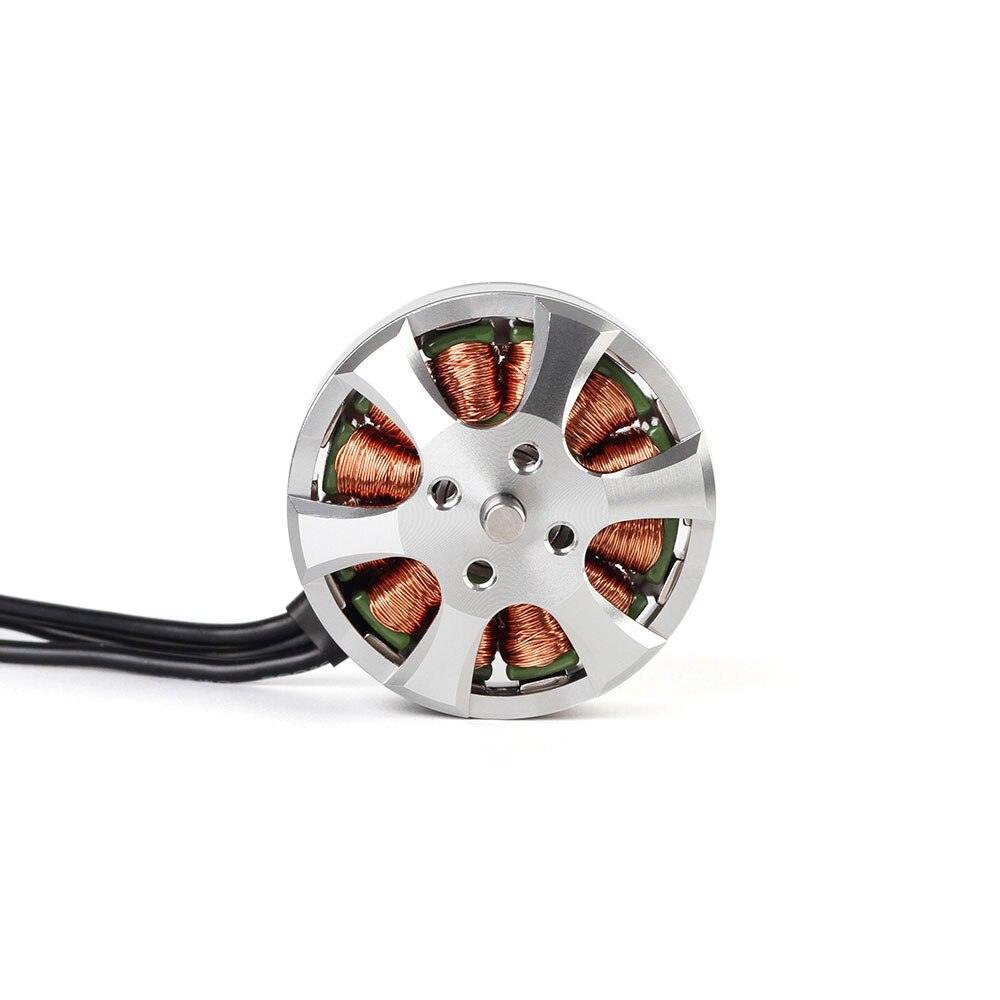

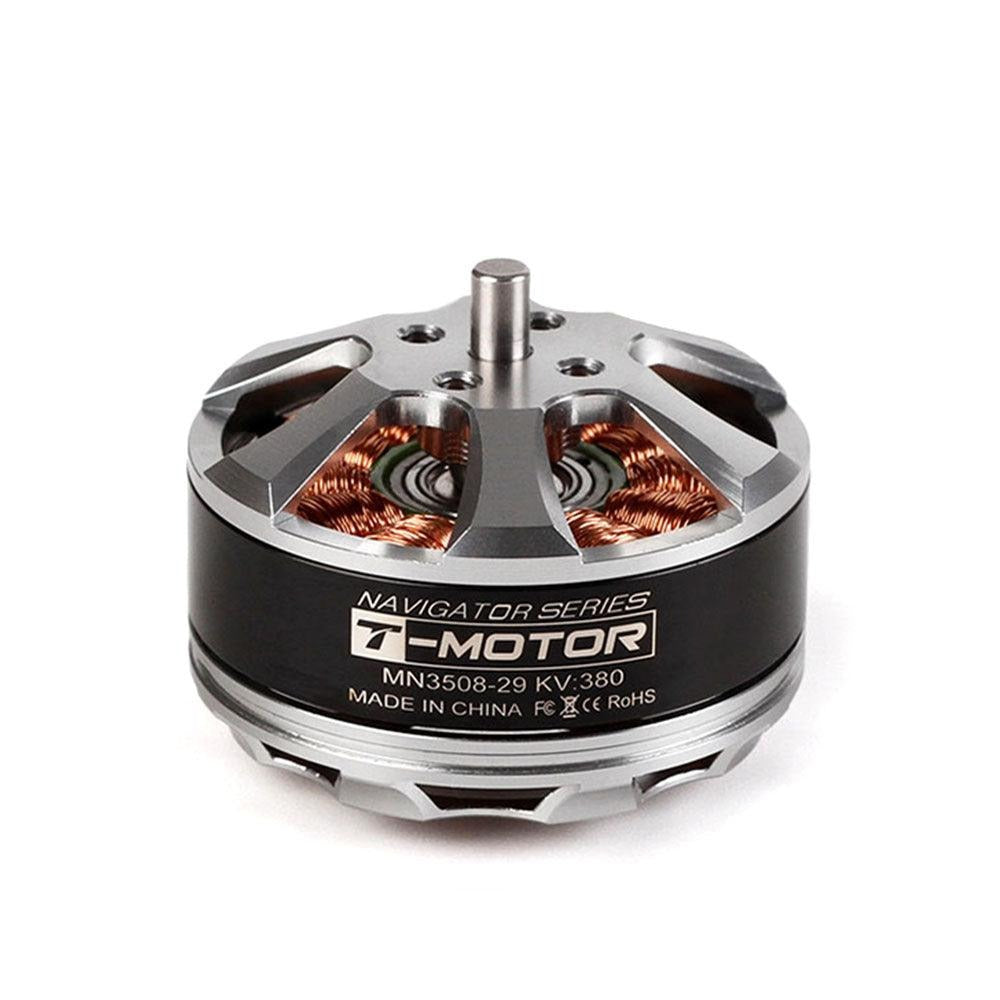

T-Motor Navigator Series is a high quality, smooth running, durable brushless motor built for multirotor UAV application . the custom assembly methods and components unique to Navigator series help to provide the reliability required for a dependable aerial platform.

Motor featuring a reliable propulsion system designed to provide a dependable aerial performance.

The T-MOTOR MN3XXX series features high-quality bearings, specifically EZO brand bearings that are originally imported. This ensures that the motor operates steadily and efficiently, even at low speeds.

Featuring a flexible mount hole design, the EMOTOR T-motor allows for easy installation and compatibility with various propellers. Main props can be installed in the standard 25x25mm mounting holes currently available on the market.

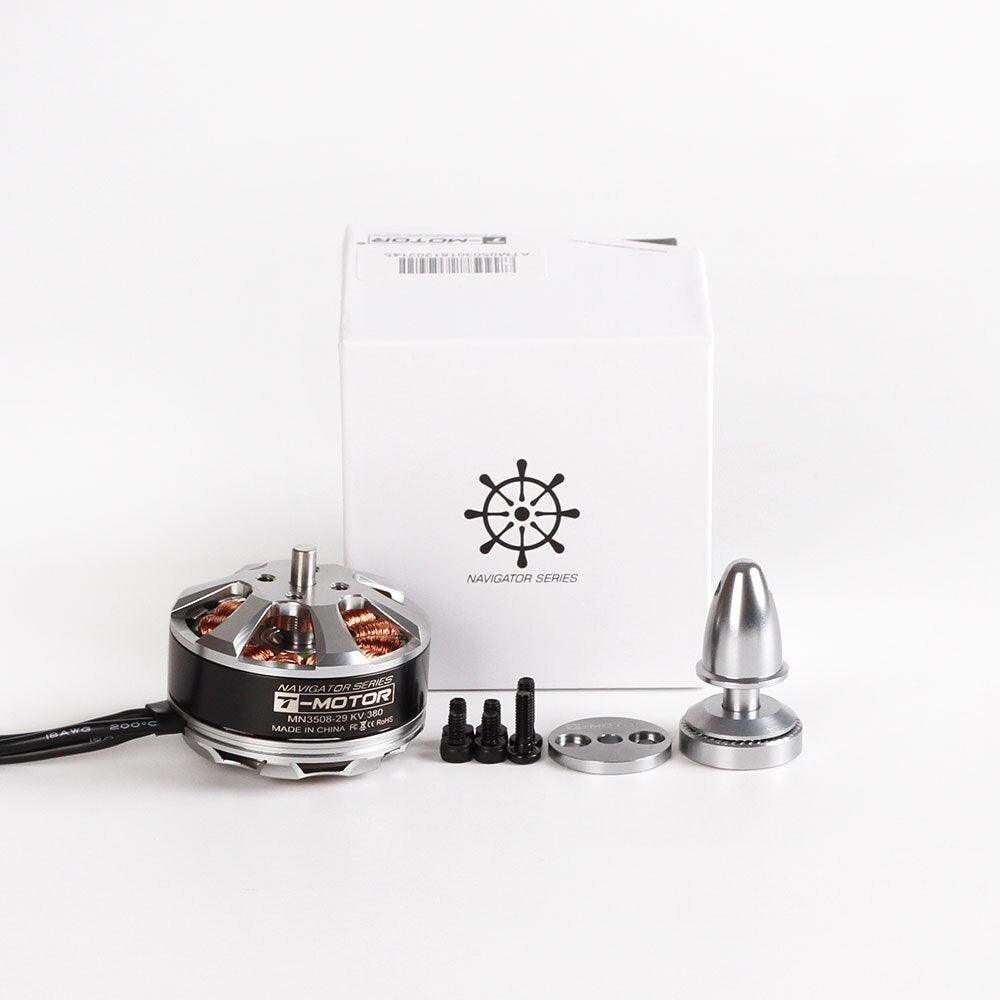

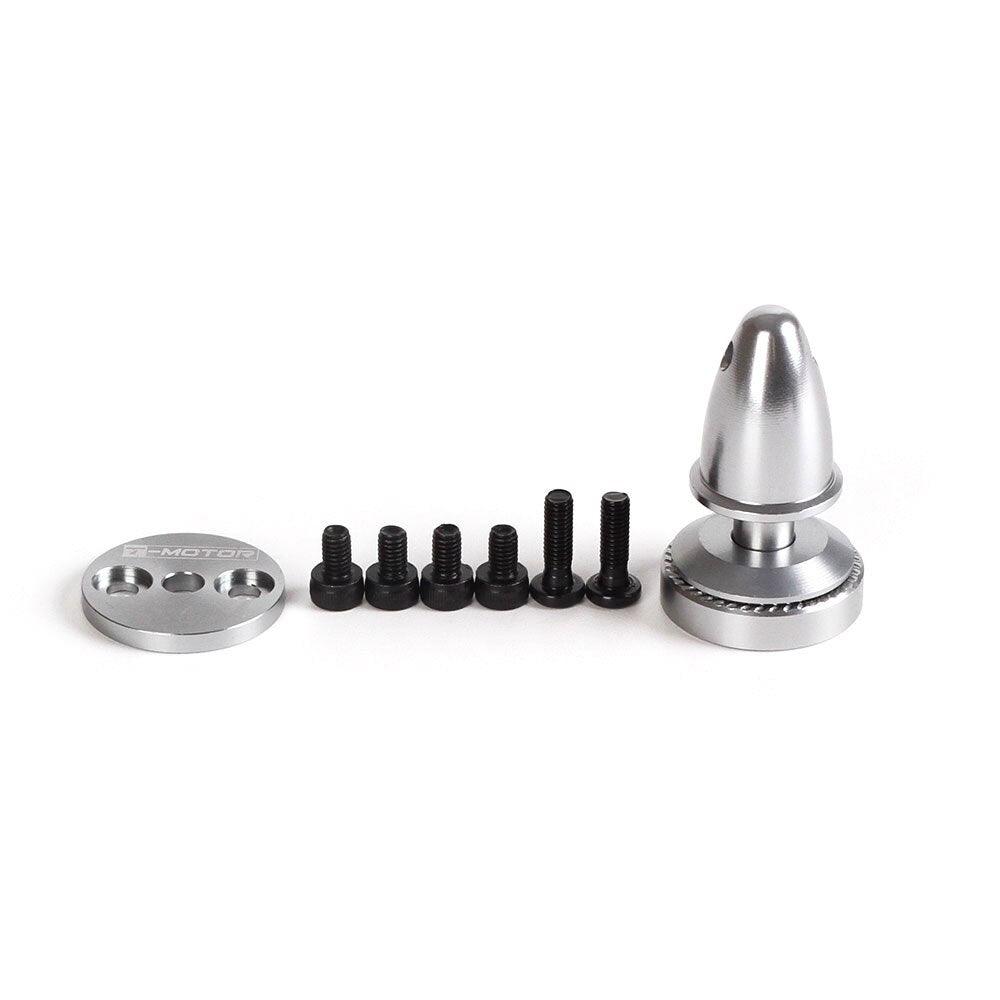

The package includes one set of prop adapters with an M6 thread, as well as M3 x 12mm screws (4 pieces) designed specifically for installing the T-motor CF prop on this motor.

Test Report Test Item MN3508 KV380 Report NO. MN.00011 Specifications Internal Resistance 205mn Confguration 12NI4P Shaf Diameter 4mm Stator Height 8mm AWG 18# Cable Length G00mm Weight Including Cables 103g Weight excluding cables 82g Noof = Cells(Lipo) 3-6S Idle Current@1Ov 0.4A Max Continuous Power 180S 310w Max Continuous Current 180S 14

Test Report: Test Item MN3508 KV580 - Report Number MN00012. Specifications: Internal Resistance: 110mΩ; Configuration: 12Ni4P; Shaft Diameter: 4mm; Motor Dimensions: 41.8mm x 26.5mm; Stator Diameter: 35mm; Stator Height: 8mm; AWG Cable: 18#; Cable Length: 600mm; Weight (including cables): 103g; Weight (excluding cable): 82g; Number of Cells (Lipo): 34S; Idle Current @ 10V: 0.4A.

Product specifications for T-motor MN3508 KV700 motor: * Internal resistance: 72 milliohms * Configuration: 12-layer Ni4P (nickel alloy) * Shaft diameter: 35mm * Stator height: 8mm * AWG (American Wire Gauge) cable length: 600mm * Weight (excluding cables): 82 grams * Recommended number of cells (Lithium-ion): 34S * Idle current at 10V: 0.5 amps * Maximum continuous power: 510 watts * Maximum continuous current: 23 amps
