Before you purchase, pls read each model's Specification for reference.Thank you.

Longer Flights More Possibilities 3rd generation carbon fibre propellers for extra flight time up to 2%-1 0%.

Design Evolution: One Step Higher - Enormous Hydrodynamic Simulations in Research & Development led to the selection of optimal designs.

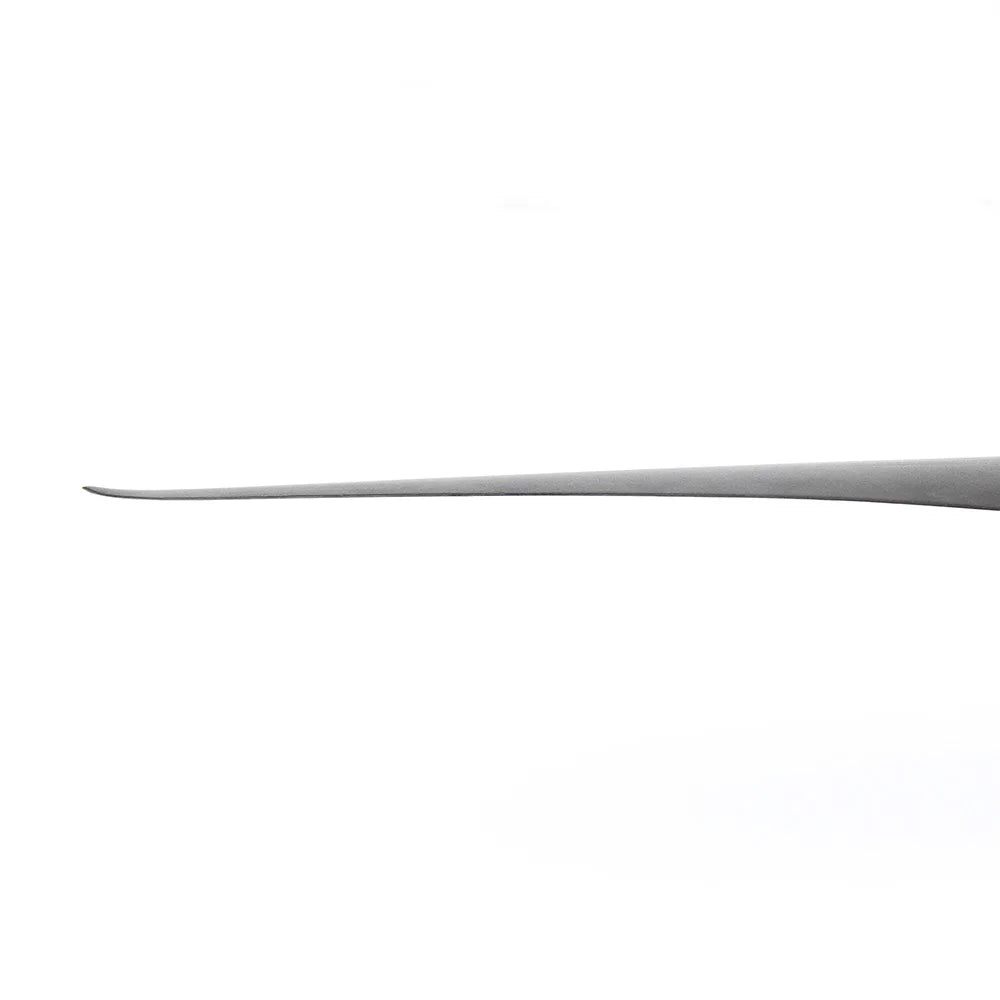

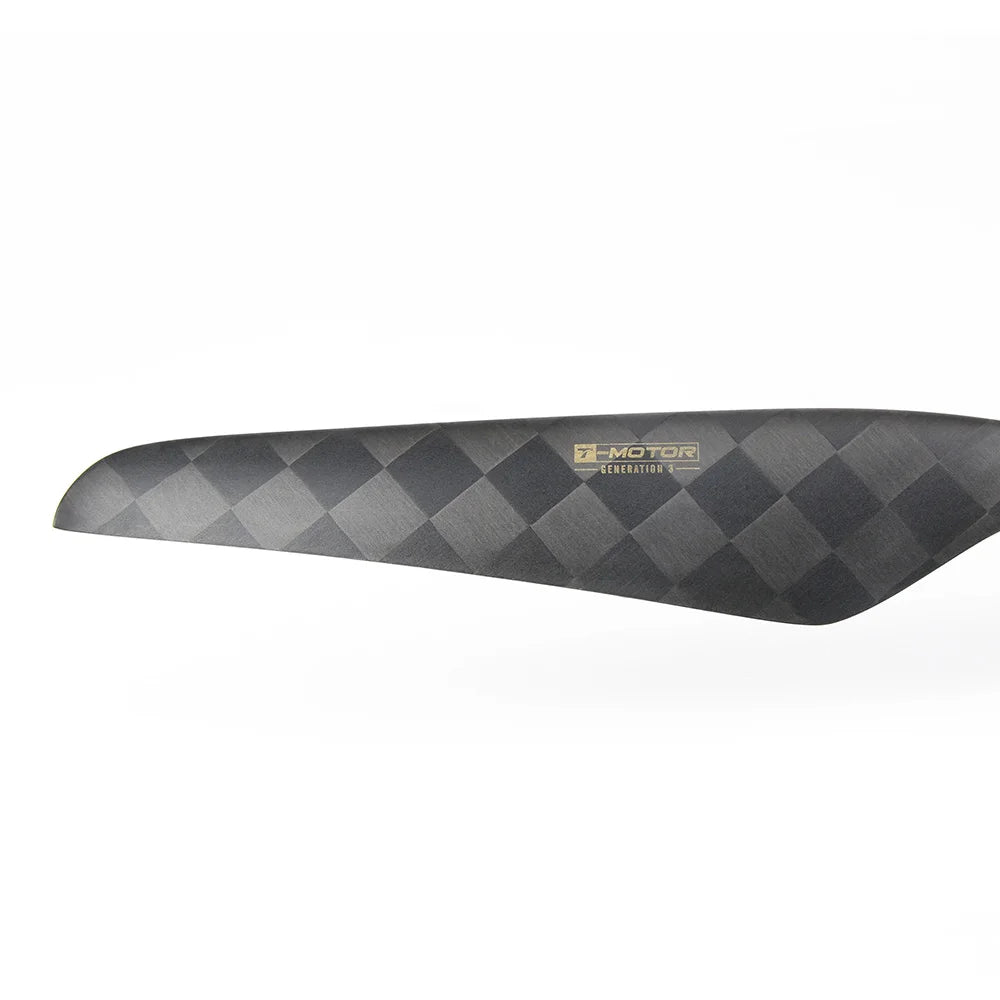

These General Carbon Fiber Propellers feature a special aerodynamic design with optimized wingtips that reduce vortex formation and increase lift-to-drag ratios, resulting in improved overall performance.

Evolution of Materials: Introducing a Revolutionary Breakthrough - T800 Carbon Fiber with 16% static strength and 22% fatigue resistance.

Introducing the new NS Series Propellers: featuring our innovative lightweight design, which achieves a remarkable 30%+ weight reduction through advanced forming techniques. This results in lower moment of inertia, reduced motor vibration, and ultimately, longer flight times.

Protective Pouches: Our NS Series propellers come with elaborately designed pouches that carefully shield them from scratches, ensuring safe transport and storage.

The flight performance shows an increase of up to 10% compared to our NS and P series propellers, as verified through comparative bench testing. The figure for strength improvement is based on simulated tests that mimic the stresses of alternating loads during flight.

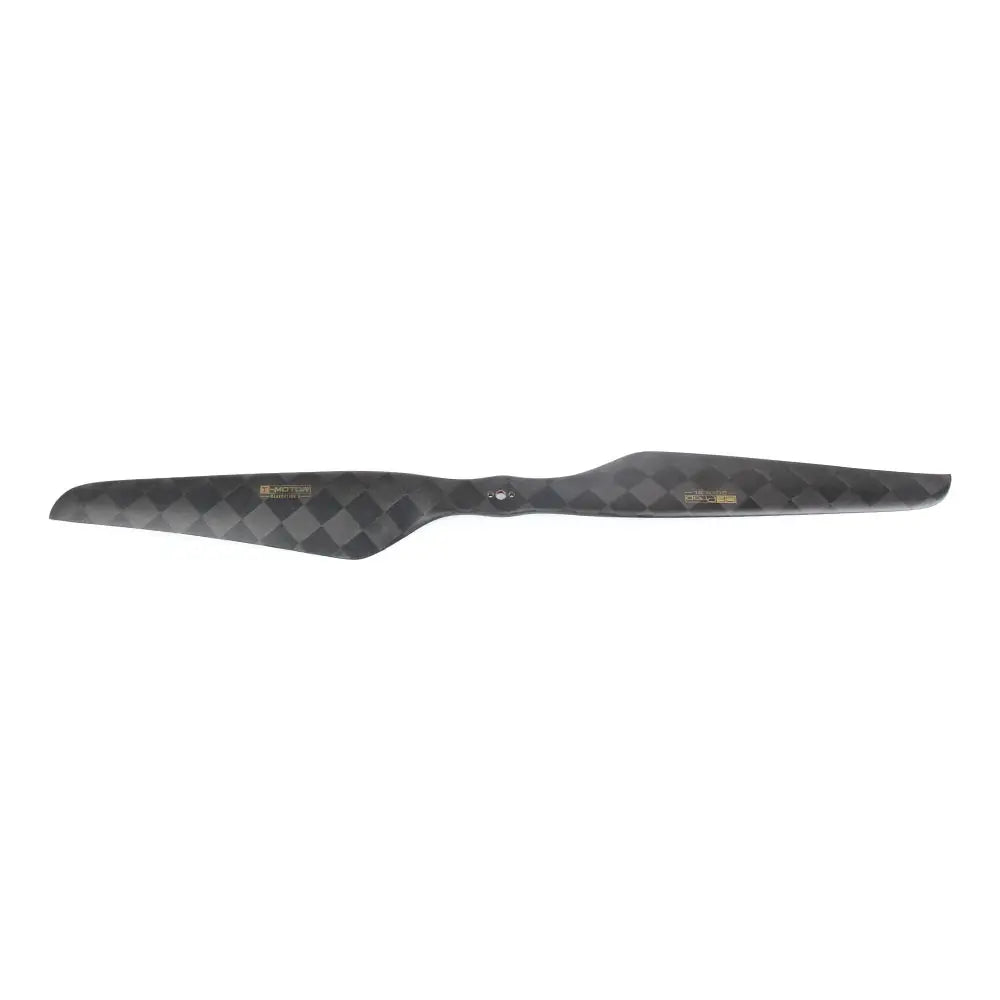

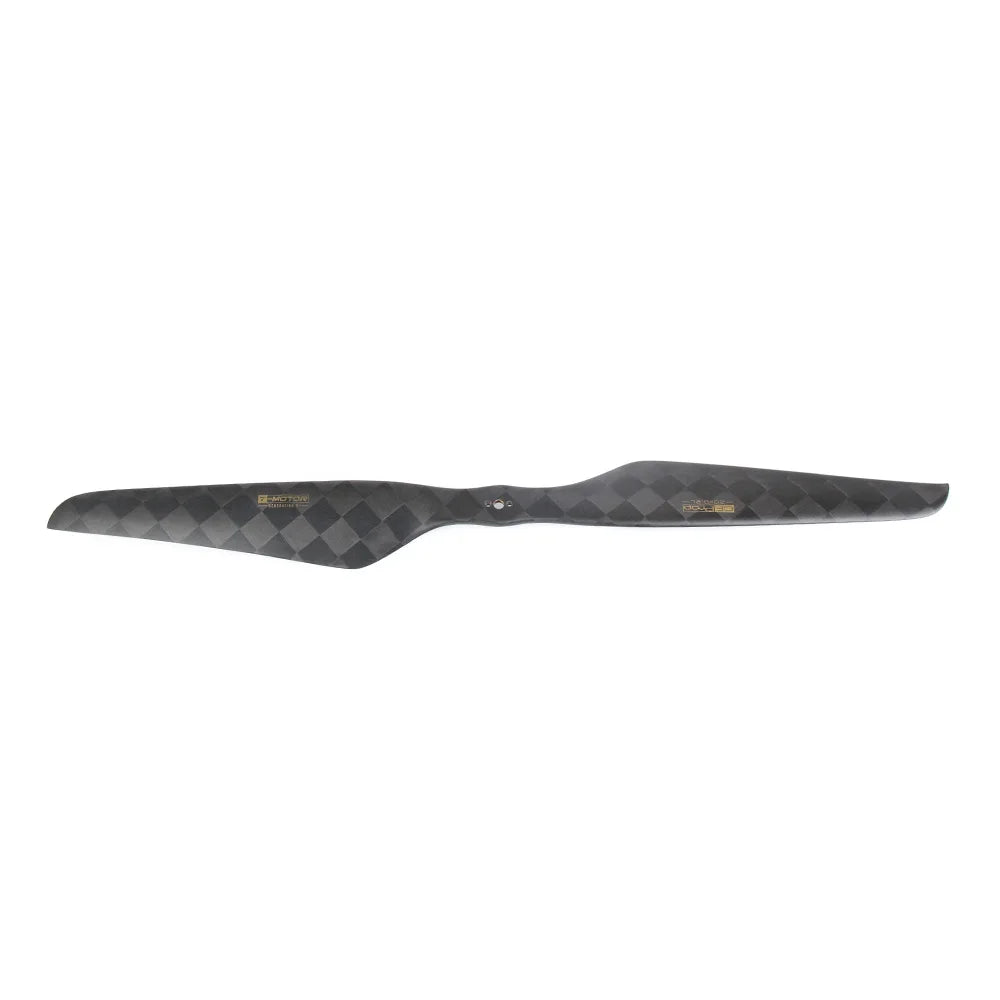

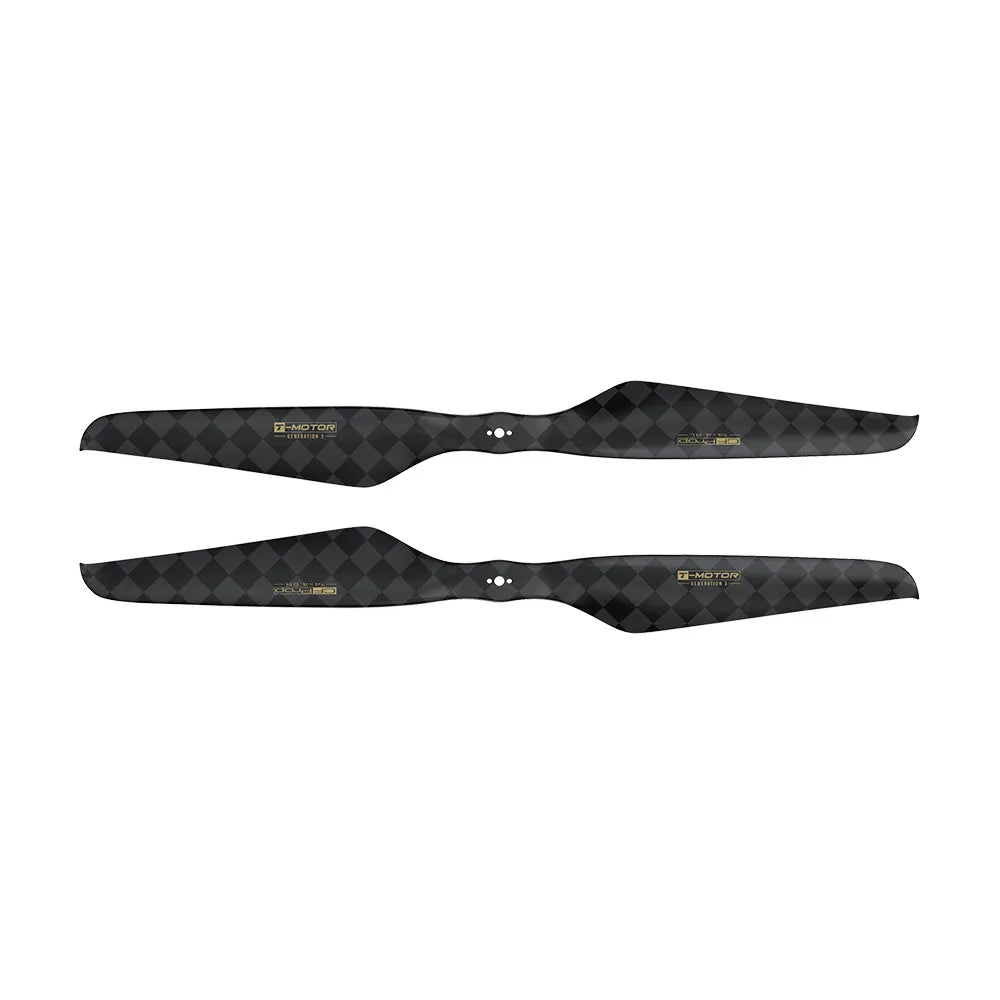

T-MOTOR NS Series Carbon Fiber Propellers feature: * Integrated weight: 10.5 grams per blade * Package weight: 237.4 grams (single propeller) * Dimensions: + Diameter: 14 inches (355.8 mm) + Pitch: 4.8 inches (121.92 mm) * Package size: 435 x 72 x 50 mm

Specifications Model NO. 15*5 T-MOTOR Series 2blades integrated Weight 13g Package Weight 247g (Single Blade) Diameter 1Sinch(381.1mm) Package Size 435*72*50mm Pitch Sinch(1 27mm) Material CF+Epoxy Recommended Recommended 0.8 .8kg/4000 S900RPM 4kg/8750RPM Max Thrust/RPM Storage Ambient Temp -40'C 65'C OPC 50C/

NS16*6.1 Propellers from T-MOTOR's NS Series: Features a carbon fiber and epoxy construction, with an integrated weight of 16.5g per blade. The specifications are as follows: * Package weight (per single blade): 16 inches (404.4mm) in diameter * Package size: 435mm x 72mm x 50mm * Pitch: 6.1 inches (154.9mm) * Recommended usage: + For aircraft with a maximum takeoff weight of 1.2-3.5 kg, suitable for up to 7,300 RPM + For aircraft with a maximum takeoff weight of 6.5 kg, suitable for up to 8,500 RPM * Storage and operating temperature: -40°C to 65°C (10°F to 50°C) Note: The storage ambient temperature range is also specified as 8596.

The T-MOTOR NS16*5.4 propeller features a lightweight design with an integrated weight of 13g per blade, making the overall package weight 255.4g (single blade). The propeller has a diameter of 16 inches (406.6mm) and a pitch of 5.4 inches (137.16mm), made from carbon fiber and epoxy materials. Recommended operating conditions include a maximum thrust at RPM of up to 8860RPM, with ambient temperatures ranging from -40°F to 65°C (-1OFC for storage.

The T-MOTOR NS Series Z-blades have an integrated weight of only 17 grams per blade, with a total package weight of 336.2 grams (single blade). The propeller's diameter measures 8 inches (457.4mm), while its pitch is 6 inches (152.4mm). Additionally, the packaged size is 540 x 81 x 54 mm.

T-Motor NS Series Ultra Light Propellers: NS14*4.8, NS15*5, NS16*5.4, NS16*6.1, NS18*6, NS20*6.2. Key Specifications: * Weight (single blade): 23g * Package weight: 357.2g * Diameter: 20 inches (508.4mm) * Package size: 540 x 81 x 54 mm * Pitch: 6.2 inches (157.48mm) * Material: Carbon fiber + Epoxy * Recommended usage: + Weight: 1.7 kg (up to 5 kg/3350g recommended) + Motor: S60ORPM (17250 RPM maximum) + Thrust/RPM: Max thrust at ambient temperature range -40°F to 65°C, with storage temperature range of 10°C to 50°C.

Specifications Model NO_ 22*6.6 T-MOTOR Series Zblades integrated Weight Package Weight 466.2g (Single Blade) Diameter 22inch(559.1mm) Package Size 646*95*58mm Pitch 6.6inch(167.64mm) Material CF+Epoxy Recommended Recommended 2.36kg/3220 518ORPM 11kg/6970RPM Max Thrust/RPM Ambient Temp -40FC 65'C Storage -1O'C

The structural integrity of our NS Series multirotor carbon fiber propellers has been thoroughly tested to ensure optimal performance and durability. If any defects are discovered, we recommend replacing them with new ones. For storage purposes, please keep them in a controlled environment, away from hostile conditions.
