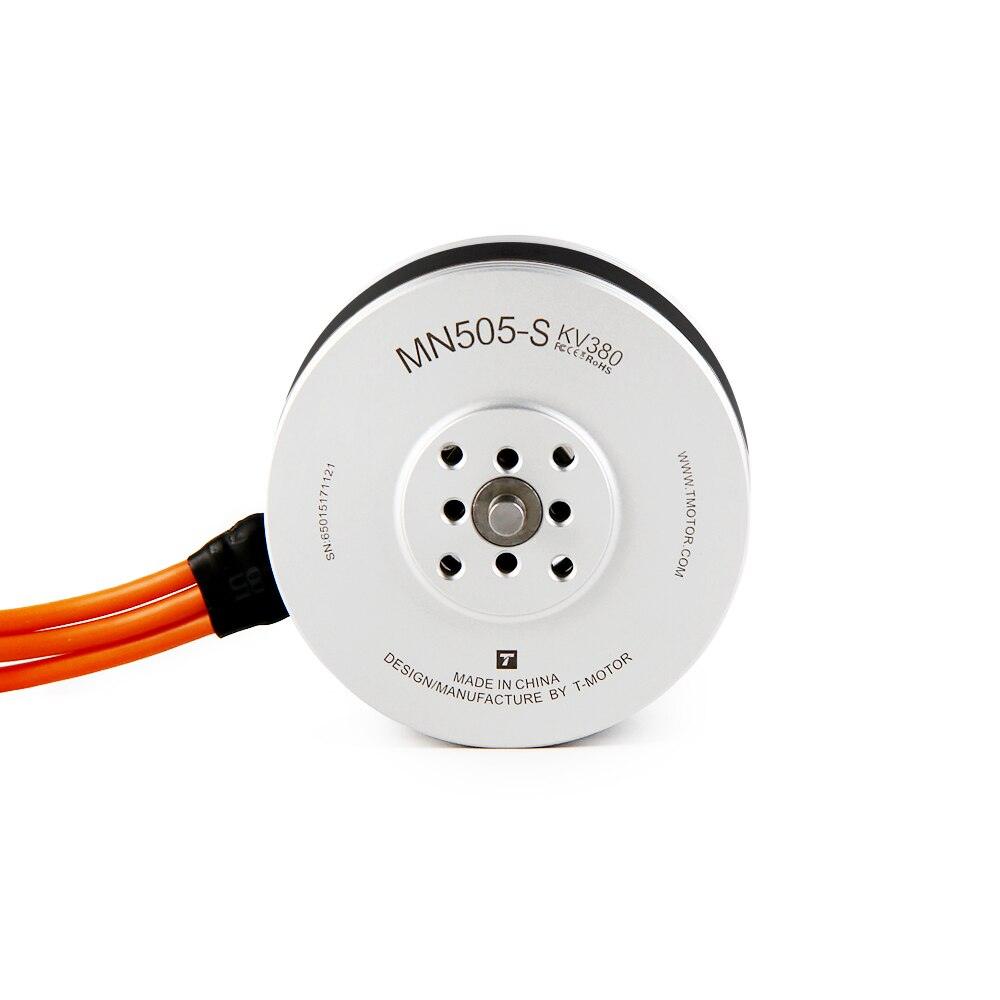

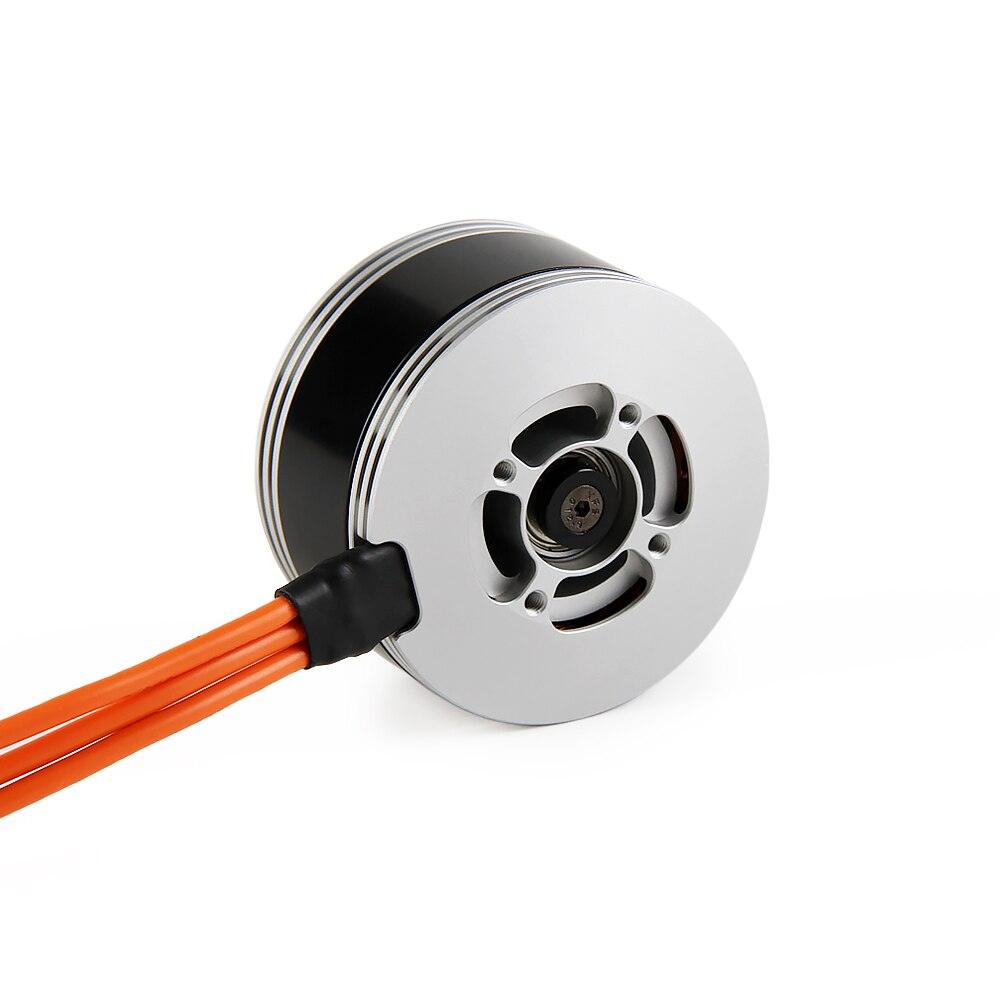

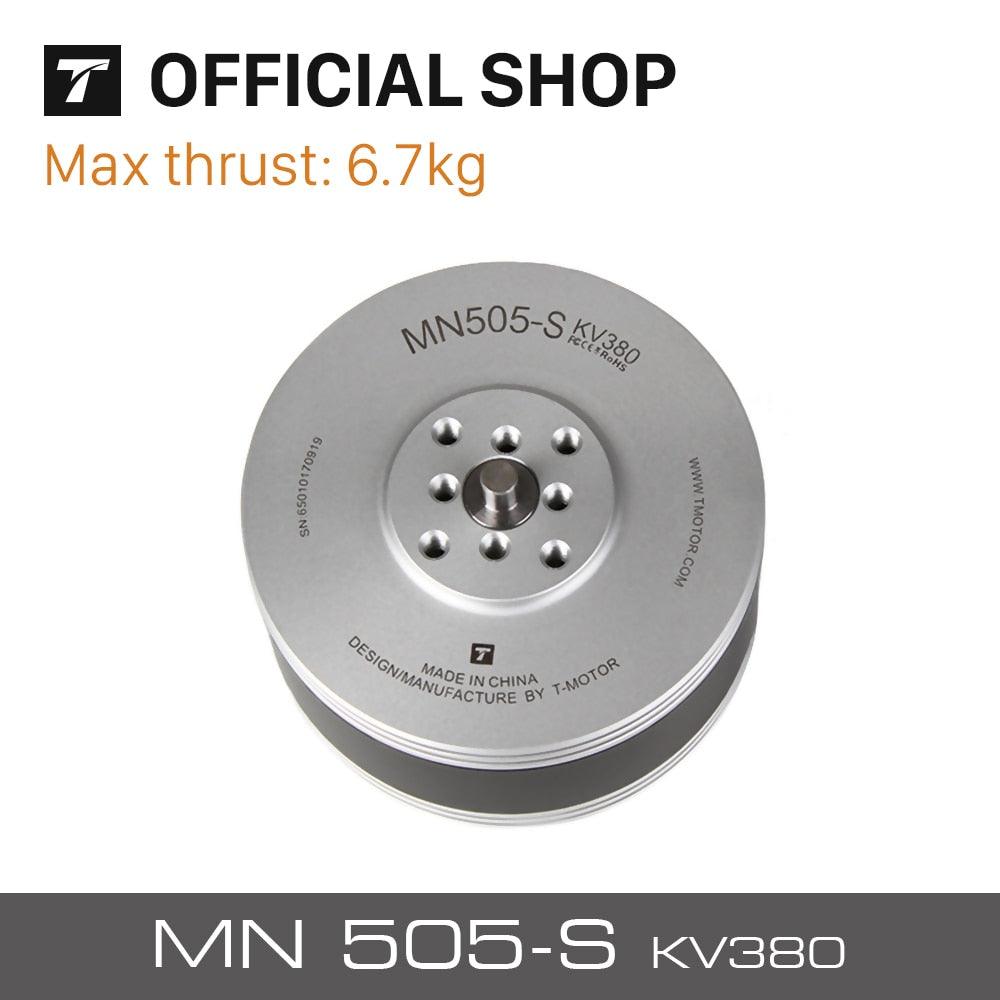

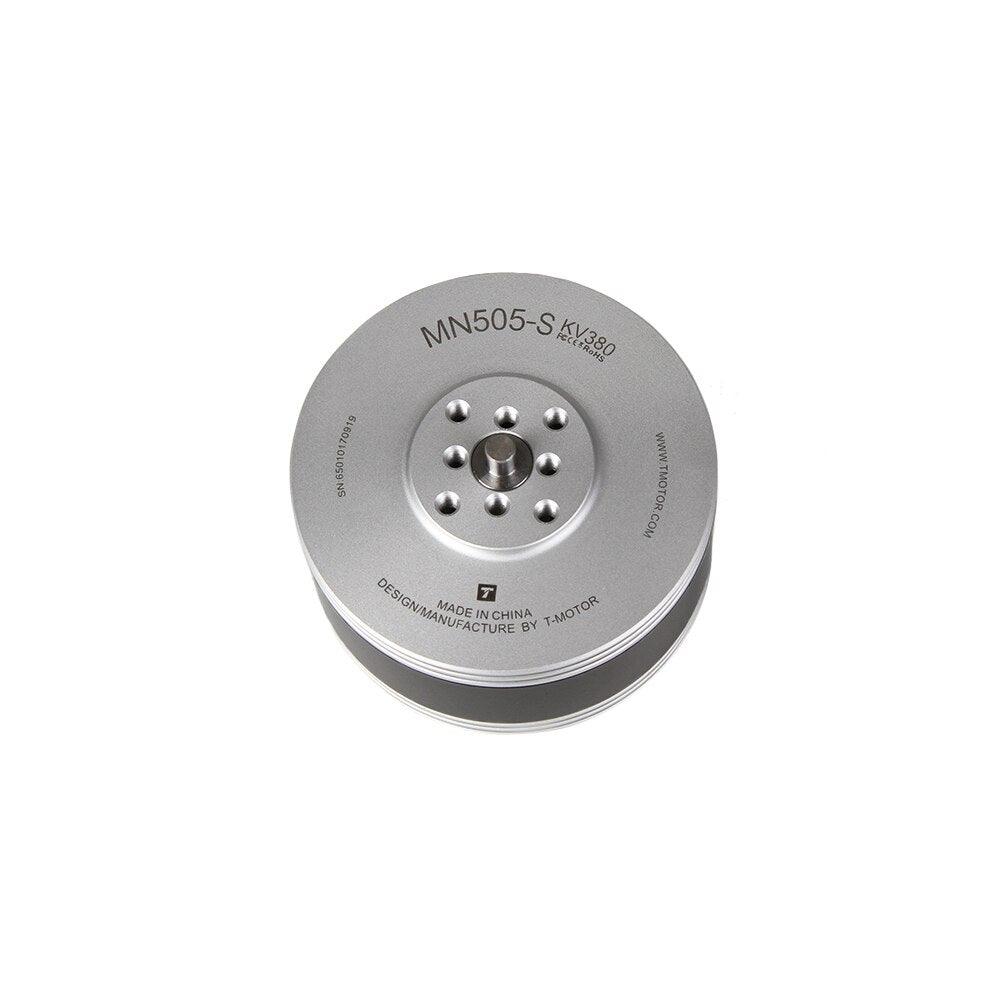

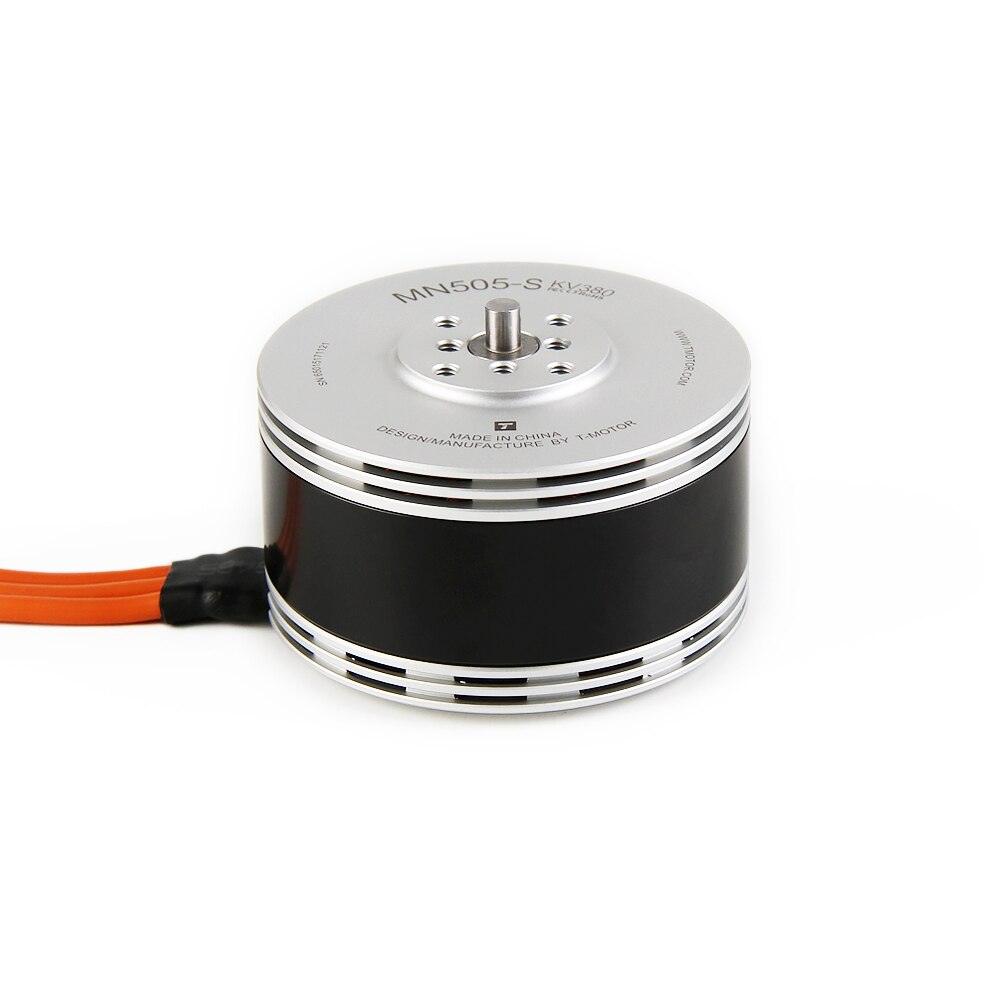

T-Motor MN505-S KV260 KV320 KV380 Brushless Waterproof Motor  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: 380KV

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

6.6 KG 6.6+ Thrust Stable & Reliable Safe Impact resistant IP45 MNSOS-S Kv38Q 8 T-MoToR DESIGNIMAMDEACTuRE CHINA MADE IN CHINA

The installation method involves an integrated mounting system that includes two screws (M3*1mm, 14

Specifications Motor Size 055.6*38.9mm Imported silicon steel sheet; Anti-rust treatment; Stator 150-Chigh temperature-resisting Configuration 24N28P Shaft Diameter 6mm OUT 4mm Bearing Imported 696ZZ Magnet evel 80*C high temperature resistance Lead Cable 16AWG*1SOmm Copper Wire 220FC high temperature: Level € Coil Insulation Test 50ov Centrifugal Cooling Design YES Rotor Dynamic Balance Standard

Key Specifications: * Rated Voltage: 12V (Lipo) * Idle Current (1 second): 1.84A * ESC Recommendation: FLAME 604, 12S * Peak Current (180 seconds): 55A * Propeller Recommendation: 20-22

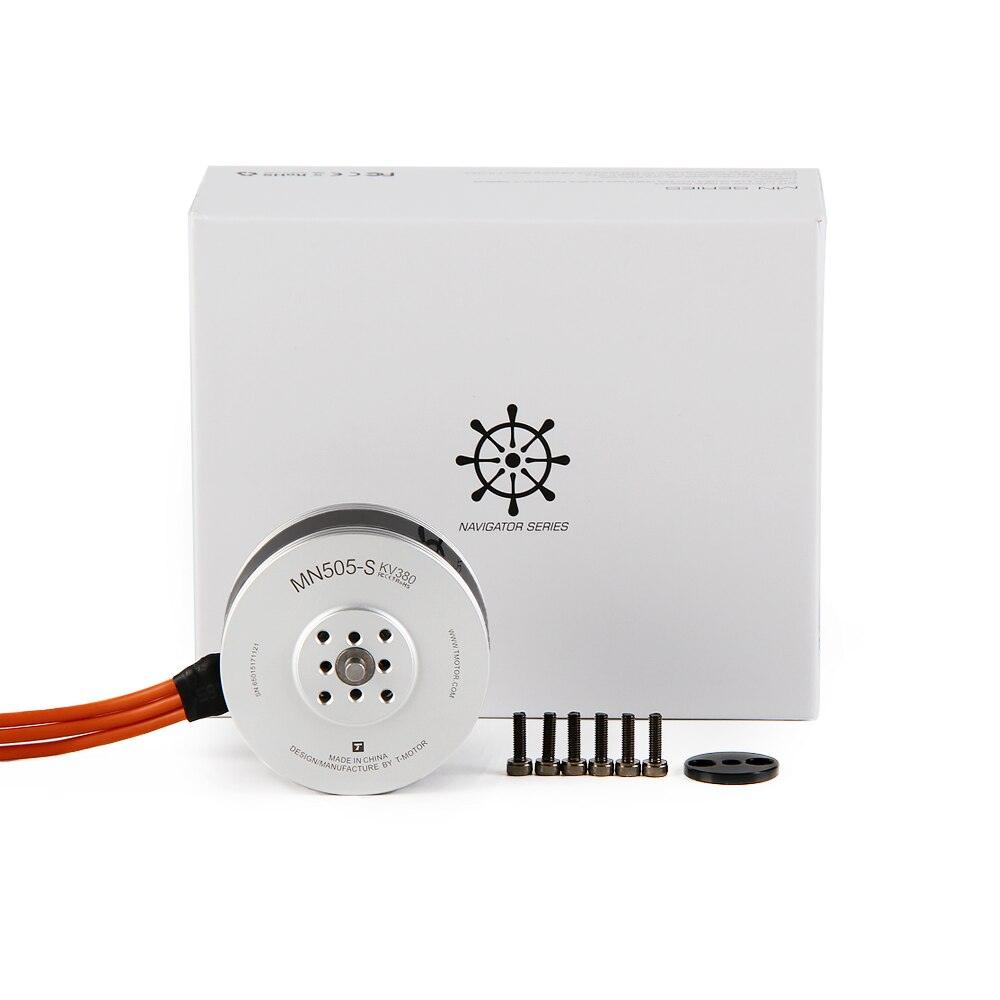

Please check that your package contains all the above items before use . if something is missing, please contact online customer service or leave message t0 onlinesales@tmotorcom .
