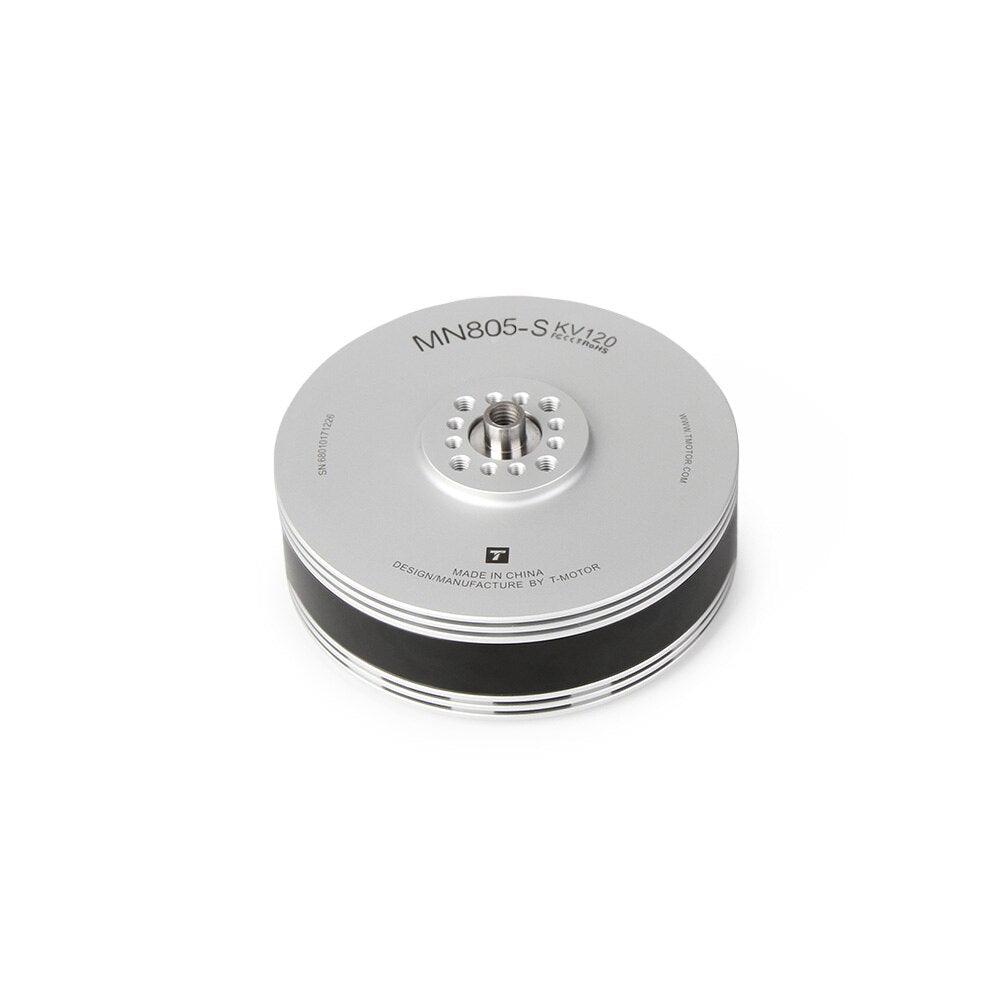

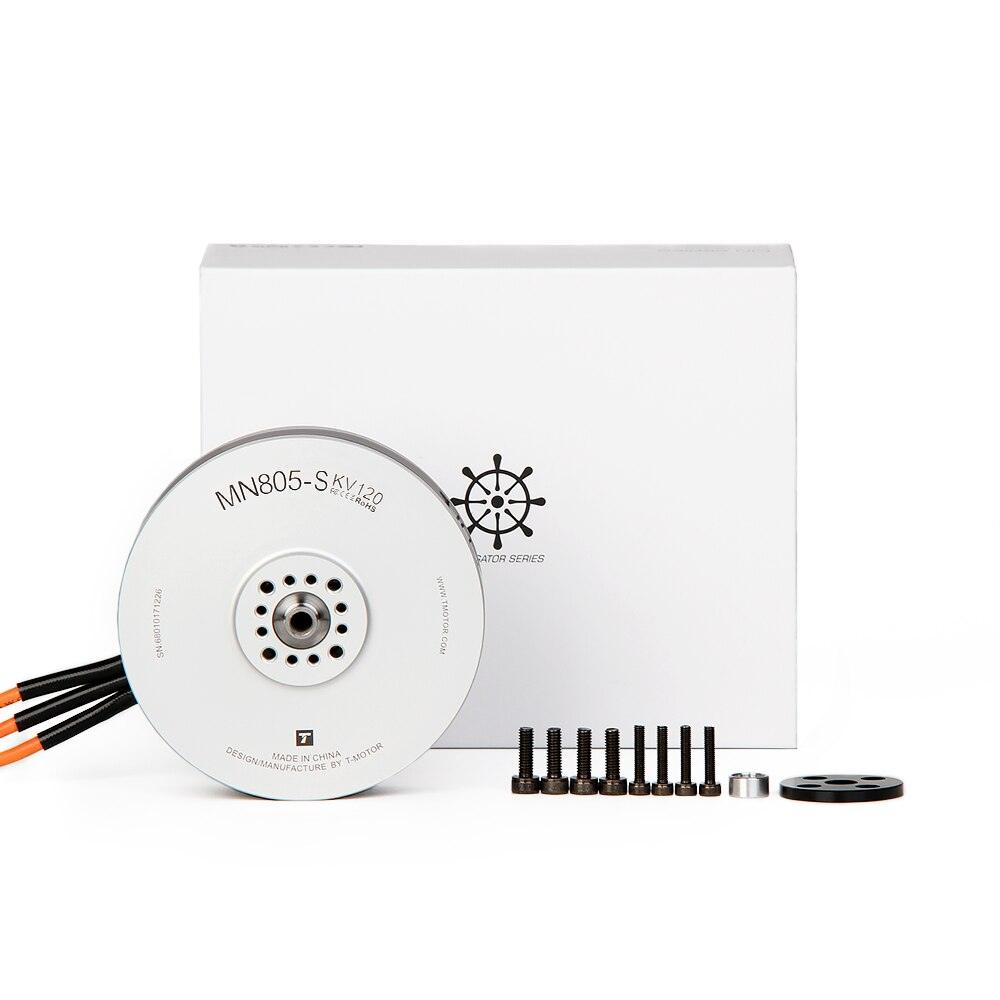

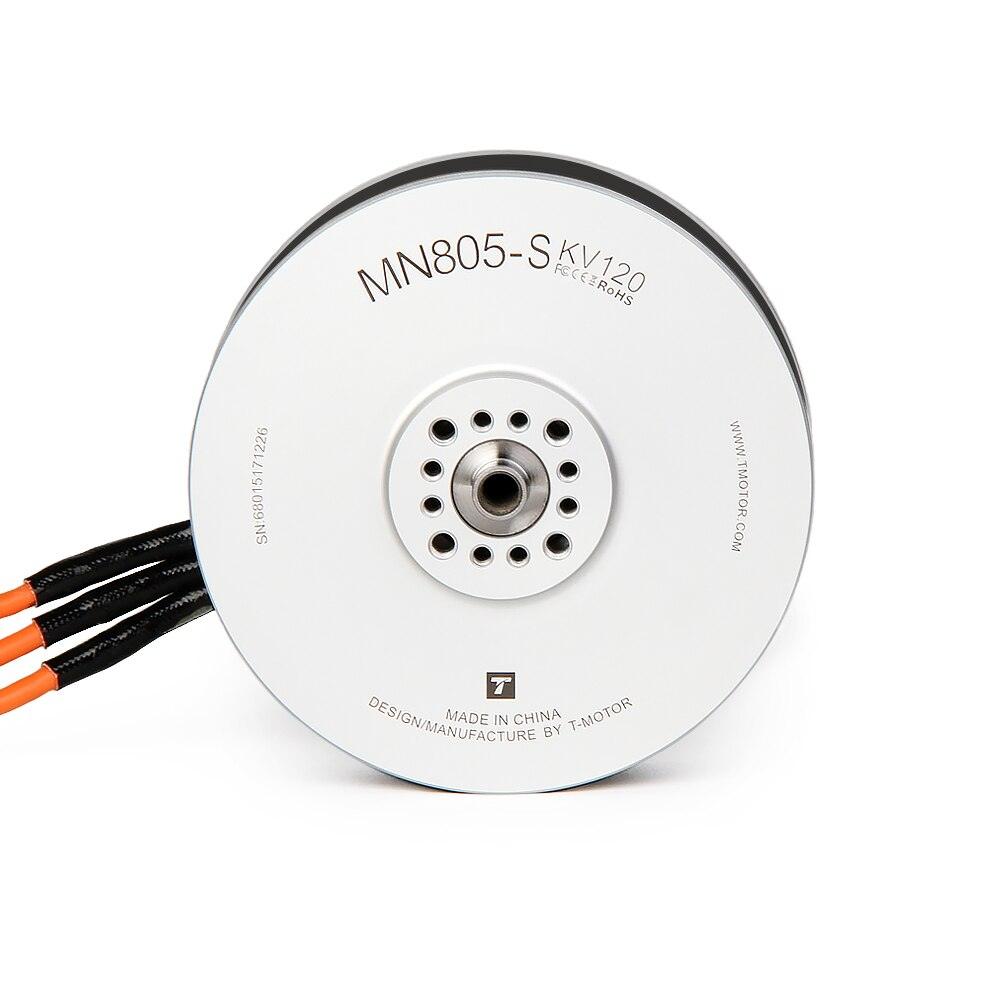

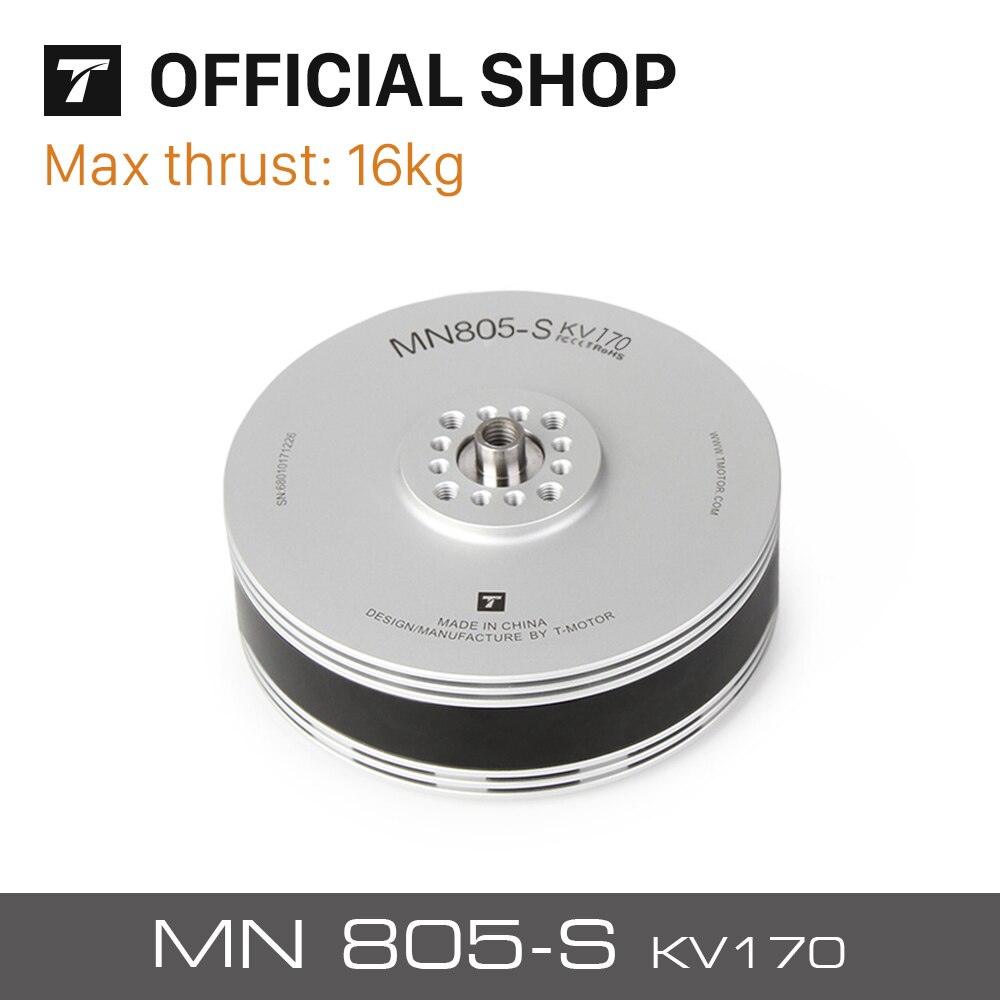

T-motor MN805-S KV120 KV150 170KV 16KG Thrust Brushless Electric Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: 170KV

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

heavy load motor born for VTOL Take off weight.16-35KG MN805S 8 0 MADE IN 16 KG 16+ Thrust Stable & Reliable Safe Impact resistant IP45 MN8O5-S KV12O Ce3.

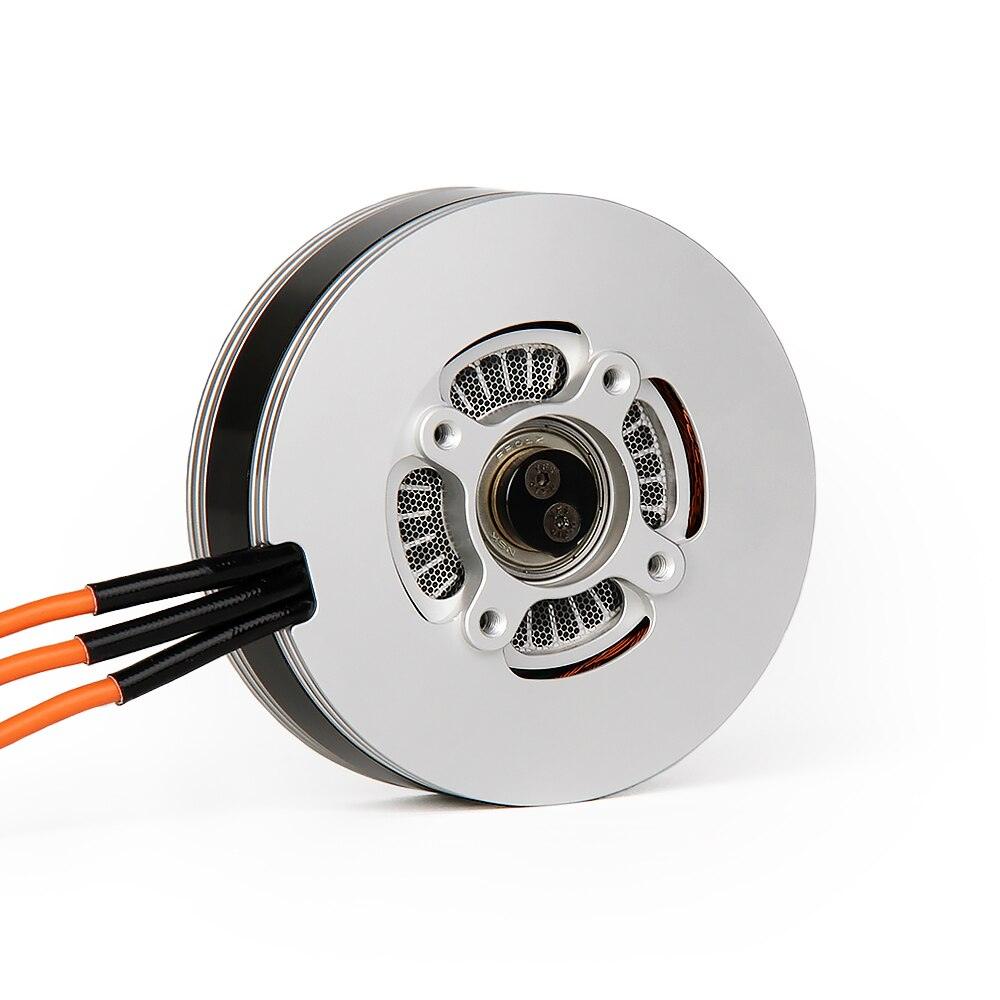

The bell cap design effectively increases the heat dissipation area, resulting in a significant enhancement of cooling performance by 15%. Additionally, our motor features superior anti-overload capabilities, backed by simulated airflow analyses to ensure optimal performance.

Featuring a special alloy shaft, custom bearings, varnished wires, and a silicon steel sheet, magnet, and bell that have been treated with advanced anti-rust and anti-corrosion technology for superior protection. Additionally, this motor boasts waterproofing and dust resistance.

The MN805-S motor features a T-shaped shaft secured with both a cir-clip and screw, providing enhanced safety and reliability under high RPM and power conditions without compromising rotor stability. The adoption of a long lifespan Zmm steel shaft and large 24mm bearings ensures outstanding impact resistance.

Equipped with anti-high temperature curved magnets, this motor features precision tolerance control and optimized magnet spacing to enhance its magnetic circuit, resulting in improved performance gains of over 5%.

Specifications: Motor Size: 89mm x 44.4mm (imported silicon steel sheet with anti-rust treatment) Stator Configuration: 24N28P Shaft Dimensions: Inner diameter - 12mm, Outer diameter - 8mm Bearing: Imported 6901ZZ series Magnetic Level: High-temperature resistance up to 180°C Lead Cable: 14 AWG, 150mm long (copper wire with high-temperature rating of 220°F) Coil Insulation Test: S0Ov standard Centrifugal Cooling Design: Yes Rotor Dynamic Balance: Standard

The specifications for this electric motor are as follows: nominal voltage rating of 6-12S, peak current rating of 100A (14S) at 180 seconds, maximum power output of 3200 watts. The motor's weight includes the cable and is approximately 625 grams. Internal resistance is measured at 32 milliohms. Package weight, including the motor and cable, is around 750 grams. Rated voltage is 170V.
