T-motor MN605-S KV170 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: MN605-S KV170

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

MN605-_ 1 1 T-MOTOR CHINA MADE MAMAREcTurE 8.2 KG 8.2+ Thrust Stable & Reliable Safe Impact resistant IP5S SkVaz?

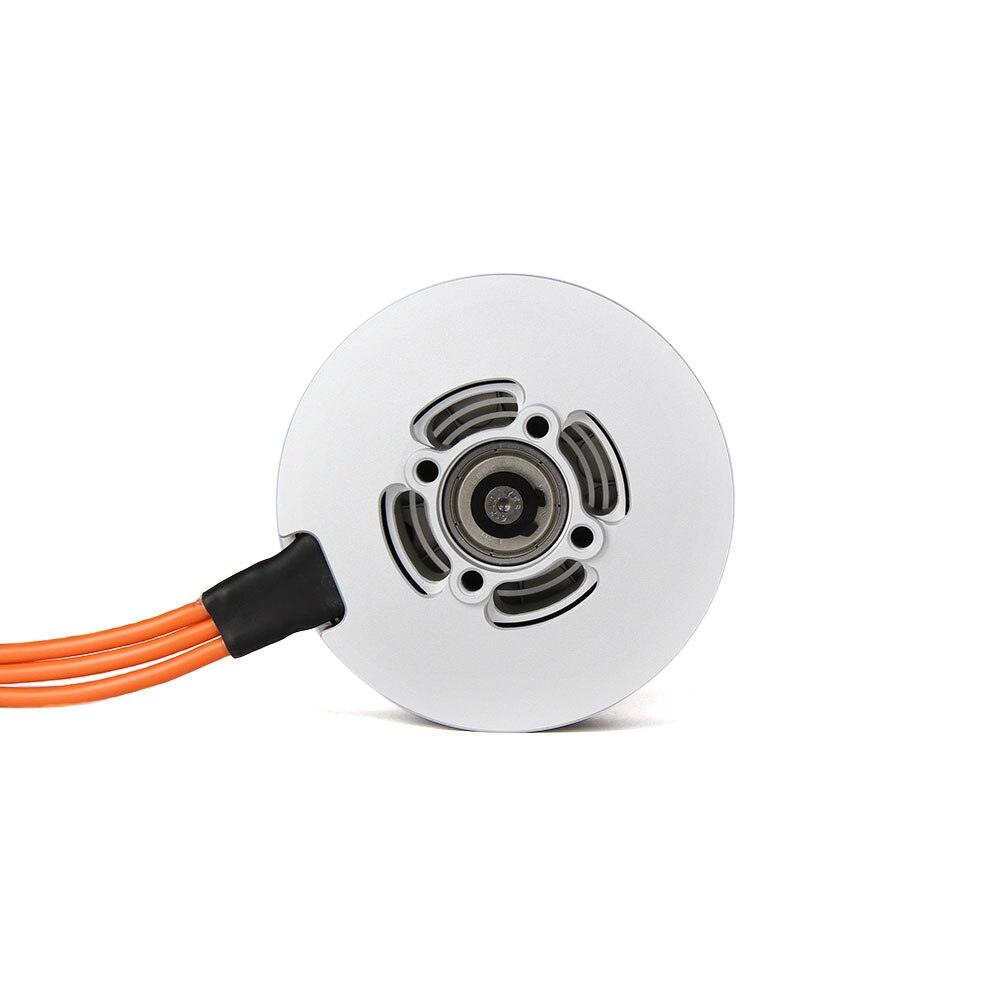

The bell-shaped cap actively cools the motor, while the divergent and upward design of the motor base increases the heat dissipation area.

The grid-shaped structure of the bell cap enables efficient ventilation, effectively protecting the motor from dust and debris.

The motor features a double-security circlip operation system, ensuring big thrust and a long lifespan. The MN605S utilizes a robust 6mm steel shaft and large bearings, providing outstanding impact resistance, stability, and durability.

The MN605-S features anti-high temperature curved magnets, precision-controlled with tight tolerances and optimized magnet spacing. This design optimizes the motor's magnetic circuit, resulting in a performance boost of up to 5%+.

Specifications: Motor Size: 68.8mm x 39.9mm Material: Imported silicon steel sheet, treated with anti-rust coating Stator Configuration: 24N28P Shaft Diameter: In 6mm, Out 6mm Bearing: Imported 626ZZ Magnet Level: 1509C (high temperature resistance) Lead Cable: 14AWG x 500mm (copper wire 180FC high temperature rating) Coil Insulation Test: S0Ov Centrifugal Cooling Design: Yes Rotor Dynamic Balance: Standard

Recommendation: ESC FLAME 60A, 12S, Peak Current (180 seconds), 1700W Motor Specifications: Weight (including cable): 327g Internal Resistance: 65mn Package Weight (2Pcs/Set): 980g Rated Voltage (Lipo): 17V Idle Current (17V): [no value specified]

Before using this product, please verify that your package includes all the items listed above. If you find that any items are missing, please contact our online customer service team for assistance.
