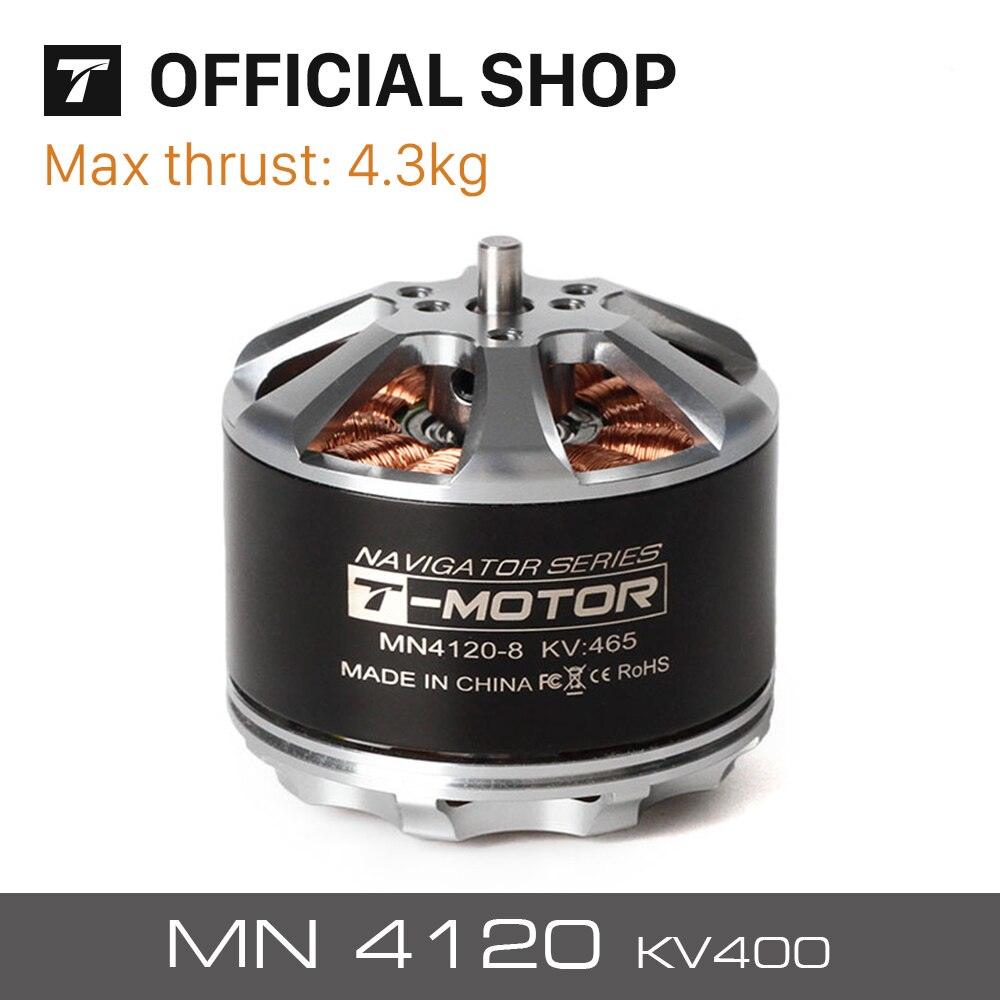

T-motor MN4120 KV400 Brushless Motor Max Thrust 4.3KG for RC Helicopters Drone

T-motor MN4120 KV400 Brushless Motor Max Thrust 4.3KG for RC Helicopters Drone

T-Motor

Regular price $182.03 USD
Regular price $254.85 USD Sale price $182.03 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

23 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

T-motor MN4120 KV400 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN4120 KV400

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

T-motor, MGTOR PAOpeortetete SIPO @Rmix;*KxT-motor, MN4120 AX4120 is designed for the airplane with heavy weight and bad thermalT-motor, MN4120 is te best choice for the heavy lifling load commercialT-motor, Vs Assemble way for the prop AXi NAcMGTOR pantT-motor, 'S31u10u !uu0 AXl4120 0T-motor, MN4120 installation of M6 prop adapter matching M6T-motor, Installation of M8 prop adapter matching M8Included a flat cover for the TedOTe T-motor flat CF prop EdMatch up T-motor 6mm CCW prop adapter for better flying performance Better flying performanceT-motor MN4120 KVT-motor, MN4120 KV400 Brushless Motor SPECIFICATIONS Use :T-motor, Compared with the loose winding motor; the instant current would be lower 15% and the loadT-motor, Standard 30*30 mm mounting hole -5-3 mounting hole for DJI S800 pointT-motor, t3 MN serise box Perfecting packing MOTOR 1 T-MoT-motor, efficiency current............................................................(10-30A)>84% internal resistance................................

Specifications:

KV...............................................................................................................400
Configu ration...................................................................................12N14P
Stator Diameter...................................................................................41mm
Stator Length.......................................................................................20mm
Shaft Diameter.......................................................................................4mm
Motor Dimensions(Dia.*Len)...............................................Φ49.7×42mm
Weight (g).................................................................................................253g
ldle current(10)@10v(A)..........................................................................1.2A
No.of Cells(Lipo).....................................................................................4-8S
Max Continuous current(A)180S............................................................47A
Max Continuous Power(W)180S......................................................1050W

Max. efficiency current............................................................(10-30A)>84%
internal resistance................................................................................30ohm

T-motor, 253g ldle current(10)@10v(A)........................................
