T-Motor TF15X8 Fixed-Wing Folding Propellers 15x8 Polymer+CF, X-Carbon Hybrid Tech

Overview

T-Motor TF15X8 is a fixed-wing folding propellers model made with polymer + CF (carbon fiber). It is designed for glider and fixed-wing airplane applications.

Key Features

• X-carbon hybrid tech (as marked on the propeller).
• “Innovation and creation”: continuous reform and improvement in injection-molding and hybrid technology of carbon fiber and polymer, setting a higher standard for x-carbon props.
• Injection technology and mold designed for a 0.16mm trailing edge, with airflow interference reduction and lift-drag ratio increase (as stated).
• Heat insulating coating with “high shading degree” to protect props from ultraviolet; heat endurance material for long time flight under high temperature (as stated).
• x1.5 abrasion resistance of prop surface; x2 prop strength (as stated).

Specifications

What’s Included

• Fixed-wing Folding x1

Applications

• Glider airplane
• Fixed-wing airplane

Warning

1. Please make sure that fixed screws of spinner and blades mounted well.
2. Do not add force onto the propellers.
3. Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. In this case, you will need
4. NEVER decompose the propellers. Decomposition of which will result in safety issues. Do not use the propellers in
5. Keep the propellers away from the mentioned environments in (4).
6. For long time storage of over 6 months, please keep it in sealed preservation.

Customer service: https://rcdrone.top/ or support@rcdrone.top

Details

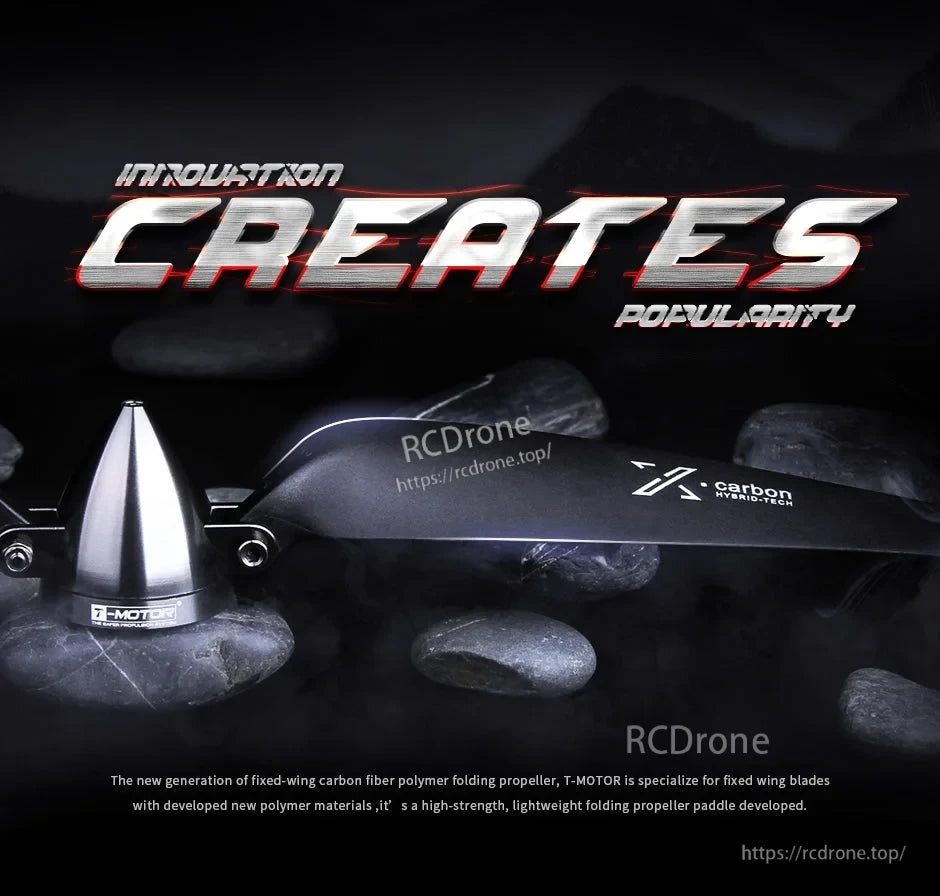

The TF15X8 folding propeller pairs carbon hybrid tech blades with a streamlined spinner for fixed-wing setups.

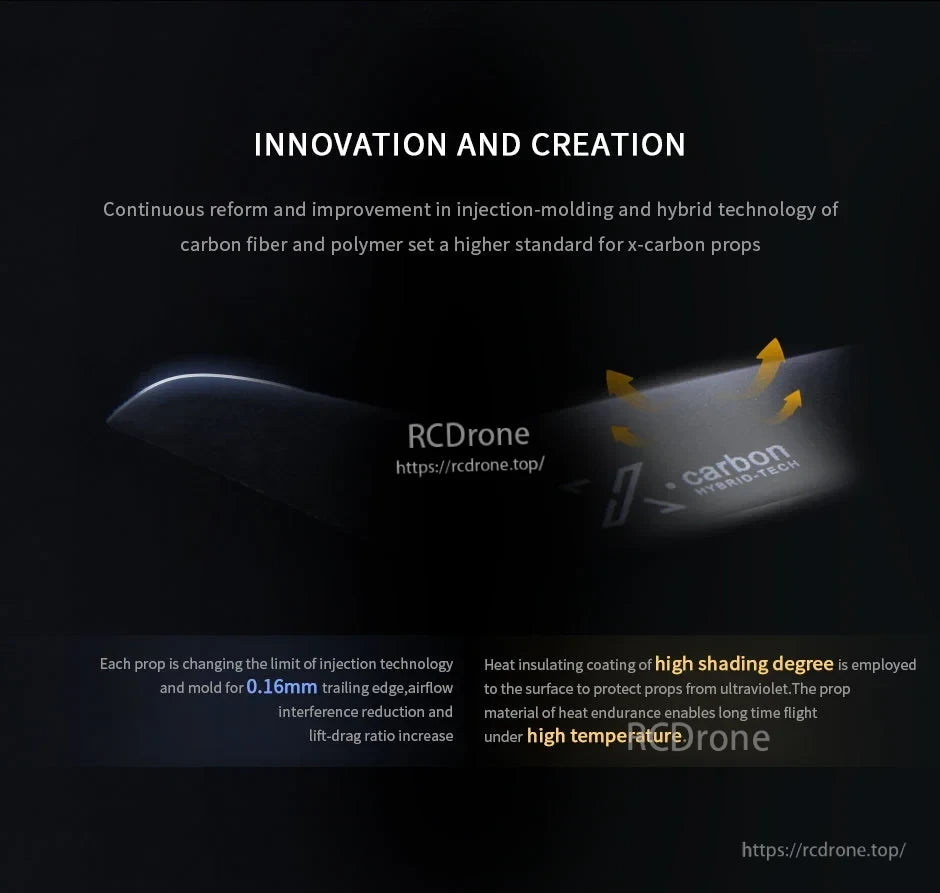

The TF15X8 folding prop uses an X-carbon hybrid-tech blade design with a 0.16mm trailing edge and a heat-insulating surface coating.

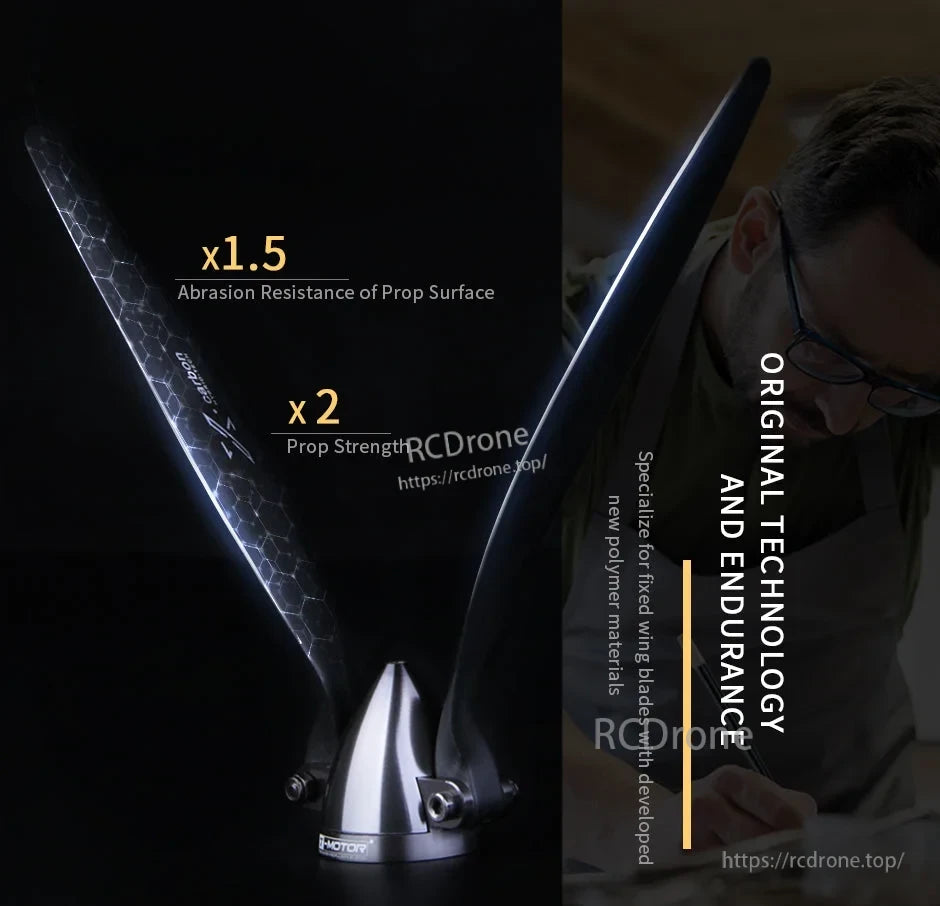

The TF15X8 folding propeller uses a two-blade hub design and is marketed with improved abrasion resistance and strength for fixed-wing setups.

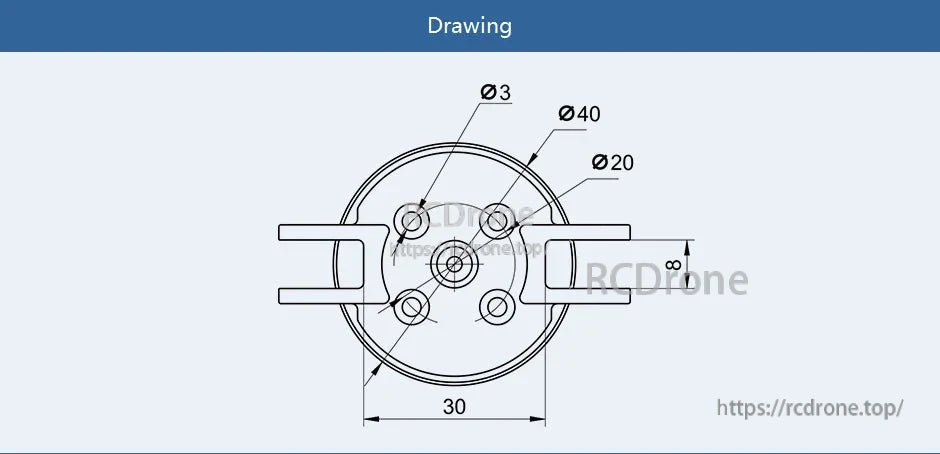

The TF15X8 folding propeller hub layout uses Ø3 mounting holes and a Ø40/Ø20 hub diameter for fit checks during installation.

TF15X8 fixed-wing folding propeller specs list a 15x8-inch size (381 mm diameter, 203.2 mm pitch), 52 g weight, and Polymer+CF material.

The T-Motor TF15X8 fixed-wing folding propeller includes a two-blade folding set with a central hub for streamlined fixed-wing setups.

T-Motor TF15X8 folding propellers include safety guidance such as securing the spinner and blades, avoiding impacts, and proper storage.
