T-Motor Velox V2207 V2 SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Recommend Age: 12+y
Origin: Mainland China
Model Number: TMOTOR Velox 2207 V2
Material: Composite Material
Brand Name: NoEnName_Null

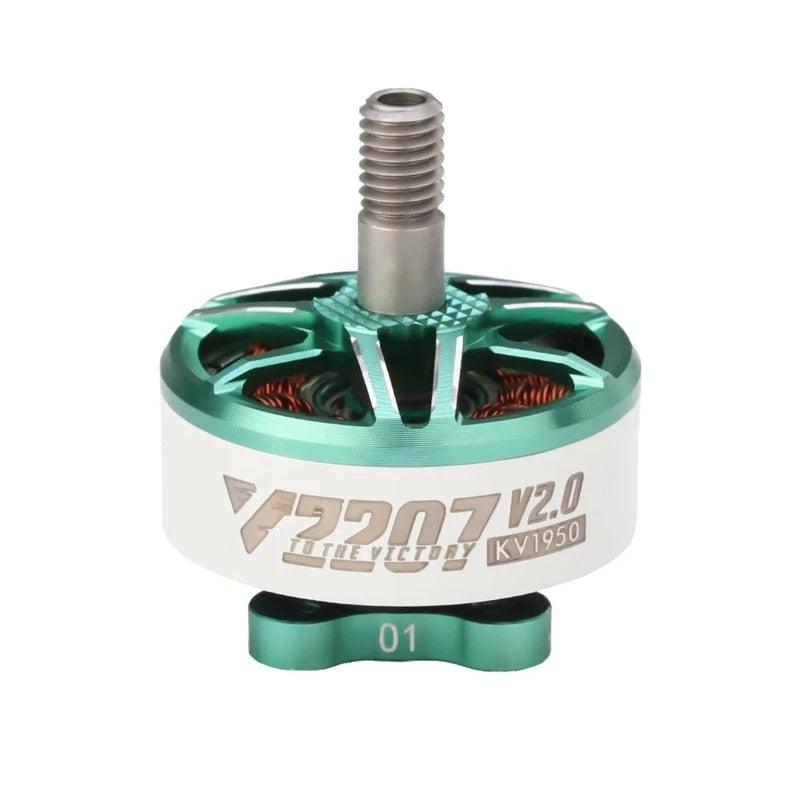

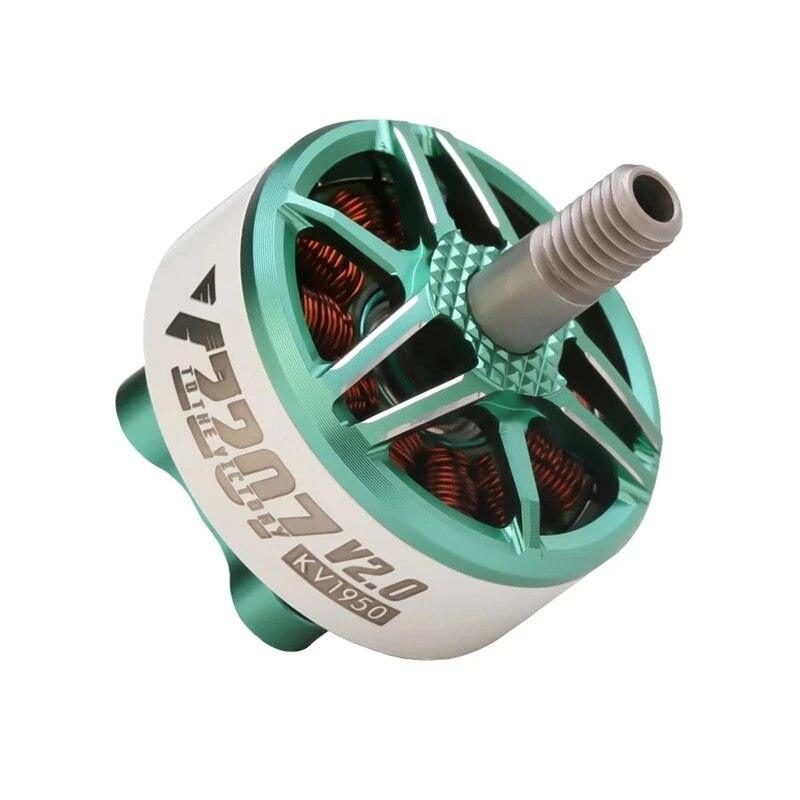

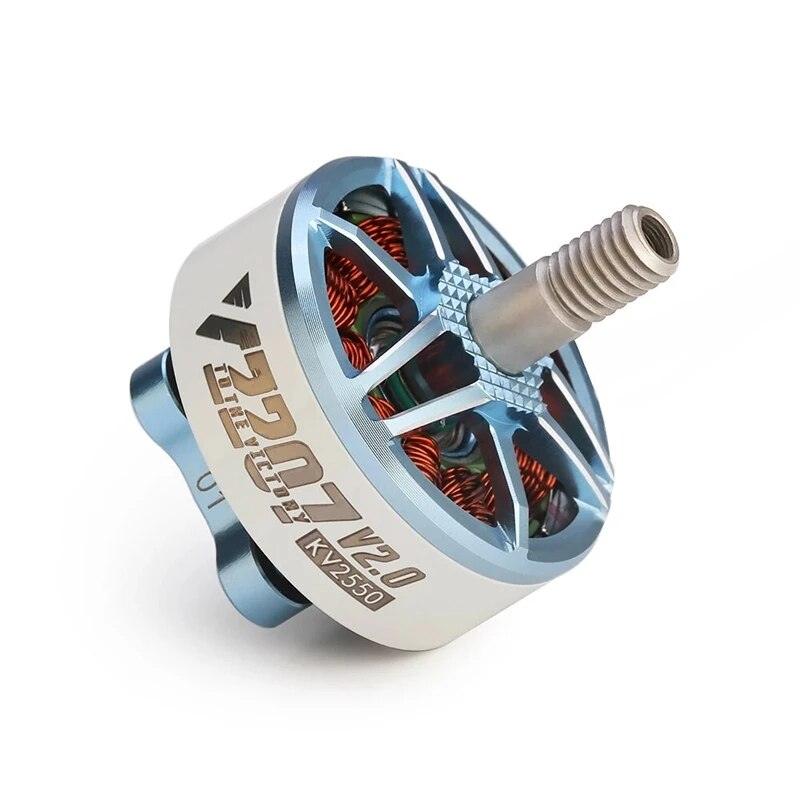

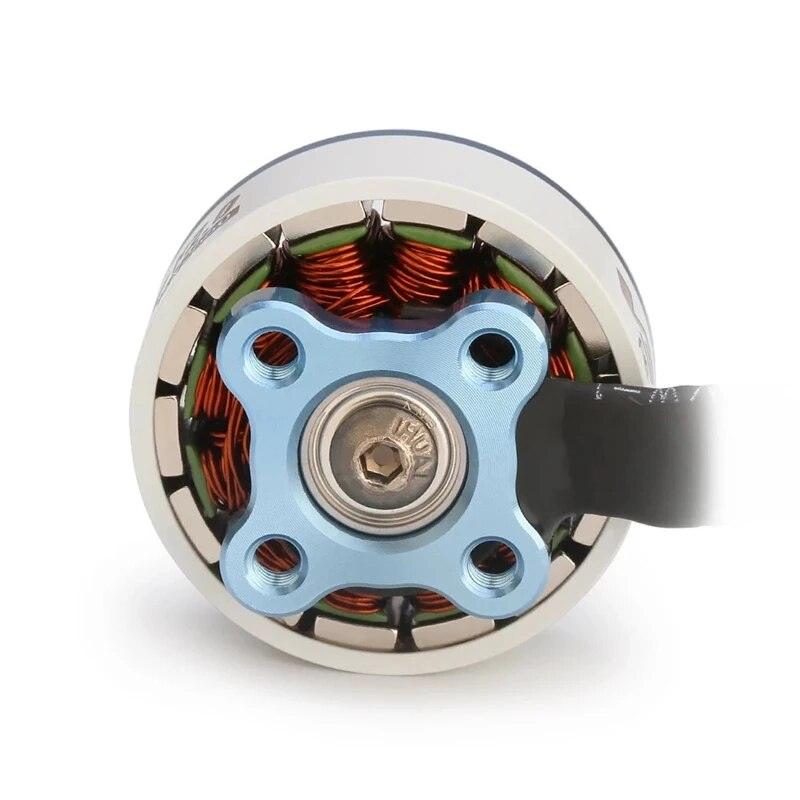

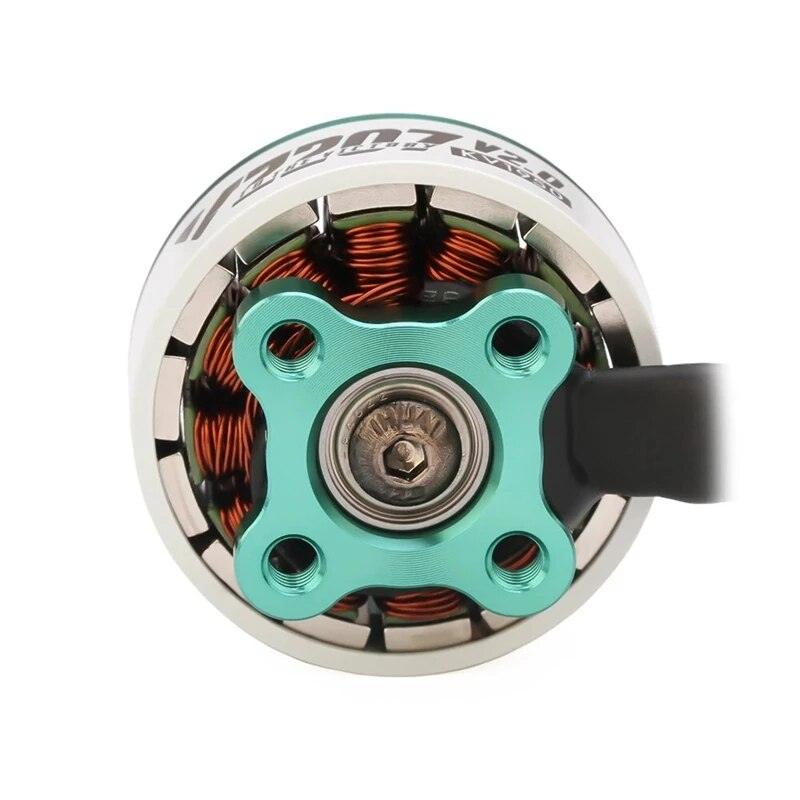

T-Motor Velox V2207 V2 2207 1750KV 1950KV 5-6S / 2550KV 4S Brushless Motor for FPV Racing Drone Quadcopter Freestyle RC Parts
Package Included:
1x T-Motor Velox V2207 V2 Motor
1x Motor Nut
1x bag of Screws
1x C-Clip
Specification:
Brand Name: T-Motor
Model: Velox V2207 V2
Item Name: 2207 1750KV 1950KV 5-6S / 2550KV 4S Brushless Motor
Quantity: 1 PC
Version: CW Screw Thread
KV: 1750KV / 1950KV / 2550KV (Optional)
Color: 1750KV & 1950KV in Green Color ; 2550KV in Blue Color
Input Voltage: 5-6S ( 1750KV & 1950KV); 4S ( 2550KV)
Shaft Diameter:5mm
Configuration: 12N14P
Shaft Diameter: 5mm
Motor Dimension: 27.5x31.35mm (Dia*Len)
Cable Length: 150mm, 20AWG
|
1750KV Version |
1950KV Version |
2550KV Version |
Idle Current(10V) |
1.1A |
1.3A |
1.9A |
Max. Power (60S) |
804W |
1003W |
545W |
Internal Resistance |
59mΩ |
50mΩ |
43mΩ |
Peak Current (60S) |
36.6A |
45.8A |
38.6A |
Weight ( Included Cable) |
35.1g |
35.2g |
34.3g |
Weight ( Excluded Cable) |
31.3g |
31.4g |
30.5g |
THREE NEW COLORS START A NEW FLIGHT JOURNEY ICE BLUE CAMO SILVER EMERALD GREEN V2o 2205 2207 LELOY ReHs e FC( 625 KzzoD ZL Kib
VELOX series is designed for pilots to challenge themselves constantly; so they can be free while flying . the durability of the motor so that the pilot can easily deal with the extreme movements of freestyle .
