T-MOTOR XU8-X Arm Set SPECIFICATIONS
Brand Name: T-MOTOR
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys

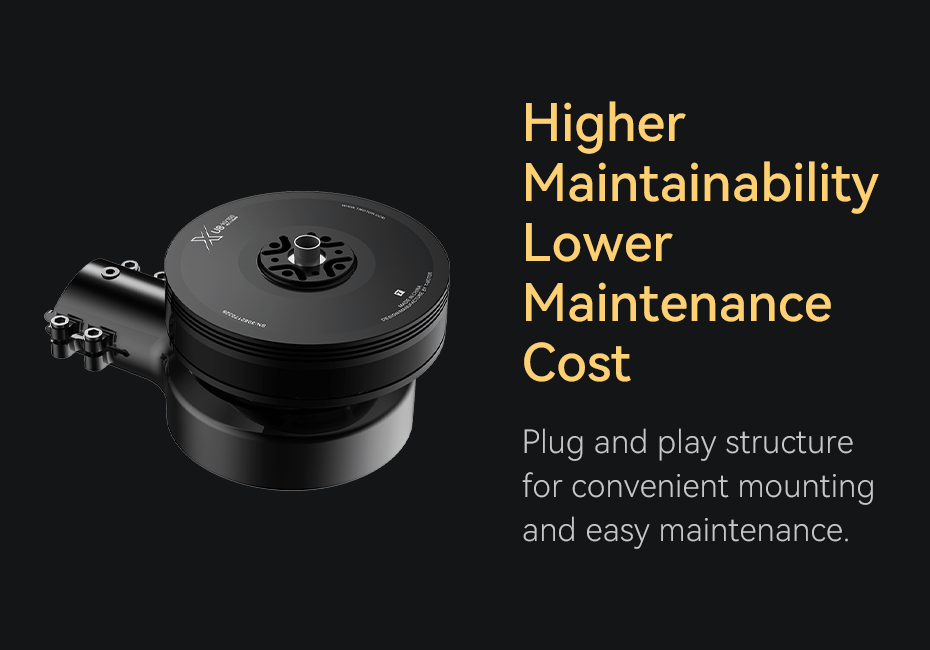

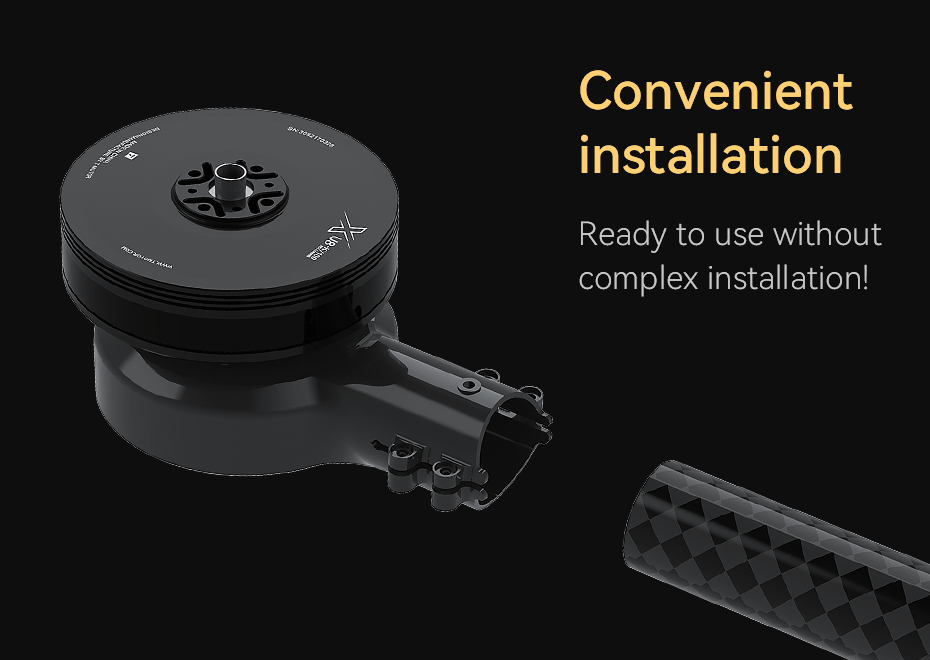

XU8-X is a modular propulsion system specially designed for professional multi-rotor drones . it is based on a patented ESC-based 'motor+foc ESC'
70-X U8-X MOTOR ESC MNZO1-S Alpha 80A U8II Alpha 60A MnZO5-S 12S Round U8Lite 12S V1.2 V1.2 MN5O5 -S 1.2 Alpha 4OA Alpha 60 A 6S 6S PROPELLER Propeller Alpha 60a 15"_ 20"
Optimization Cooling Centrifugal air cooling system, better heat dissipation Temperature is 25 C lower than motors of the same type .
Intelligent & Efficiency FOC (sine wave) ESCs are default match for the integrated propulsion systems . the efficient; accurate and stable motor control from intelligent algorithm meets the demand of various applications .
T-MOTOR carbon is a polymer folding prop series of high RPM, high efficiency and strong power . other props from the company are available upon request .
Specifications Model XU8-X KV85 Lead Cable Length 600mm Arm Set Weight Dimension 134.6*87.1*70.Smm 485g (Incl: Cable) Configuration 36N42P Shaft Diameter 8mm Idle Current (24V) 0.9A Rated Voltage (Lipo) 12S Ingress Protection Internal Resistance 225+5mn IP45 Leve ESC Peak Current (180s) 19.1A ALPHA 60 12S V1.2 Recom
