TATTU is a popular battery brand for drones, The Tattu 22000mAh 6S 22.2V 30C LiPO battery pack with XT90-S plug with the compact size and lightweight is the best choice to match DJI S1000+.
The battery is embedded with a G-Tech chip, enabling automatic identification, communication, and charging with the G-Tech Eco Smart Charger. It can also be charged regularly with a standard charger.
Less is more as the slogan: the single cell is 22000mAh, each cell connected in series, it is less in the whole industry, but TATTU is committed to providing more clients the perfect flight experience, no matter in the field of aerial photography drone, agriculture spraying drone, mapping and surving drone, eVTOL, transport delivery, rescue, underwater, aerial inspections, etc.
Features:
- Anti-spark
- Stable automatical stacking technology
- The most strict single cell capacity, voltage, resistance, discharge curve matching process
- Superior Japan and Korea Lithium Polymer raw materials
- Almost 200Wh/kg energy density
- At least 150 times cycle life
- Local after-sales service (located in Dublin, CA)
Specifications:
- Minimum Capacity: 22000mAh
- Configuration: 6S / 22.2V / 6 cells
- Discharge Rate: 30C
- Max Burst Discharge Rate: 150C
- Net Weight(±20g): 2460g
- Dimensions: 206mm Length x 91mm Width x 61mm Height
- Balancer Connector Type: JST-XHR
Balancer Connector Type: | JST-XHR-7P |
Brand: | Tattu |
Capacity(mAh): | 22000 |
Balancer Wire Length(mm): | 65 |
Configuration: | 6S1P |
Connector Type: | XT90-S |
Discharge Rate (C): | 30 |
Height(±2mm): | 61 |
is featured product: | No |
Length(±5mm): | 206 |
Max Burst discharge Rate (C): | 150 |
Net Weight(±20g): | 2460 |
Over 300wh: | Yes |
over_power: | Yes |
Part Number: | TAA220006S30X |
Preorder config: | No |
sorting: | TattuLarge |
upc: | 889551009232 |
Voltage(V): | 22.2 |
Width(±2mm): | 91 |
Wire Gauge: | 8# |
Discharge Wire Length(mm): | 150 |
Amount: | 2pcs/box |
Capacity Range(mAh): | 10000-49999 |
Part N: | TA-30C-22000-6S1P-XT90 |
Manual: | Ordinary.pdf |
Chargers:
Recommended use of the Tattu matching charger: TA1000
Tattu TA1000 G-Tech Dual-Channel Charger 25A*2 1000W For 1S-7S Drone Battery

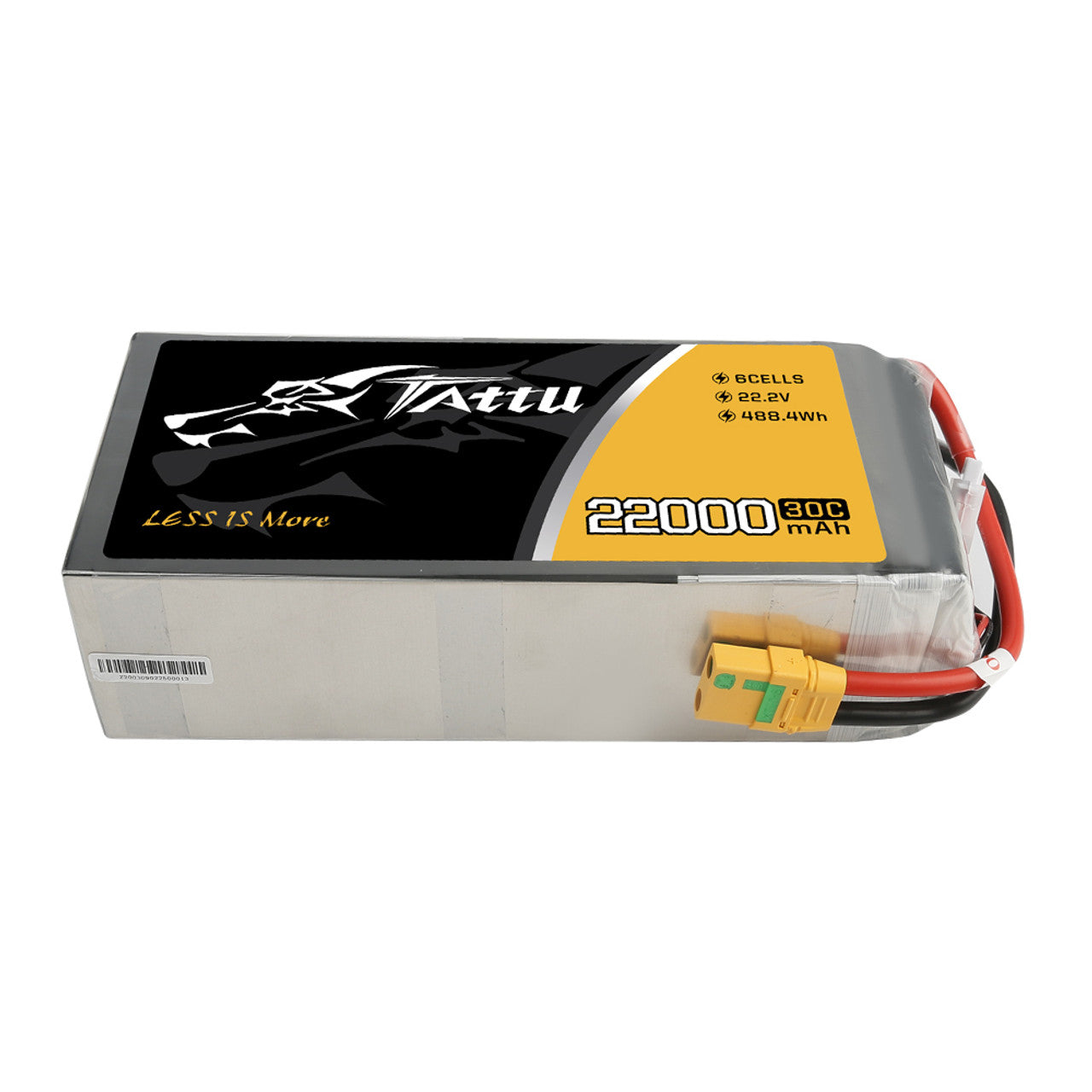

![Tattu G-Tech 6S 22000mAh 30C 22.2V Lipo Battery, High-capacity LiPo battery with 22.2V, 22000mAh, and XT90-S plug for drone use.](http://rcdrone.top/cdn/shop/files/4_36_3__88416.jpg?v=1717914960&width=1445)

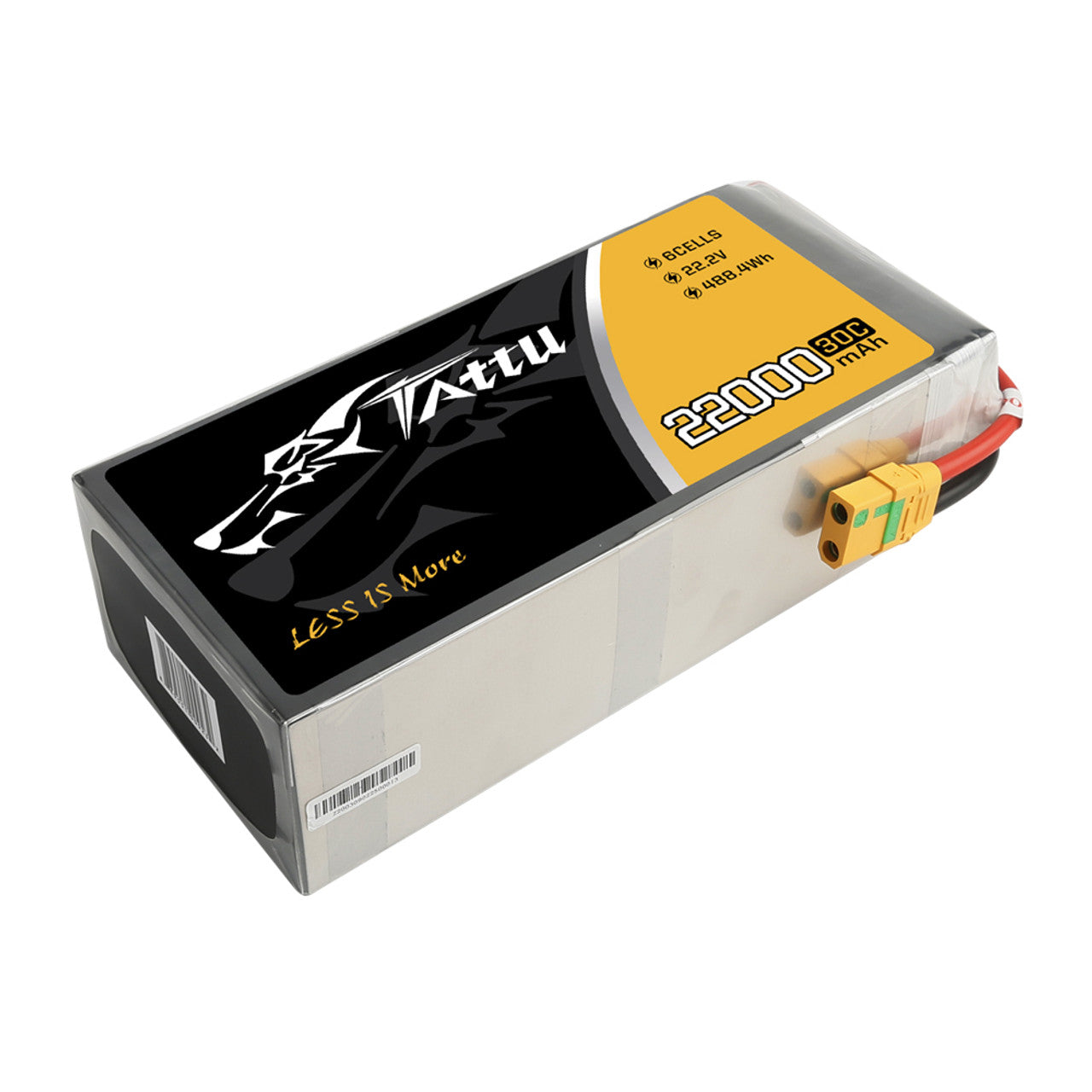

![Tattu G-Tech 6S 22000mAh 30C 22.2V Lipo Battery With XT90-S Plug For UAV](http://rcdrone.top/cdn/shop/files/1_59_3__79026.jpg?v=1717914960&width=1445)

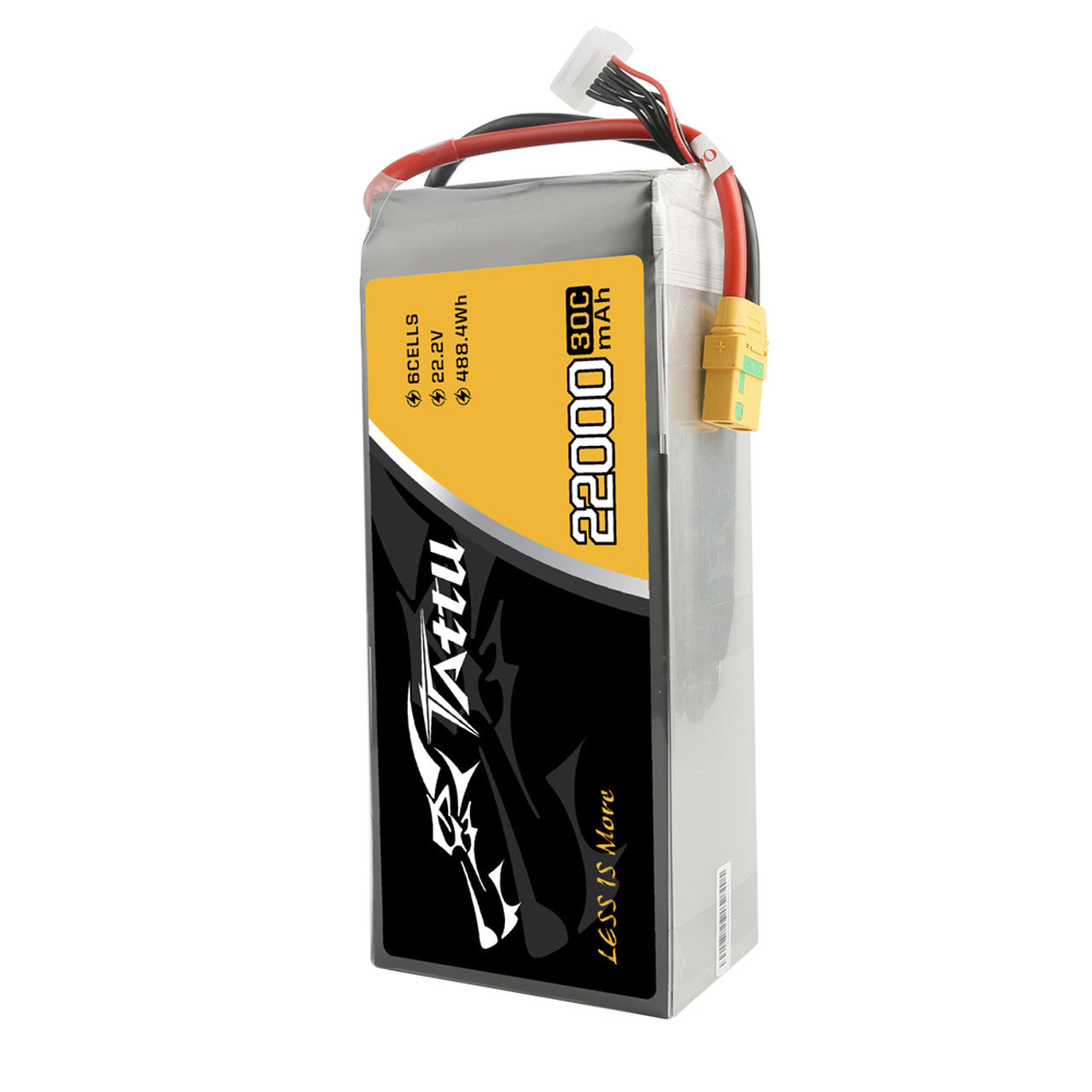

![Tattu G-Tech 6S 22000mAh 30C 22.2V Lipo Battery With XT90-S Plug For UAV](http://rcdrone.top/cdn/shop/files/2_63_6__41493.jpg?v=1717914960&width=1445)

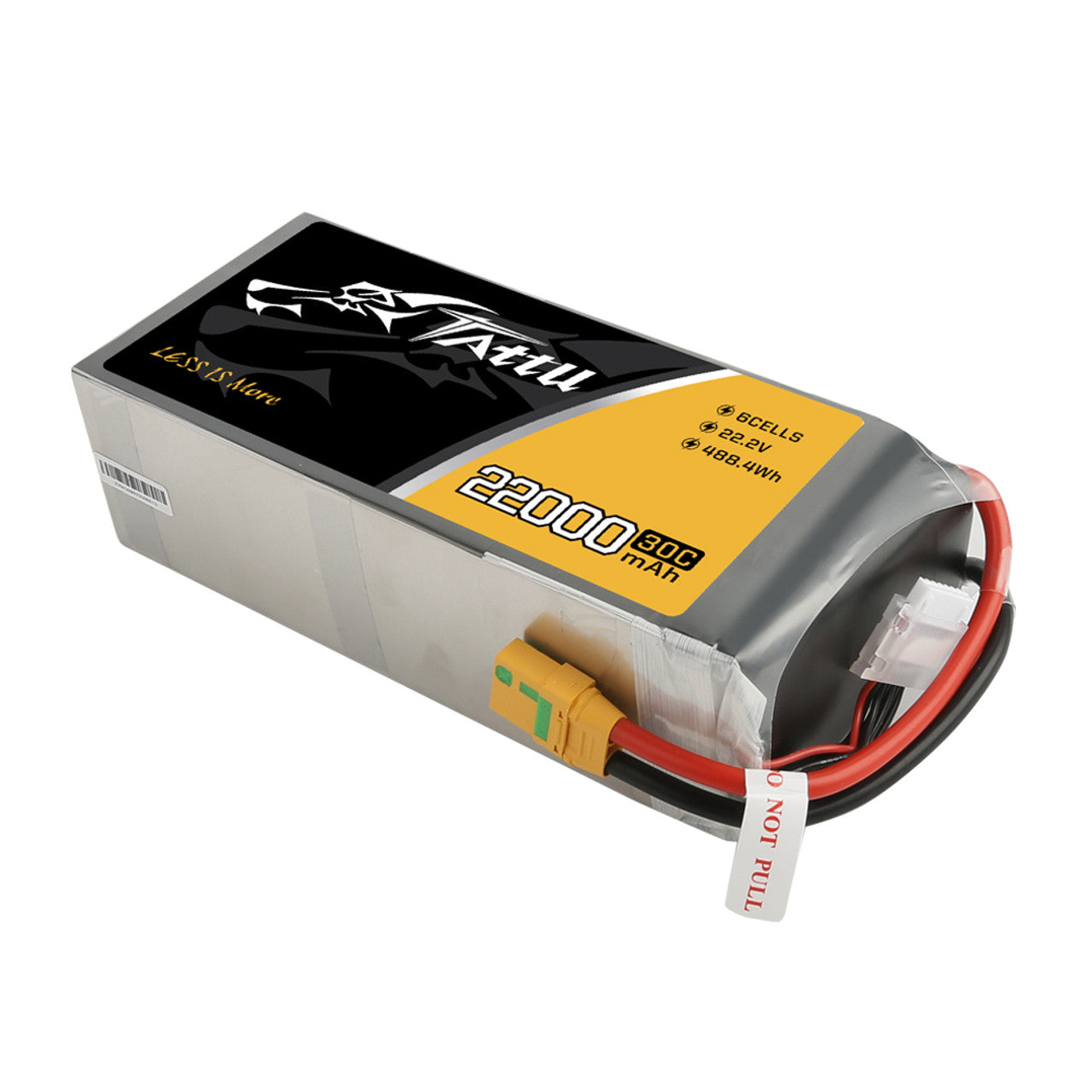

![Tattu G-Tech 6S 22000mAh 30C 22.2V Lipo Battery With XT90-S Plug For UAV](http://rcdrone.top/cdn/shop/files/3_56_3__06838.jpg?v=1717914960&width=1445)
![Tattu G-Tech 6S 22000mAh 30C 22.2V Lipo Battery, High-performance LiPo battery for UAVs with XT90-S plug and 22.2V, 22000mAh capacity.](http://rcdrone.top/cdn/shop/files/5_21_3__92190.jpg?v=1717914960&width=1445)
