TBS Tracer Flex Dipole Rx Antenna / Peter The Penetrator Tracer Tx Antenna / TBS Tracer Immortal T Antenna / Tracer Sleeve Dipole Rx Antenna / Monopole Rx Antenna

TBS Tracer Flex Dipole Rx Antenna / Peter The Penetrator Tracer Tx Antenna / TBS Tracer Immortal T Antenna / Tracer Sleeve Dipole Rx Antenna / Monopole Rx Antenna

TBS

Regular price $8.90 USD
Regular price Sale price $8.90 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

130 orders in last 30 days

Style

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

TBS Tracer Flex Dipole Rx Antenna

For Tiny Whoops, small wings, or ducted drone applications, it can sometimes be beneficial to stick your antenna to get a very sleek profile. That's what the Flex Dipole is for. Not full range, but then again, you may not need that for these scenarios!

Comes in a pack of 2pcs for the TBS Tracer Nano Rx / Nano 6ch Rx

TBS Tracer Flex Dipole Rx Antenna SPECIFICATION:

Element Length / Width 45 mm / 6mm
Total length 120mm
Connector IPEX / u.FL
Weight 0.44g
VSWR < 2
Gain 1dBi

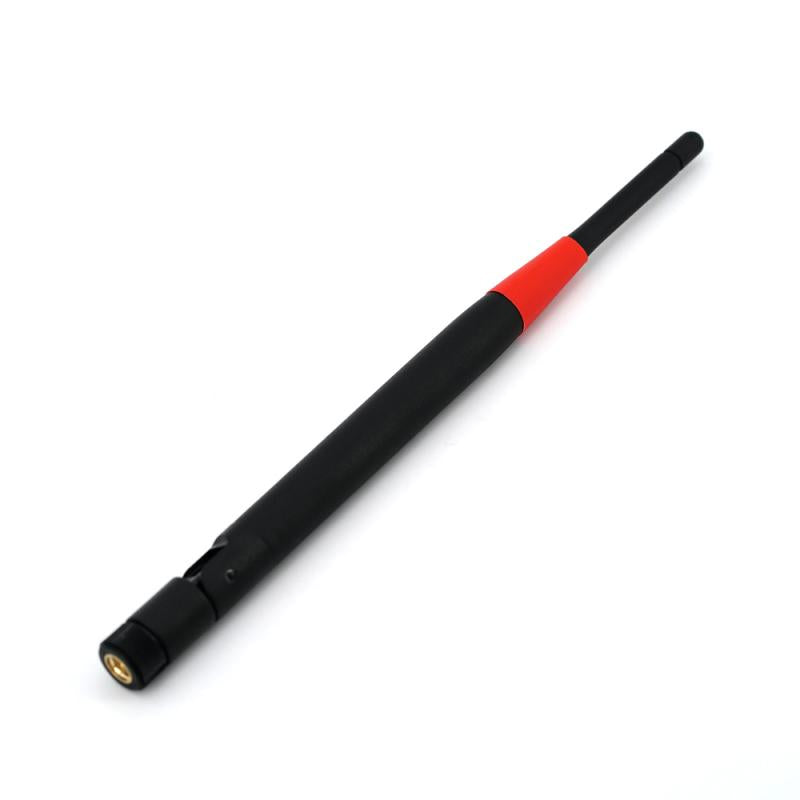

Peter The Penetrator Tracer Tx Antenna

Boost your transmission and telemetry range with this ETHIX approved, high-gain TX antenna.

When you need more power to punch through concrete walls, or push beyond the edge of reception, then our friendly neighborhood hero Peter the Penetrator is the man for the job! Poised to beat RF waves into submission by summoning supernatural powers with the red tuning belt (yes, it's just a decorative heat shrink ... you're no fun at all!), you can nearly double your range!

Look no further, the upgrade of upgrades is here!

SPECIFICATIONS:

Gain 7dBi
VSWR < 1.5
Size 8in / 20cm
Connector

RP-SMA

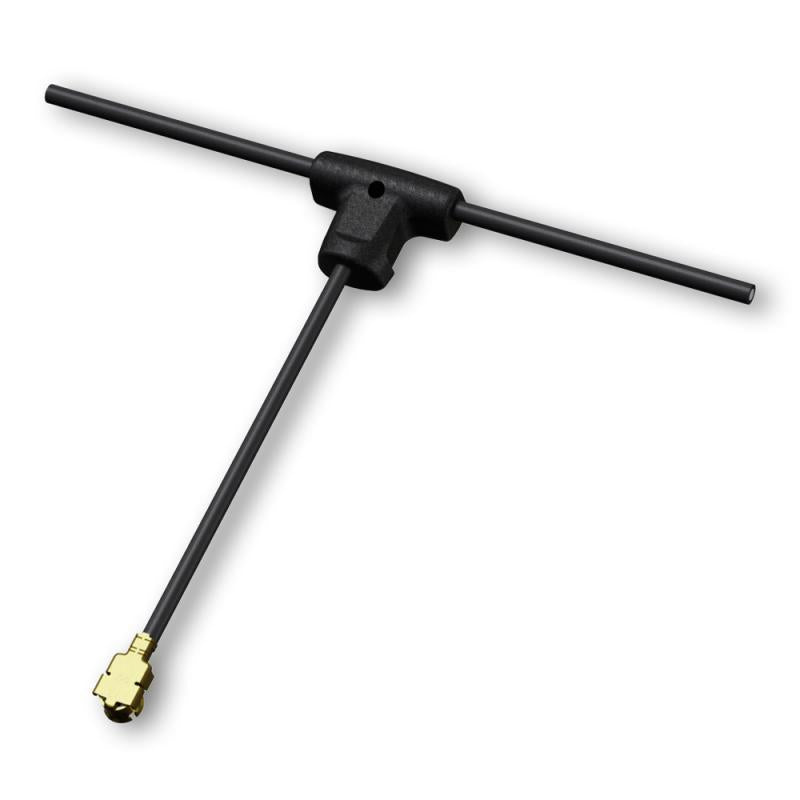

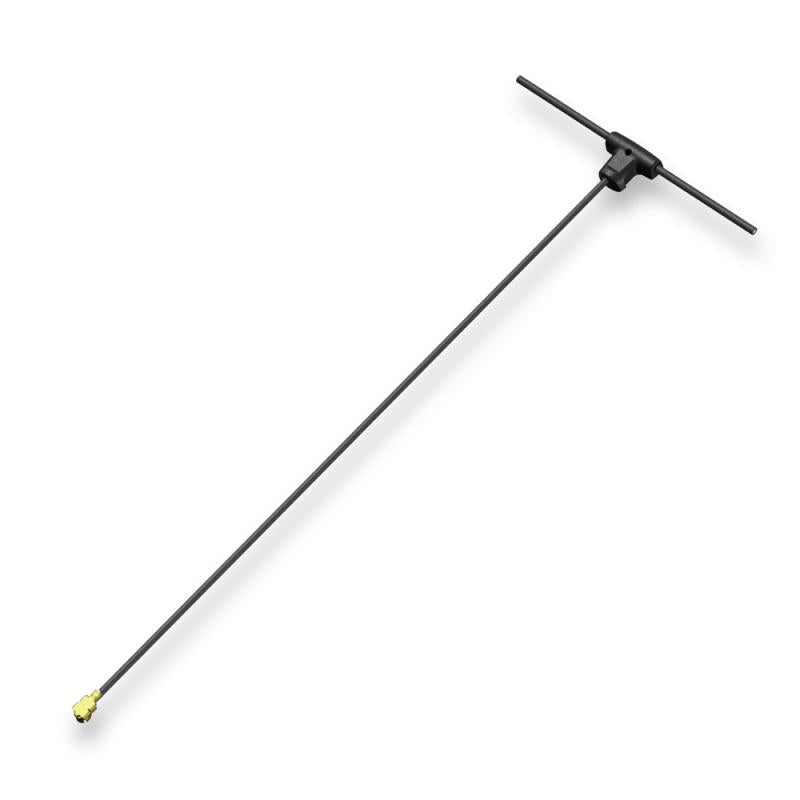

TBS Tracer Immortal T Antenna

Ultra-compact T-shaped dipole antenna for TBS Tracer radio link

The default antenna included with the TBS Tracer is the Immortal T 2.4GHz antenna, manufactured by TBS. It is made from light weight, multi-strand stainless steel wire in an injected rubber enclosure, RF balanced with a balun between active element and ground.

The combination of weight, durability, expected range and performance is bar none with this antenna, and it is ideal for race and freestyle miniquad use.

SPECIFICATION:

Cable length 80mm
Antenna width 60mm
Weight 0.84g
Gain 2dBi
VSWR < 1.4
Expected range Full range (15mi+/25km+ with TBS Tracer)

DOWNLOADS

  • Tracer Immortal T Mount
  • TBS Tracer Immortal-T Antenna Arm Mount by SanderPuh
  • TBS Tracer Antenna Universal Mount Immortal-T by mocky
  • TBS Tracer T-antenna mount by ehitaja_fpv



TBS TRACER SLEEVE DIPOLE RX ANTENNA

For more challenging installations where performance is crucial (such as long range foam planes), we recommend this 2.4GHz sleeve dipole antenna for the TBS Tracer receivers. They are lightweight and not T-shaped, so easier to install on flat or curved surfaces.

SPECIFICATIONS:

Total length 136mm
Weight 1.00g
Gain 1.5dBi
Connector IPEX / u.FL
Expected range Full range (15mi+/25km+ with TBS Tracer)



TBS TRACER MONOPOLE RX ANTENNA

Set of 5pcs 2.4GHz monopole antenna for TBS Tracer Nano RX or any other receiver with IPEX / u.FL connector.

SPECIFICATION

Total length 110mm
Weight 0.33g
Connector IPEX / u.FL
Expected range 3mi+/5km+ (with TBS Tracer)
