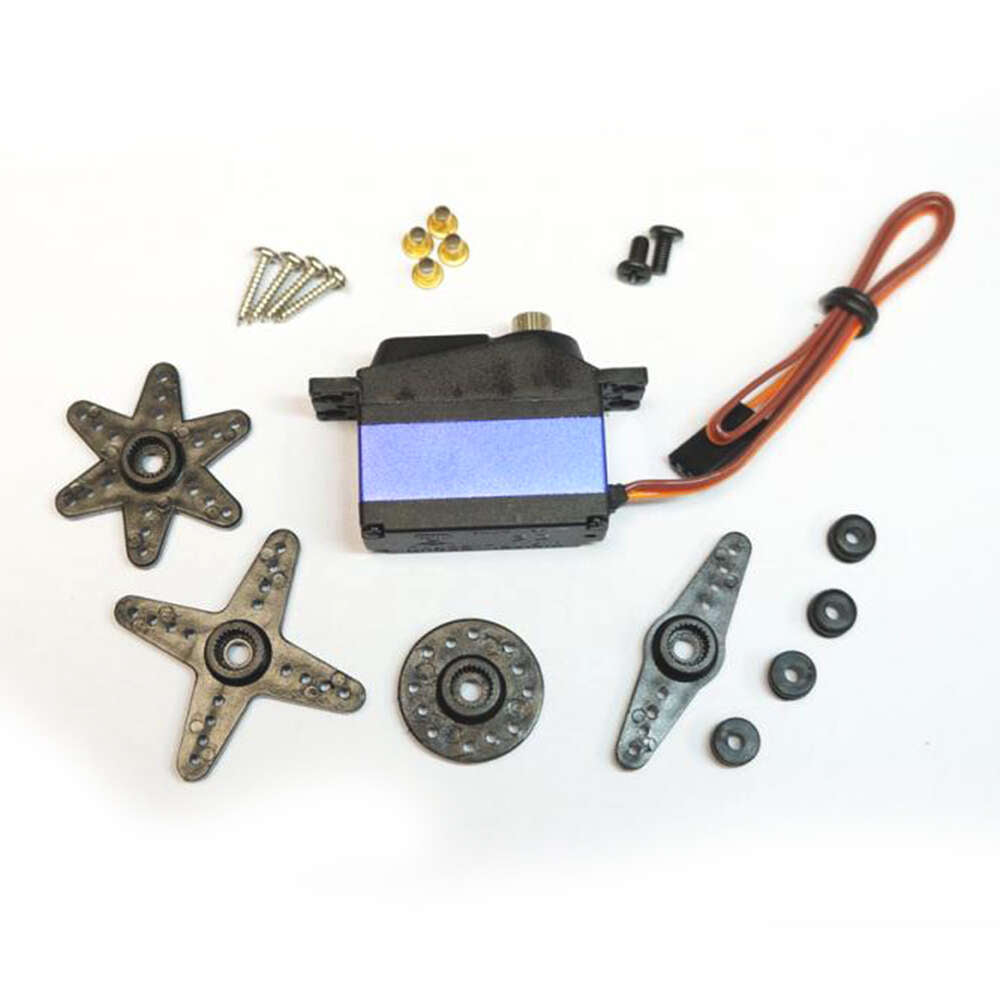

TBS Caipirinha 2 Metal Gear Digital Servo, Coreless Motor, 25T, 250 mm Lead
TBS Caipirinha 2 Metal Gear Digital Servo, Coreless Motor, 25T, 250 mm Lead
TBS
Regular price
$39.93 USD
Regular price
Sale price
$39.93 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
The TBS Caipirinha 2 Servo is a digital metal-gear servo for flying wings with an all-up weight of 1 kg to 3 kg. It uses a coreless motor, ball bearing support, a 25T output spline, and a 250 mm servo lead.
Key Features
- Digital pulse-width control with 1500 us neutral position
- Metal gear train and 25T horn spline
- Coreless motor with ball bearing support
- 250 mm connector wire
Specifications
| Weight | 28 g +/- 1 g |
| Dimensions | 35 x 15 x 30 mm |
| Operating voltage | 4.8-6.0 V |
| Operating temperature | -10 to +50 degrees C |
| Control system | Pulse-width control, 1500 us neutral |
| Operating speed at 6.0 V | 0.12 sec/60 degrees, no load |
| Stall torque at 6.0 V | 2.2 kg.cm |
| Current drain at 6.0 V | 20 mA idle; 120 mA no-load operation |
| Stall current | 0.8 A |
| Operating angle | 45 degrees per side with 500 us pulse travel |
| Direction | Anticlockwise |
| Pulse travel | 1000-2000 us |
| Dead band width | 2 us |
| Motor type | Coreless |
| Bearing type | Ball bearing |
| Gear type | Metal |
| Horn gear spline | 25T |
| Connector wire length | 250 mm |
Applications
Suitable for control-surface installation on compatible flying-wing RC aircraft in the 1 kg to 3 kg AUW class. For product assistance, contact rcdrone.top.
