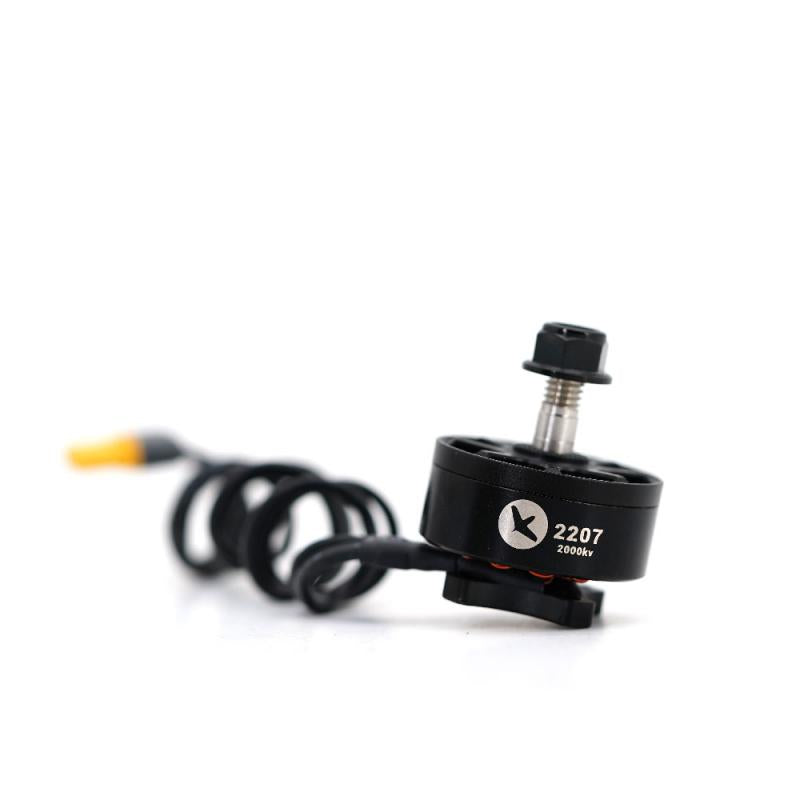

• TBS Chupito EX2207 2000KV Brushless Motor angled side view with motor cable and connector

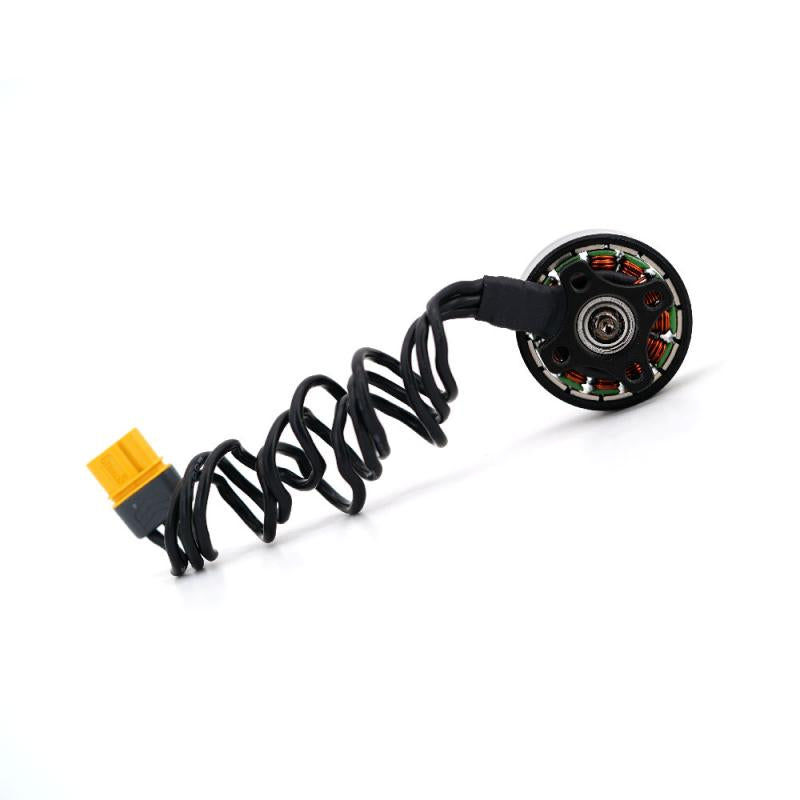

  • TBS Chupito EX2207 motor rear view showing stator windings, bearing, cable, and yellow connector

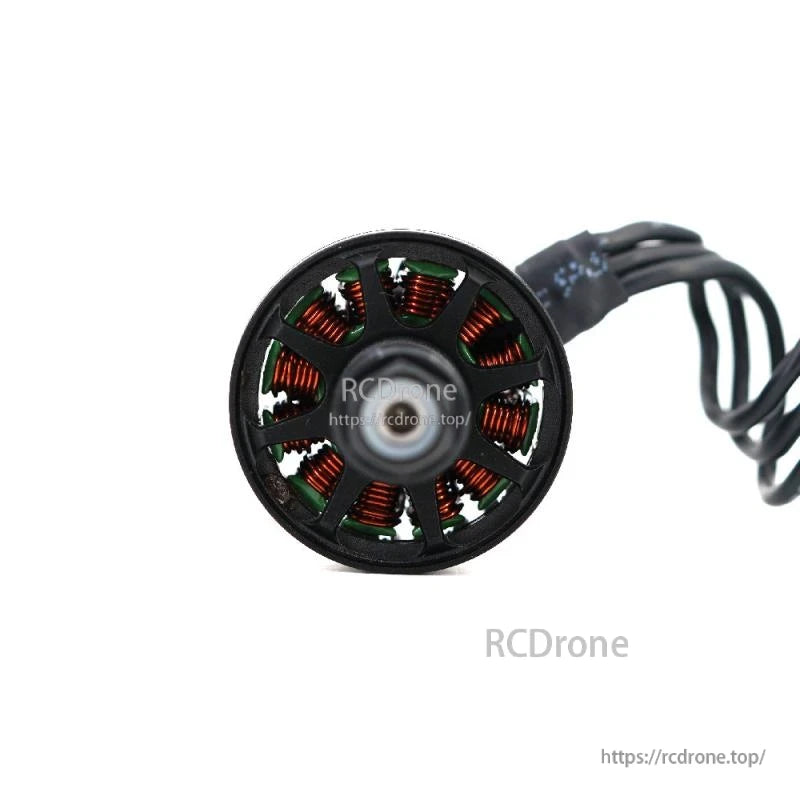

  • Close-up rear view of brushless motor stator with copper windings and black cable
  • Motor thrust test table showing propeller, voltage, throttle, current, pull, power, efficiency, and temperature
  • EX2207 brushless motor technical drawing with 22 mm stator, 27 mm diameter, shaft, and mounting dimensions
1 5

TBS Chupito EX2207 2000KV Brushless Motor, 22 x 7 mm Stator, 16 x 16 mm M3 Mounting

TBS Chupito EX2207 2000KV Brushless Motor, 22 x 7 mm Stator, 16 x 16 mm M3 Mounting

TBS

$31.53 USD
$31.53 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The TBS Chupito EX2207 2000KV brushless motor has a 22 x 7 mm stator, 12N14P configuration, and 2000 KV rating. It uses a 16 x 16 mm mounting pattern with four M3 mounting holes and a 5 mm prop shaft.

Key Features

  • EX2207 motor with 2000 KV rating
  • 22 x 7 mm stator and 12N14P configuration
  • 16 x 16 mm, 4 x M3 mounting pattern
  • 5 mm prop shaft
  • 190 mm MT30 lead

Specifications

Model TBS Chupito EX2207 2000KV
Stator Size 22 x 7 mm
Slot Poles 12N14P
KV Rating 2000 KV
Mounting Pattern 16 x 16 mm, 4 x M3
Motor Diameter 27 mm
Motor Body Length 18.65 mm
Prop Shaft Diameter 5 mm
Shaft Length 13.1 mm
Lead MT30, 190 mm
Weight 29.9 g

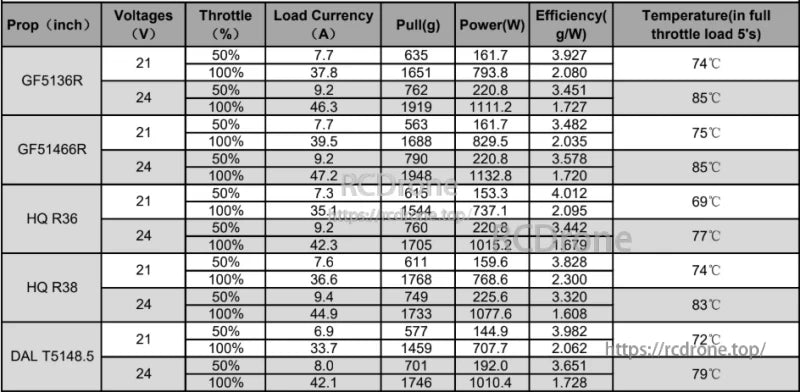

Test Data

Performance data was recorded with 21 V and 24 V input at 50% and 100% throttle. Temperature values were measured after 5 seconds at full-throttle load.

Prop Voltage Throttle Load Current Pull Power Efficiency Temperature
GF5136R 21 V 50% 7.7 A 635 g 161.7 W 3.927 g/W 74 C
GF5136R 21 V 100% 37.8 A 1651 g 793.8 W 2.080 g/W 74 C
GF5136R 24 V 50% 9.2 A 762 g 220.8 W 3.451 g/W 85 C
GF5136R 24 V 100% 46.3 A 1919 g 1111.2 W 1.727 g/W 85 C
GF5146R 21 V 50% 7.7 A 563 g 161.7 W 3.482 g/W 75 C
GF5146R 21 V 100% 39.5 A 1688 g 829.5 W 2.035 g/W 75 C
GF5146R 24 V 50% 9.2 A 790 g 220.8 W 3.578 g/W 85 C
GF5146R 24 V 100% 47.2 A 1948 g 1132.8 W 1.720 g/W 85 C
HQ R36 21 V 50% 7.3 A 615 g 153.3 W 4.012 g/W 69 C
HQ R36 21 V 100% 35.1 A 1544 g 737.1 W 2.095 g/W 69 C
HQ R36 24 V 50% 9.2 A 760 g 220.8 W 3.442 g/W 77 C
HQ R36 24 V 100% 42.3 A 1705 g 1015.2 W 1.679 g/W 77 C
HQ R38 21 V 50% 7.6 A 611 g 159.6 W 3.828 g/W 74 C
HQ R38 21 V 100% 36.6 A 1686 g 768.6 W 2.194 g/W 74 C
HQ R38 24 V 50% 9.4 A 749 g 225.6 W 3.320 g/W 83 C
HQ R38 24 V 100% 44.9 A 1773 g 1077.6 W 1.646 g/W 83 C
DAL T5148.5 21 V 50% 6.9 A 577 g 144.9 W 3.982 g/W 72 C
DAL T5148.5 21 V 100% 33.7 A 1459 g 707.7 W 2.062 g/W 72 C
DAL T5148.5 24 V 50% 8.0 A 701 g 192.0 W 3.651 g/W 79 C
DAL T5148.5 24 V 100% 42.1 A 1746 g 1010.4 W 1.728 g/W 79 C

For product support, contact rcdrone.top.

Details

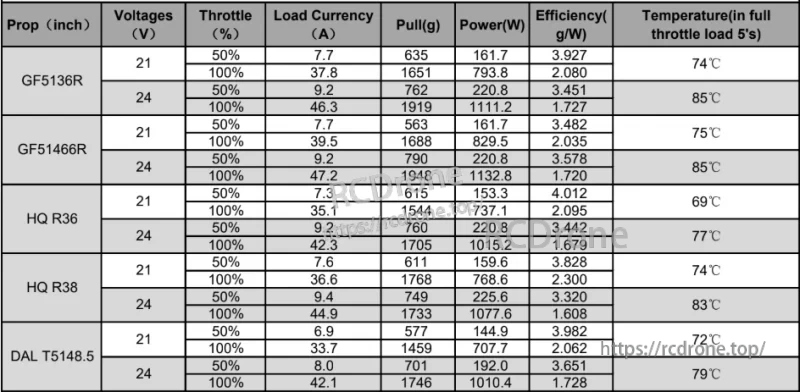

Motor performance test table comparing thrust, power, efficiency, and temperature across propellers

Performance testing compares thrust, power, efficiency, current draw, and temperature across several propeller options at 21 V and 24 V.

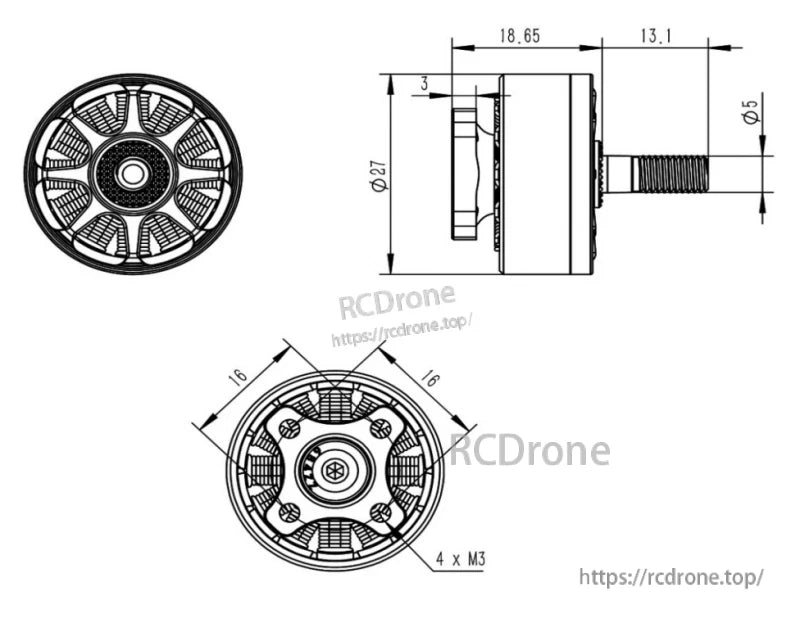

TBS Chupito EX2207 2000KV Brushless Motor dimensions and 16 x 16 mm M3 mounting pattern

Technical drawings specify the 27 mm motor diameter, 18.65 mm body length, 13.1 mm shaft length, and four M3 mounting holes on a 16 x 16 mm pattern.
