Overview

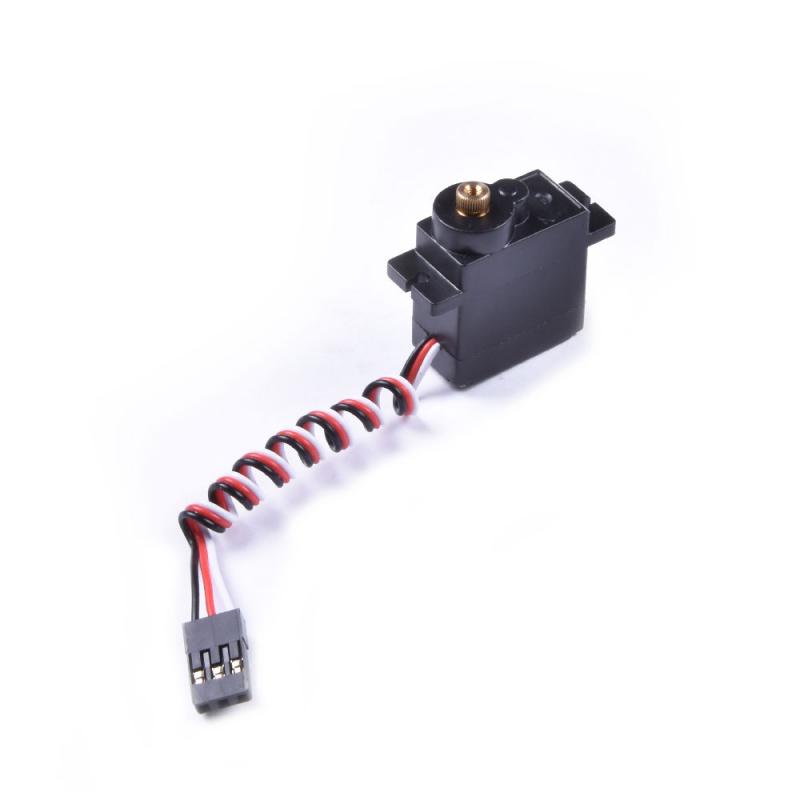

The TBS Chupito Servo is a compact RC servo designed for operation from 4.8V to 6V. It weighs 13.5g and provides up to 1.3kgf/cm of torque at 6V, with performance values specified separately for 4.8V and 6V operation.
Key Features
- 4.8V-6V operating voltage
- Maximum torque of 1.2kgf/cm at 4.8V and 1.3kgf/cm at 6V
- No-load speed of 0.16s/60deg at 4.8V and 0.15s/60deg at 6V
- 13.5g weight
- Operating temperature range from -10C to 50C
Specifications
| Operating voltage | 4.8V-6V |
|---|---|
| Standby current | <15mA |
| Stall current | <1A at 4.8V; <1.1A at 6V |
| Maximum torque | 1.2kgf/cm at 4.8V; 1.3kgf/cm at 6V |
| No-load speed | 0.16s/60deg at 4.8V; 0.15s/60deg at 6V |
| Operating temperature | -10C to 50C |
| Weight | 13.5g |

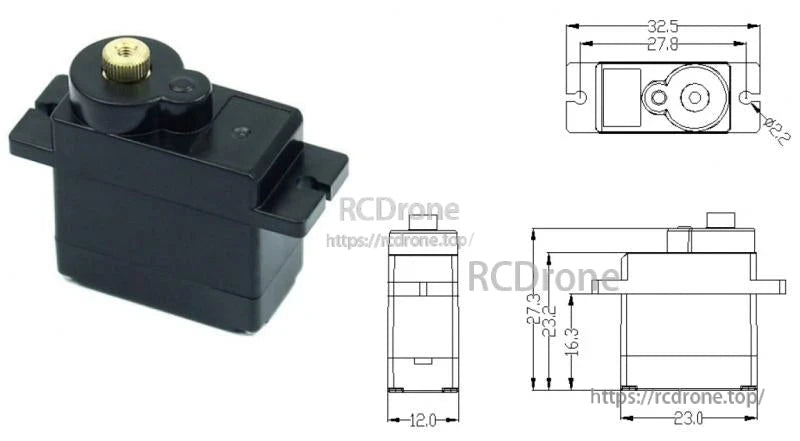

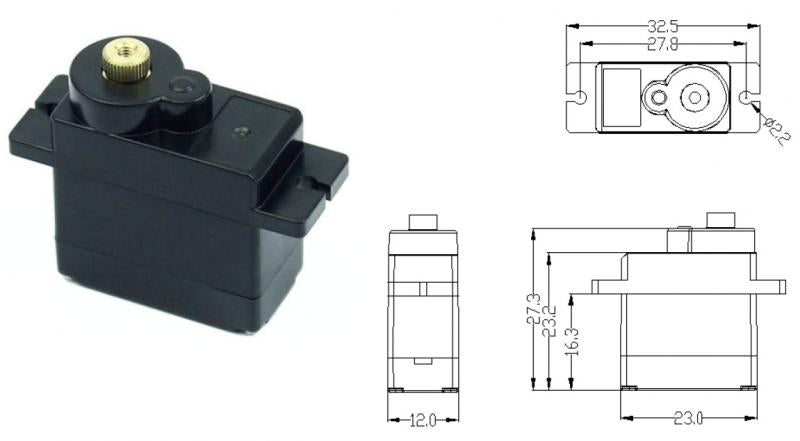

| Dimensions shown in product drawing | 32.5mm, 27.8mm, 22.2mm, 27.3mm, 23.4mm, 16.3mm, 23.0mm, and 12.0mm |
For product questions or technical assistance, contact customer service at rcdrone.top.
