TBS Lucid Wing PDB 14S Power and Servo Distribution Board for Fixed-Wing Flight Controllers

Overview

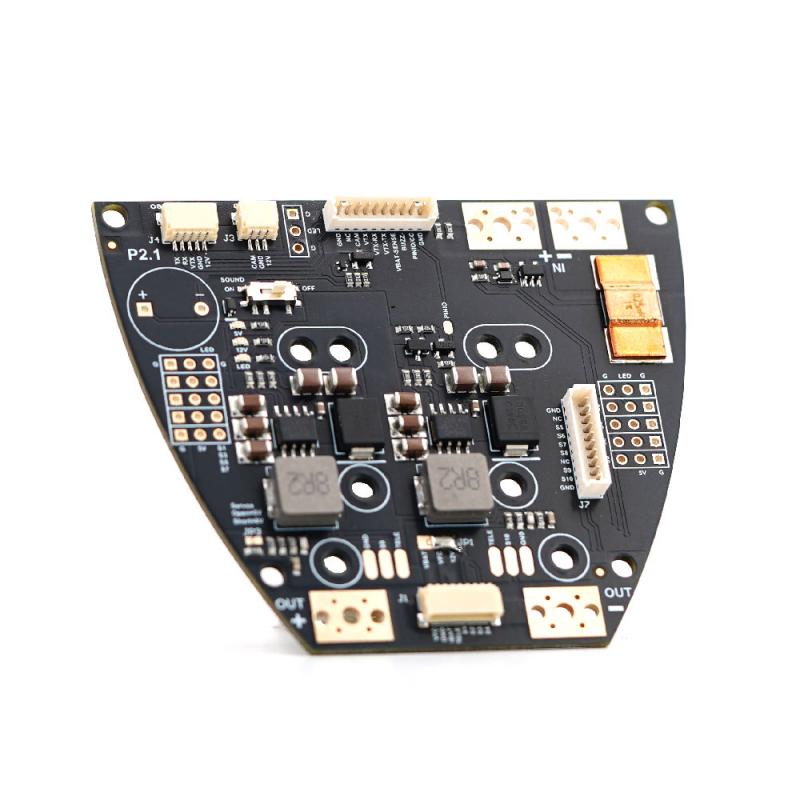

The TBS Lucid Wing PDB is a 14S power and servo distribution board for fixed-wing aircraft using a separate flight controller. It supports up to four control servos and one or two motors, helping consolidate power distribution and peripheral connections in wing builds using 20x20 or 30.5x30.5 flight controllers.

Key Features

• Supports 20x20 and 30.5x30.5 iNav or ArduPilot flight controllers.
• Integrated current sensing rated for 90A continuous and 200A burst.
• 12V output for LEDs, flight controller, and related equipment.
• Jumper-selectable 5V or 8V servo output.
• Supports BLHeli or AM32 ESC telemetry, a 3-pin analog camera, a 5-pin analog VTX, and 12V COB LEDs.
• Digital VTX, radio link, and other peripherals connect through the flight controller.
• Flight-controller input can be switched between VBat and 12V; a separate voltage divider can feed an ADC input for battery-voltage sensing when using the 12V supply.

Specifications

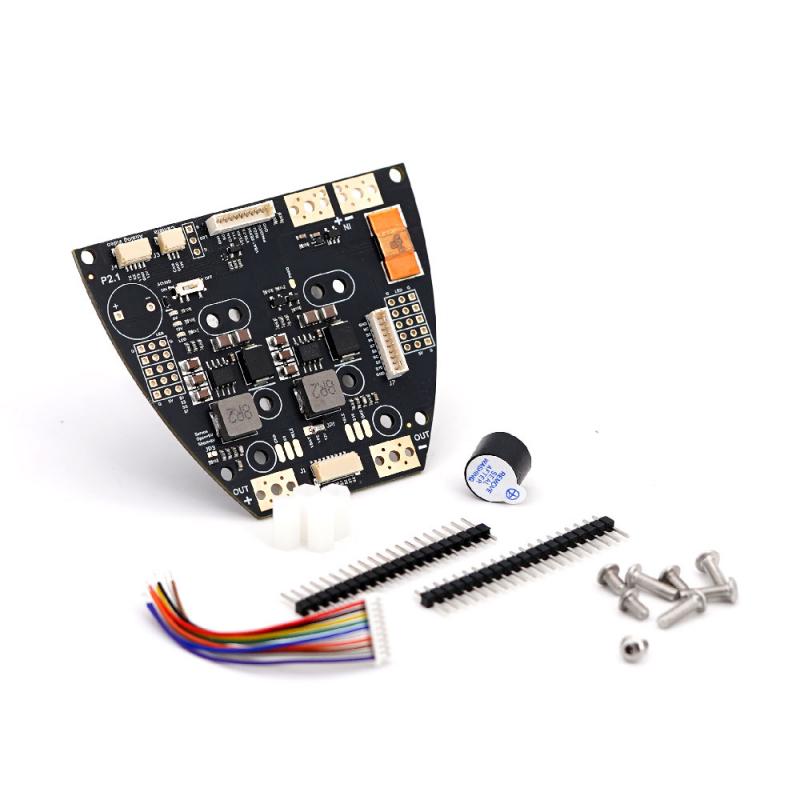

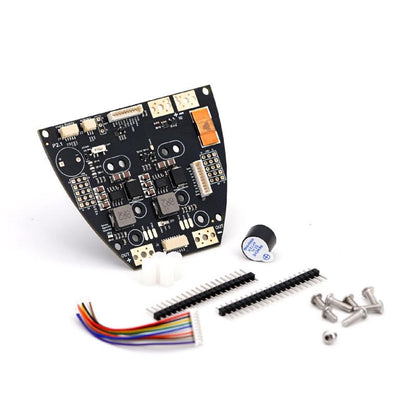

What's Included

• TBS Wing PDB circuit board
• Cables for connecting flight-controller peripherals to the PDB
• 2x20 pin headers for servo plugs
• 4 x M3x5mm screws
• 4 x M3x10mm screws
• 4 x M3 nylon 10mm standoffs

Manuals

Download the STEP file for design and prototyping. For product assistance, contact rcdrone.top.
