A bundle of awesomeness: Ultra low latency radio control link and goggle module.

INCLUDES

• 1 x TBS Tracer Micro TX
• 3 x TBS Tracer Nano RX
• 6 x TBS Tracer Immortal T Antenna
• 1 x TBS Fusion

TBS TRACER MICRO FUSION PACK

A bundle of awesomeness, TBS tracer micro fusion pack provides ultra low latency radio control link and goggle module.

In this bundle you are provided with the latest TBS tracer radio module to clip to the back of your transmitter, TBS tracer Nano receiver’s and the excellent TBS fusion , A video receiver for your goggles, to help you to see where your flying. That’s nice. 🙂

Product Information.

In a race, microseconds count. Goggles down, thumbs up – are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up.

The end result: Smaller antennas, more speed, range for days.

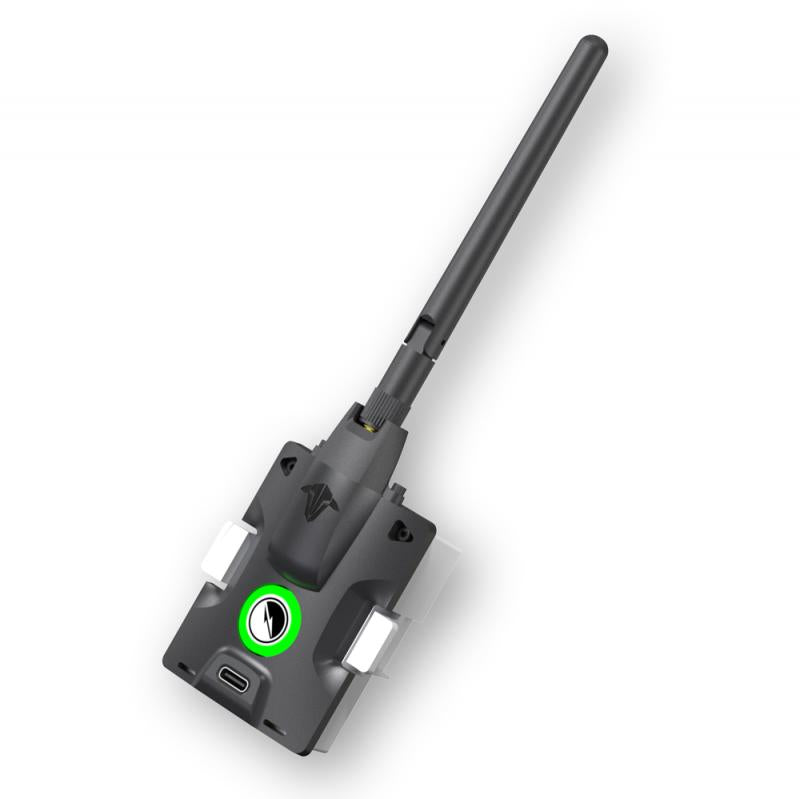

TBS TRACER MICRO TX FEATURES

• 250Hz: Fastest available radio and telemetry link.
• Next generation 2.4GHz technology meets robust Crossfire radio engine
• 3ms end to end latency
• “JR” and “LITE” form factor transmitters
• Nano-sized receiver with antenna diversity
• 15mi+/25km+ range
• For drones, planes, helicopters, cars and boats

TBS TRACER MICRO TX SPECIFICATIONS

• Latency & Refresh Rate: 3ms, 250Hz
• Output power: 25mW / 100mW
• Frequency Bands: 2.4GHz ISM
• Input Voltage: 5 – 13V
• Connector: USB-C
• Power consumption: 1.1W (@10mW) – 2W (@100mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Radio Compatibility: JR module bay (e.g. TBS Tango 1, RadioMaster TX16S, Taranis X9D). OpenTX V2.1+

* output power modes may not be available due to local regulation limitations

TBS TRACER NANO RX FEATURES

• 250Hz: Fastest available radio and telemetry link!
• Next generation 2.4GHz technology meets robust Crossfire radio engine
• 3ms end to end latency
• Nano-sized receiver with antenna diversity
• 15mi+/25km+ range
• For drones, planes, helicopters, cars and boats

TBS TRACER NANO RX SPECIFICATIONS

• Antnna ports: 2x u.FL / IPEX (diversity)
• Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables
• Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx Control)
• Weight: 0.5g (receiver only)
• Size: 11mm x 18mm

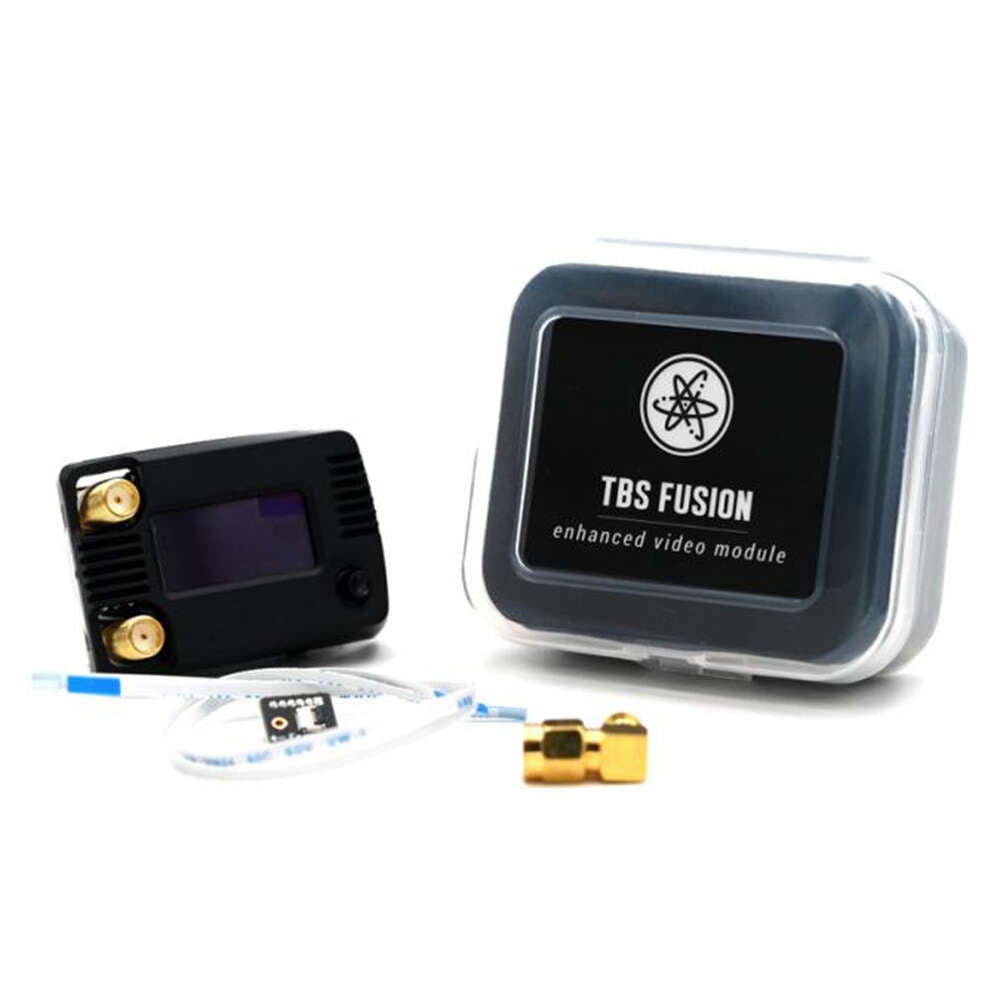

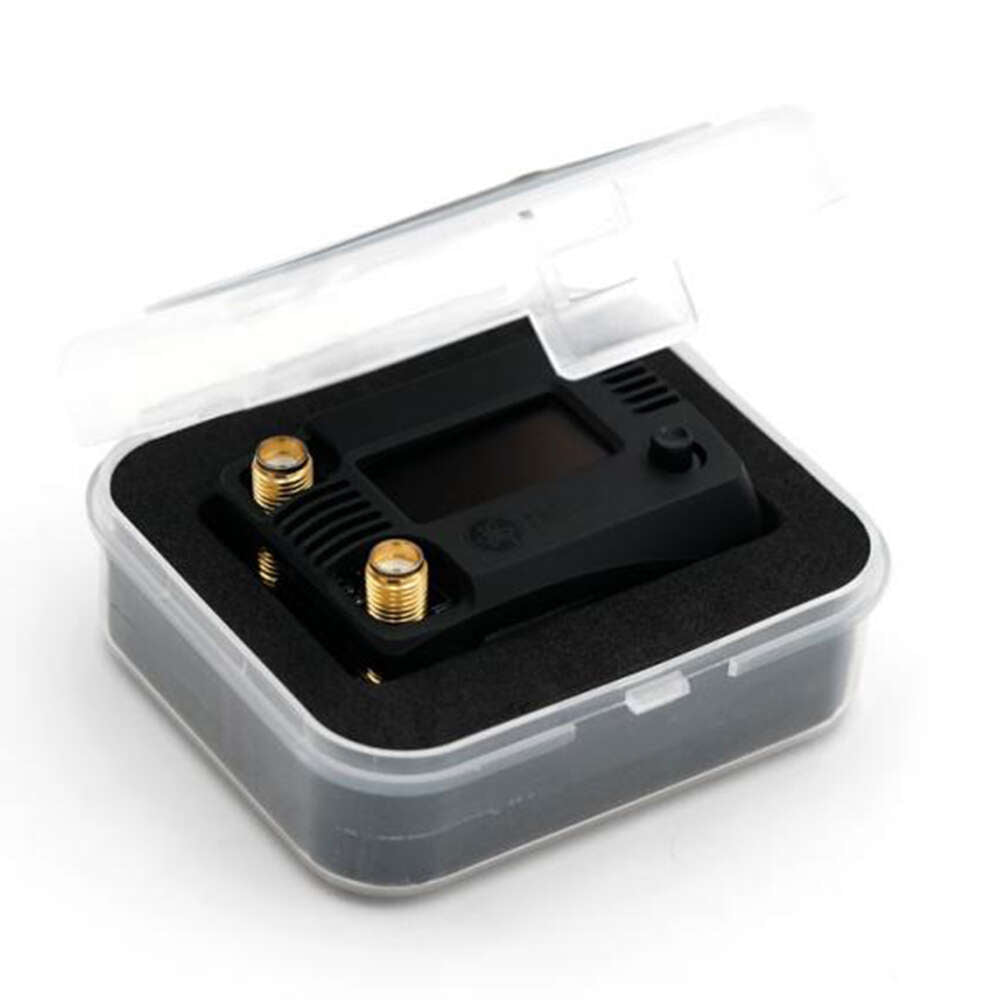

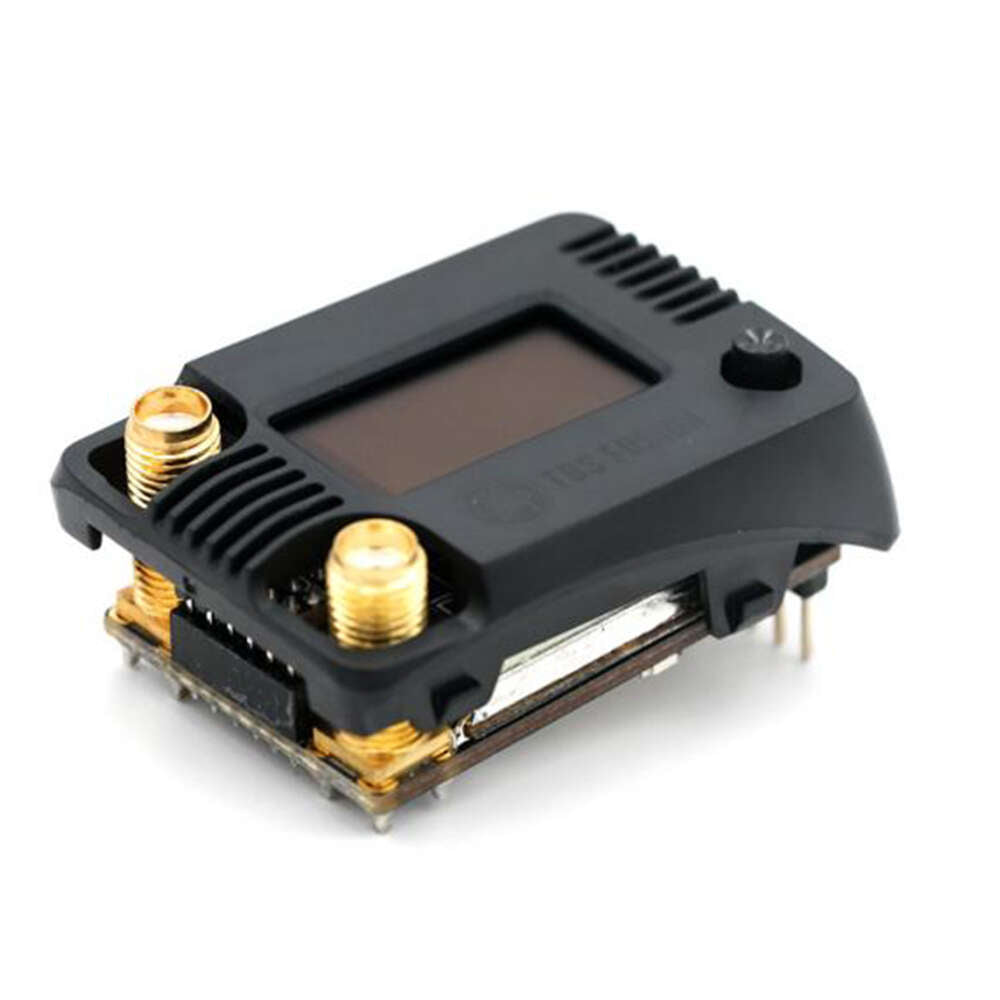

A Fusion of the best: The image processing developed by BrainFPV, the OSD and UI by Achilles, and the hardware engineered and manufactured by TBS. When the brightest minds of the FPV industry work together, being the best at merging two analog video streams was simply not good enough!

Through active video fusion, the displayed video instantly has less breakup and more range, without color-deterioration or video desync often experienced at the edge of reception. A state-of-the-art OSD engine drives cutting edge interactivity, while reducing the need for on board OSD. The TBS Fusion both raises the bar at reception quality and paves the way for system-wide integration with TBS Crossfire and other devices.

In a nutshell, the TBS Fusion has more range, better signal in indoor or other critical environments, and ultimate compatibility with your Crossfire radio link. The included lap timer and spectator modes for staying freestyle- or race-events are an added bonus!

CROSSFIRE INTEGRATION

The Crossfire integration promises a seamless user experience for any FPV pilot. The first stage will see synchronized VRx/VTx channel changes and ability to modify any CRSF device setting via your goggles (Crossfire, Unify Pro/Pro32, compatible Flight Controllers, etc). The second phase will add interactivity on levels never seen before. Exciting times are ahead, and in the usual TBS way, the hardware is already built to be compatible with future software updates and future products.

DOWNLOADS

• TBS Fusion Manual
• TBS Fusion Manual – German
• Fusion Cover for Orqa (Designed by ChillerFPV)
• Fusion Cover #2 for Orqa (Designed by Arkimedes)
• TBS Cloud – Wifi Firmware

PRODUCT SPECIFICATIONS

• Compatibility: Fatshark Dominator V1, V2, V3, HD1, HD2, HD3, HDO
• External Power Kit: Included. Required for older goggles that can’t deliver enough power, or for connectivity
• RF Sensitivity: -96dBm
• Power: 5V @ 340mA, 500mAh with connectivity enabled
• Fatshark Attitude compatibility: will require trimming of goggle plastic case to fit
• Upgrade with: TBS Agent X V2.0.21 or higher
• Collaboration with: BrainFPV (video fusion), AchillesFPV (UI), TBS (hardware)

In the box:

• 1 x TBS Tracer Micro TX
• 3 x TBS Tracer Nano RX
• 6 x TBS Tracer Immortal T Antenna
• 1 x TBS Fusion Module
• 1 x Power Mod PCB
• 2 x Power Mod Ribbon Cable
• 1 x 90d SMA Adapter
• 1 x Cover and Button (Black)
