The world's smallest FPV video transmitter with 25mW / 50mW power levels, Smart Audio and u.FL

SIZE MATTERS!

As builds become smaller and the innovation surrounding brushed and brushless micro quads accelerates, the need for a high-quality VTx increases. TBS has built the smallest VTx possible, focusing purely on size! Sporting the usual Unify Pro pedigree, a newly-revised u.FL connector and the industry-standard Smart Audio support. You will be blown away with the performance in terms of range, signal clarity and signal spacing.

SPECIFICATIONS

Input Voltage 4.5V - 5V ONLY
Power levels 25mW / 50mW

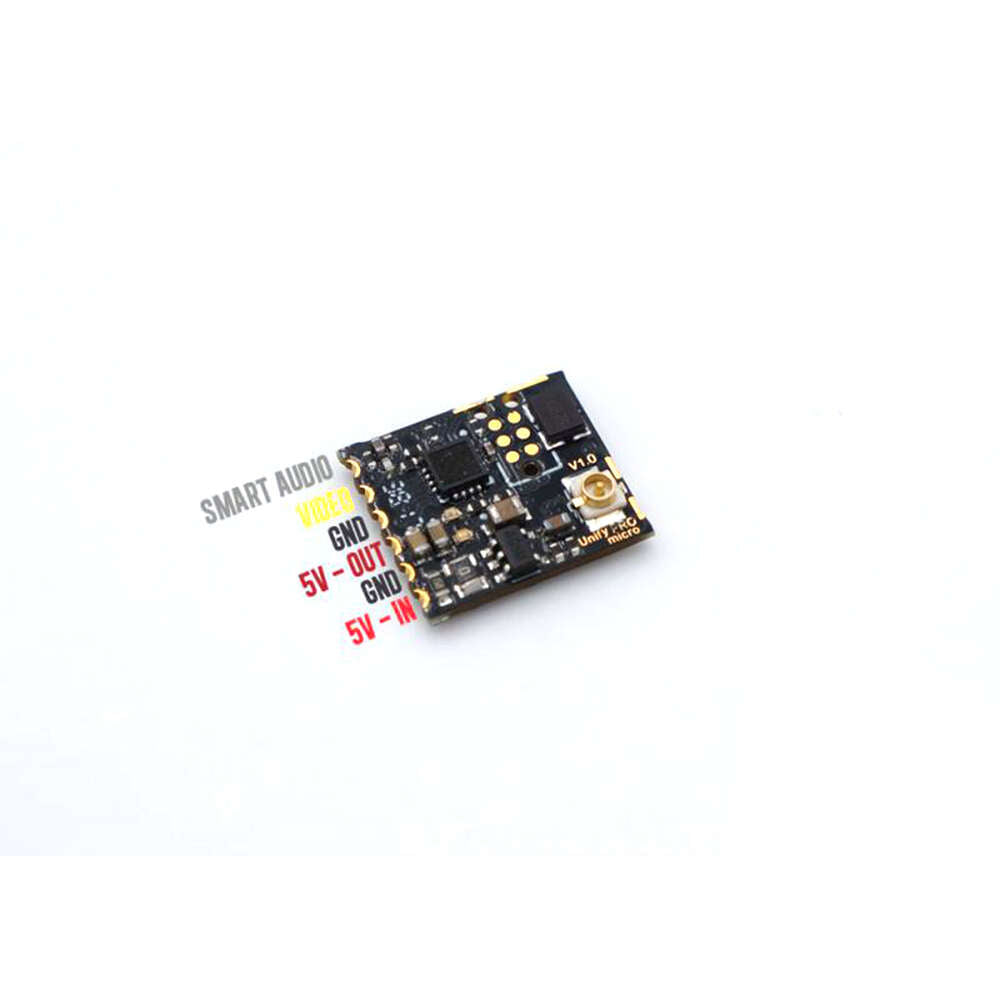

Interface SmartAudio and capacitive button (or solder external tactile button separately - included!)
Weight 1.4g (incl. antenna)

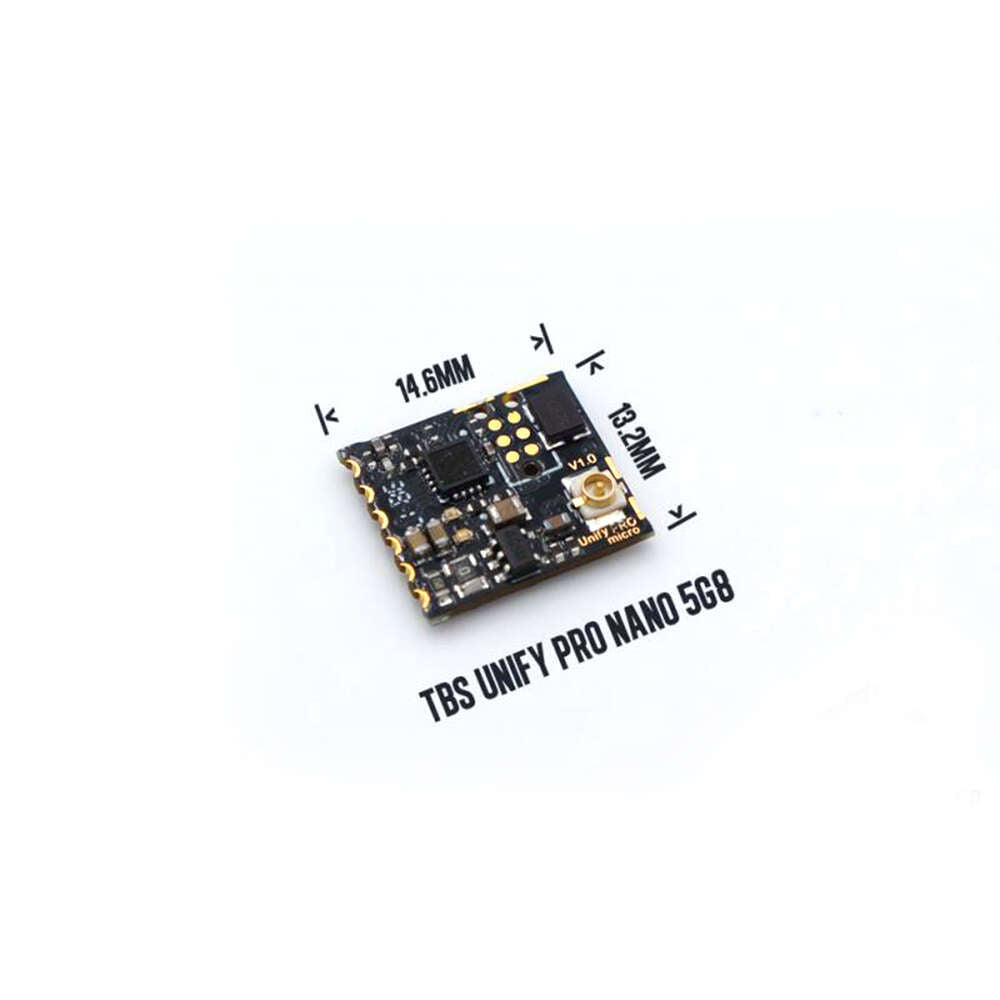

Size 13.2mm x 14.6mm
Antenna connector u.FL (upgraded)
Antenna length 45.6mm (end to end)
TBS Tech Smart Audio, Clean Switch

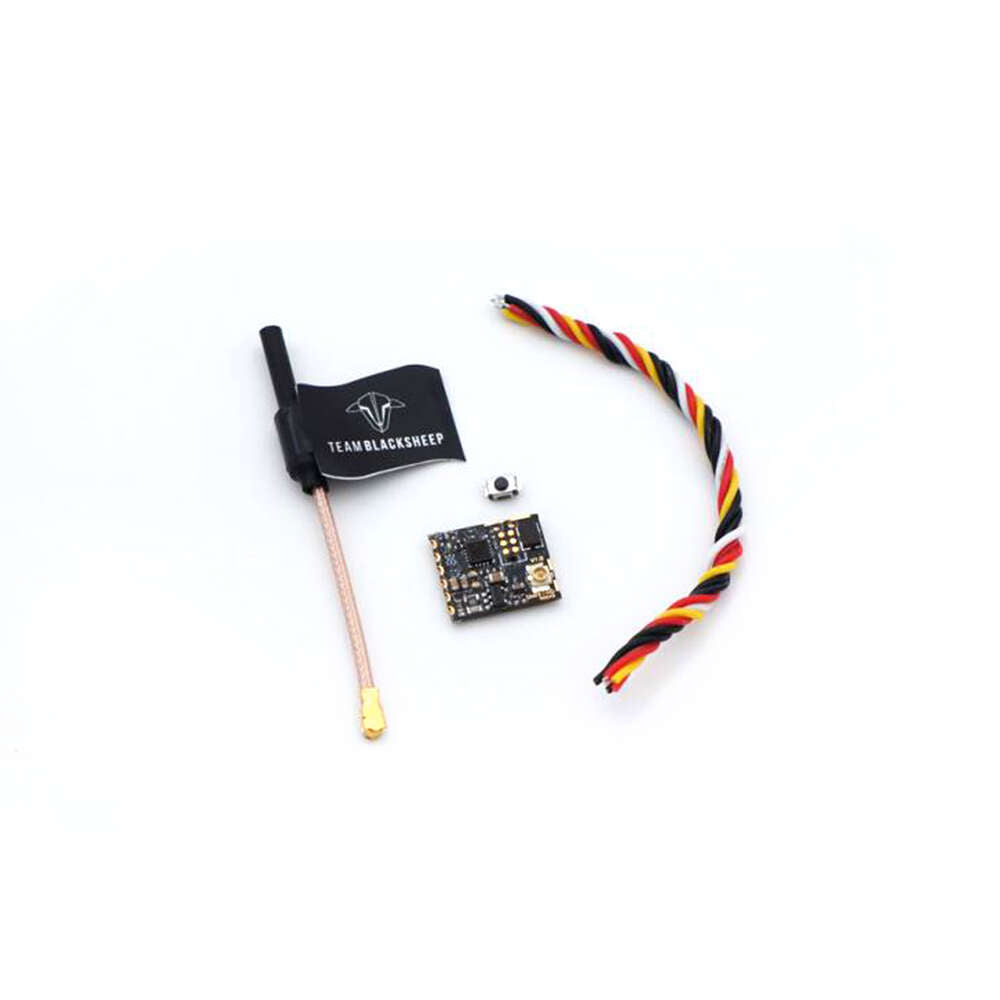

INCLUDES

  • 1x Unify Pro nano 5G8 VTX
  • 1x button switch
  • 1x TBS UNIFY PRO 5G8 Linear Antenna
  • 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)

DOWNLOADS

MANUAL
