TBS Wing Layer BLOWOUT PowerCube FPVision Add-On with 100A ESC Connection

Overview

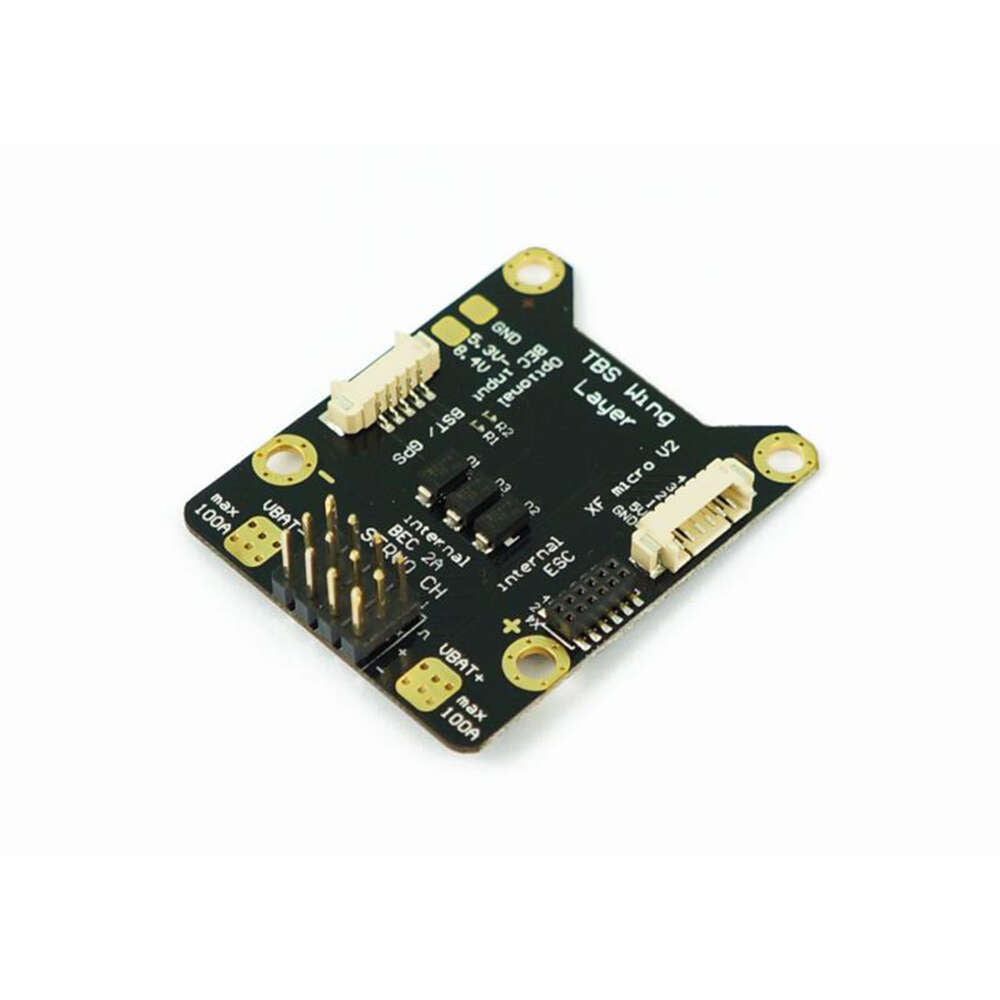

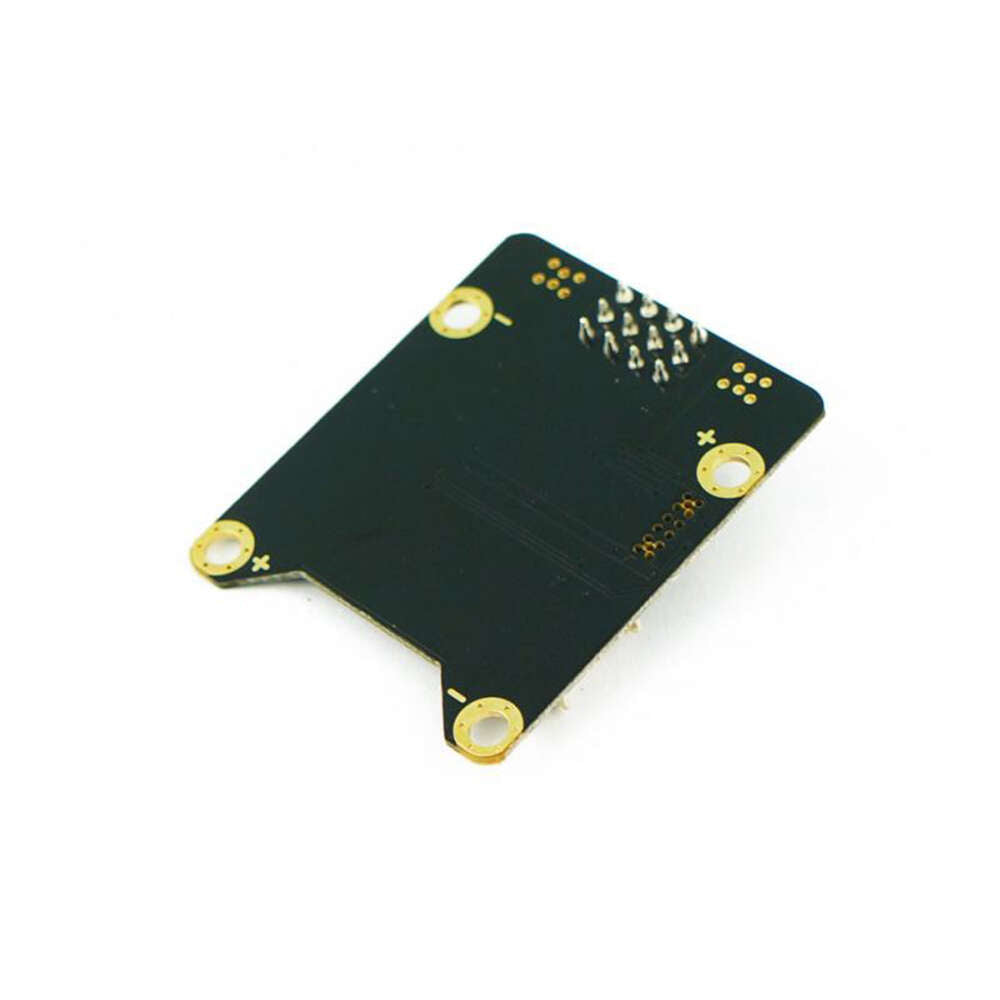

The TBS Wing Layer BLOWOUT is a PowerCube add-on designed for small wing builds using the TBS PowerCube FPVision. It adds power, receiver, servo, and connectivity interfaces for an integrated FPV wing electronics installation.

Key Features

• Additional BST port for compatible accessories such as a TBS GPS
• 100A external ESC power connections positioned after the FPVision integrated 100A current sensor
• Integrated servo connector adapter for the optional Crossfire Micro V2 receiver
• Integrated PWM link for a PowerCube ESC, connecting automatically to PWM1
• Servo BEC supply from FPVision rated at 4.8V / 2A continuous, with 3A peak output
• Backup servo BEC input with two 5A diodes

Compatibility

• TBS PowerCube FPVision
• TBS BULLETPROOF 25A 6S ESC (optional)
• Crossfire Micro V2 receiver (optional)

For product assistance, contact rcdrone.top.

Specifications

What's Included

• 1 x TBS Wing Layer
• 4 x brass standoffs
• 4 x black nuts
