The whole machine is not assembled, and only in bulk can improve user pleasure

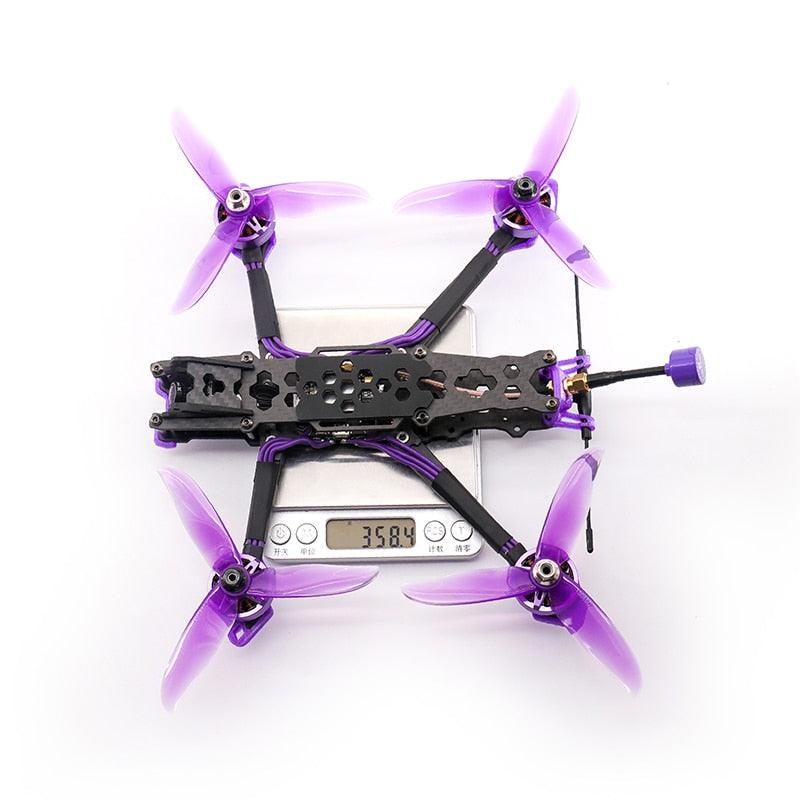

Avenger 225 PRODUCT PARAMETERS：

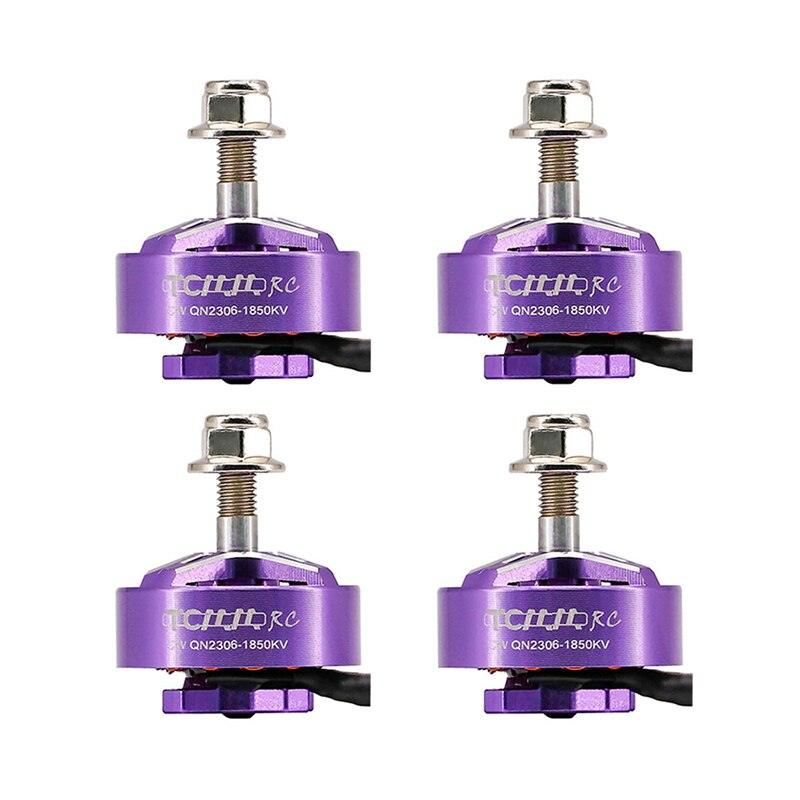

Motor Model：2306/1850 rpm/v(6S Version) 2306/2450 rpm/v(4S Version)

ESC：40A 4 in 1 Brushless Esc
Flight Control： Omnibus F4 V3 Flight Controller
camera： Foxeer Mirco Pro
Propeller：DALPROPT5046C Tri-blade Propeller

(Not Include Receiver)

F4-40A esc:
Continuous current: 40A
Peak current: 55A (6S)
Lithium battery section number: 2-4S
BL_S50A4IN1BEC: 5V2A
ESC weight: 10.8g
Firmware: BL_S

Maximum support throttle signal:
DSHOT600
Mounting hole: M330.5 * 30.5mm

F4129 Flight control:
Lithium battery section number: 2-5S
BEC: 10V 1A, 4.5V, 3.3V
MCU: STM32F405
Gyro: MPU6000
OSD: AT7456E
Firmware: MATEKF405
Weight: 6.9g
Mounting hole: M3 30.5 * 30.5mm
Support barometer, black box

The products are delivered in bulk

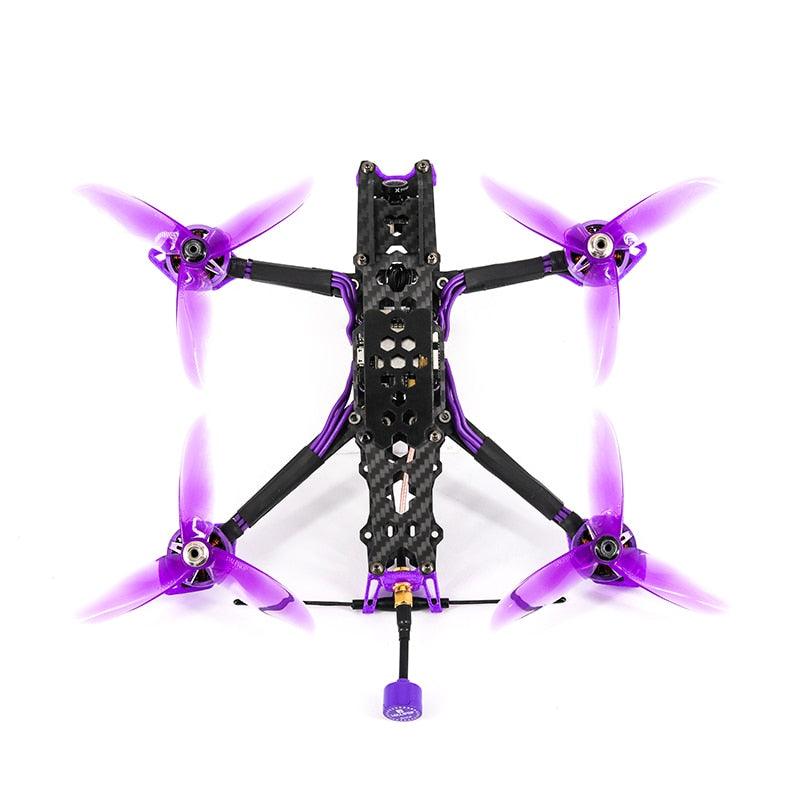

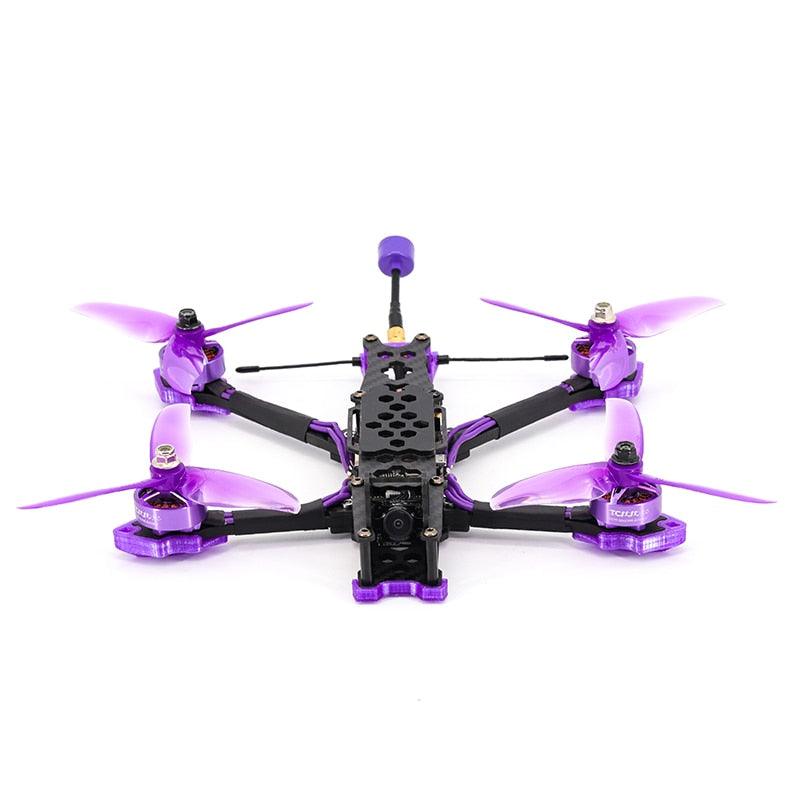

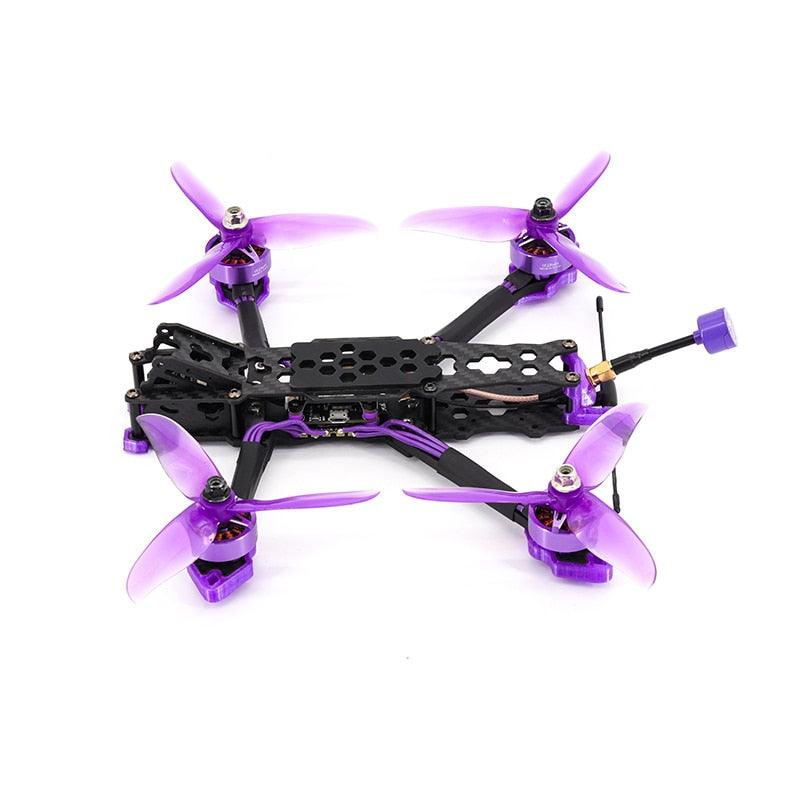

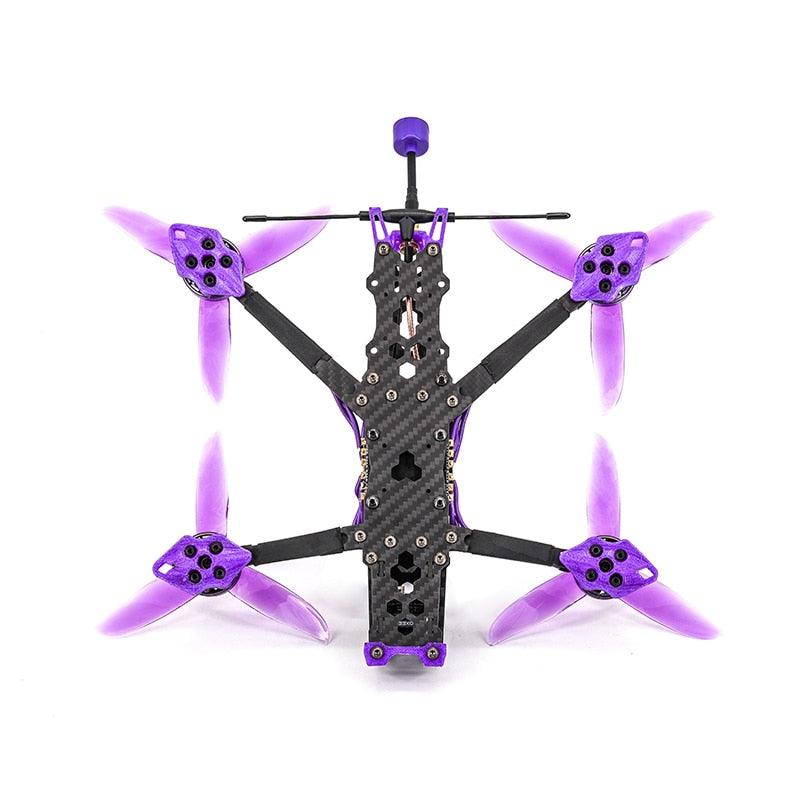

Avenger 225HD

Motor: (Mounting hole: M3 16x16)
ESC: Compatible holes M2*20*20/M3*30.5*30.5
Camera: DJI HD camera 20mm
Flight control: Compatible holes M2*20*20/M3*30.5*30.5
Paddle: 5-5.1 inch paddle
Wheelbase: 225mm

Features include detailed sky end printing and adjustable antennae, a unique arm design that widens the field of view for improved shooting capabilities, and an adjustable camera setup.

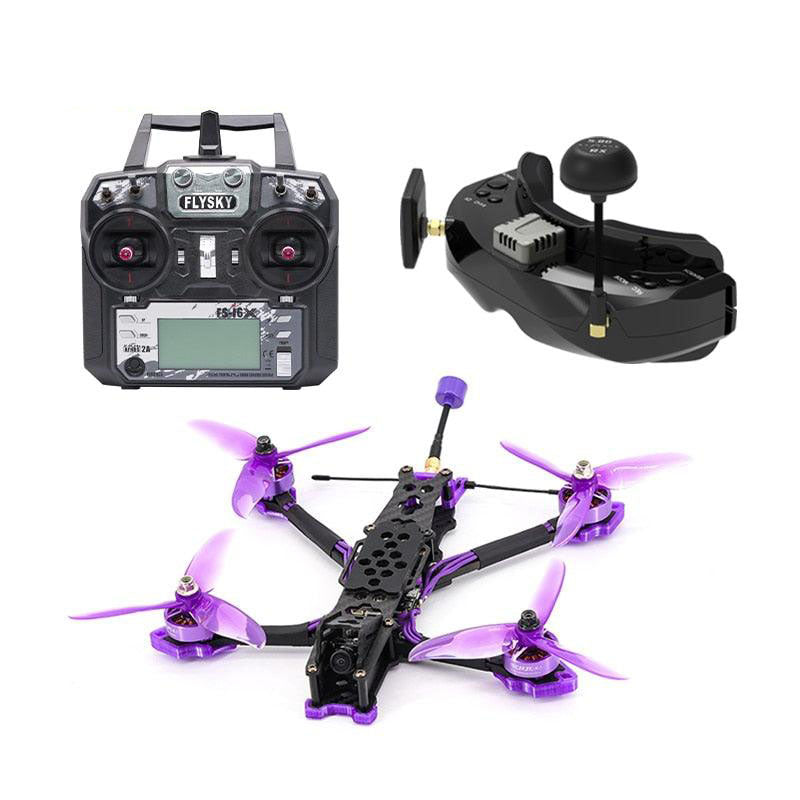

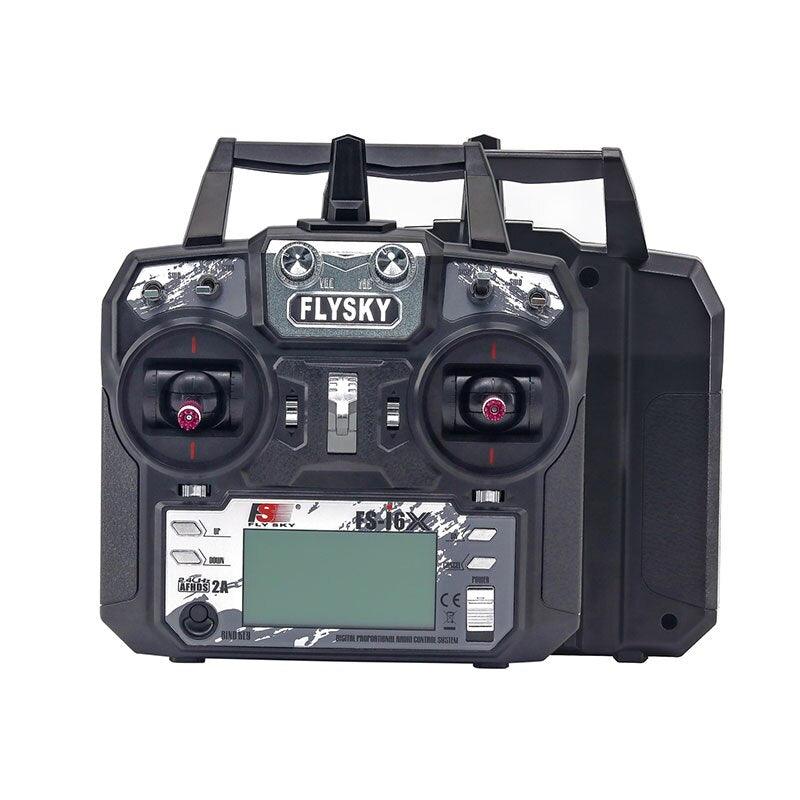

FlySky FS-i6X remote control：

Specifications:

Channel: 6-10 (Default 6, you could choose 7-10ch in setting)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes

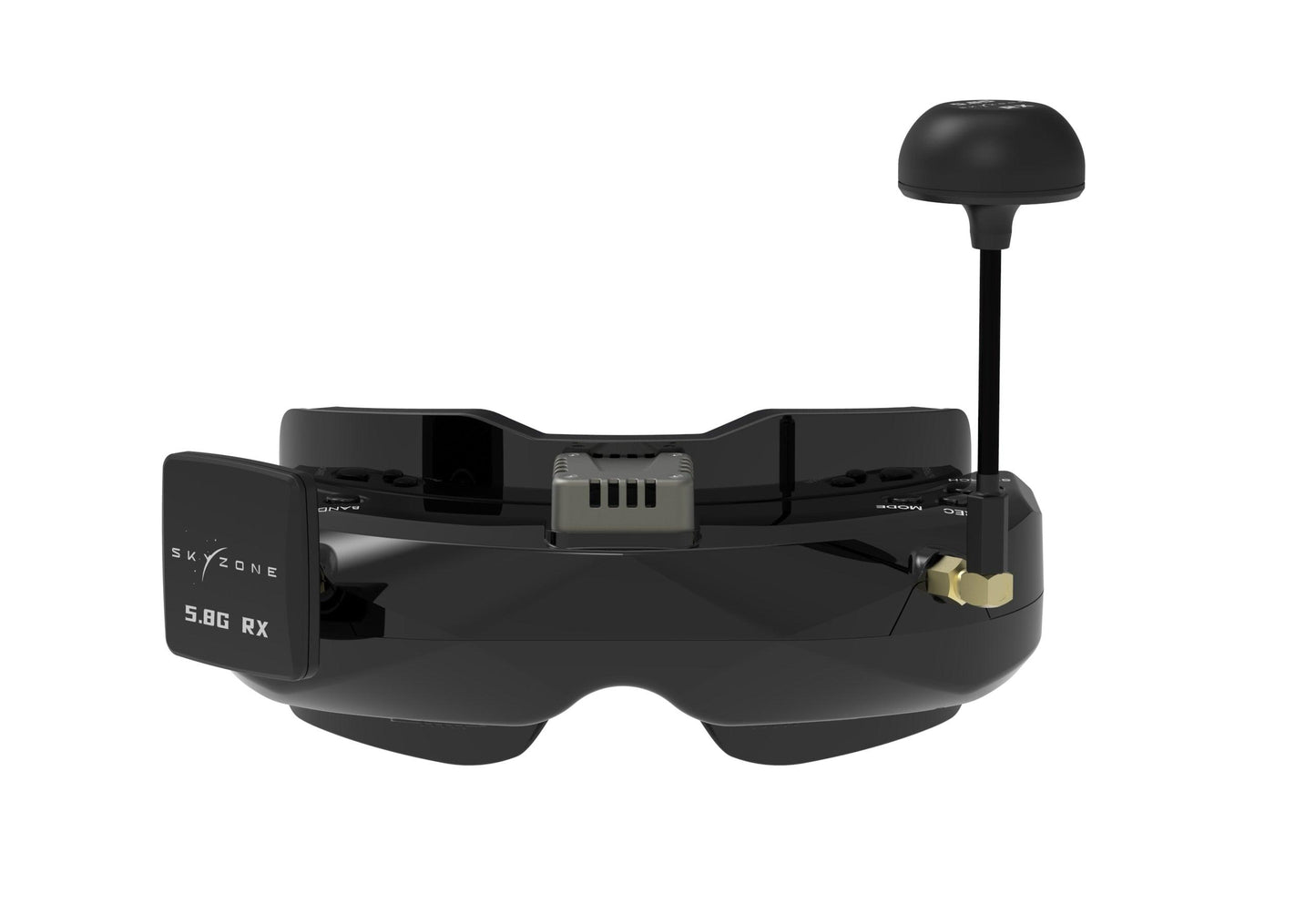

SKY02O 5.8Ghz 48CH

Specification:
Model : SKY02O
Screen: OLED
Resolution : 640*400
FOV: 29°
IPD: 59-69mm
Aspect Ratio : 16:10
Receiver : 5.8Ghz 48CH SteadyView Receiver Built-in
DVR: MJPEG 30FPS
Head Tracker : 3-axis Accelerometer, 3-axis gyroscop
Voltage Input Range : 2-6S LiPo
Language : Chinese/English
Dimentions : 167*70*79mm
Weight : 210g

Related Article:

If there is any information error in the article, the product description shall be the standard.

TCMMRC Avenger 225 Review

TCMMRC Avenger 225: Unleashing Power and Performance in a Versatile Racing Drone

Abstract:
The TCMMRC Avenger 225 is an impressive racing drone that combines power, agility, and versatility to provide an exhilarating FPV racing experience. With its robust construction, high-performance components, and advanced flight features, this drone is designed to push the limits of speed and maneuverability. In this comprehensive review, we delve into the key features, flight performance, design considerations, and overall user experience of the TCMMRC Avenger 225.

1. Introduction
The TCMMRC Avenger 225 is a cutting-edge racing drone that caters to the needs of both beginners and experienced FPV enthusiasts. With its powerful propulsion system, precise flight controls, and customizable features, this drone offers a versatile platform for competitive racing and freestyle flying.

2. Design and Build Quality
The TCMMRC Avenger 225 features a durable and aerodynamic frame, designed to withstand the rigors of high-speed racing and challenging flight maneuvers. The 225mm wheelbase strikes a balance between stability and agility, allowing for nimble turns and rapid acceleration. The use of quality materials ensures reliability and longevity, making the drone well-suited for intense racing environments.

3. Performance and Flight Characteristics
Equipped with high-performance brushless motors and an advanced flight controller, the TCMMRC Avenger 225 delivers exceptional speed, responsiveness, and maneuverability. The drone can achieve impressive top speeds, execute precise acrobatic maneuvers, and handle rapid acceleration with ease. With its customizable flight modes, pilots can adapt the drone's behavior to their skill level and flying preferences.

4. Camera and FPV System
The TCMMRC Avenger 225 is equipped with a high-definition camera that captures stunning footage, allowing pilots to relive their racing moments with clarity and detail. The first-person view (FPV) system provides a real-time video feed to the pilot's goggles or monitor, immersing them in the racing experience. The low-latency transmission ensures minimal lag, enabling pilots to make split-second decisions during high-speed flights.

5. Control and Navigation
The TCMMRC Avenger 225 utilizes a reliable radio transmitter system, offering precise control over the drone's movements. The ergonomic design of the controller ensures a comfortable grip for extended flight sessions. The drone supports various flight features, including waypoint navigation, return-to-home, and altitude hold, enhancing its versatility beyond racing and allowing for exploration of new flight modes.

6. Battery and Flight Time
Powered by a high-capacity lithium polymer (LiPo) battery, the TCMMRC Avenger 225 provides sufficient power for extended flight sessions. The actual flight time may vary depending on factors such as throttle usage, flight conditions, and payload. On average, pilots can expect a flight time of approximately 8 to 10 minutes. It is recommended to have spare batteries on hand for uninterrupted racing sessions.

7. Customization and Upgradability
The TCMMRC Avenger 225 offers ample opportunities for customization and upgrades. With compatibility for aftermarket components such as propellers, cameras, and antennas, pilots can optimize the drone's performance and tailor it to their specific preferences and racing style. This flexibility allows for experimentation and fine-tuning to achieve the desired racing performance.

8. Safety and Durability
While the TCMMRC Avenger 225 prioritizes performance, it also incorporates safety features to protect the drone and surrounding environment. Propeller guards and failsafe systems mitigate damage in the event of crashes or signal loss. However, it is crucial to fly responsibly and adhere to safety guidelines to prevent accidents or injuries.

Conclusion:
The TCMMRC Avenger 225 racing drone combines power, agility, and versatility to provide

an exciting and immersive FPV racing experience. With its robust construction, high-performance components, and customizable features, this drone is an excellent choice for both beginners and experienced FPV pilots looking to push their skills to new heights.
