TCMMRC LAL3 FPV Racing Drone Kit - 3-Inch 145mm 3-4S FPV Racing Drone PNP Caddx Turtle V2 HD 1408 3750KV Motor 25A ESC 300MW VTX

TCMMRC LAL3 FPV Racing Drone Kit - 3-Inch 145mm 3-4S FPV Racing Drone PNP Caddx Turtle V2 HD 1408 3750KV Motor 25A ESC 300MW VTX

TCMMRC

Regular price $201.73 USD
Regular price $282.42 USD Sale price $201.73 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

10 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Video Capture Resolution: 1080p FHD

Type: Airplane

State of Assembly: Ready-to-Go

Remote Distance: 0-2km

Remote Control: Yes

Recommend Age: 12+y

Plugs Type: XT30

Package Includes: Camera

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Expert

Operator Skill Level: Intermediate

Operator Skill Level: Beginner

Model Number: LAL3

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: 5-10min

Features: FPV Capable

Features: Auto Return

Features: Other

Features: Integrated Camera

Dimensions: 3-Inch

Controller Mode: MODE1

Controller Mode: MODE2

Control Channels: 8 Channels

Certification: CE

Camera Mount Type: Fixed Camera Mount

CE: Certificate

Brand Name: TCMMRC

Specification:
Product Name: LAL3 3 Inch 3-4S FPV Racing Drone

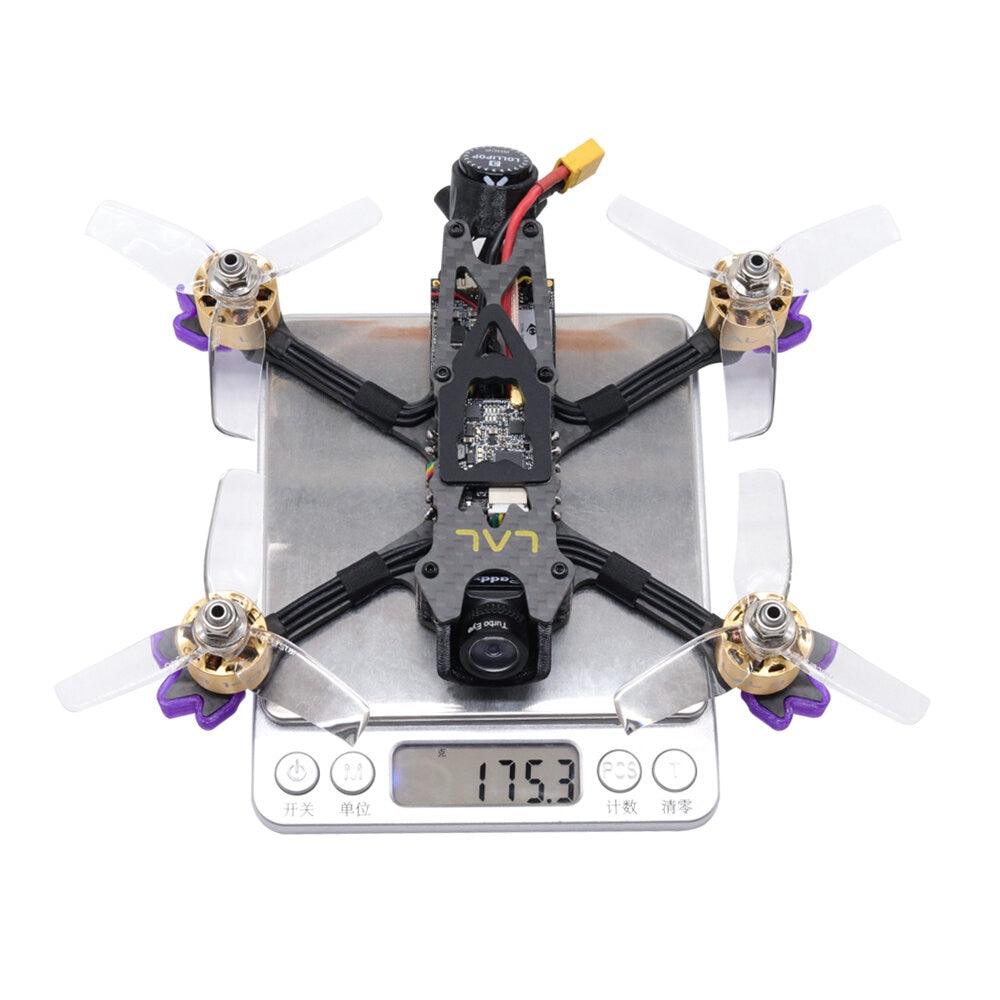

Weight: 175.3g


Frame Kit

Wheelbase: 145mm
Bottom plate: 3mm
Upper plate: 2mm


Motor

Mode: 1408
KV: 3750
Idle current (IO/10V): 0.6A
No.of Cells(Lipo): 3-4S
Peak current: 23A
Max. power: 386.4W
Max. thrust: 600g
Configu-ration:12N14P
Internal Resistance: 0.0495Ω
Stator diameter: 14mm
Stator thickness: 8mm
Height: 29.5mm
Width: φ20mm
Shaft diameter: φ5mm
Motor mount hole size: M2
Install hole distance: 12*12mm
Recommend propeller: 2-3 Inch
Weight: 17g


25A 3-4S Blheli_32 DSHOT1200 4 IN 1 ESC

Continue current: 25A
Burst current: 30A (10s)
Input voltage: 3-4S
BEC: NO
Current sensor: NO
Main control chip: STM32F051
Firmware: Blheli_32
Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOT
Weight: 3.8g
Installation hole: 20x20mm/φ2
Dimension: 31*29mm


LAL3-F411 Flight Controller

Main control chip: stm32f411
IMU: mpu6000 6-axis sensor
BEC: 5v / 1a
Integrated OSD
PPM / DSM / IBUS / UAR sharing: UART1-RX
Installation size: 20 * 20
Weight: 3.0g
Supported firmware: betaflight / cleanflight / inav
Supports programmable LED Sprit
Reserved buzzer interface


Caddx Turtle V2 1080p 60fps HD Camera

Horizontal: 800TVL
TV system: NTSC/PAL,changeable
Power Input: DC 5-20V
Lens: 1.8mm
FPV FOV: 155°
Recording FOV: 160°
DWR:YES
OSD:YES
Weight: 12g
Camera Size: 19*19mm (It comes with a holder to inscress the wide to 28mm)
Audio: Support
4:3 16:9 Switchable
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)


XF5806 /5.8G 40CH 0/25/100/300mw VTX

Frequency: 5.8G
Channels: 40CH
Input  voltage: 7V~26V
260mA(MAX)----600mW@12V
Support TBS Smart Audio
Formate: NTSC/PAL
Power supply: 5V output for Camera
Output power: 0mW/25mW/100mW/300mW switchable
Antenna connector: ipex
Dimensions: 25x20x4mm
Weight: 3.2g(Withour antenna)


3040 3-blade Propeller

Meterial: PC
Blade: 3
Color: Transparent
Center thickness: 5.5mm
Center hole inner diameter: 5mm
Weight: 1.8g/pc

TCMMRC LAL3 FPV Racing Drone, 108OP@6OFPS/4:3/16:9 SWITCHABLE 43TCMMRC LAL3 FPV Racing Drone, AIO 3K CARBON FIBER FRAME ARM AND BOTTOMTCMMRC LAL3 FPV Racing Drone, 0t POWERFULAND SMOOTHLY 4S1408 BRUS

BLHELI_32 BRUSHLESSESC RACERSTAR 3040 MAX COMPAITBLE 3 INCH 3DPRINTED TPU FRAMEARM PROTECTIVE MOUNT .

TCMMRC LAL3 FPV Racing Drone, FLYING TIME:ABOUT 5 MINS RECEIVER:XM+

FLYING TIME:ABOUT 5 MINS RECEIVER:XM+ TRANSMITTER:XID PLUS 1XLAL3 RACING DRONE PACKING LIST 8XPROPELLER(4XCW,4XCCW) 1XRETAIL BOX #EAdHIINE
