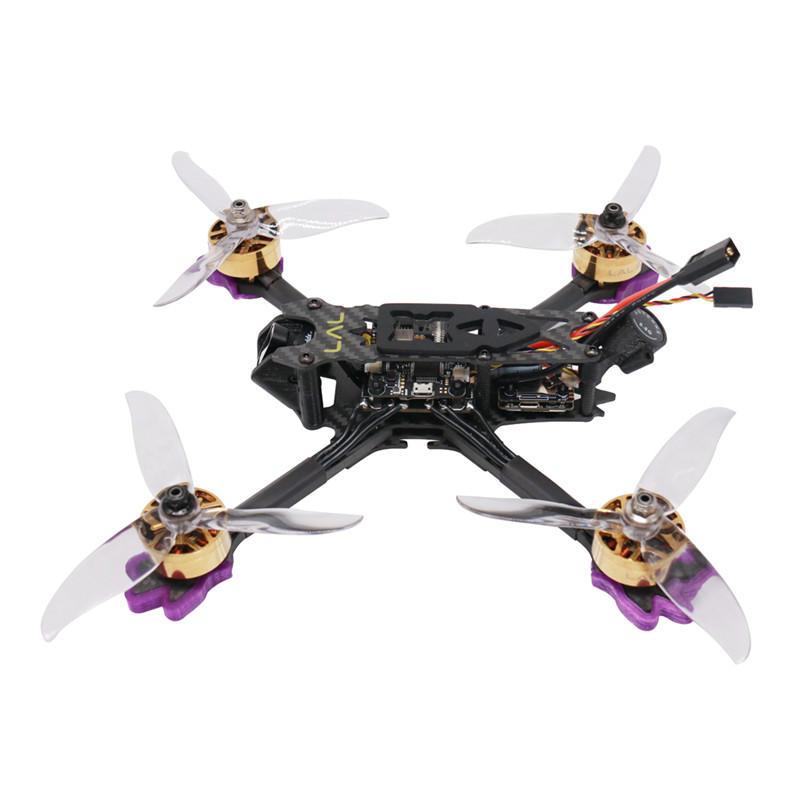

Insulated version Frame

Wheelbase: 225mm

Arm thickness: 5mm

X plate thickness: 2mm

Bottom plate thickness: 2mm

Upper plate thickness: 2mm

2507 2600kV Brushless Motor (Gold)

Motor kv: 2600rpm/v

No-load current (IO/10V): 2.45A

Support lithium battery section: 3-5S

Weight: 47 grams

Maximum continuous current: 40A

Maximum continuous power: 672W

Maximum thrust: 1187g (4s/5")

Configuration: 12N/14P

Motor resistance (Rm): 0.0321Ω

Stator diameter: 25mm

Stator Thickness: 7mm

Motor Diameter: 31mm

Motor length: 19.5mm

Overall shaft length: 34mm

Shaft thickness: M5

Mounting hole spacing: 16mm

Mounting screw: M3

Recommended propeller: 5-6 inches

32-bit 50A 3-6S Dshot1200 4IN1 ESC

Continuous current: 50A

Peak current: 60A (10s)

Input voltage: 3-6s

BEC: none

Current meter: yes

Main control chip: STM32F051

Mos tube chip: TPH1R403

Firmware: Blheli_32

Support DSHOT150/300/600/1200/MULTISHOT/PWM/ONESHOT

MOS: 5×6

Galvanometer: none

Weight: 13.5g

Mounting hole: 30.5x30.5mm /Φ3

Size: 49×37mm

Customized LAL-F405 Bluetooth flight control

STM32F405 master

MPU: MPU6000 (via SPI)

Input voltage: support 2-6S Lipo input

Onboard Bluetooth module, support APP configuration through smartphone

Firmware: MATEKF405

Onboard German Bosch BMP280 high-precision barometer

The flight controller has an onboard OSD chip, supports DMA mode (uses F4 MCU to control the OSD), and can use the BetaFlight parameter adjustment software

software adjustment parameters

Built-in 5v/2A; 10V/2A BEC output

Reserve MicroSD BlackBox

Reserve 5 serial ports and I2C interfaces for GPS access (Bluetooth occupies TX5.RX5)

Support multiple types of receivers (such as: SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM, etc.

type of receiver)

It has an LED programming signal output port, supports programmable LED strips, and can adjust the strip color and flashing mode through the flight controller

Has a voltage monitor port (BAT) and a current monitor port (CRT) to monitor battery voltage and current (requires additional power

flow meter)

With buzzer output port, support external alarm buzzer for sound warning or notification of aircraft flight status

Onboard 10V BEC, providing a cleaner image display effect for video transmission

All interfaces have socket and pad options, suitable for different groups of people at the same time

Support betaflight/inav racing firmware

Size: 37x37mm

Mounting hole: 30.5x30.5mm

Weight: 5.9g

Snail cadax TARSIER 4k dual camera V2

Dimension CAMERA: 19><20mm / DVR:29x29mm(HOLE:20x20mm)

Weight: 18g

FOV: 4KF2.8.FOV150M16/9), FPVFOV165. (4/3>

Lens: DUAL Lens F2.8/12Mega

Audio: DUAL DIGATIL MIC

CPU: Dual core dual system

Sensor: 12M sensor, 1/1.8INCHM/2.9INCH

Main Resolution:

4K/30fps 16:9

2.7K/60fps 4:3

1440P 60fps/30fps 4:3

1080p/90fps, 60fps, 30fps 16:9

720P120fps 16:9

CAMERA Bitrate: 50kbps/66kbps

Video System: NTSC/PAL

IOS: OFF/100/200/400/800/1600

ANTI-SHAKE: Hardware anti-shake

Scene Mode: Auto/Personage/Scenery/Defog

TX805 FPV Transmitter VTX

Item name: FPV transmitter VTX

Frequency: 5.8g

Channel: 40ch

Input voltage: 7V-24V

5V camera power supply: 120MA (MAX)--12V@25MW

5V camera power supply: 200MA (MAX)--12V@200MW

5V camera power supply: 300MA (MAX)--12V@600MW

5V camera power supply: 350MA (MAX)--12V@800MW

Additional Features: Smart Audio

Power supply: camera 5V/3A output

Output power: 25MW/200MW/600MW/800MW switchable

Antenna Connector: MMCX

Cable Connector: Pad

Size: 36mm*22mm*5mm, 30.5 stackable holes

Weight: 8g (without antenna)

Racerstar 5145 propeller

Specifications: 5145*3

Brand Name: Racerstar

Product name: 5145 propeller

Material: imported German Bayer PC

Quantity: 4 pairs (8 pieces)

Color: transparent

Weight: 5.8g/pc

Center thickness: 7mm

Spiral diameter: 129mm

Brushelss Motor 50A Blheli_32 Brushless ESC 12507 45 2507 50A Brushless motor 50A

Configure Bluetooth settings on your phone using the accompanying app, allowing for seamless control and tuning of the drone's features.
