TCMMRC Racing Bee SPECIFICATIONS

Warranty: A month

Warning: Children can only play with adults

Video Capture Resolution: Other

Type: HELICOPTER

State of Assembly: Ready-to-Go

Remote Distance: 150m

Remote Control: Yes

Recommend Age: 12+y

Power Source: Electric

Plugs Type: USB

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Intermediate

Operator Skill Level: Beginner

Operator Skill Level: Expert

Motor: Brushless Motor

Model Number: Rainbow bee

Material: Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: 15min

Features: App-Controlled

Dimensions: 2.5 inches

Controller Mode: MODE2

Controller Battery: Judging by the battery,

Control Channels: 3 Channels

Charging Voltage: 3.5V

Charging Time: Judging by the battery,

Certification: 3C

Camera Mount Type: Other

Brand Name: TCMMRC

Aerial Photography: No

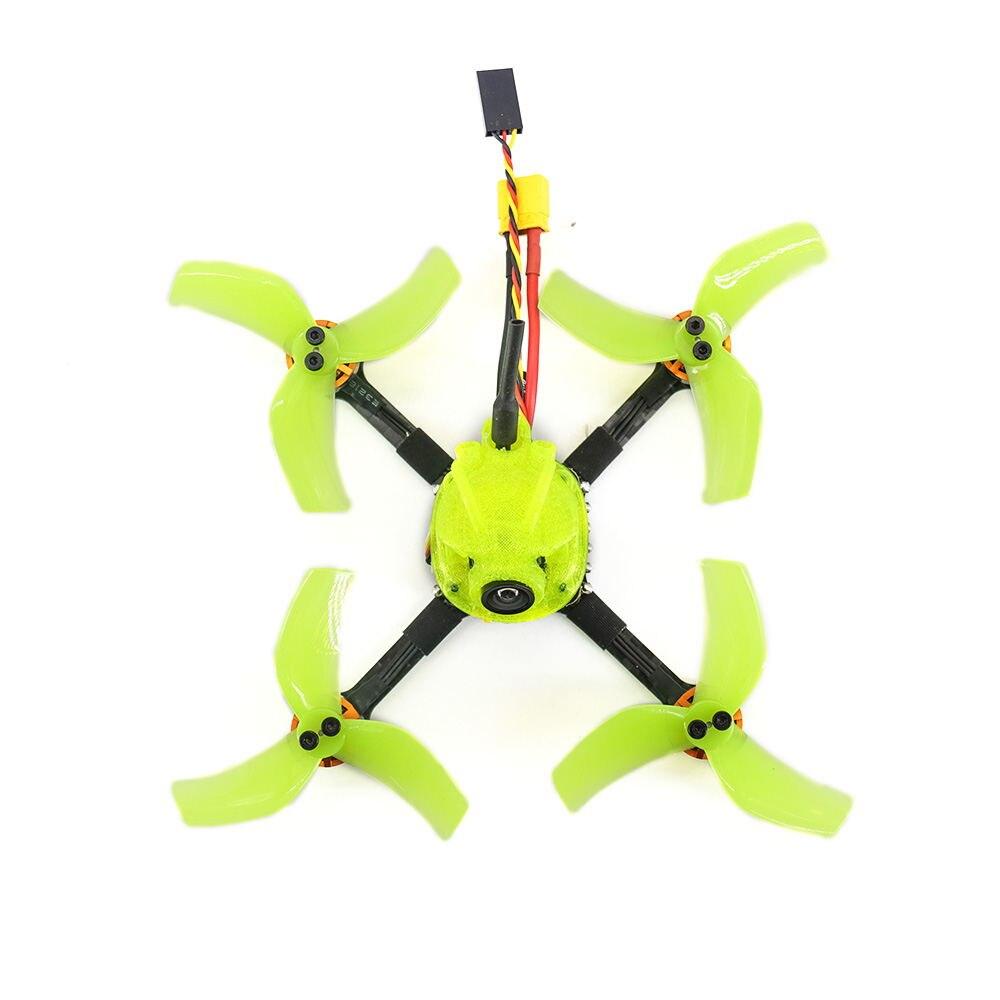

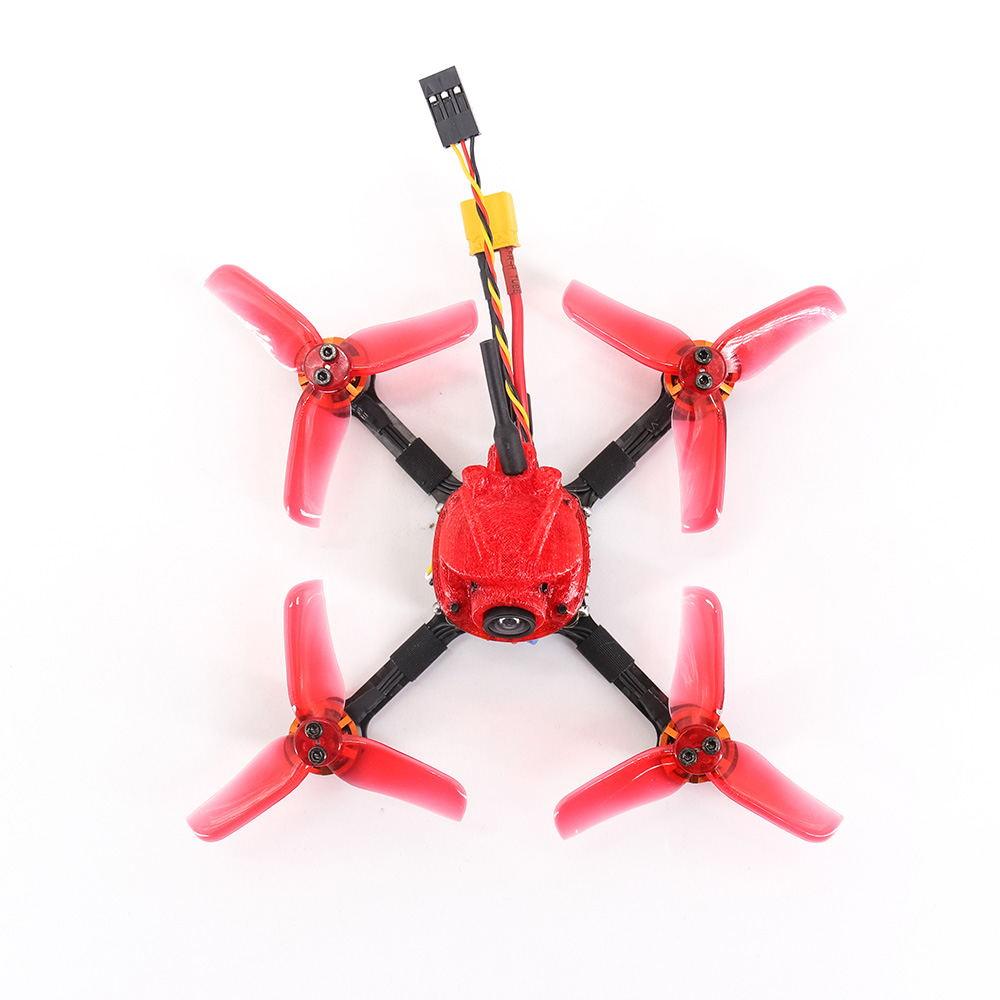

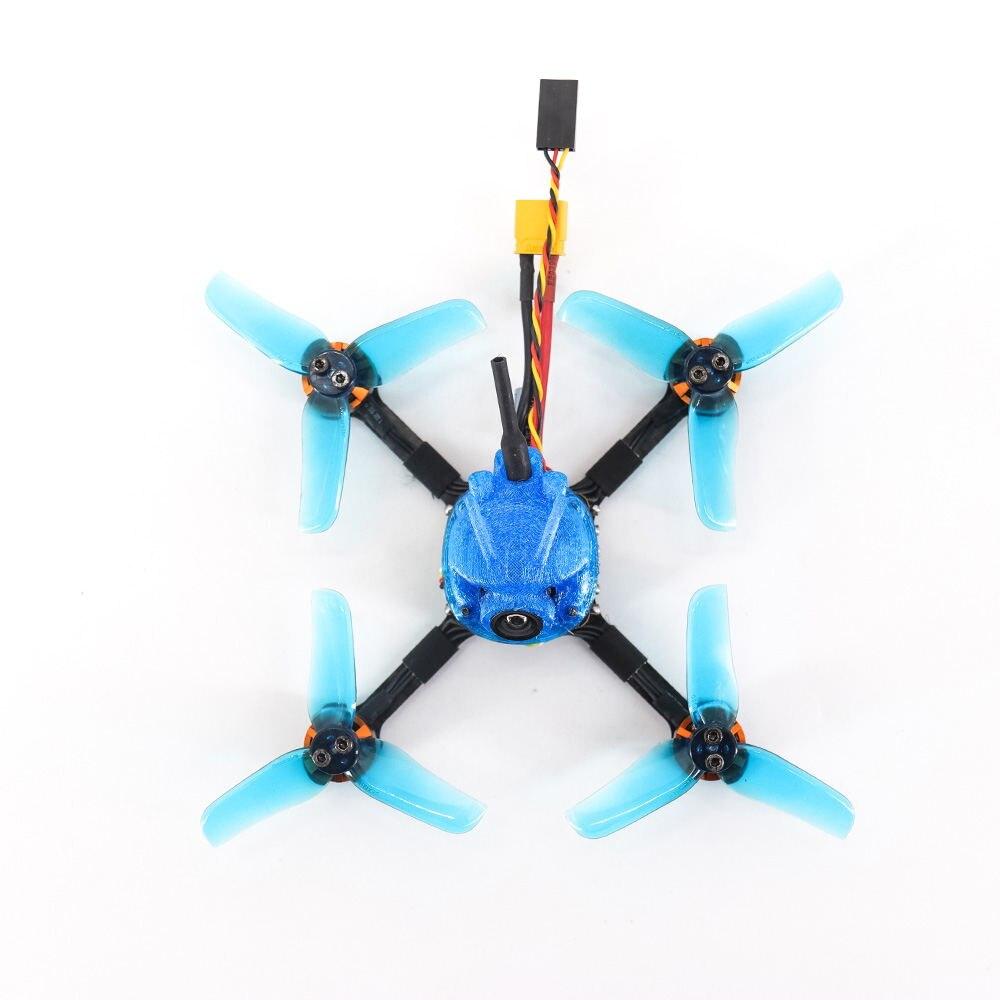

This is the assembled fpv drone. If you don’t want to assemble, you can contact customer service Customs does not allow batteries to be sent. Our products do not include batteries. Recommend 3S 350-450mAh lithium battery

Version: PNP (without receiver, battery and radio transmitter)

frame

Wheelbase: 105mm

Arm: 2 mm

Support maximum wheelbase: 2.5 inches

Distance between mounting holes for supporting motor: 9mm

Material: 3K carbon fiber, TPU 3D printing

Motor

Model: 1104/8600KV

Slot series: 9N/12P

Stator diameter: 11mm

Stator height: 4mm

Shaft diameter: 1.5mm

Weight: 4.3g

Support power supply voltage: 2-3s

Maximum power: 144W

Mounting hole: M2

Installation hole spacing: 9mm

ESC

Continuous current: 20A

Peak current: 25A (10s)

BEC output: None

Input voltage: 2-6s

Main control chip: EFM8BB21F16G

Firmware upgrade: support dshot150-600/blheli_S/Oneshot125

Metal oxide semiconductor: 3*3

Flight controller

Main control chip: stm32f411

IMU: MPU 6000 6-axis sensor

Car integrated OSD

BEC: 5V 2A

DSMx/IBUS/sbus/UAR sharing: UART1-RX

Installation size: 20*20

Weight: 24g

Support firmware: betaflight/cleanfright/inav

Sezl Ultra WDR 120OTVL Camera AIO VTX, ultra-light;Tpu 3d printing,durable Zkoaedl and impact resistant

IcItjbfC Jlo Icoor actttbt Jada Rack Frane Carbon Fiber Frame, Strong and Crashworthy, Ultra Light

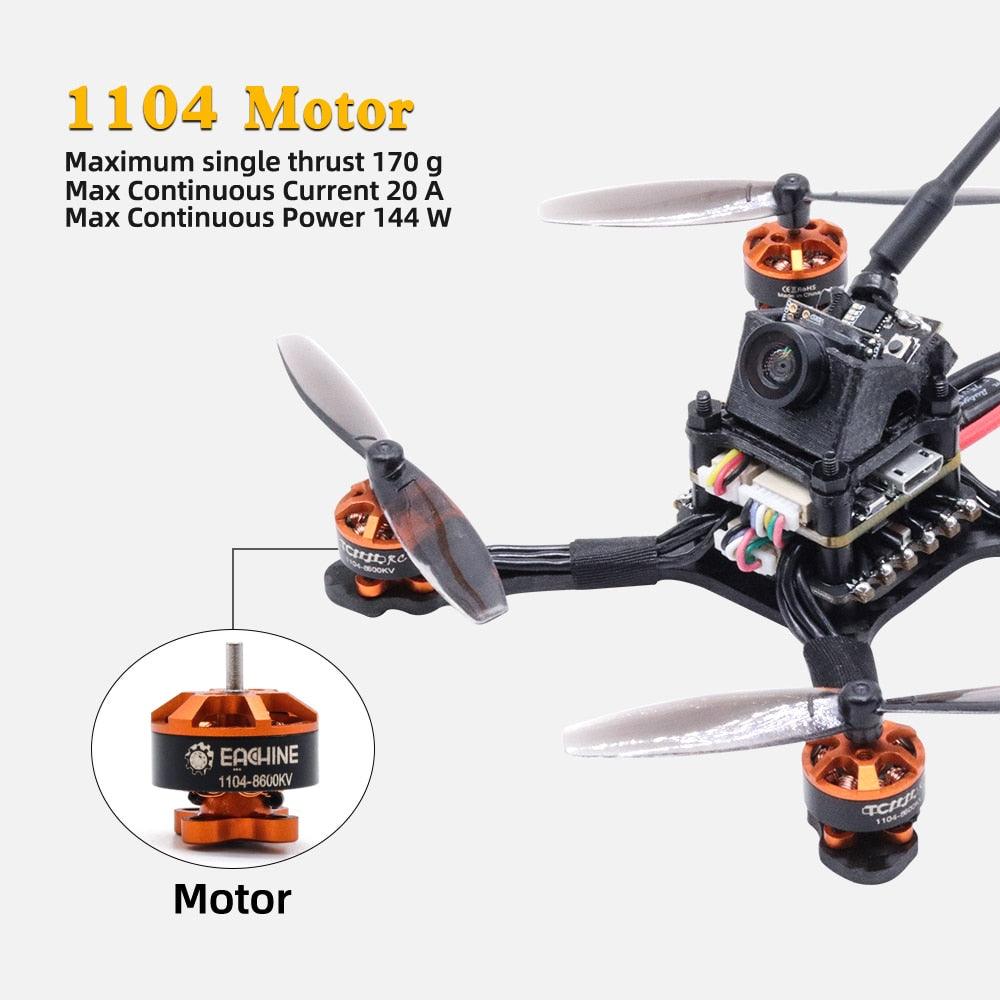

1104 Motor Maximum single thrust 170 g Max Continuous Current 20 A Max Continuous Power 144 W Ijbrc EAGHINE 1104-86UOKV 1104 motor Haov a

F4 3D 1104 Motor 3D printing parts Flight control system to install paaameter descaiption Name Racing Bee Racing drone Weight 47.7g Without Battery Motor model 1104 8600kv Motor power Maximum continuous power of motor 144W Motor thrust Maximum thrust of motor 170g Fixed seat super tough tpu 3d printing Material of pure 3K carbon fiber Frame kit Camera Ultra-wide dynamic 1200 lines, Integrated with FPV transmitter

1104 Motor Maximum single thrust 170 g Max Continuous Current 20 A Max Continuous Power 144 W HuJore EAGHIINE 1104-B6U0KV Motor a

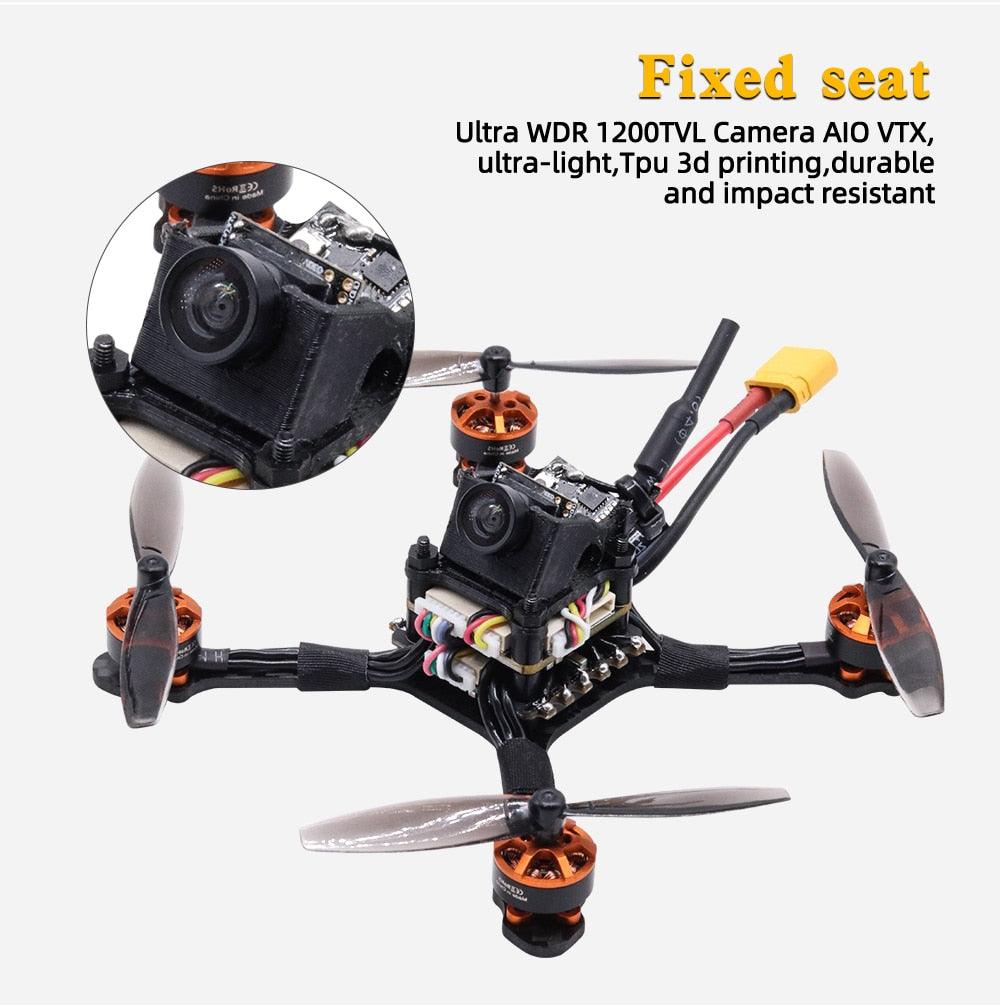

Fixed seat Ultra WDR 120OTVL Camera AIO VTX, ultra-light,Tpu 3d printing,durable and impact

ccHHDRe Racing Bee Max Continuous Power 144 W Super tough tpu 3d printing Pure 3K carbon
