TCMMRC TS130 - 3-Inch FPV Racing Drone Kit Omnibus F4 OSD 20A Dshot600 40CH Smart Audio 200mW VTX Quadcopter Radio Control Drones

TCMMRC TS130 - 3-Inch FPV Racing Drone Kit Omnibus F4 OSD 20A Dshot600 40CH Smart Audio 200mW VTX Quadcopter Radio Control Drones

TCMMRC

$102.88 USD
$102.88 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

38 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

TCMMRC TS130 SPECIFICATIONS

Video Capture Resolution: 720P HD

Type: Airplane

State of Assembly: Ready-to-Go

Remote Distance: 0-2km

Remote Control: Yes

Recommend Age: 12+y

Plugs Type: XT30

Package Includes: Original Box

Package Includes: Camera

Origin: Mainland China

Operator Skill Level: Intermediate

Operator Skill Level: Beginner

Operator Skill Level: Expert

Model Number: TS130

Material: Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: 5-10min

Features: Other

Features: Auto Return

Features: Integrated Camera

Features: FPV Capable

Dimensions: 3-Inch

Controller Mode: MODE1

Controller Mode: MODE2

Control Channels: 8 Channels

Certification: CE

Camera Mount Type: Fixed Camera Mount

CE: Certificate

Brand Name: TCMMRC

Specification


TS130

Wheelbase: 130mm
Material: 3K carbon fiber
Top plate thickness: 2mm
Bottom plate thickness: 3mm
Artist: hydrographics transfer printing

TS 20A 4in1  Brushless ESC

Continuous current: 20A
Peak current (5S): 25A
Input voltage: 2-4S
Supports Dshot600, Dshot300, Dshot150
Size: 27x27mm
Weigjt: 3.3g

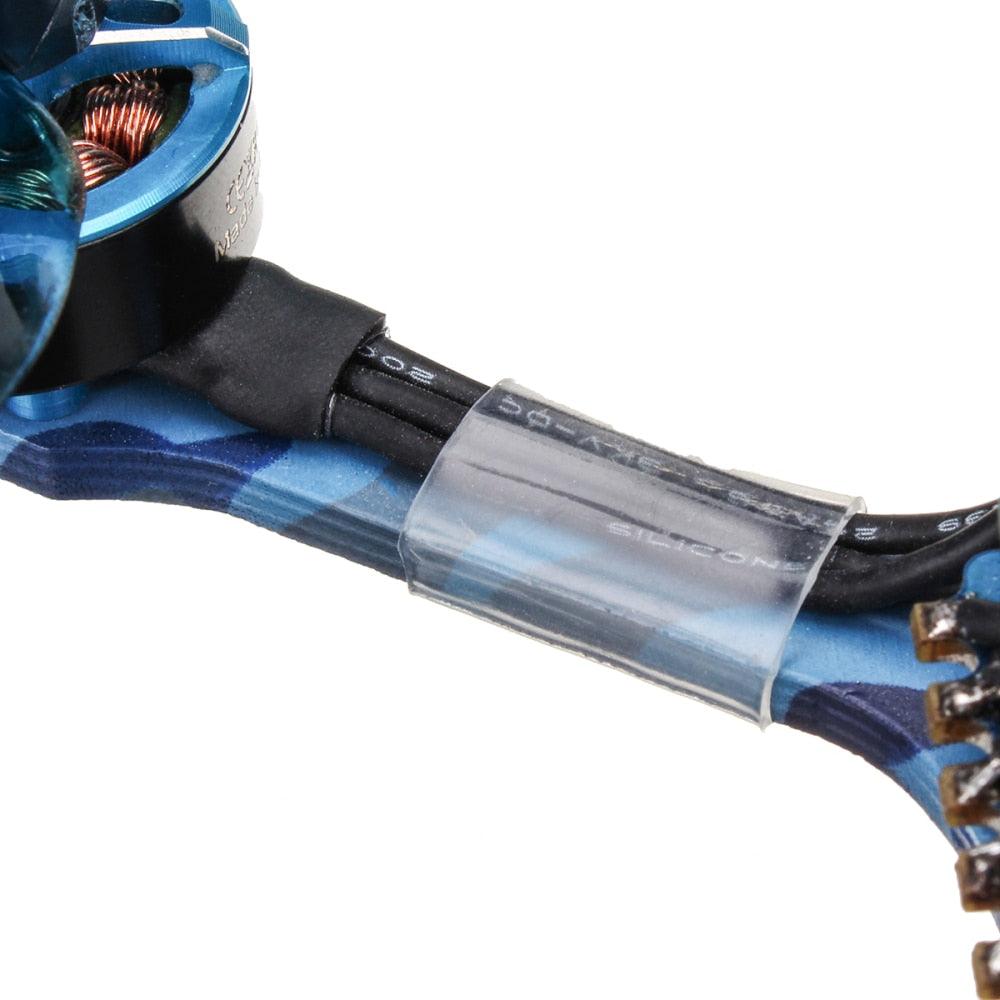

TS1507 4100KV Brushless Motor

KV: 4100
NO.OF cell: 2-4S

Customized Omnibus F4 Flight Controller

CPU: f4STM32 F405 SCM
Input voltage: 3-4S
Sensor: MPU6000 SPI
Built in OSD
Built in 5V 2A BEC
Size: 25x25mm
Weight: 2.3g

5.8G 40CH 25mw / 100mw / 200mw VTX

Input voltage: 7-24V
Dimensions: 20x20mm
Size: 27mm×27mm×4.5mm
Adjustable 25mw / 100mw / 200mw
Supports smart audio (remote OSD parameter adjustment)

FOXEER Arrow MICRO PRO Camera

Solution: 1/3” Sony SUPER HAD II CCD+Nextchip 2040 DSP
Pixel:PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)
TV System: PAL/NTSC (based on country)
Resolution: 600TVL(color)  650TVL(B&W)
Synchronization: internal
Min. Illumination: 0.01Lux
WDR: support
OSD programming board: support
White Dot Repair: support
DNR: 2D DNR
Camera Title: support
Image Adjustment: support
OSD: Edit Name, Power, Flying time
Input Power: 5-40V
Storage Temperature: -40 C ~ 60 C
Working Temperature: -10 C ~ 50 C
Power Consumption: 70mA
Low voltage alarm: Support
Preset mode: DEF, VIVID, SUNNY, CLOUDY,LED TR,USR1
Size: 18.5*19mm (bracket excluded)
Weight: 5.3g (bracket excluded)
