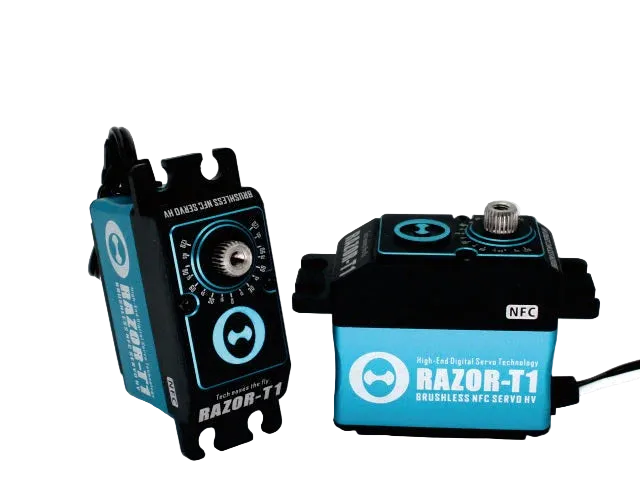

• THETA Razor-T1 brushless tail servo with blue case, NFC label, metal output spline, and mounting tabs

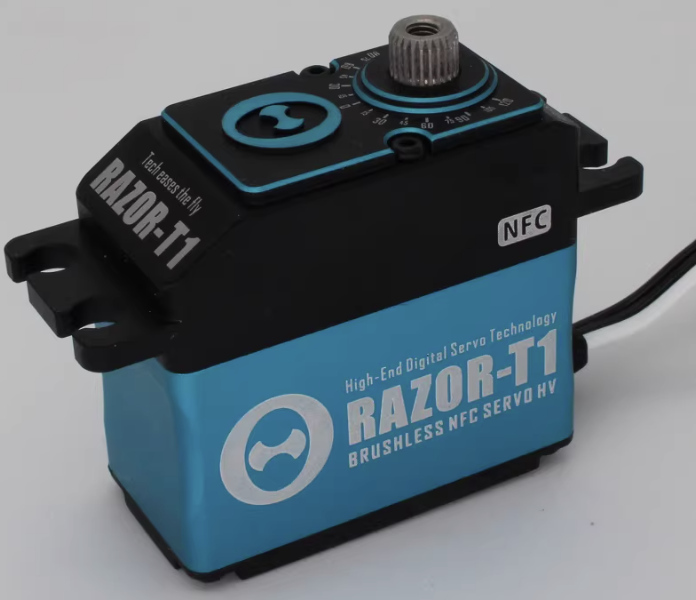

  • THETA Razor-T1 brushless tail servo with blue aluminum case, NFC label, and metal output spline on top

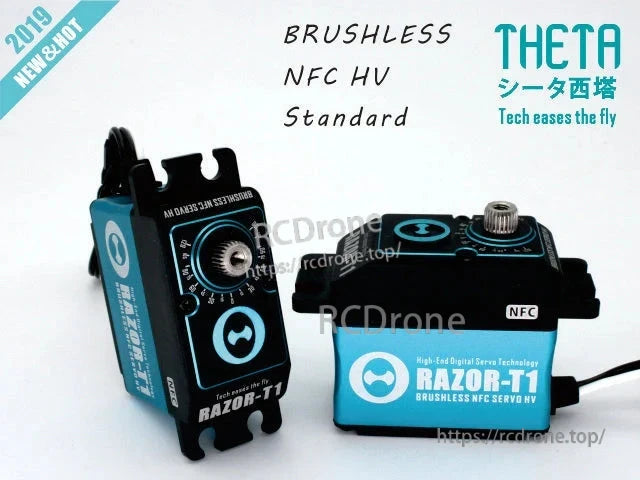

  • THETA Razor-T1 brushless NFC HV tail servo with blue-and-black case, metal output spline, and lead wire

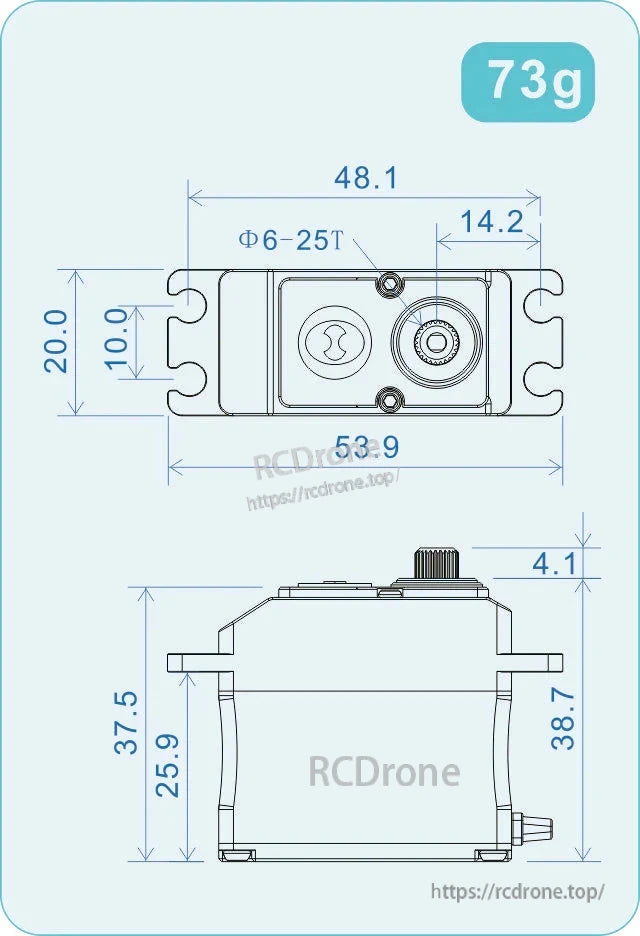

  • Dimension diagram of THETA Razor-T1 brushless tail servo showing 73 g weight and 53.9 x 38.7 mm size
1 4

THETA Razor-T1 NFC HV Standard Brushless Tail Servo - Android NFC Programmable, High Voltage, Standard Size

THETA Razor-T1 NFC HV Standard Brushless Tail Servo - Android NFC Programmable, High Voltage, Standard Size

THETA

$202.00 USD
$202.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

THETA Razor-T1 NFC HV is a standard size brushless tail servo designed for RC helicopter tail control, suitable for 550 up to 800 class helicopters. It supports Android NFC programming for setup and tuning, including center point, refresh rate, acceleration, and the PID control loop.

Customer service: https://rcdrone.top/ or support@rcdrone.top

Key Features

  • High voltage (HV) brushless servo
  • High speed performance
  • Excellent centering
  • Compatible with Futaba type horns/arms
  • Fully programmable via NFC-enabled Android smartphones
  • Light weight

Specifications

Voltage (V) Current (A) Speed (s/60°) Torque (kg*cm)
5.0 2.6 0.062 17
6.0 2.6 0.054 18
7.4 2.6 0.047 19
8.4 2.6 0.042 20
5.0 5.0 0.058 20
6.0 5.0 0.051 24
7.4 5.0 0.044 27
8.4 5.0 0.039 30

Applications

  • Tail servo for 550 to 800 class RC helicopters
