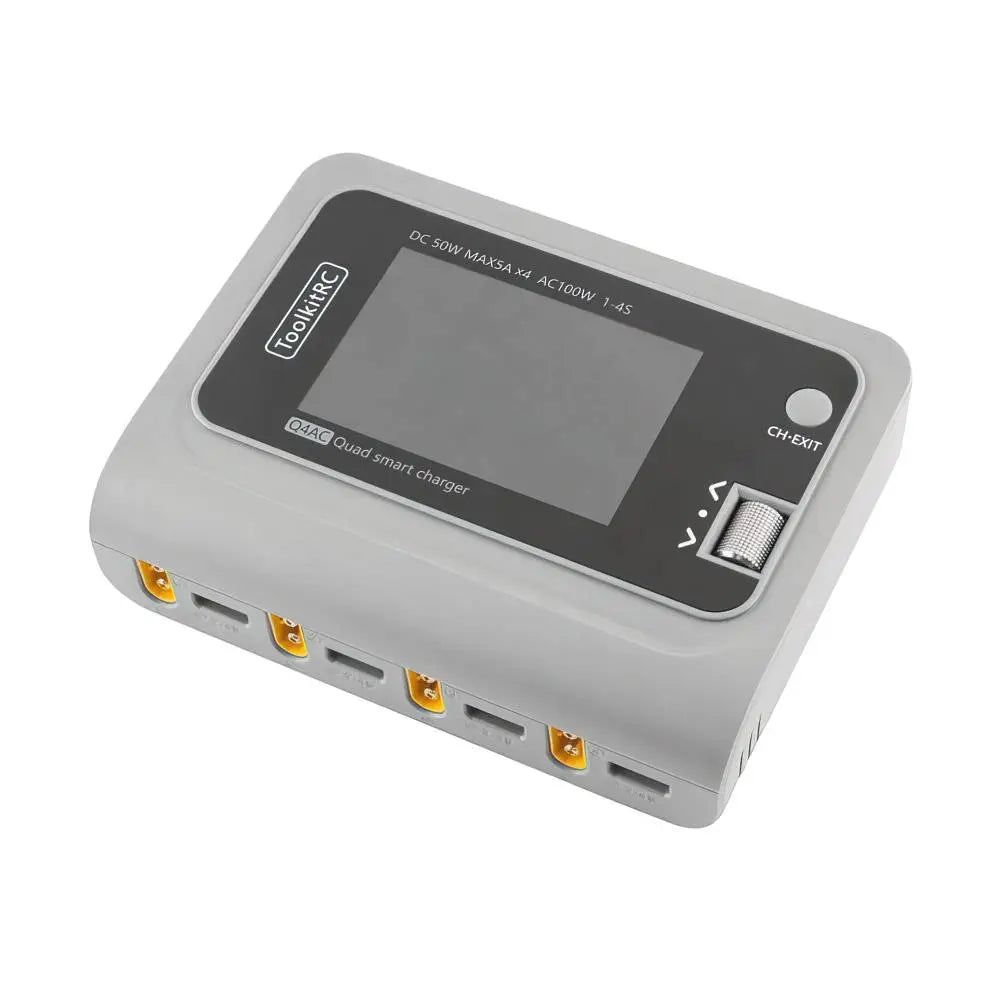

ToolkitRC Q4AC 1-4S 100W AC / 200W DC 4CH Smart Charger (XT60 Output with XT30 Adapter)

Overview

The ToolkitRC Q4AC is a powerful and intelligent 4-channel AC/DC charger built for RC enthusiasts who demand flexibility and precision. Featuring dual power modes (100W AC / 200W DC), four independently controlled outputs, and XT60 output ports (XT30 adapter included), it supports a wide range of battery types from 1S to 4S LiPo, LiHV, LiFe, and more.

The Q4AC is a major upgrade from the M4Q, now equipped with a 32-bit ARM processor for faster performance and enhanced balancing accuracy (<0.005V), as well as a vibrant 3.5-inch IPS display for wide-angle viewing and clear status monitoring.

Key Features

• Dual Power Input: 100W AC input (100–240V) and 200W DC input (10–18V) for flexible power sources

• Quad-Channel Design: Charge up to 4 batteries independently with up to 50W per channel (DC)

• High-Resolution Display: 3.5” IPS screen with 480x320 resolution and 120° viewing angle

• Precise Charging: 32-bit ARM processor enables high-precision charging and balancing

• Battery Memory: Store up to 5 battery profiles and 3 power records for quick access

• Multiple Languages: Supports 10 languages for global usability

• XT60 Output Ports: Native XT60 ports for secure connection (XT30 adapter included)

• Compact Design: Durable, lightweight casing with intuitive interface

Specifications

What's Included

• 1x ToolkitRC Q4AC Smart Charger

• 1x AC Power Cable

• 1x USB-C Upgrade Cable

• 1x Screen Protector

• 1x XT60 to XT30 Adapter (Optional)

Details

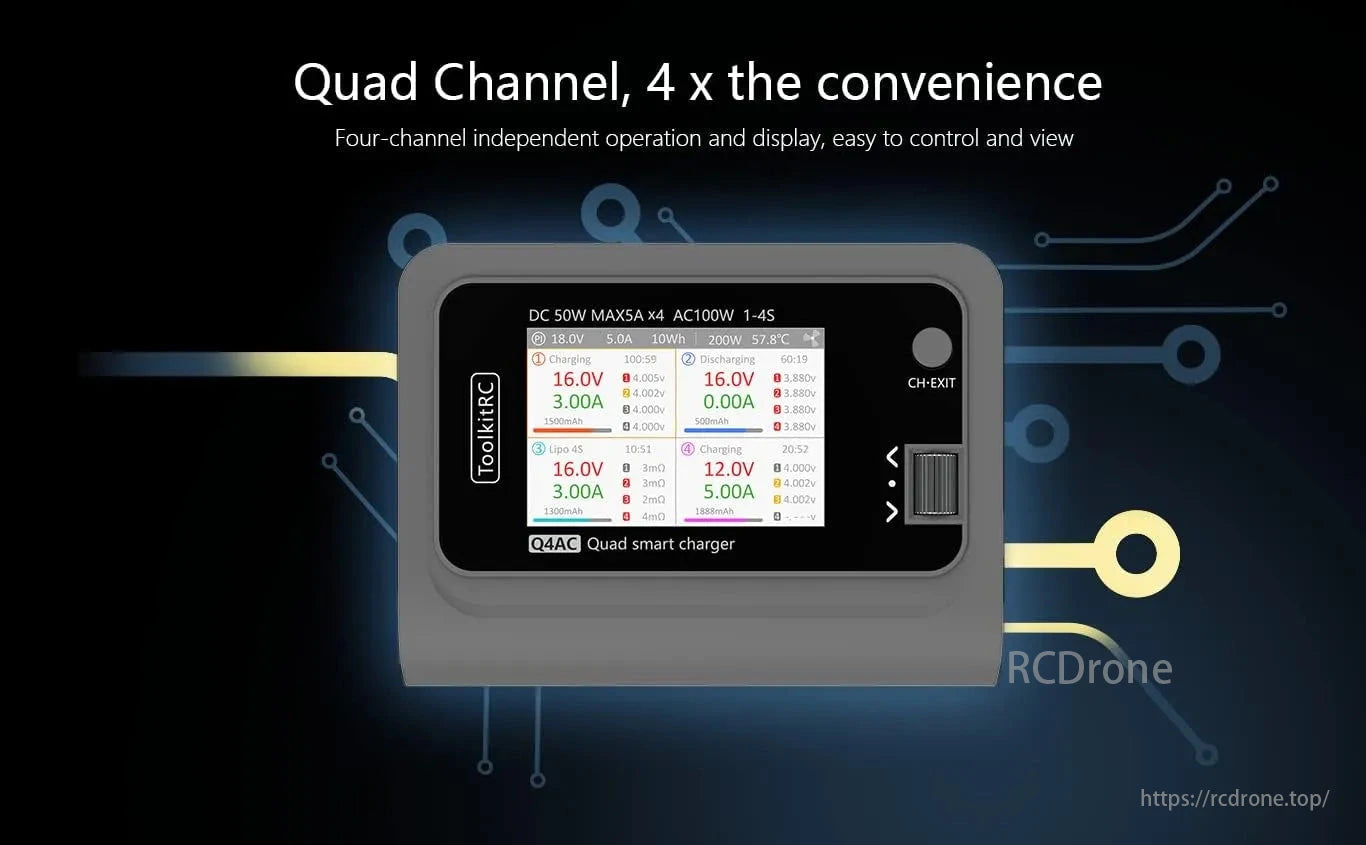

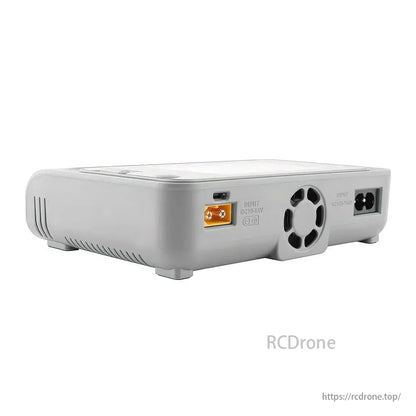

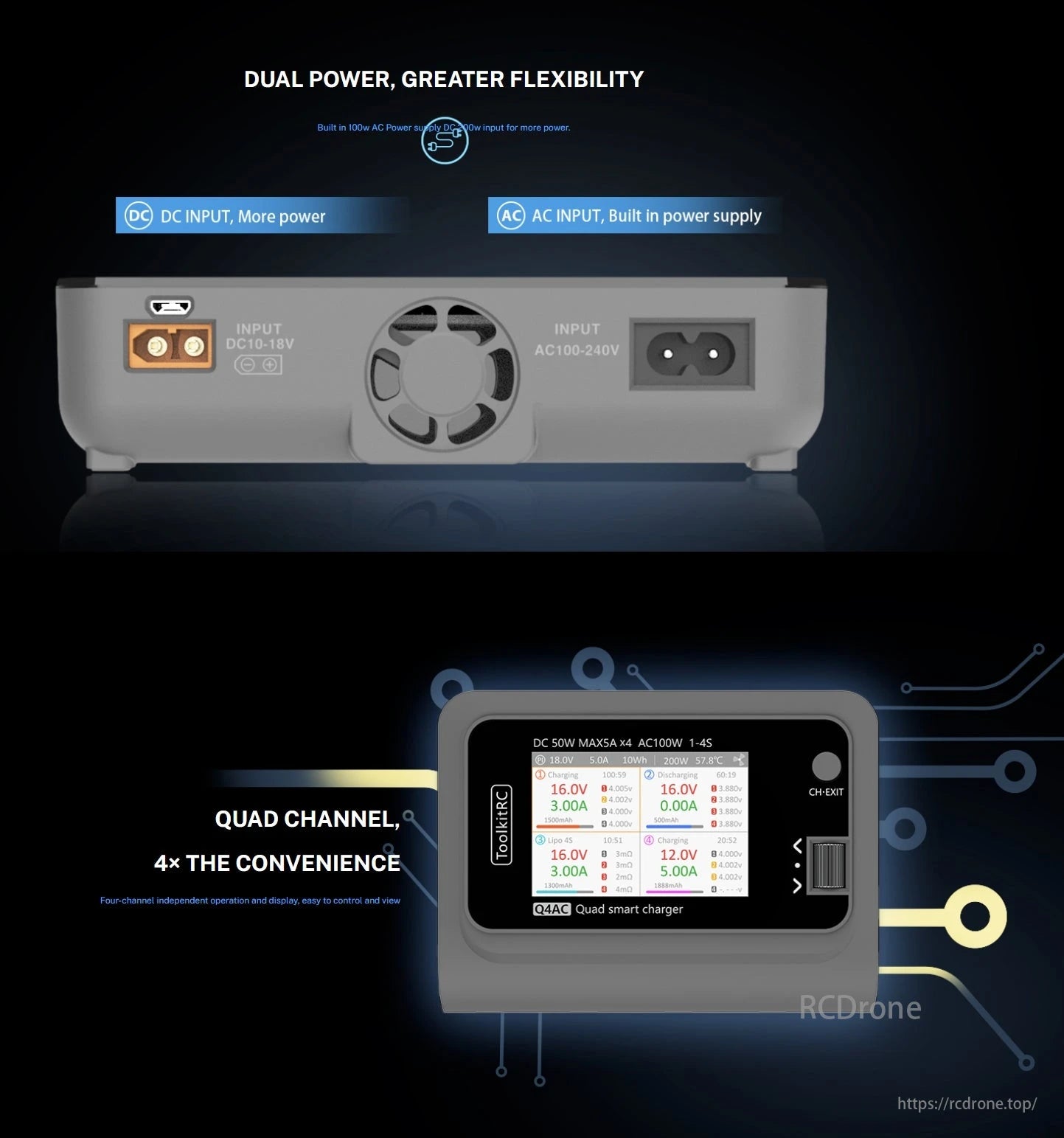

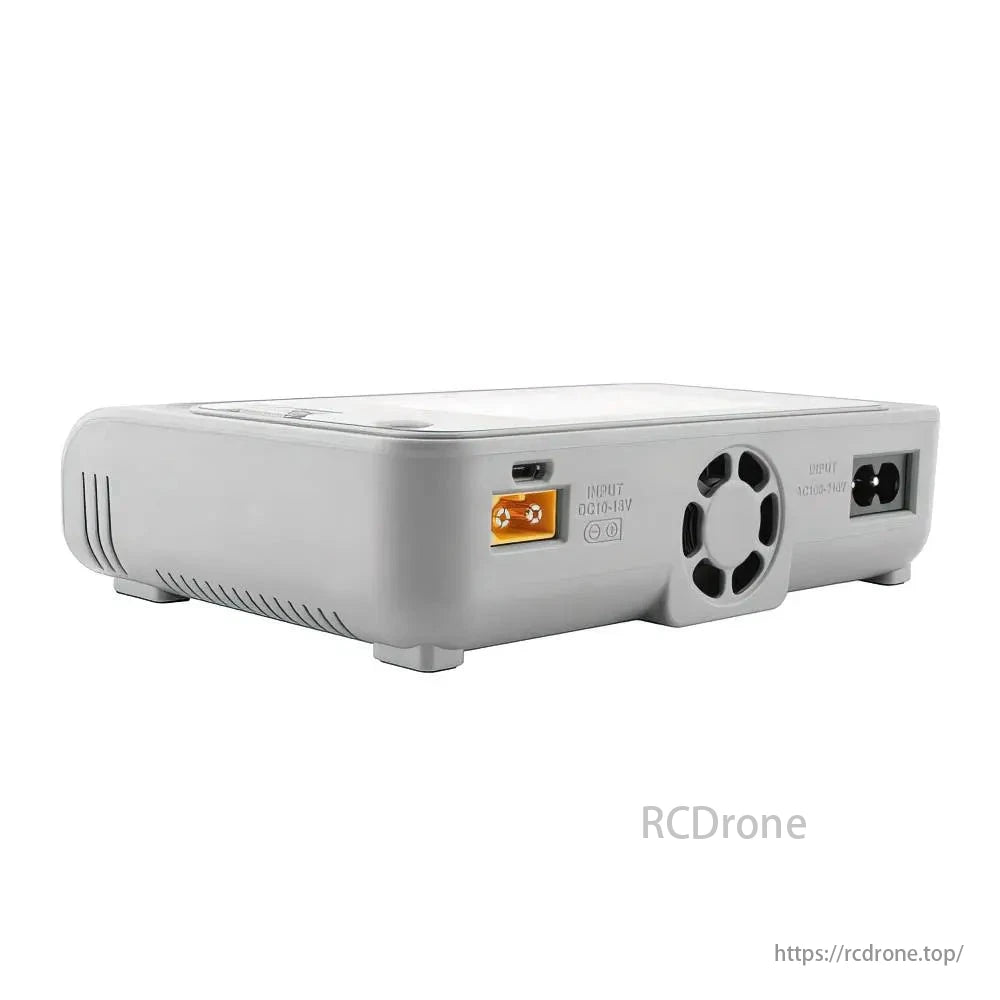

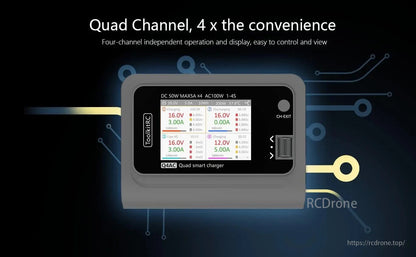

Dual power, greater flexibility. DC input for more power; AC input with built-in supply. Quad channel offers 4x convenience with independent operation and display for easy control.

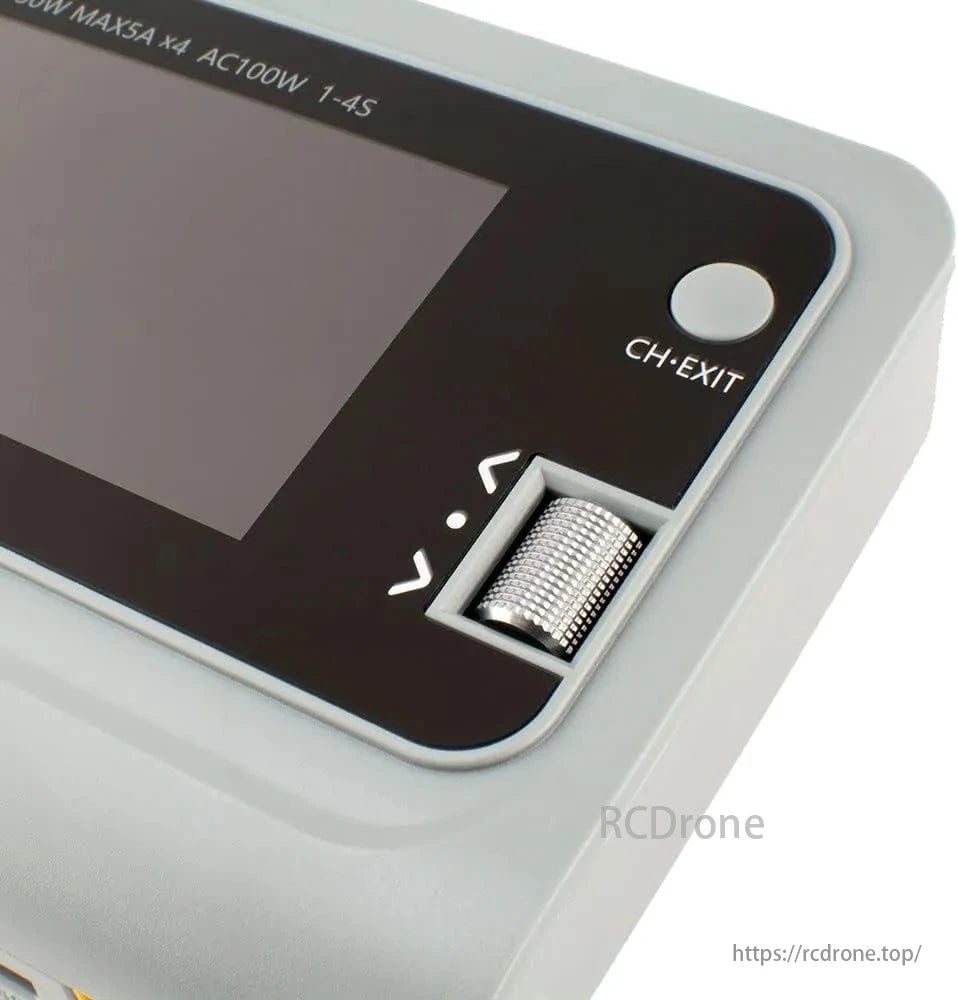

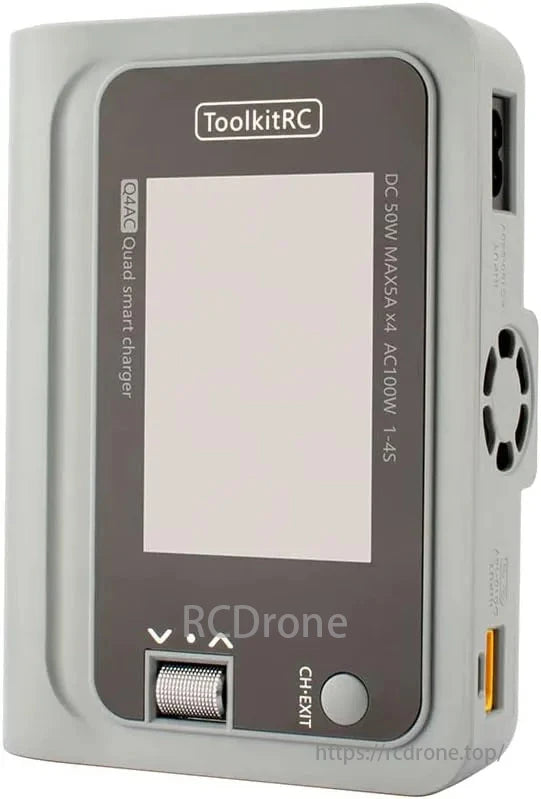

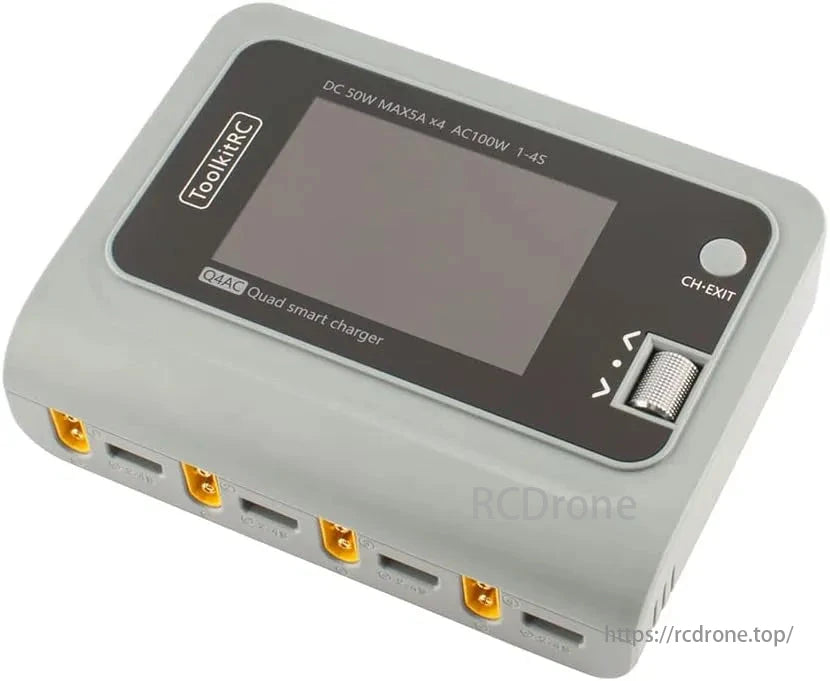

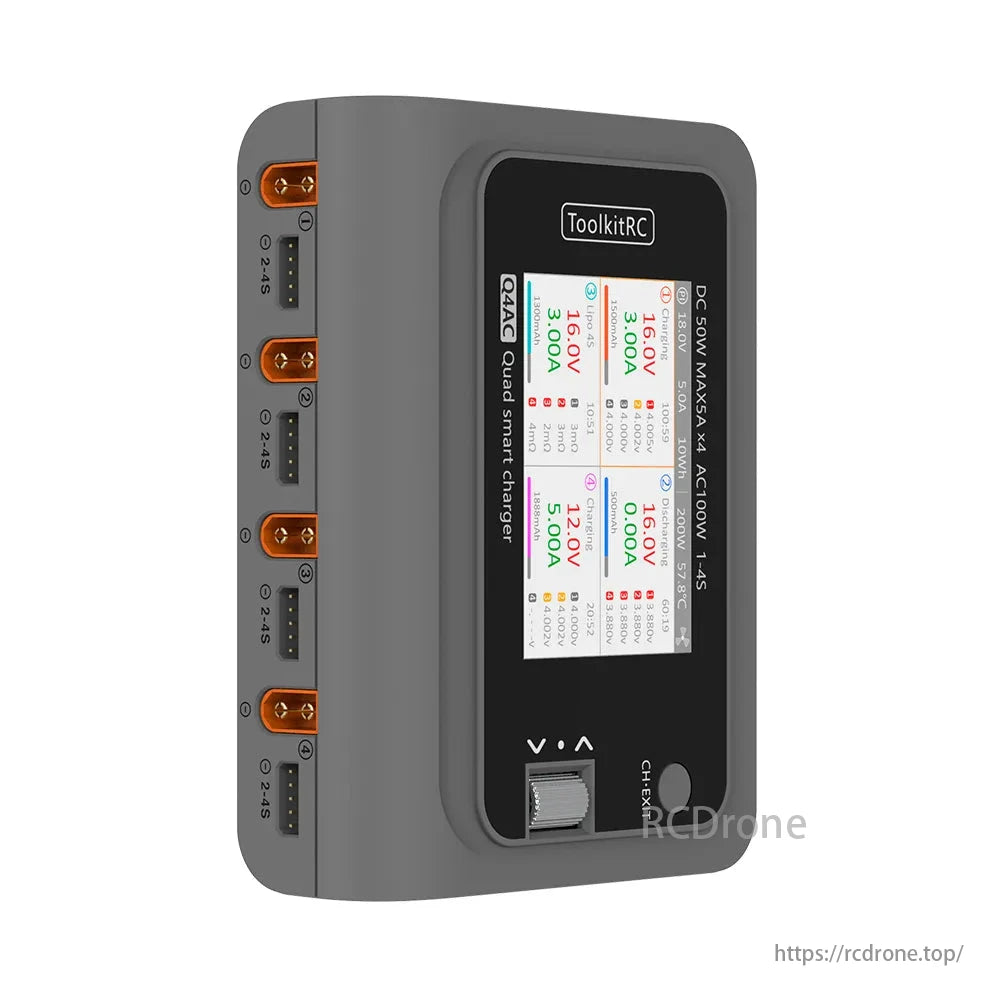

ToolkitRC Q4AC 1-4S Charger has a bright IPS display and a 32-bit ARM processor for precise charging.

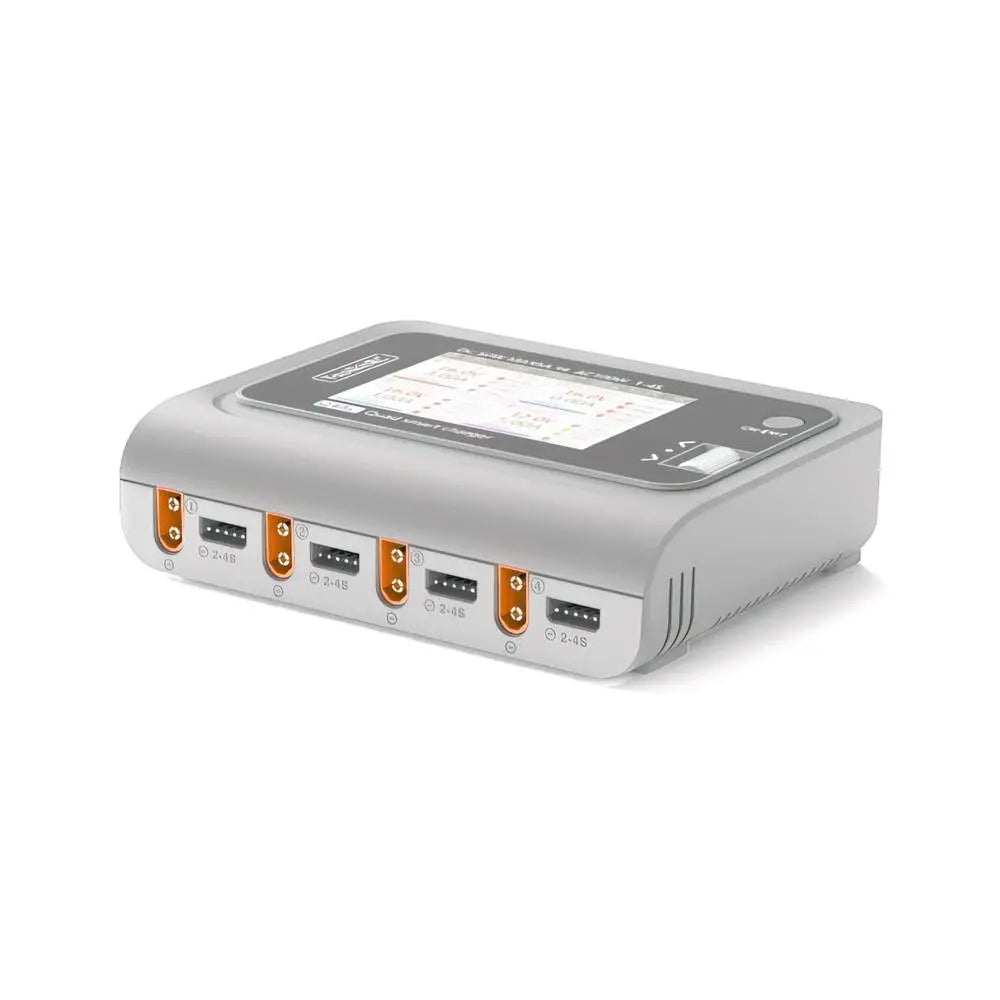

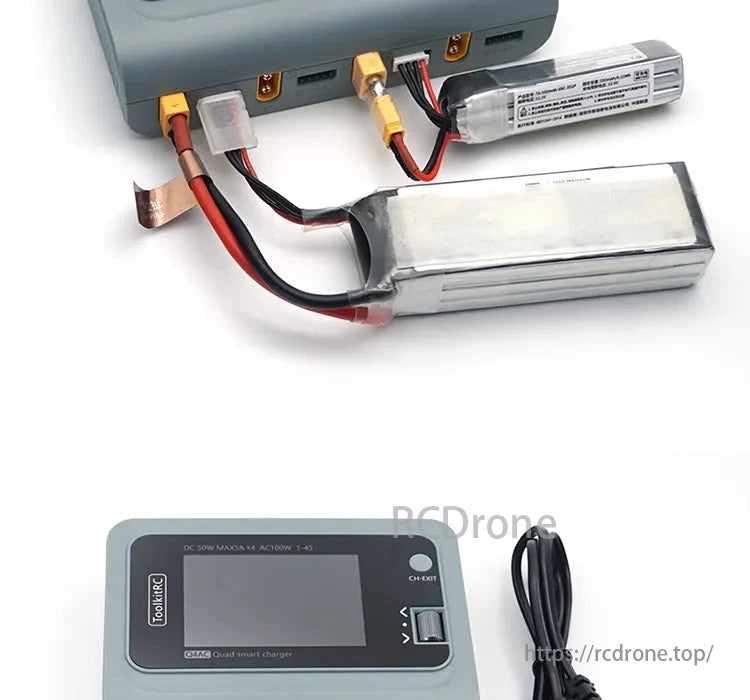

ToolkitRC Q4AC 1-4S Charger with XT60/XT30 outputs, multi-language support, suits global users.

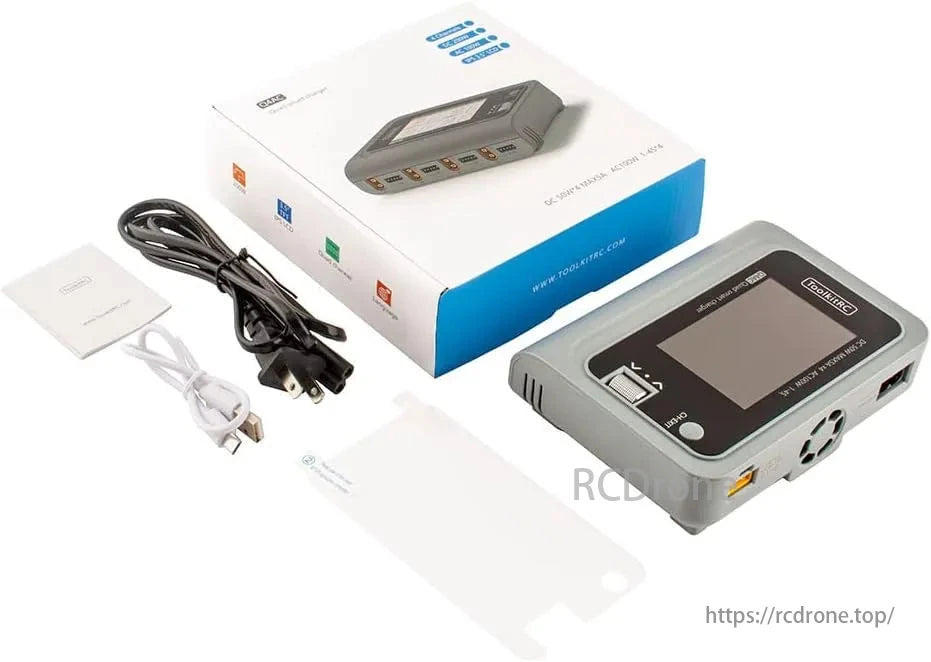

ToolkitRC Q4AC 1-4S Charger box includes charger, cables, manual, and screen protector.

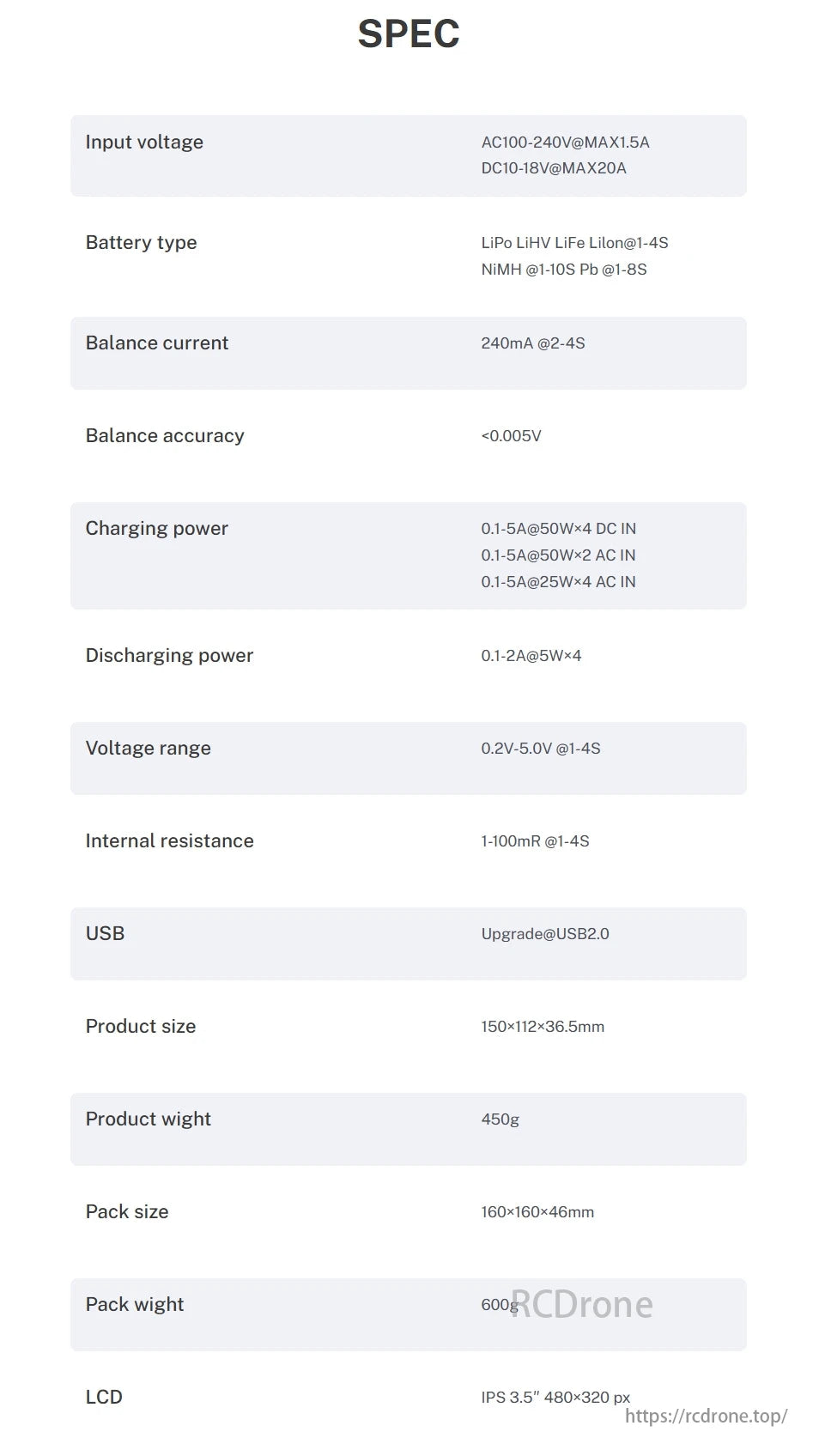

ToolkitRC Q4AC 1-4S Charger specs: AC100-240V, DC10-18V, LiPo/LiHV/LiFe/Lilon/NiMH/Pb batteries, 240mA balance current, <0.005V accuracy, 0.1-5A charging, 0.1-2A discharging, 0.2V-5.0V range, 1-100mΩ resistance, USB 2.0, 150x112x36.5mm size, 450g weight.
