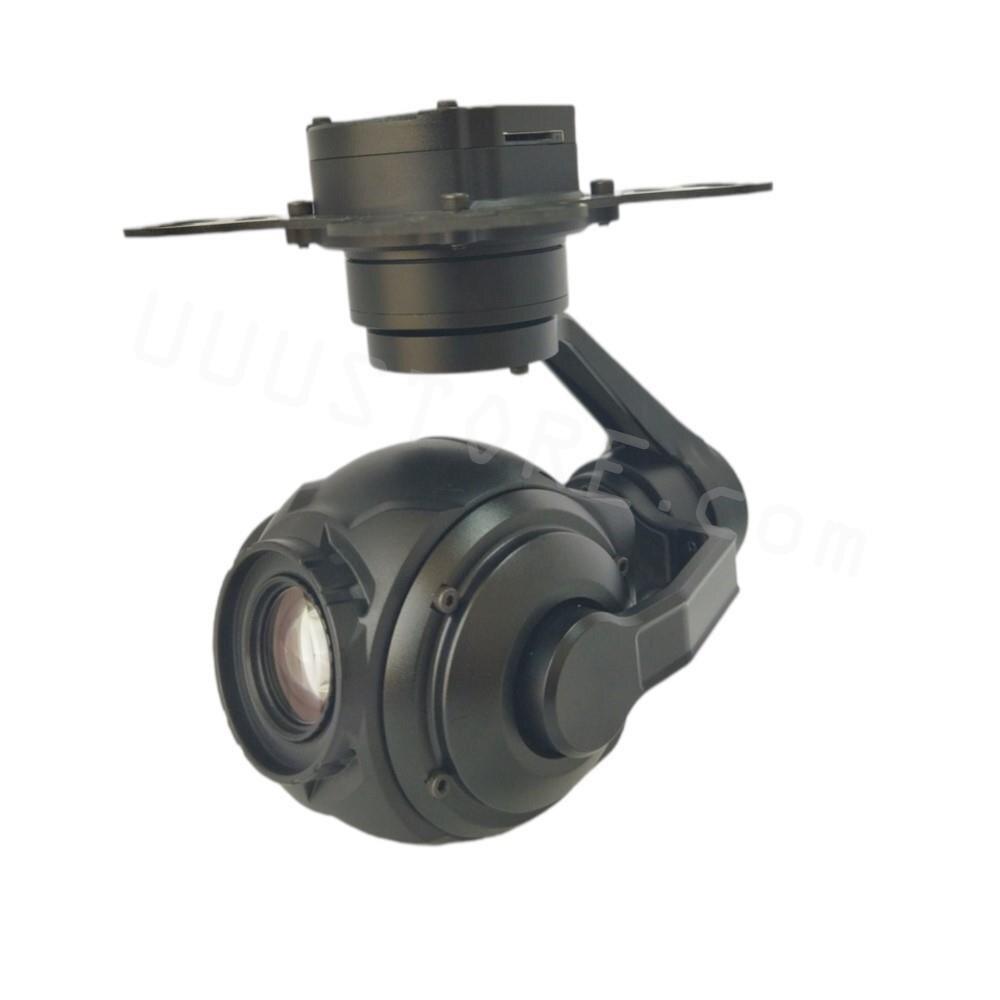

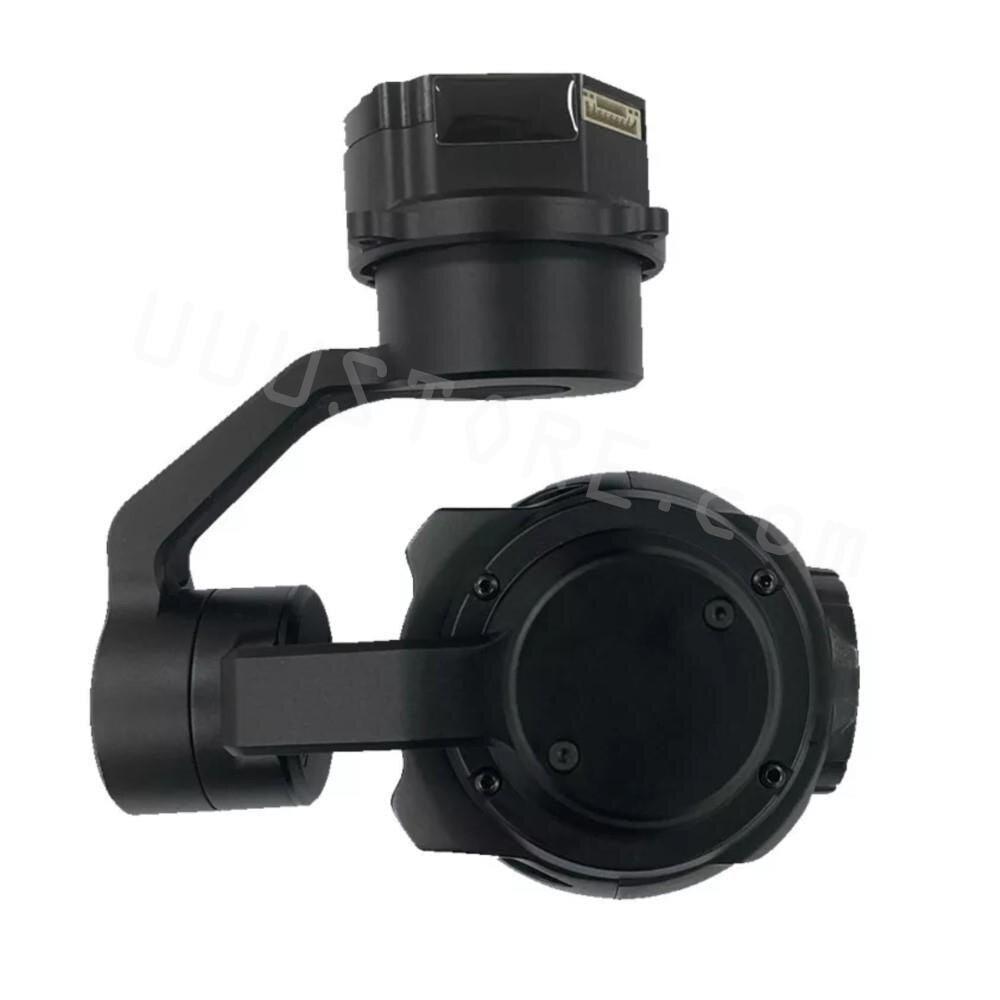

TQ10N 10X Optical Zoom Gimbal Camera 2K HD Video IP Network Interface With 3-Axis Gimbal Stabilized Camera For VOLT Drone

Package Including:

TQ10N 10X optical zoom camera * 1pcs

Gimbals assembling mount * 1pcs

cables * 1 set

Gimbals quick-release part * 1pcs (send for free)

TQ10N Camera gimbals is an excellent 3-axis zoom developed for aircraft, multirotor and VOLT fixed wing.

The camera is equipped with a 10x optical zoom lens, a 1/3 CMOS sensor, 4 million effective pixels and supports 8X digital zoom.

The gimbals adopts high-precision encoder FOC control scheme, which is characterized by high stability, small size, light wight and low power consumption.

Network IP output mode. It can be widely used in entertainment drone, profession aerial photography drone and other industry application.

Specifications

Product parameters

Name: TQ10N

Input power: 3S-6S (12-26V)

Working current: 410ma

Weight: 385g

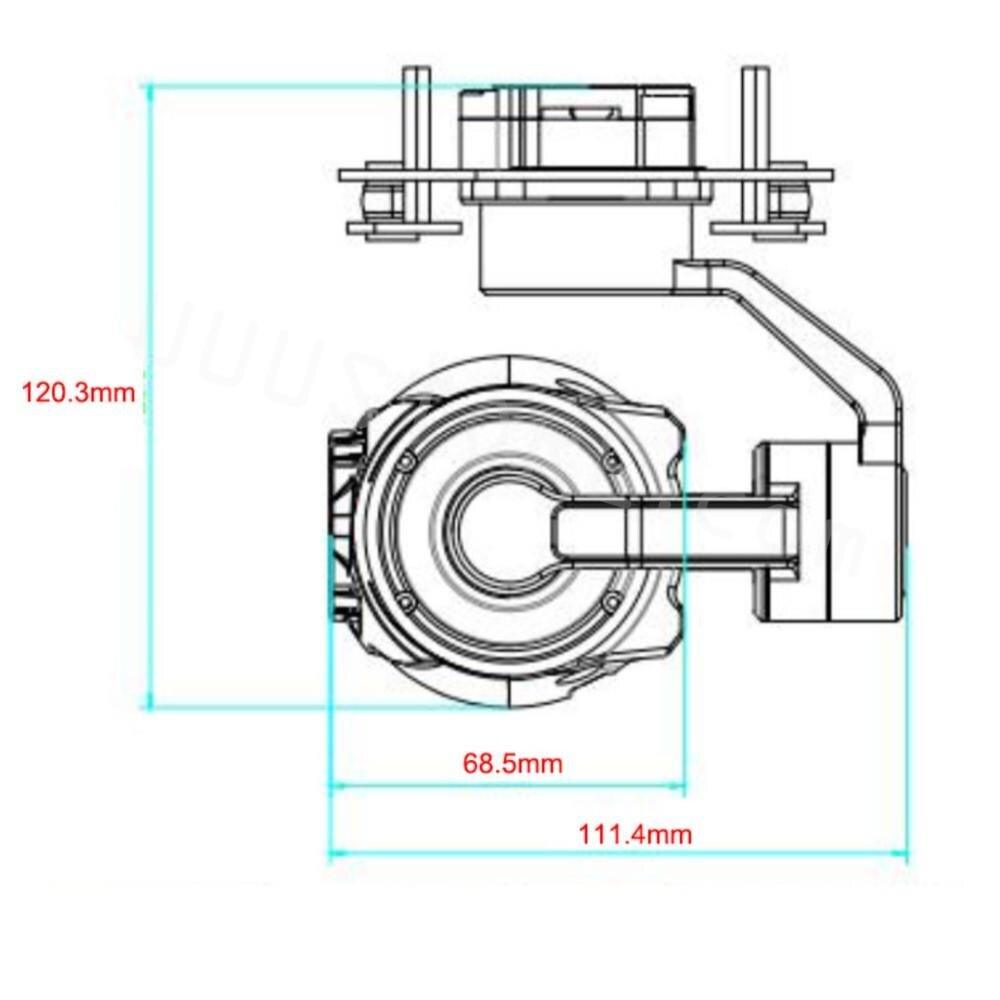

Max controllable rotation speed: 77mm*105mm*147mm(L*W*H)

Controllable rotation range: TILT：- 60 deg~ +135 deg

Attitude control accuracy: ±0.02deg

Camera

Sensor: Effective Pixels:4 Million

Lens: 10x optical zoom

Digital zoom: 8x digital zoom

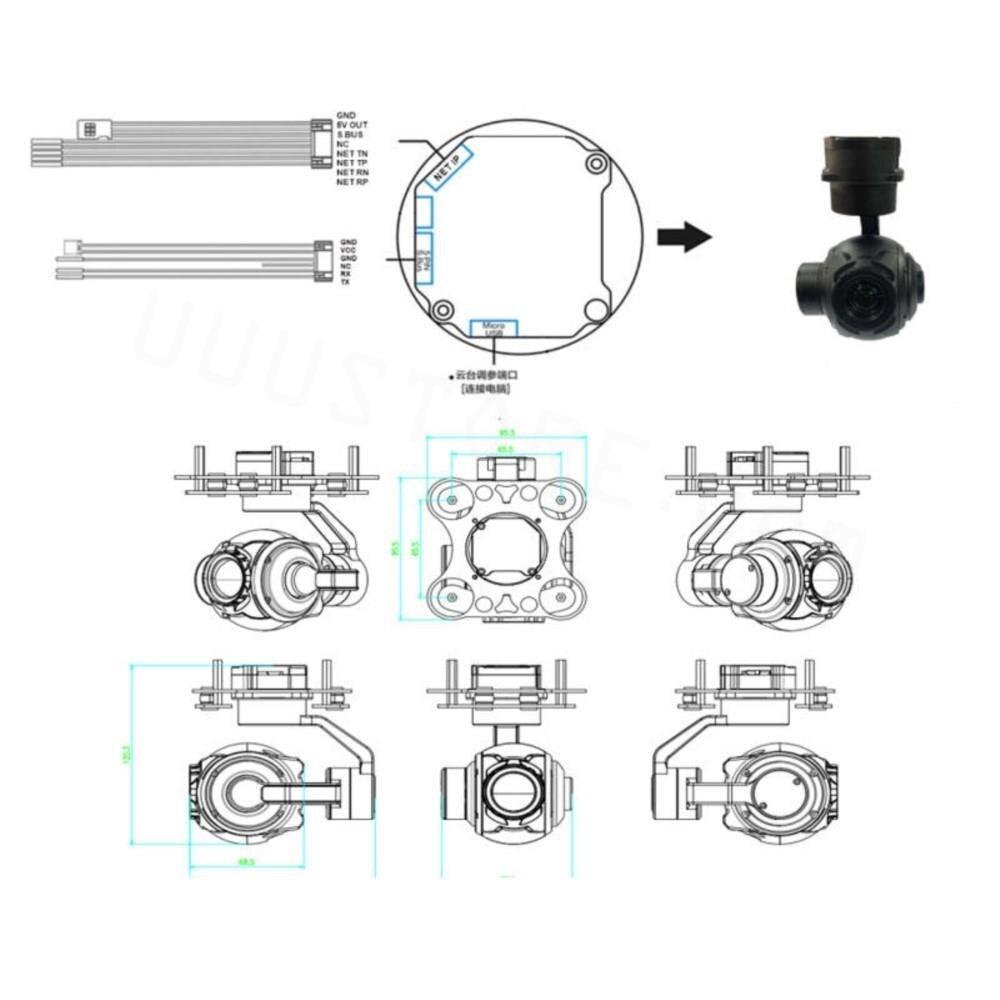

Output interface: Network IP mode, RTSP stream

Output format: 2k 30FPS H.264

Video storage format: H.265

Working: Record

Electronic Shutter Speed: Auto

White Balance: Auto/Daylight / cloudy / fluorescent light / tungsten lamp

Video Captions: Supported

One Key to 1× Image: Supported

Anti-flicker: 50Hz，60Hz

PAL/NTSC: Supported

Supported SD Cards: Max.Capacity:128GB

Supported File Systems: FAT32
