TURBOWING TX1769 5.8G 25/200mW Video Transmitter Module + CYCLOPS V3 TV17621 720P DVR Camera for FPV Racing Drone

TURBOWING TX1769 5.8G 25/200mW Video Transmitter Module + CYCLOPS V3 TV17621 720P DVR Camera for FPV Racing Drone

RCDrone

Regular price $53.13 USD
Regular price $79.70 USD Sale price $53.13 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

176 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

turbowing-TX1769 Module SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Unit Type: piece

Tool Supplies: Assembly Category

Technical parameters: Value 4

Size: 21.58 * 25.5 * 4mm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y,14+y

RC Parts & Accs: Connectors/Wiring

Package Weight: 0.028kg (0.06lb.)

Package Size: 7cm x 5cm x 3cm (2.76in x 1.97in x 1.18in)

Origin: Mainland China

Model Number: TX1769 TV17621

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes





TURBOWING TX1769 5.8G 25/200mW Video Transmitter Module + CYCLOPS V3 TV17621 720P DVR Camera for FPV Racing Drone

Warm notice: camera is not included in it.

Features:
It is suitable for all kinds of drones frames.
The alloy shell is helpful for heat dissipation and beautiful appearance.
It is compatible with Smart Audio V1 agreement, it can adjust frequency point through flight control.
The small size is easy for you to set up and use.
One short press a button, change the number of channels 1 to 8 cycles.
The high quality of it enables it has excellent performance.

Specifications:

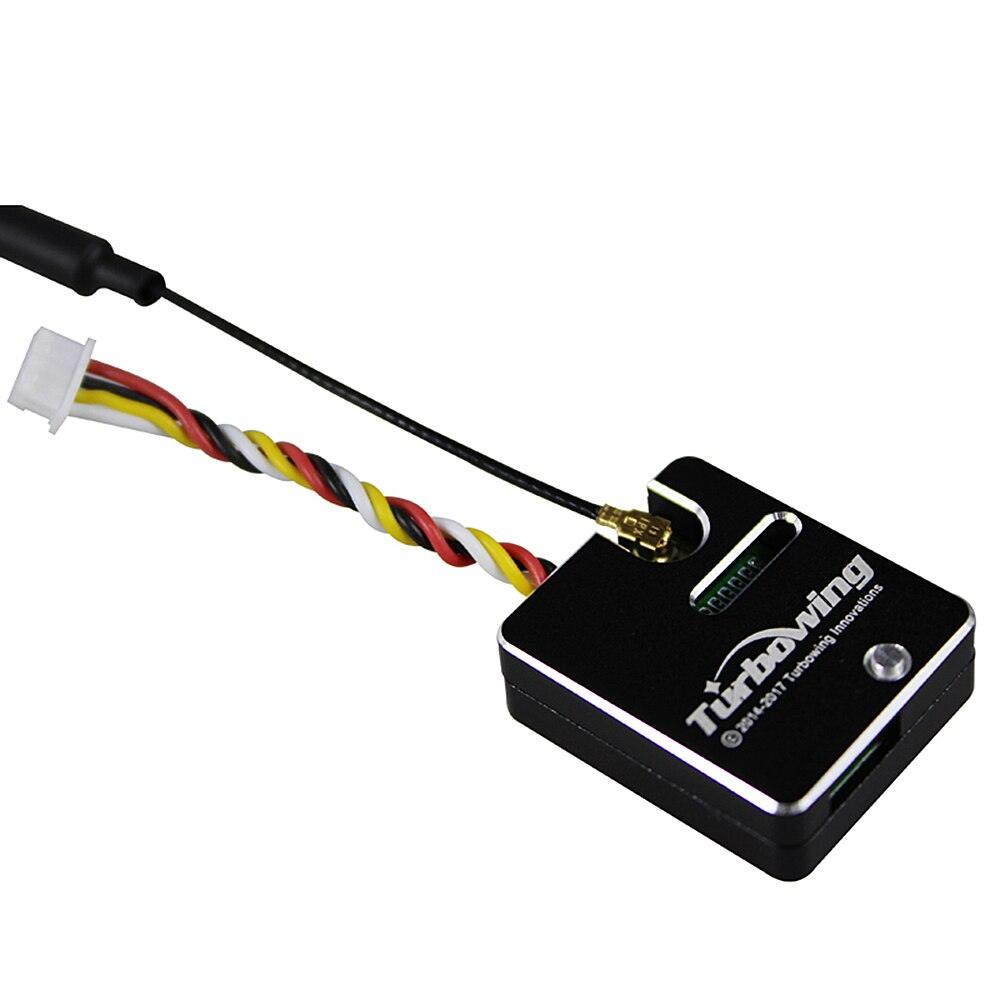

Item name: TX1769 Transmitting Module
Transmitter operating voltage: 7V DC-26V DC
Input current: 130/230mA 12v
Output voltage: 4.2v
High power: 200mW
Low power: 25mW
Frequency range: 5362-5945Mhz
Working temperature: -10 ± 85°C
Video bandwidth: 8m
Size: 21.58 * 25.5 * 4mm
Net weight: 7.7g

Specifications:
Item name: TV17621 170degree Wide AngleMicro DVR Camera
Power supply voltage: DC 3.5-5.5v
Storage temp : -20~60°C
Image sensor: 1/4″ CMOS Sensor
Sensor pixels: 130w
Lens: M7, horizontal 170 degrees, vertical 105 degrees
Output impedance: 75Ω
Format: NTSC
Codex: MJPEG
SD card: Max 32G
Size: 19 * 19.3 * 21.6mm
With the shell: 6.7g

Item name: TX1769 Transmitting Module
Transmitter operating voltage: 7V-26V DC
Output voltage: 4.2v
High power: 200mW
Low power: 25mW
Frequency range: 5362-5945Mhz
Working temperature: -10 ± 85°C
Video bandwidth: 8m
Size: 21.58 * 25.5 * 4mm
Net weight: 7.7g

There could be a few deviations due to manual measurement.

Package List:
There are 2 types of item with different package list,please note it when you order :

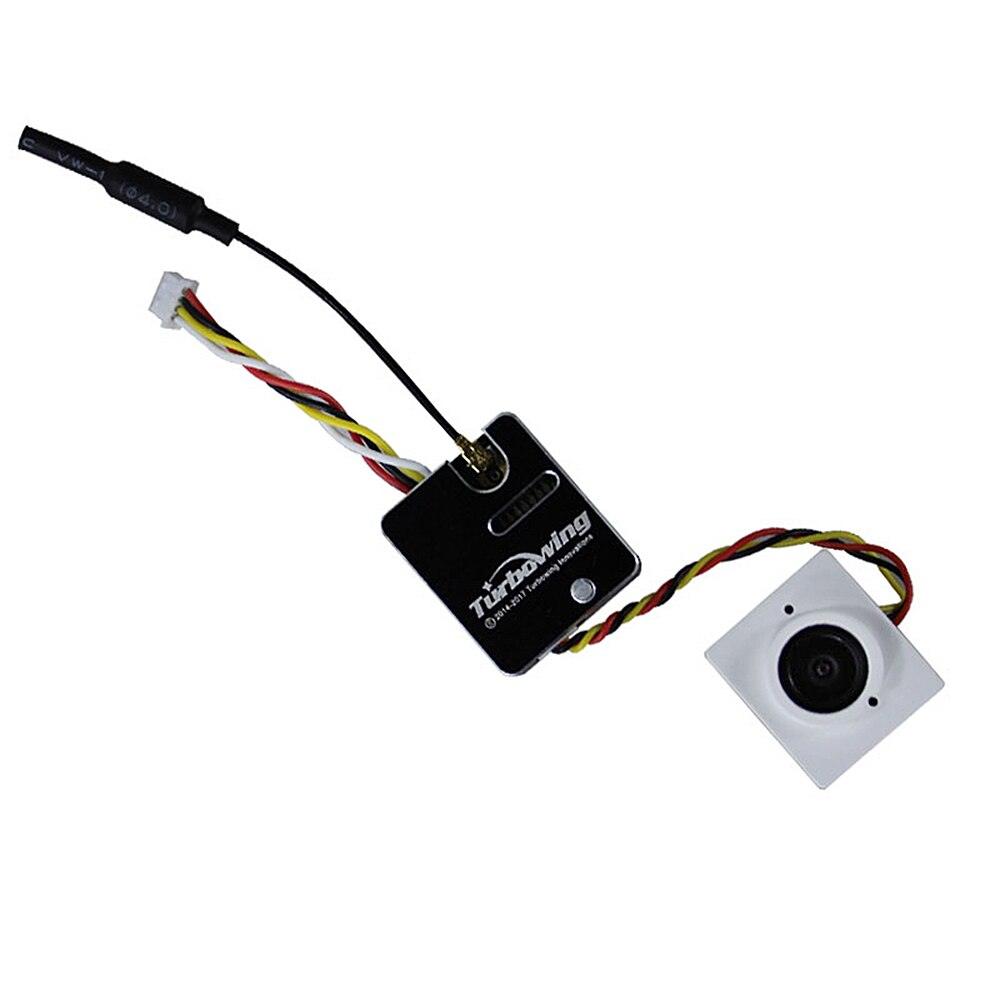

1. V3 TV17621 170degree
Wide Angle Micro DVR Camera and TX1769 25/200mW Transmitter Module
2. TX1769 25/200mW Transmitter Module



Andqdl Turbowing: camera is not included in it.
Mechanical Specification Button 27+0 1 1 19 +0.2mm 19.3+0.2mm

Mechanical Specification Button 27+0 1 1 19 +0.2mm 19.3+0.2mm SD Card Pin Assignment Numbering Interface Definition T0 DC + SV in GND GND Sv CVBS out 2


Features: It is suitable for all kinds of drones frames
Acoocy Tirbawing Turbowing Innovations Dn
Smart Audio V1 protocol interface TV17621 camera PWM signal input GND DC IN 7

The TV17621 camera has a Smart Audio V1 protocol interface, which accepts PWM signal input from GND, DC IN (7-26V), and features dimensions: 25.5mm x 38mm.


the small size is easy for you to set up and use
CYCLOPS V3 TV17621 720P DVR Camera for FP
blue LED lights for the frequency band, red LED lights 1234 mean light, Xme

This transmitter module features blue LED lights that indicate the frequency band, while red LED lights display the channel number (1234). The X symbol indicates the power off function. To switch between frequency groups, press and hold the key for 2 seconds until the blue light starts flashing, then release it to change the group.


Turbowing 04.0 Turbowing is a turbowing . turbowing is
