FLYWOO Venom H20 SPECIFICATIONS

Warranty: six months

Video Capture Resolution: Other

Type: Airplane

State of Assembly: Ready-to-Go

Remote Control: No

Recommend Age: 14+y

Power Source: Electric

Plugs Type: XT30

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Beginner

Model Number: 4S

Material: Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Features: FPV Capable,Other

Controller Mode: MODE1

Control Channels: 12 Channels & Up

Camera Mount Type: Fixed Camera Mount

Brand Name: FLYWOO

Aerial Photography: No

Warning:
1\ Since Venom H20 is very fast, please make sure to install the propeller screws
2\ When you install the propeller guard, please pay attention to the screw size.

jelhat the screw does not touchahe motor copper wires M2*7 M2 *8 M2**8 Warning: Please use the correct screw, after installation, Make sure the screws do not touch the motor .

Flywoo has always strived to push the boundaries of carrying a camera on the smallest platform. We designed the Firefly Baby quad and Firefly Hex nano. Now we are proud to announce that Venom H20 is here! This design is inspired by XMFPV!
The Venom H20 will push the boundaries again, and at the same time will be the fastest 2-inch drone!

Highlights:

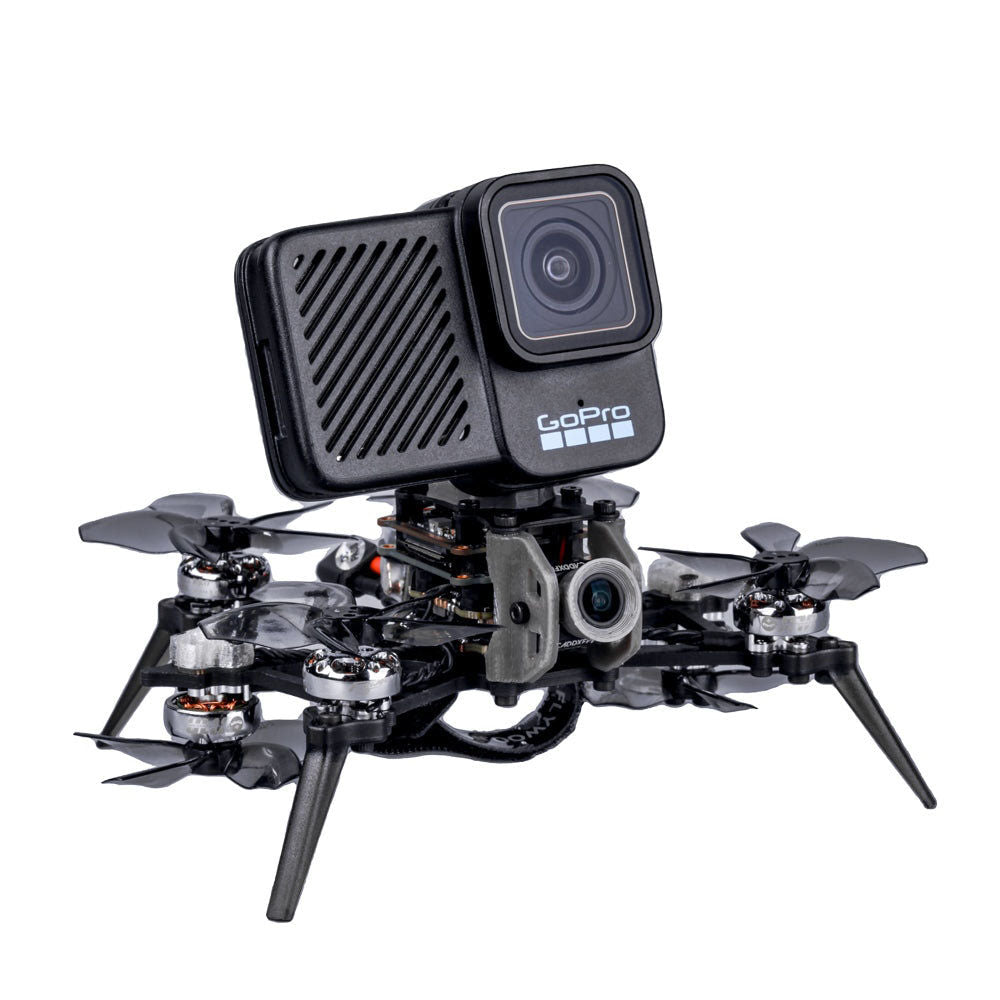

• 2 inch mini drones, but most powerful. Can carry Gopro 10 bones and DJI Action 2

• The fastest 2-inch drone, with a speed of 120km/h~140km/h

• Built-in Flywoo Action Camera power cord, and adapt to a variety of action cameras

• Efficient power configuration enables Venom H20 to fly stably, with low noise, and with a long flight time of up to 9.20 minutes.

• The lightweight 2-inch quad below 250g even if you connect with the battery, meet the current requested of FAA rules.

Specifications

• Weight: 80g (without battery)


• FC & ESC : GOKU HEX F4 16*16 STACK


• Frame:  Venom Analog Frame kit

• Motors:NIN V2 1203PRO 48500Kv

• Props: Gemfan D51 -5

• Flight Time :
  Explorer 4S HV 450mAh ( 7.20mins)
  Explorer 4S HV 750mAh battery (9.20mins)

GOKU HEX F411 16*16 STACK Nin V2 1203Pro 4850KV Use powerful STM32F4II chip, black box, This is a dream size for the Venom H2O_ WS2812LED, support 2 complete

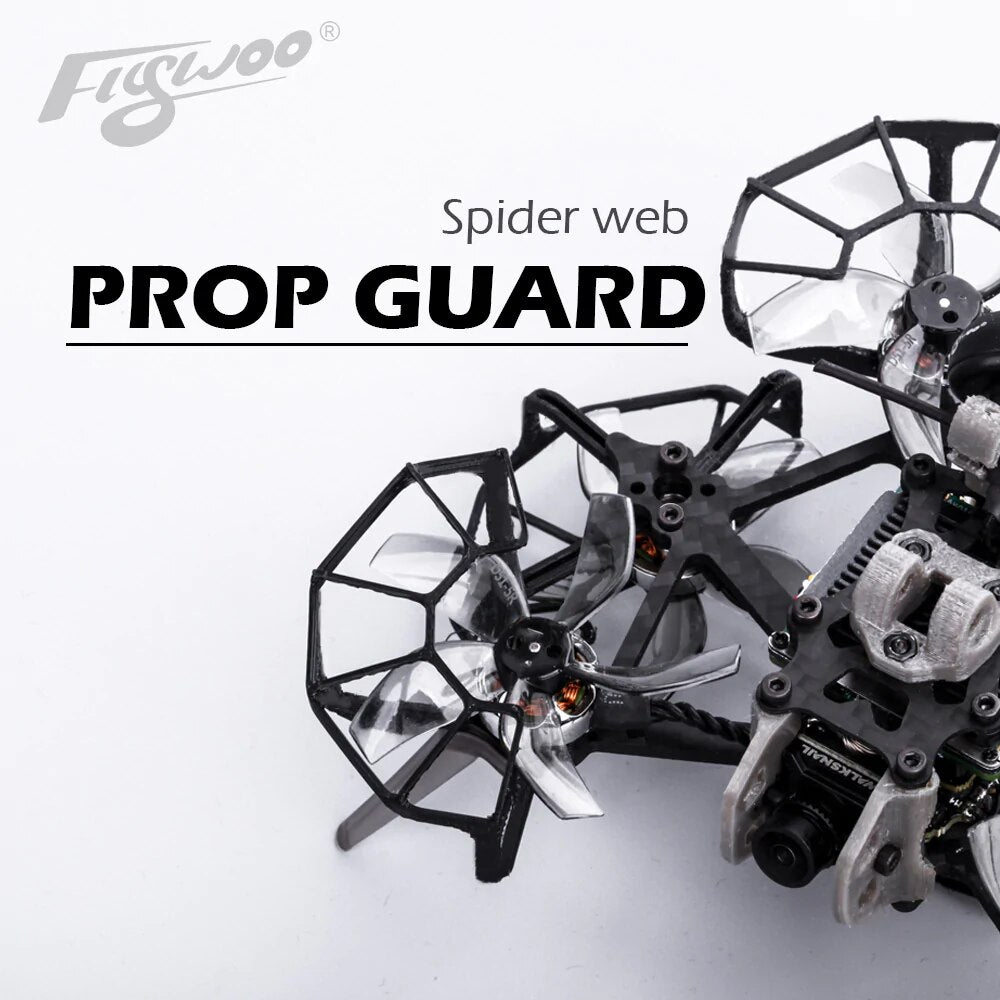

Flywoo Digital RGB Motor LED Spider Web Propeller Guard Switch between multiple colors at will (VNz J0c2n !

Compatible with different kinds of action cameras GO2 SMO GOPRO I0 BONESI RUNCAM THUMB NAKED GOPRO 617 IFLYWOO GPQIIO Gop,2 Vacuum .

Include:

• 1xPrebuilt and tested Venom H20 Hexacopter

• 4x D51-5 Props (Pairs)

• 2x Battery Strap

• 1x Hardware Set

• 6 x spider web prop guard

---------------
Related Article:
FLYWOO Venom H20 Review

**FLYWOO Venom H20: The Compact and Powerful 2-Inch Hexacopter**

Introduction:

The FLYWOO Venom H20 is a compact and powerful 2-inch hexacopter designed to provide exceptional performance in a small form factor. With the ability to carry GoPro 10 and DJI Action 2 cameras, it offers exciting possibilities for capturing high-quality aerial footage. This evaluation article will provide a comprehensive overview of the product composition, parameters, advantages, operating instructions, and frequently asked questions to help you understand the FLYWOO Venom H20.

Product Composition:

The FLYWOO Venom H20 consists of carefully selected components that work together to deliver a superior flying experience. The key components include:

1. Frame: The Venom Analog Frame kit provides a lightweight and durable structure for the hexacopter. Designed specifically for analog systems, it ensures a secure and stable mounting platform.

2. FC & ESC: The GOKU HEX F4 16*16 STACK combines the flight controller and ESC (Electronic Speed Controller) in a compact size. Equipped with the latest F4 processor, it offers precise and reliable flight control.

3. Motors: The NIN V2 1203PRO 48500Kv motors provide impressive power and efficiency. They allow the Venom H20 to achieve remarkable speeds of 120km/h~140km/h while maintaining stability and low noise levels.

4. Props: The Gemfan D51-5 propellers are specifically designed for efficient performance and maximum thrust. They contribute to the Venom H20's agile flight characteristics.

Parameters:

- Weight: 80g (without battery)
- FC & ESC: GOKU HEX F4 16*16 STACK
- Frame: Venom Analog Frame kit
- Motors: NIN V2 1203PRO 48500Kv
- Props: Gemfan D51-5

Advantages:

1. Compact and Powerful: The Venom H20 is a 2-inch hexacopter that packs impressive power. It is capable of carrying GoPro 10 and DJI Action 2 cameras, allowing for high-quality aerial photography and videography.

2. Exceptional Speed: With a top speed of 120km/h~140km/h, the Venom H20 stands out as one of the fastest 2-inch drones available. It offers thrilling flight experiences and the ability to capture fast-paced action.

3. Versatile Action Camera Compatibility: The Venom H20 features a built-in Flywoo Action Camera power cord, allowing it to adapt to various action cameras. Pilots can conveniently use their preferred camera for aerial recording.

4. Efficient Power Configuration: The Venom H20 is designed with an efficient power configuration, enabling stable flights, low noise levels, and an impressive flight time of up to 9.20 minutes. Pilots can enjoy extended flight sessions without frequent battery changes.

5. FAA Compliance: Weighing below 250g, even with the battery connected, the Venom H20 complies with the weight requirements set by the FAA (Federal Aviation Administration). Pilots can fly within the current regulations and guidelines.

Operating Instructions:

1. Assembly: Follow the provided instruction manual to assemble the Venom H20 hexacopter. Ensure all components are securely attached, and double-check the propeller installation for correct orientation.

2. Powering On: Connect the battery to the hexacopter and power it on using the designated power button or switch. Verify that the FPV goggles or monitor is properly connected and receiving video transmission.

3. Flight Mode Selection: Familiarize yourself with the different flight modes available on the GOKU HEX F4 16*16 STACK flight controller. Adjust the flight mode to match your skill level and desired flying

experience.

4. FPV Experience: Wear FPV goggles or use an FPV monitor to experience the real-time video transmission from the Venom H20. Take time to adjust the camera settings and ensure a clear video feed for optimal flight and video recording.

5. Flight Safety: Adhere to local regulations and safety guidelines when operating the Venom H20. Choose appropriate flying locations, maintain visual line-of-sight, and ensure a safe distance from people, property, and restricted areas.

FAQs (Frequently Asked Questions):

Q1: Can the Venom H20 carry other action cameras besides the GoPro 10 and DJI Action 2?

A1: Yes, the Venom H20 features a built-in Flywoo Action Camera power cord, providing compatibility with various action cameras. You can use your preferred camera model, ensuring flexibility in capturing aerial footage.

Q2: How long can the Venom H20 fly on a single battery charge?

A2: The flight time may vary depending on factors such as flying style and payload. With the Explorer 4S HV 450mAh battery, you can expect a flight time of approximately 7.20 minutes. Using the Explorer 4S HV 750mAh battery will provide a longer flight time of up to 9.20 minutes.

Q3: Is it necessary to upgrade the Naked Vista?

A3: The Venom H20 does not come with the Naked Vista unit; therefore, there is no need for any upgrade. The Venom H20 is ready to fly out of the box.

Conclusion:

The FLYWOO Venom H20 is a compact and powerful 2-inch hexacopter that offers outstanding performance and versatility. With its ability to carry GoPro 10 and DJI Action 2 cameras, impressive speed, and efficient power configuration, it is an excellent choice for aerial photography and FPV enthusiasts. By following the operating instructions and adhering to flight safety guidelines, pilots can enjoy exhilarating flights and capture breathtaking aerial footage with ease using the FLYWOO Venom H20.
