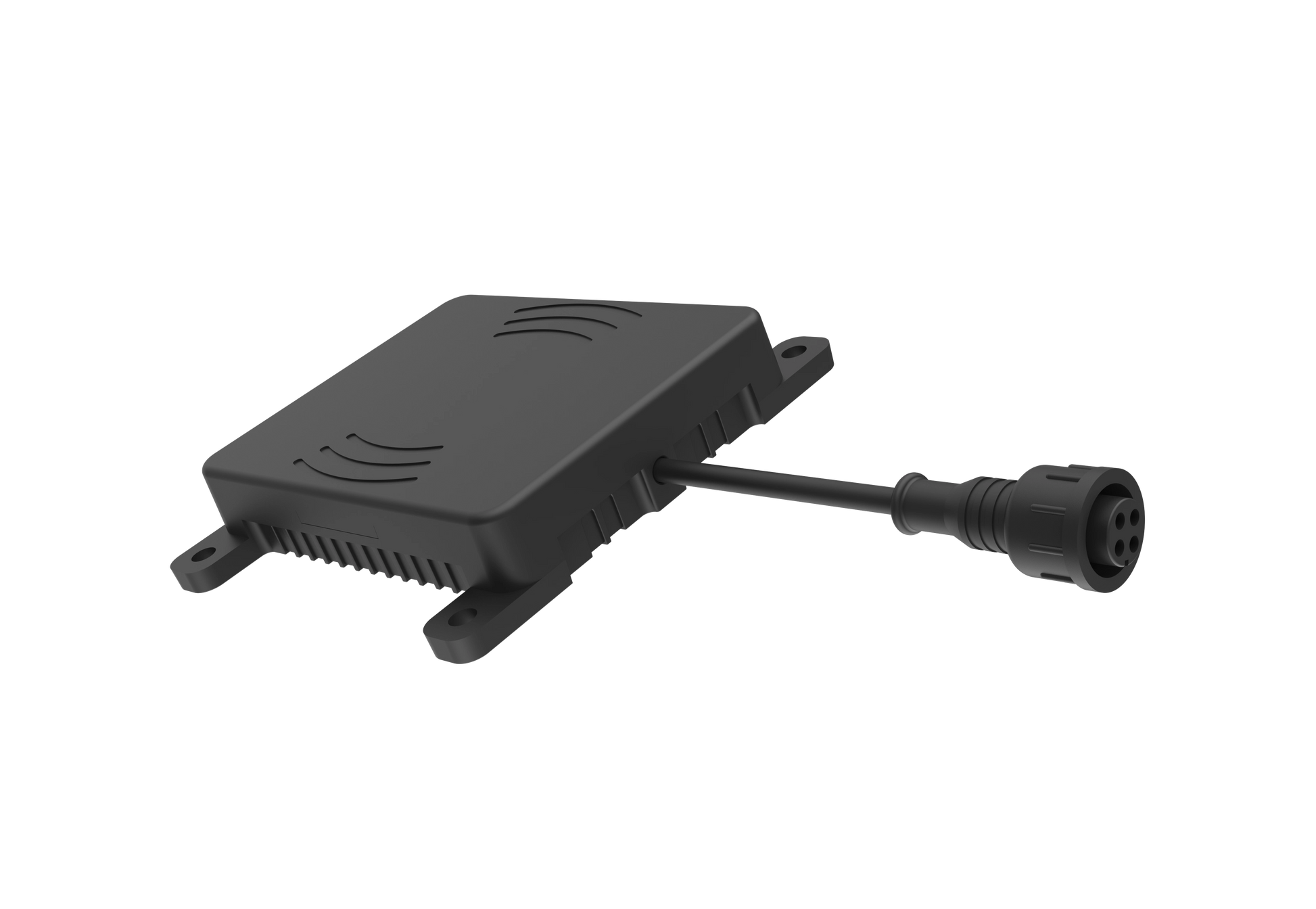

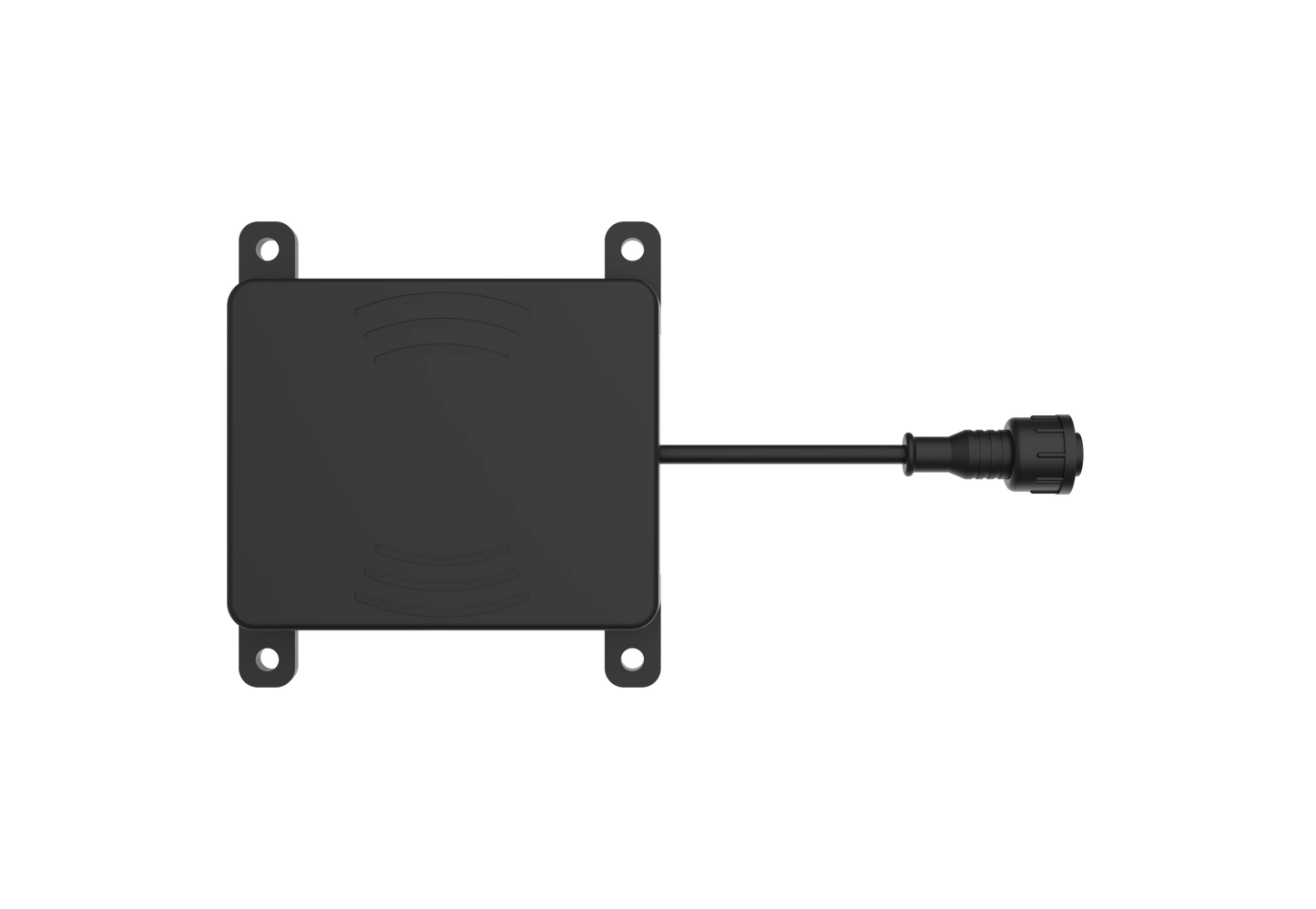

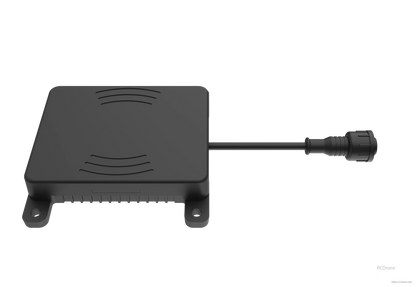

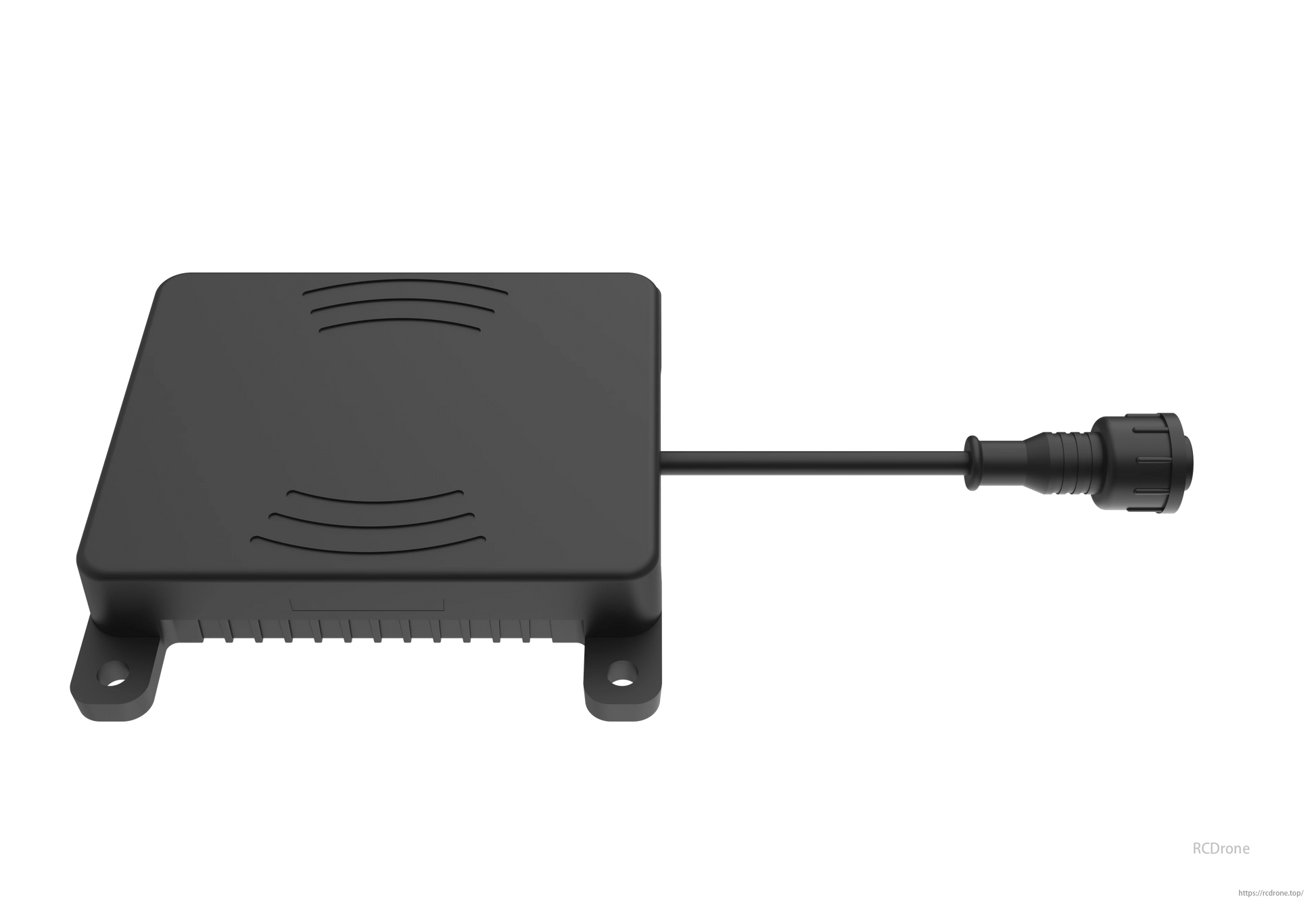

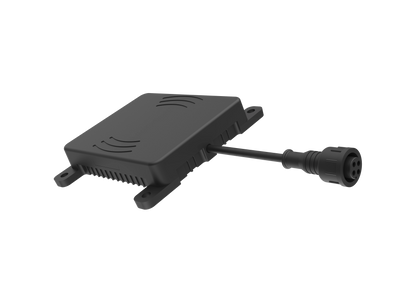

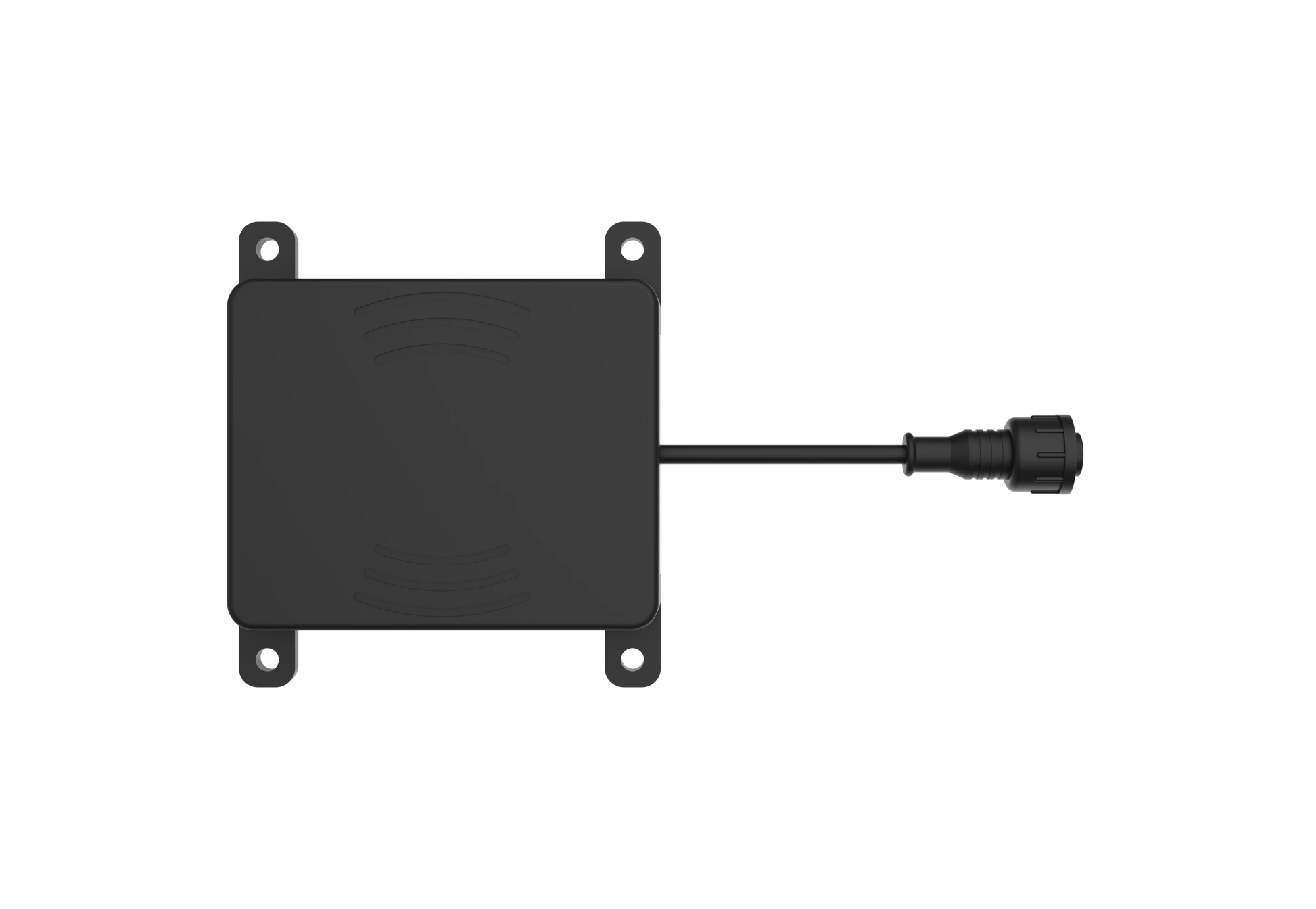

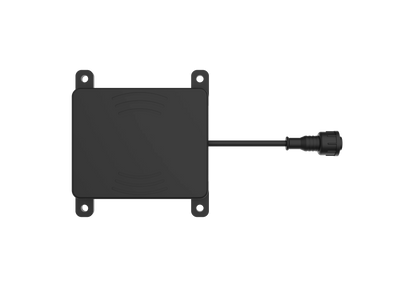

VK VRT24-S1 Ground Imitation Radar – 24GHz FMCW Altimeter Module for UAV Precision Landing

The VK VRT24-S1 is a 24GHz FMCW ground imitation radar altimeter designed for UAVs requiring precise altitude control, terrain following, or automatic landing. With a measurement range of up to 100 meters, 0.1m accuracy, and CAN interface output, this module provides stable and reliable performance even under complex environmental conditions such as fog, dust, strong light, or night.

Key Features

• 24GHz FMCW Radar: Compliant with electromagnetic spectrum control standards for global outdoor use

• High Stability: Reliable operation under challenging lighting, weather, or terrain conditions

• Long Detection Range: Up to 100m, optimized for terrain following and hovering operations

• Compact & Lightweight: Weighing only 50g, reducing overall drone payload

• High Output Frequency: 50Hz update rate with only 100ms data latency for real-time control

• Wide Voltage Support: Operates from 5V to 28V, compatible with various UAV power systems

• IP67 Protection: Fully sealed for industrial-grade waterproof and dustproof performance

Typical Applications

• Precision takeoff and landing for drones

• Terrain-following in agricultural UAVs

• Hovering and obstacle-avoidance operations

• Altitude hold in automated logistics drones

Technical Specifications
