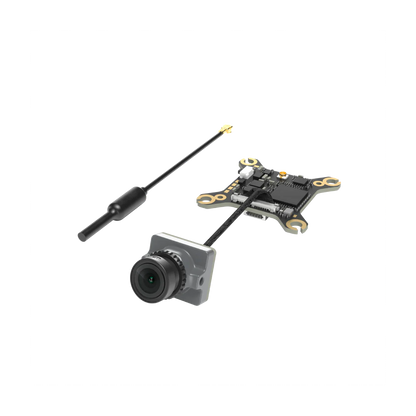

• Walksnail Ascent Lite Kit Digital FPV VTX Camera with VTX board, camera module, and antenna
  • Instant response extended reach graphic showing 3 km max range and 35 ms low latency for FPV link

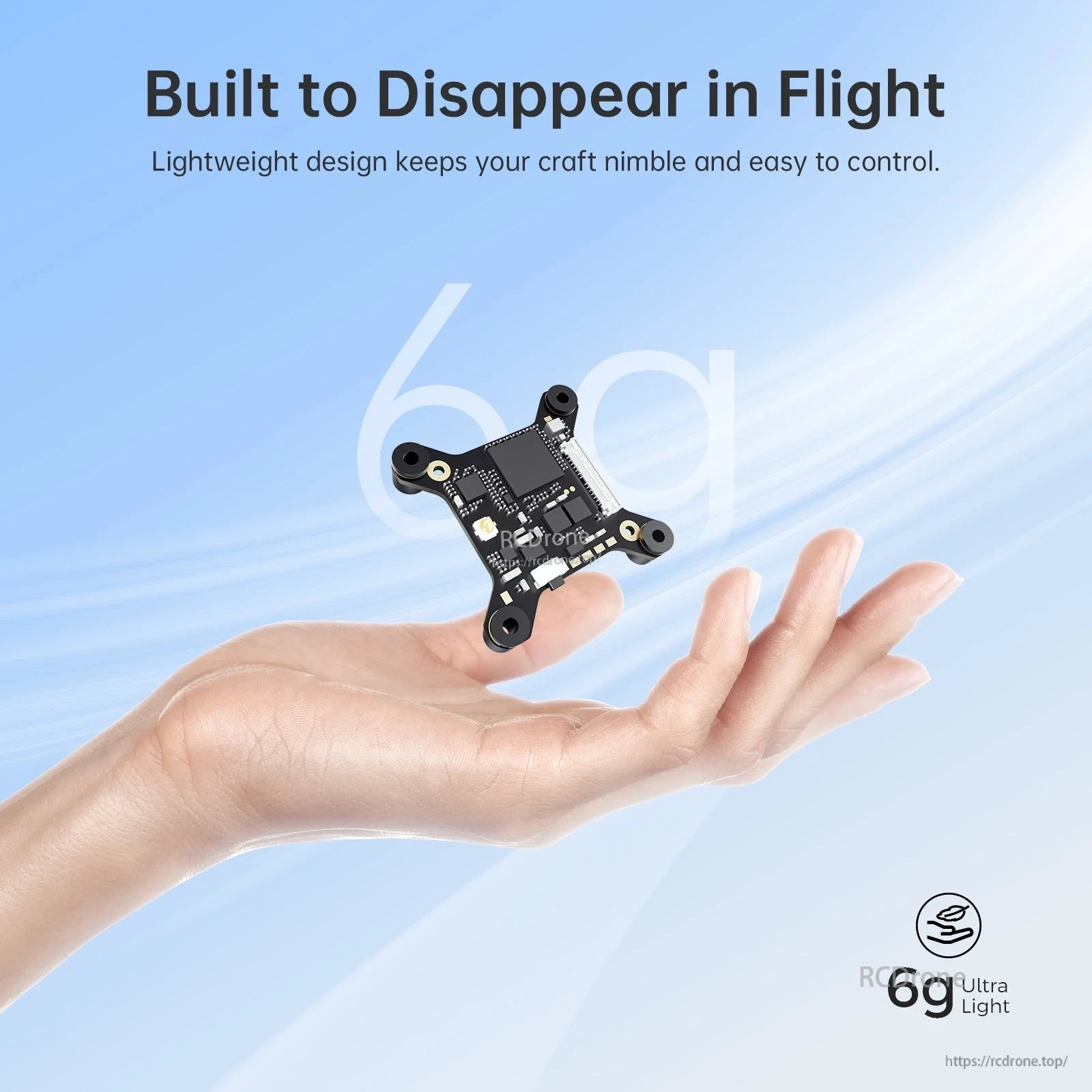

  • Walksnail Ascent Lite VTX board shown in hand with “Built to Disappear in Flight” and 6 g ultra light text
  • FPV goggles view with flight data overlay, “Fly with Full Awareness” awareness display concept graphic
  • FPV camera view graphic showing 1080P/60FPS and 147° field of view over landscape scene
  • Low-light comparison graphic: Lite VTX vs Other VTX night scene with less noise and more detail
  • All-in-FPV use case collage for FPV drone, fixed wing, RC car, and RC boat platforms

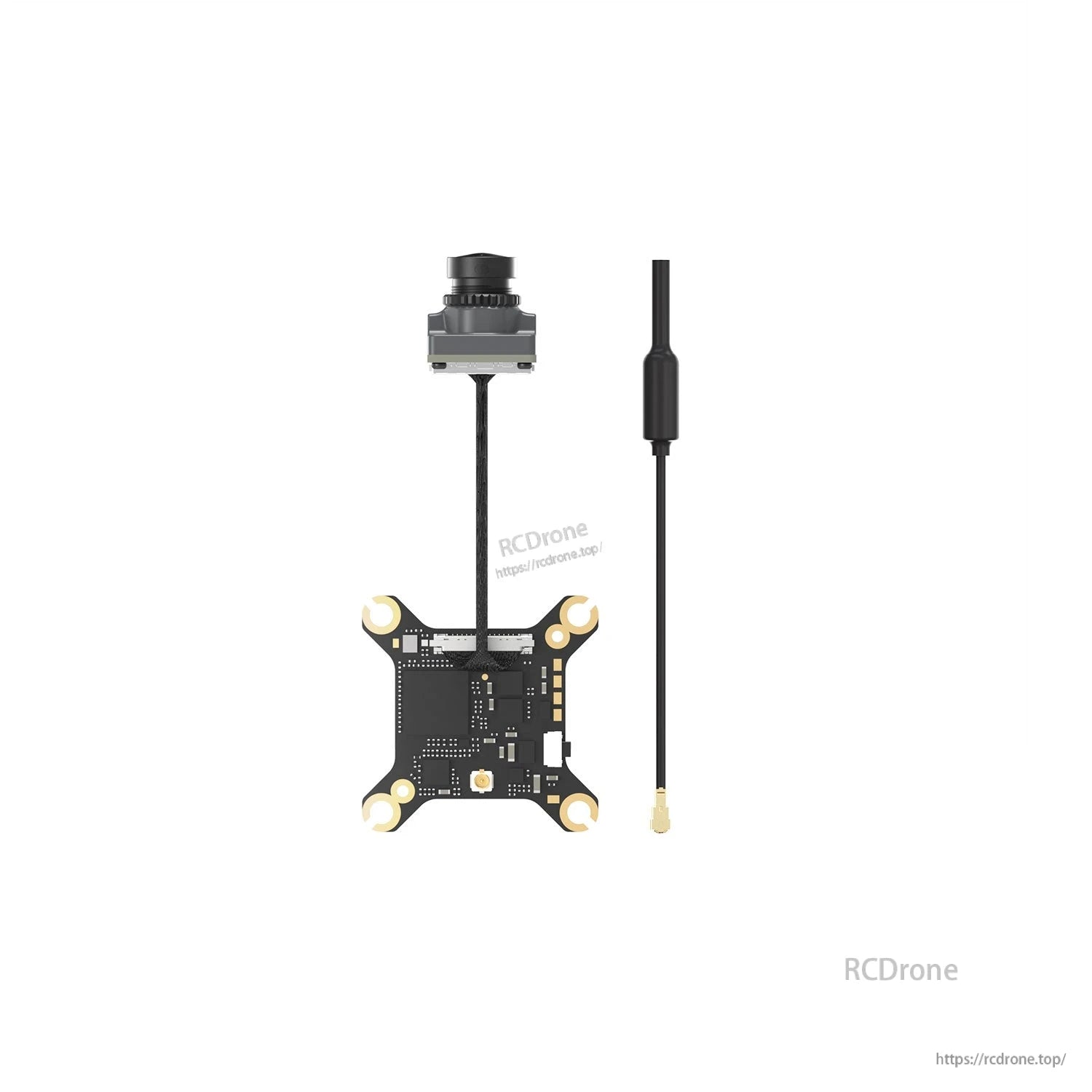

  • VTX board with connected FPV camera and separate antenna laid out on white background

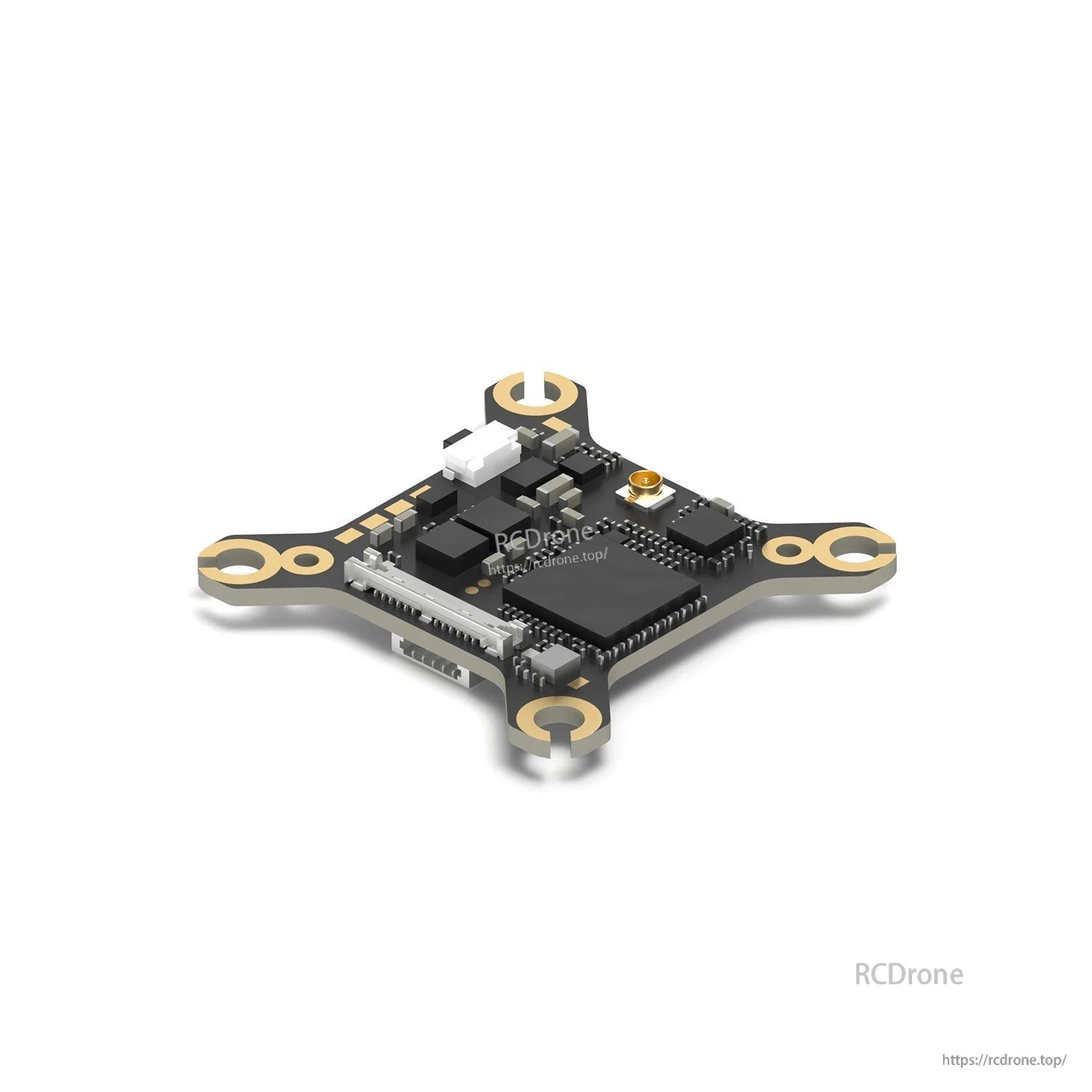

  • Angled close-up of Walksnail Ascent Lite VTX board showing chips, connector ports, and mounting corners

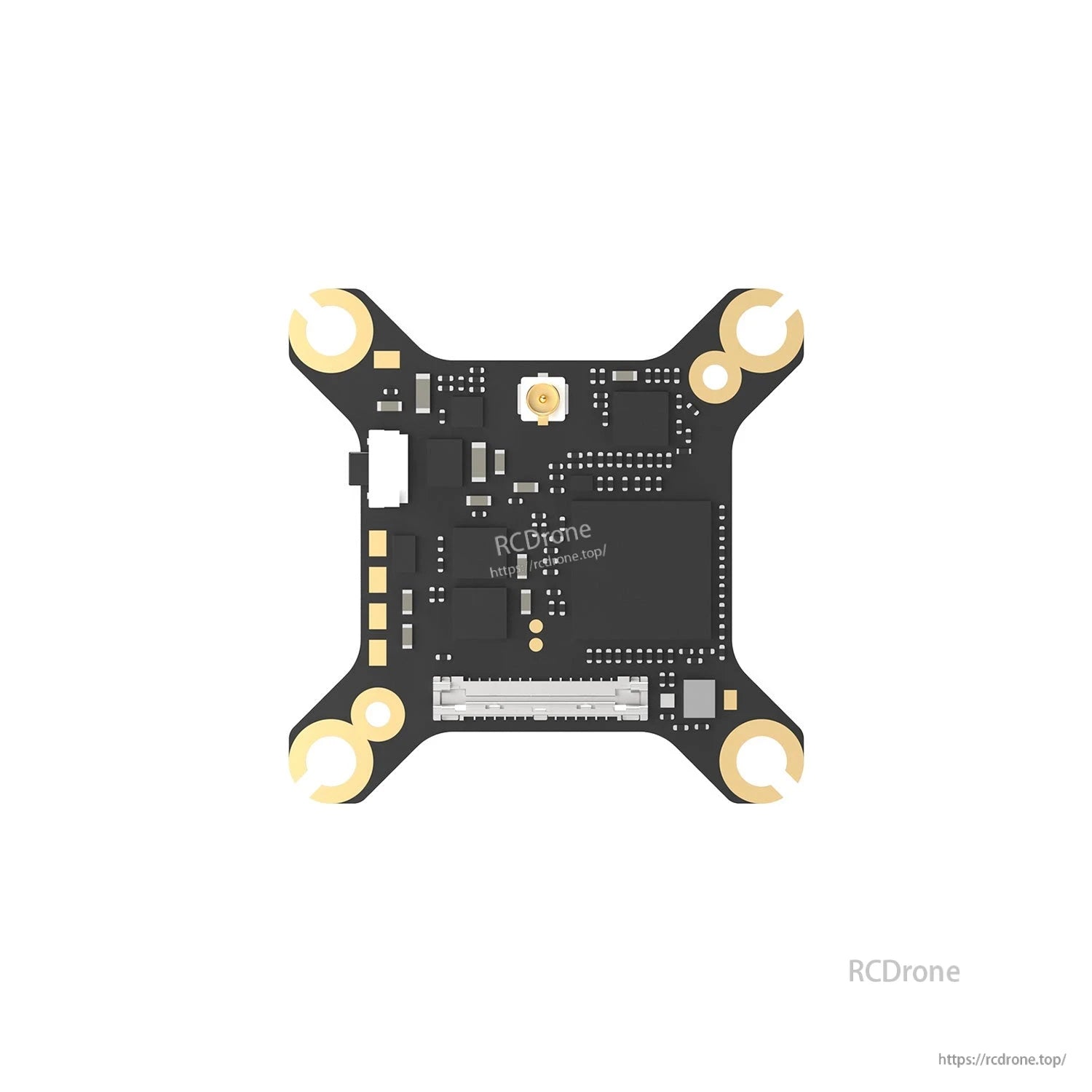

  • Top view of VTX circuit board layout with mounting holes, connector socket, and solder pad area

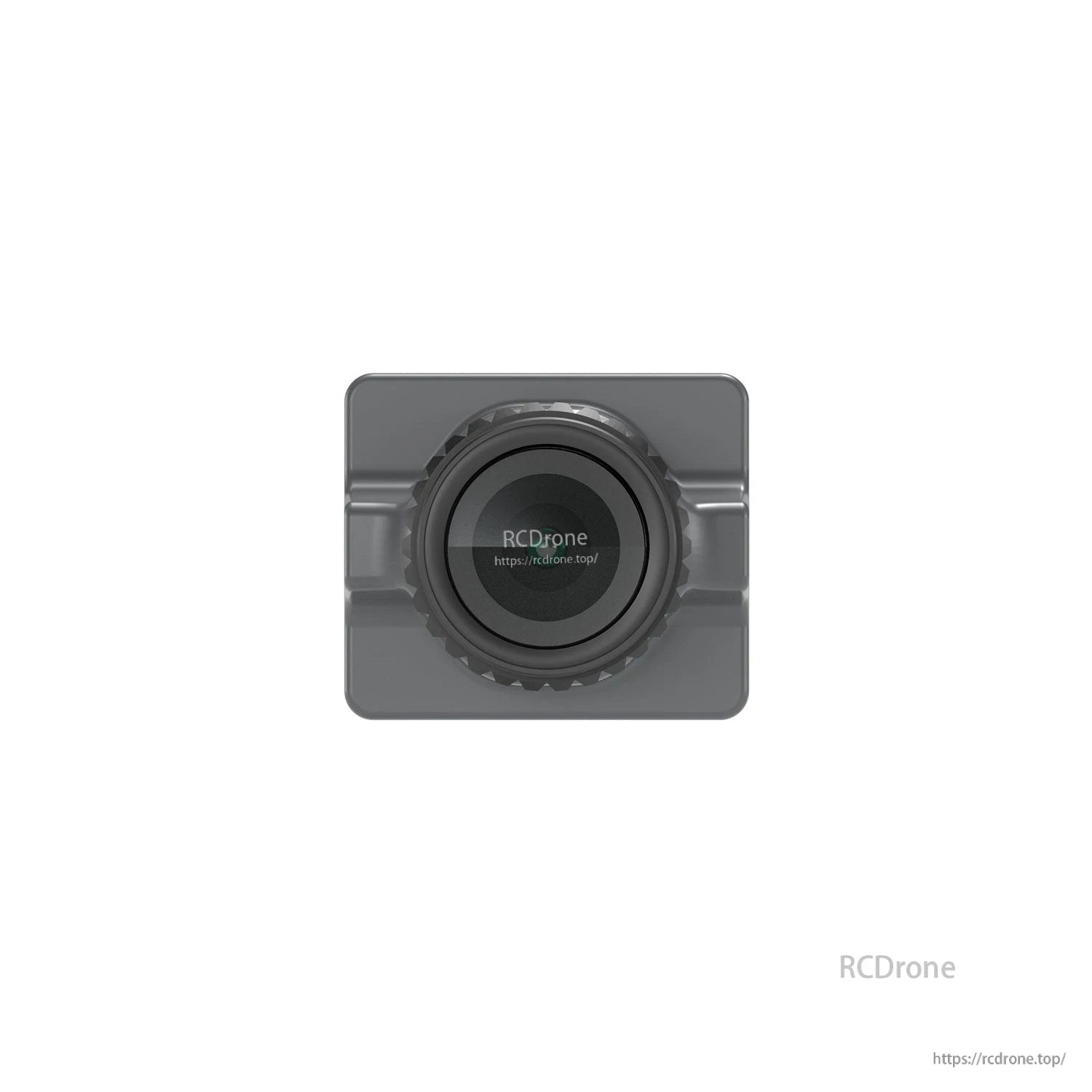

  • Front view of FPV camera module with lens and square housing on white background

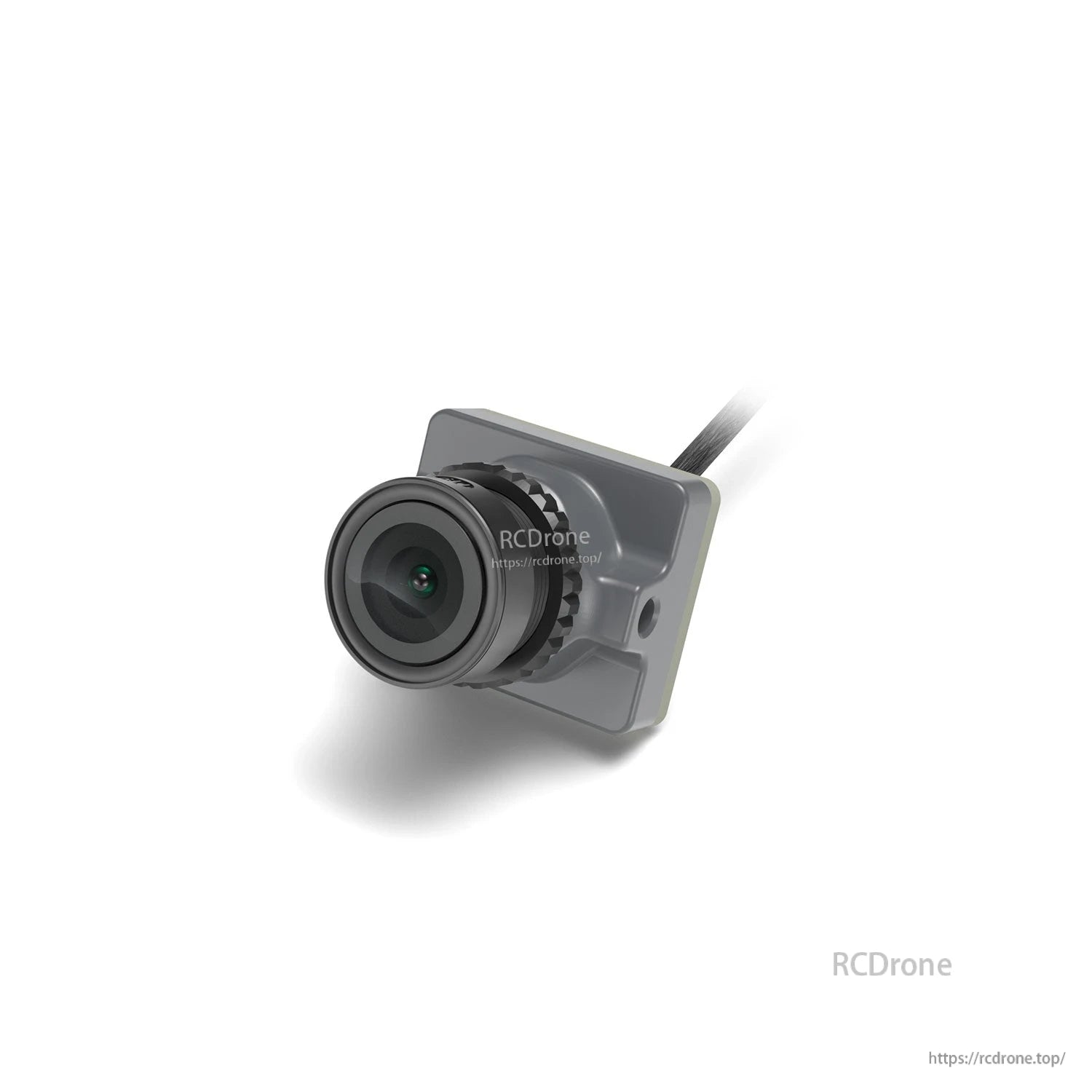

  • Angled view of FPV camera showing lens, focus ring, and housing with attached cable

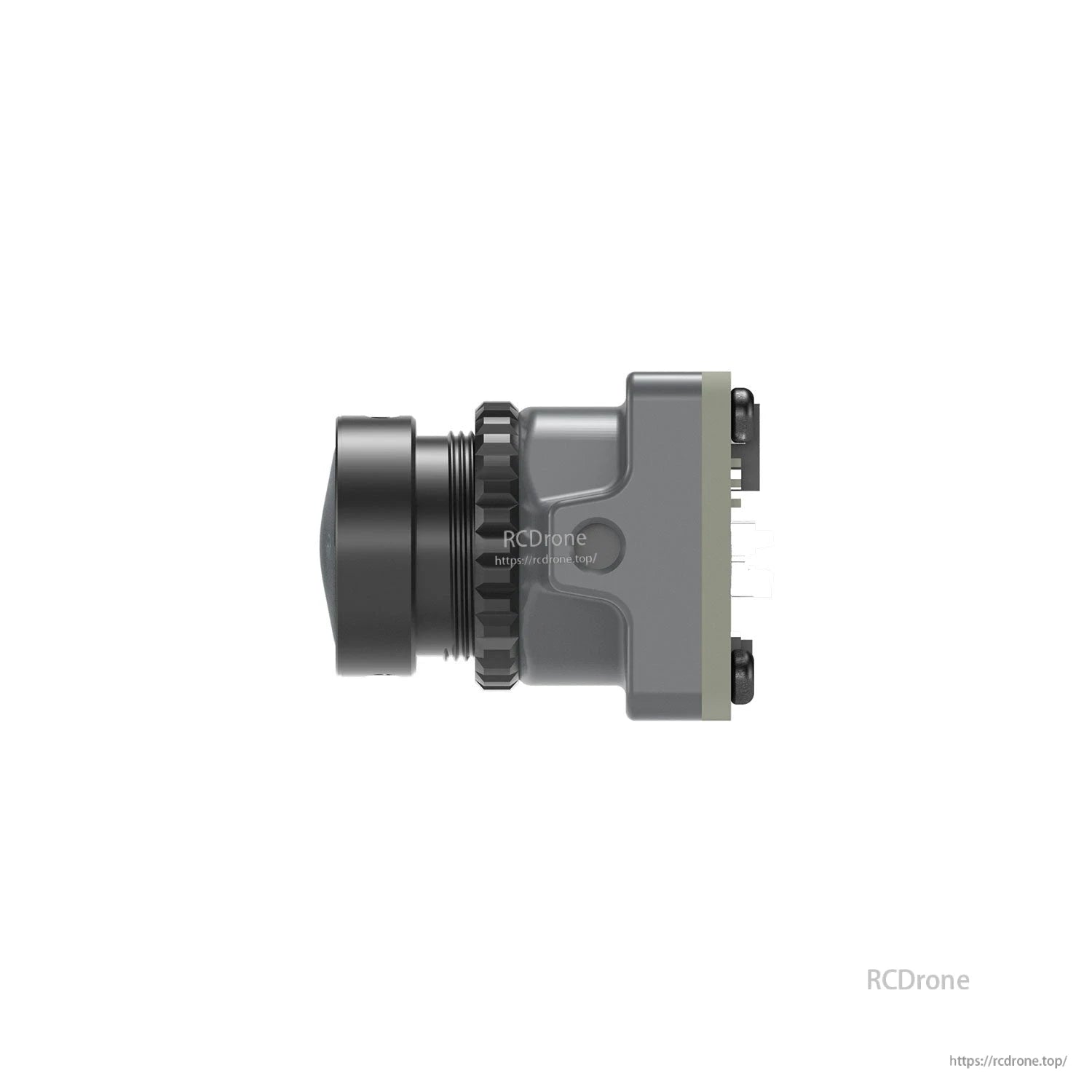

  • Side profile of FPV camera module showing lens protrusion and housing thickness with rear connector
1 13

Walksnail Ascent Lite Kit Digital FPV VTX Camera Kit, 6g, 1080P/60FPS, 35ms, 3km, 147° FOV

Walksnail Ascent Lite Kit Digital FPV VTX Camera Kit, 6g, 1080P/60FPS, 35ms, 3km, 147° FOV

Walksnail

$55.39 USD
$55.39 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Walksnail Ascent Lite Kit is a digital FPV VTX camera kit designed as an upgrade path from analog and a practical option for DIY builds. It combines lightweight hardware with HD video modes, low-latency transmission, and wide flight-controller compatibility via a UART 4-pin connection.

Key Features

  • Ultra-light design: 6 g
  • Low latency transmission: as low as 35 ms
  • HD video modes: 1080P/60FPS and 720P/100FPS
  • Image sensor: 1/2.8''
  • Ultra-wide view: 147° FOV with 16:9 widescreen ratio
  • Long-range transmission: up to 3 km; strong signal penetration
  • Output power switching: 25 mW and 100 mW
  • Automatic frequency hopping support
  • UART 4-pin interface compatibility with F4/F7/H7 flight controllers
  • Firmware support noted: Betaflight, INAV, Ardupilot

Specifications

Product Walksnail Ascent Lite Kit
Weight 6 g
Image sensor 1/2.8''
Video 1080P/60FPS; 720P/100FPS
FOV / Aspect ratio 147° / 16:9
Latency 35 ms (low-latency)
Transmission range Up to 3 km
RF output power 25 mW / 100 mW
Interface UART 4-pin
Flight controller compatibility F4 / F7 / H7
Firmware compatibility (noted) Betaflight; INAV; Ardupilot
Camera dimensions (front) 14 mm x 12 mm
Camera length (side) 15 mm
VTX board size 30.5 mm x 25 mm
VTX board thickness 3.5 mm
Antenna length 90 mm
Cable length (shown) 70 mm
Range test note Furthest test distance noted: 3206 m (tested using a fixed-wing aircraft, Ascent Lite VTX, and Ascent Goggles)

Applications

  • Indoor flying
  • Outdoor adventures
  • RC racing

For compatibility questions (flight controller wiring, UART setup, or firmware integration), contact https://rcdrone.top/ or email support@rcdrone.top.

Details

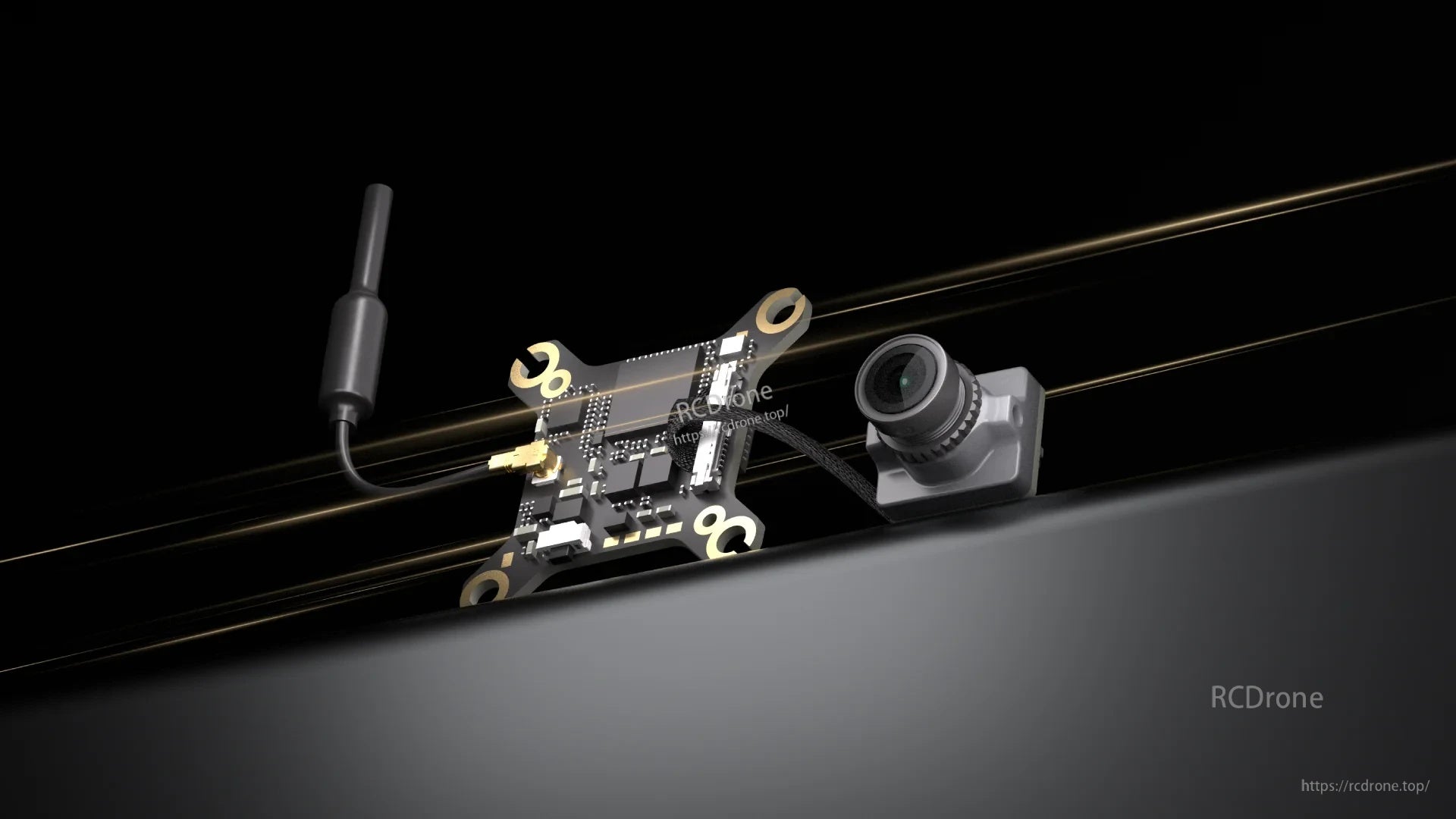

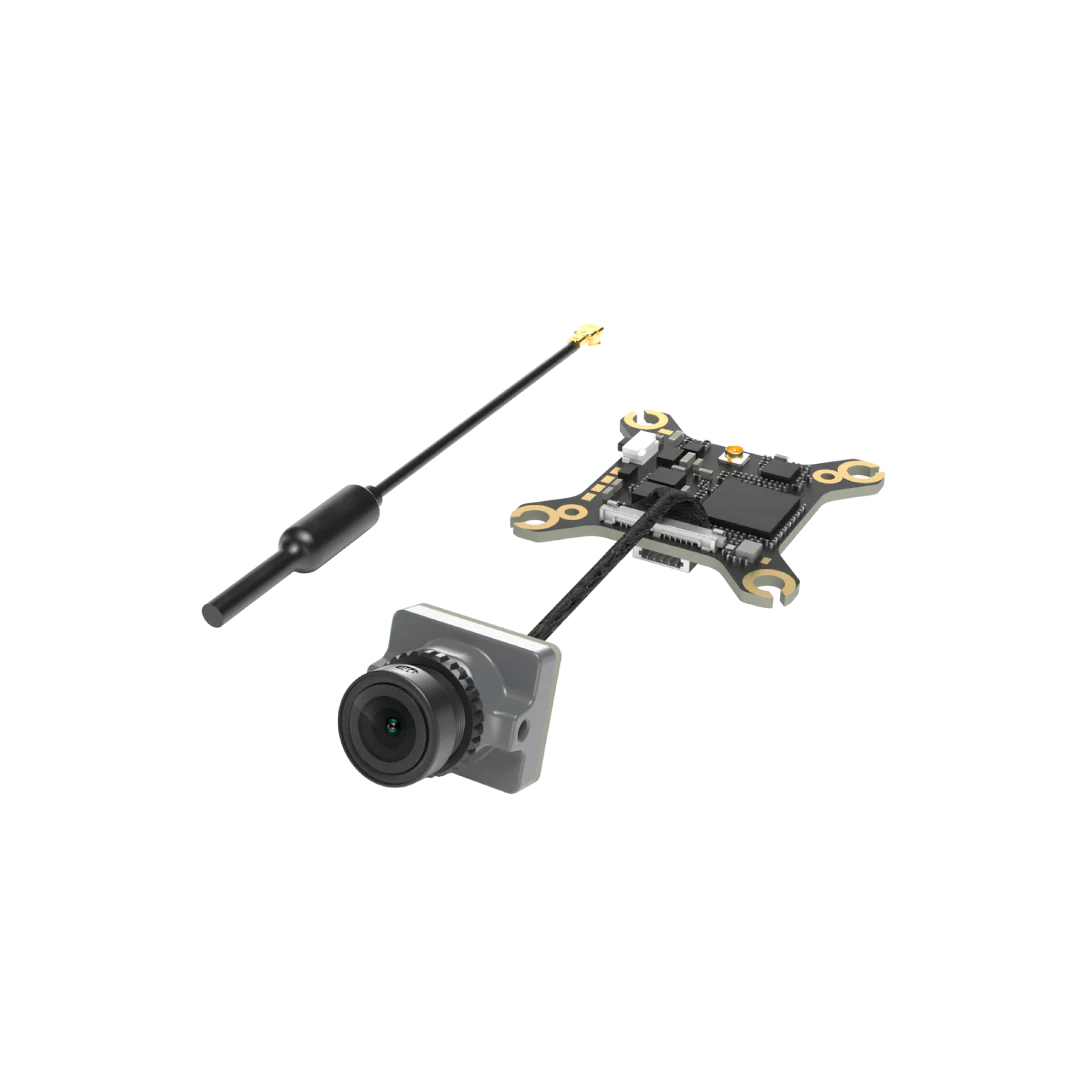

Walksnail Ascent Lite Kit digital FPV VTX and camera with antenna and compact mounting board

The Walksnail Ascent Lite Kit combines a lightweight digital VTX board, camera, and antenna for clean DIY installations.

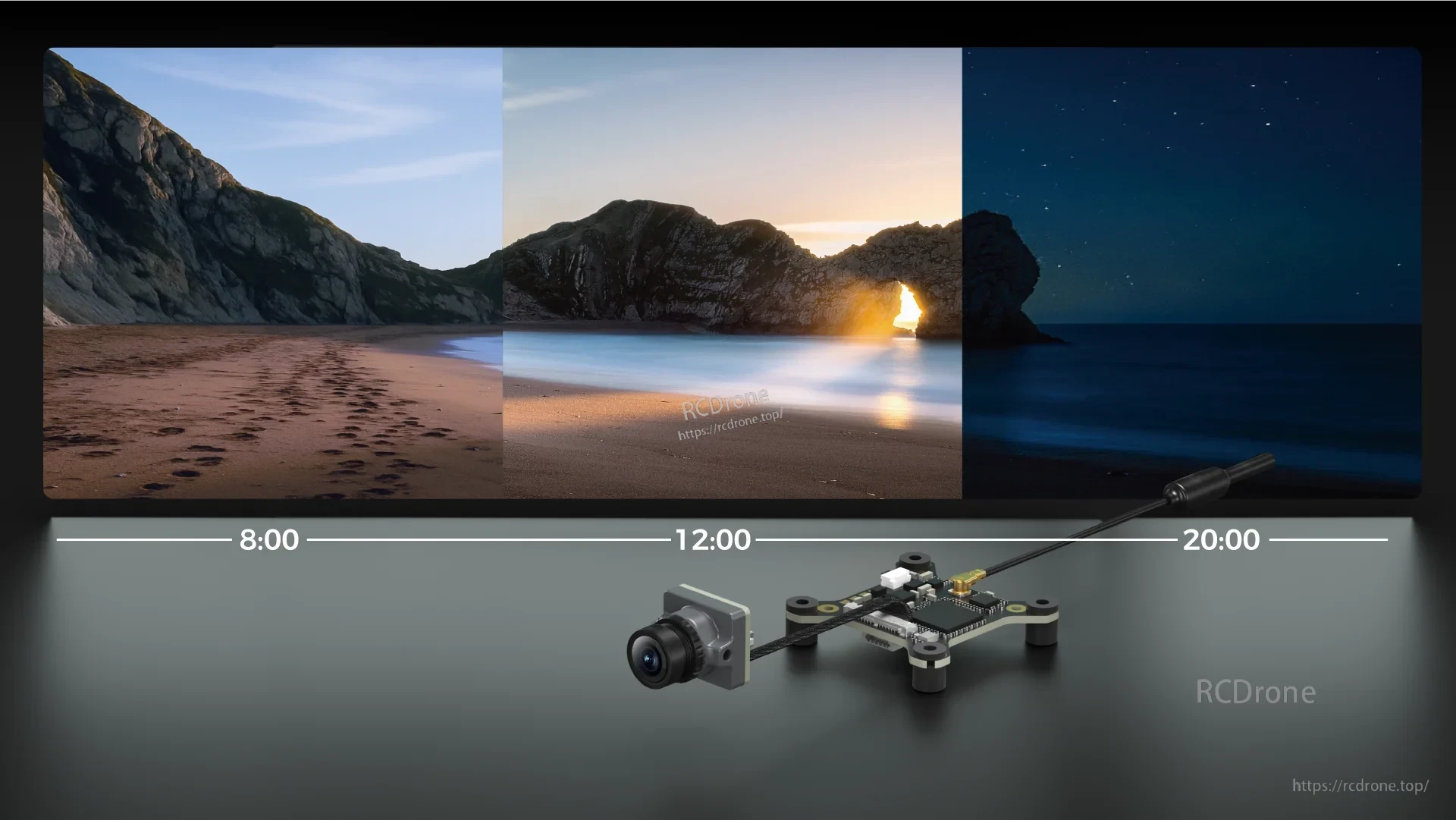

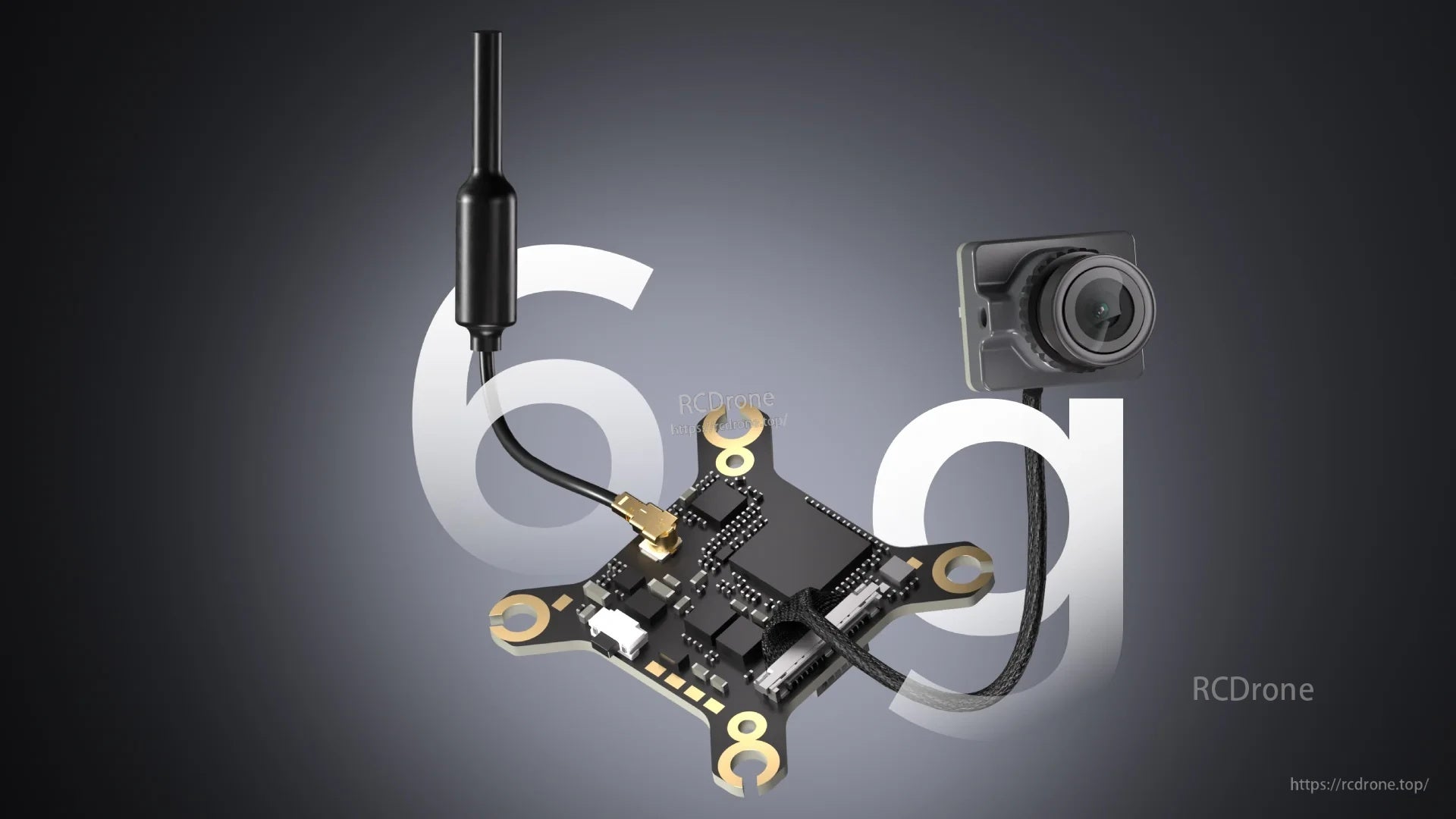

Top view of Walksnail Ascent Lite Kit digital FPV VTX board with camera module and antenna leadWalksnail Ascent Lite Kit day-to-night HD FPV video modes graphic with VTX board and camera

Switch between HD modes like 1080p/60fps and 720p/100fps for smooth, low-latency FPV flying.

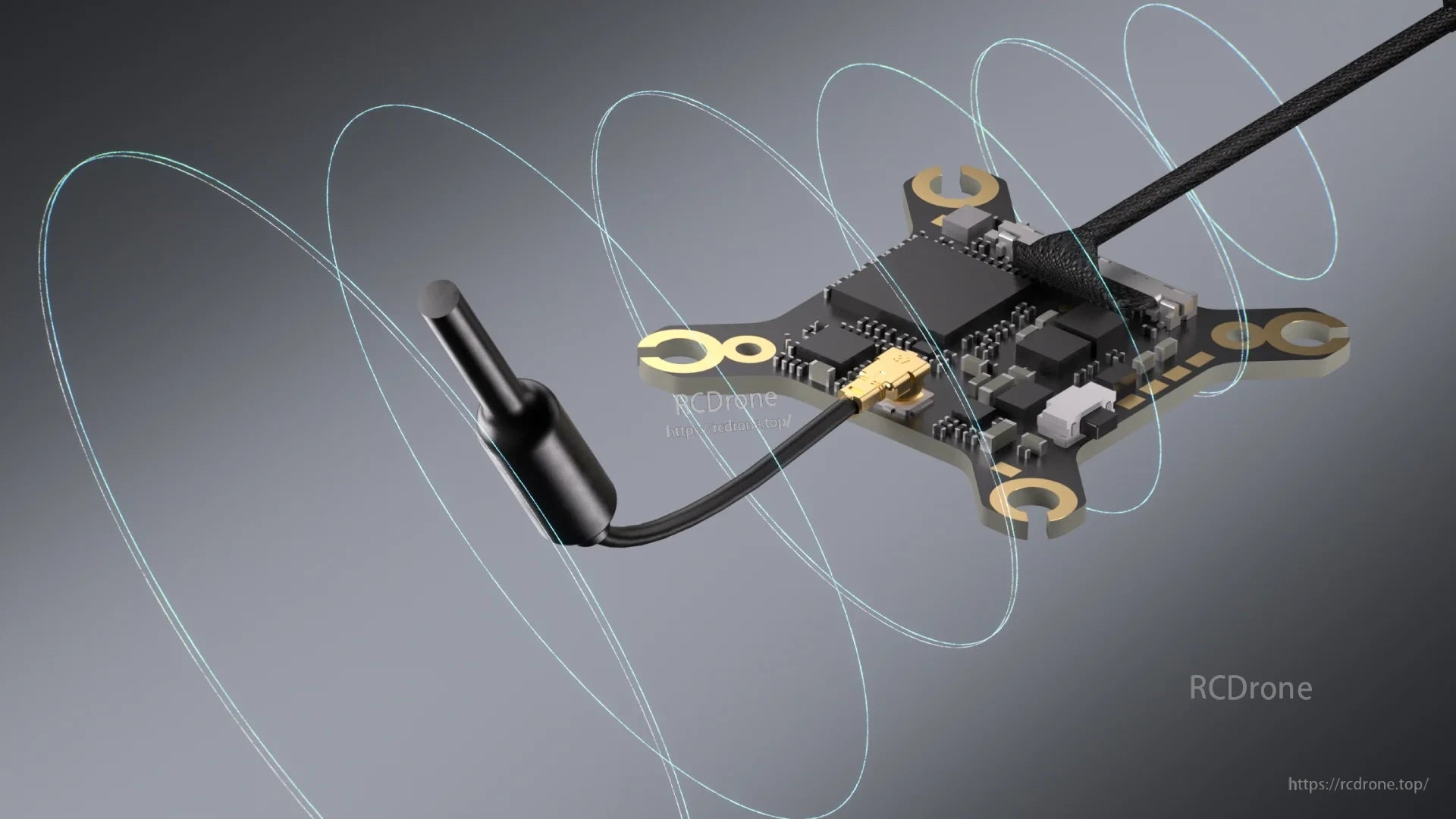

147-degree ultra-wide field of view graphic for the FPV camera, highlighting wide 16:9 viewing angleDigital FPV VTX board with antenna connected, highlighting compact layout and signal transmission concept

Selectable output power and digital transmission help maintain a stable link across different flying environments.

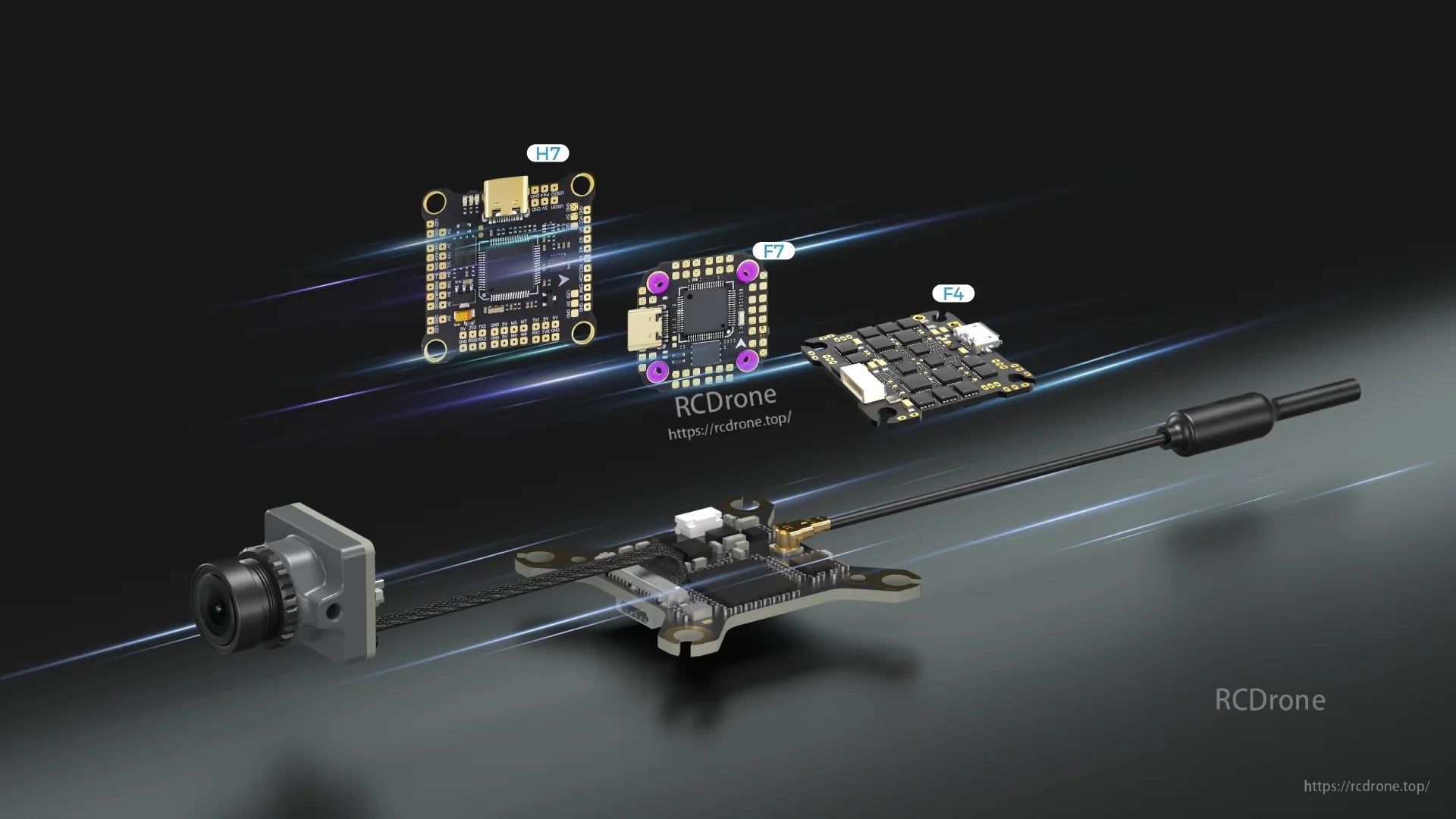

Feature graphic listing 6 g weight, 35 ms low-latency, 3 km range and strong signal penetrationWalksnail Ascent Lite Kit compatibility graphic with F4, F7 and H7 flight controllers plus camera and antenna

UART 4-pin wiring supports common F4/F7/H7 flight controllers for straightforward digital FPV upgrades.

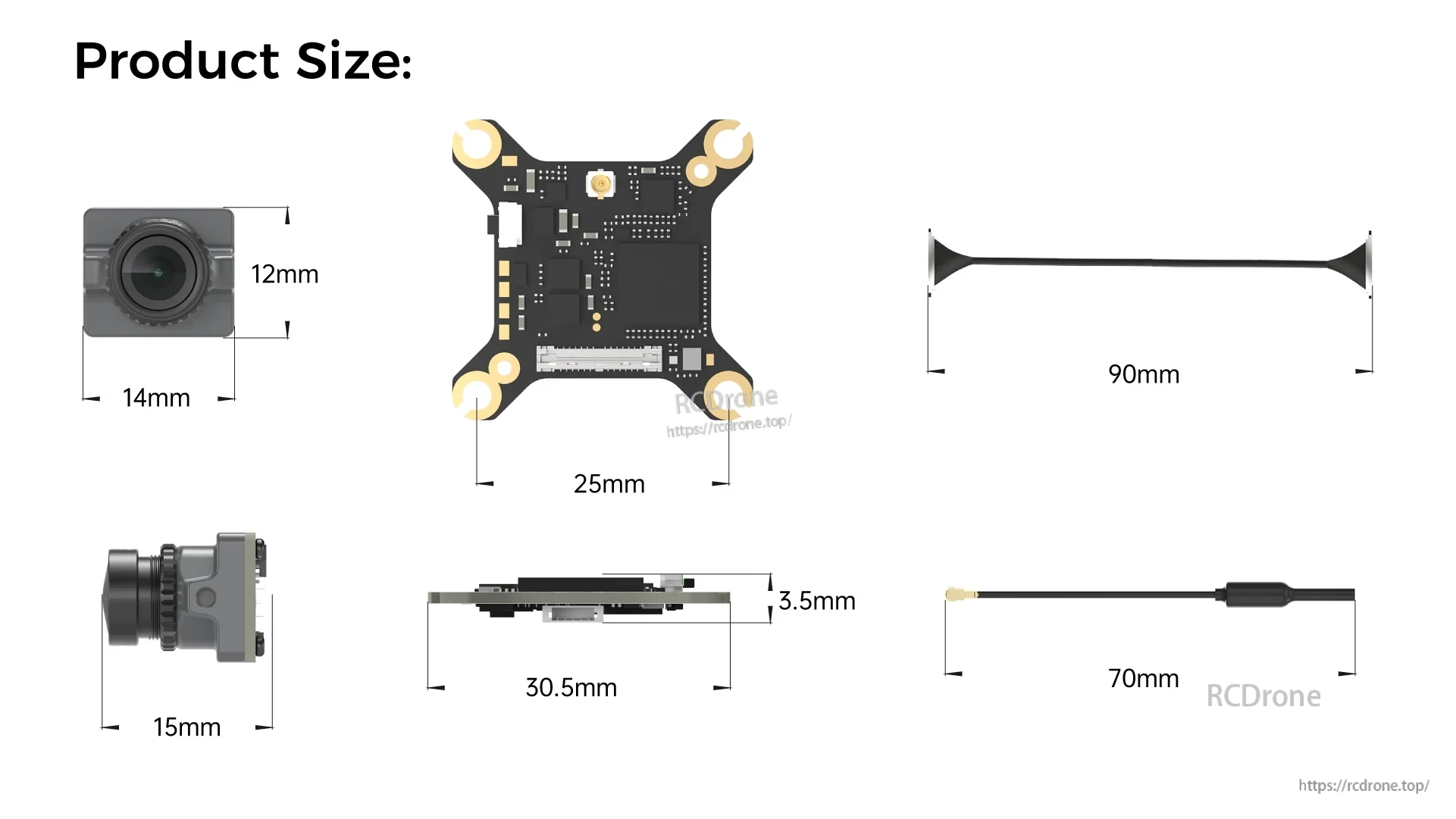

Use-case collage for indoor flying, outdoor adventures and RC racing with compact FPV drone setupProduct size chart with camera dimensions, VTX board size, antenna length and cable length measurements

Dimension references help confirm fit on tight builds, including camera size, VTX board footprint, and cable lengths.
