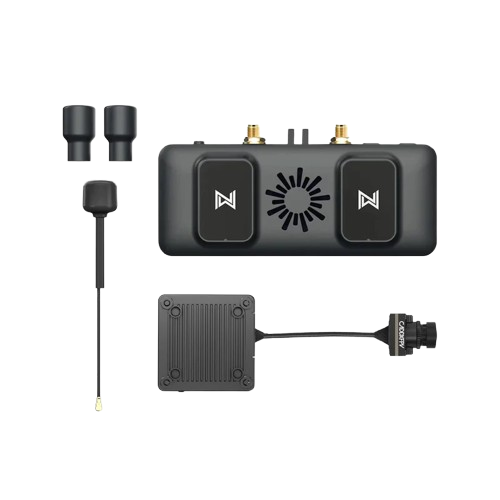

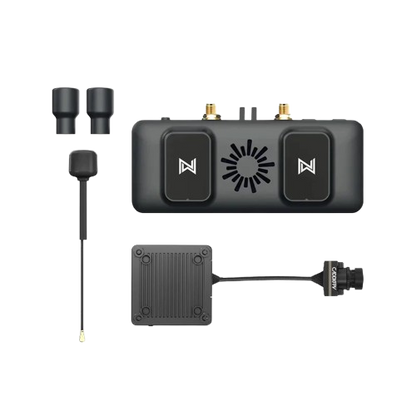

• Walksnail Avatar FPV VRX receiver kit with dual antennas, antenna leads, and HD nano camera module

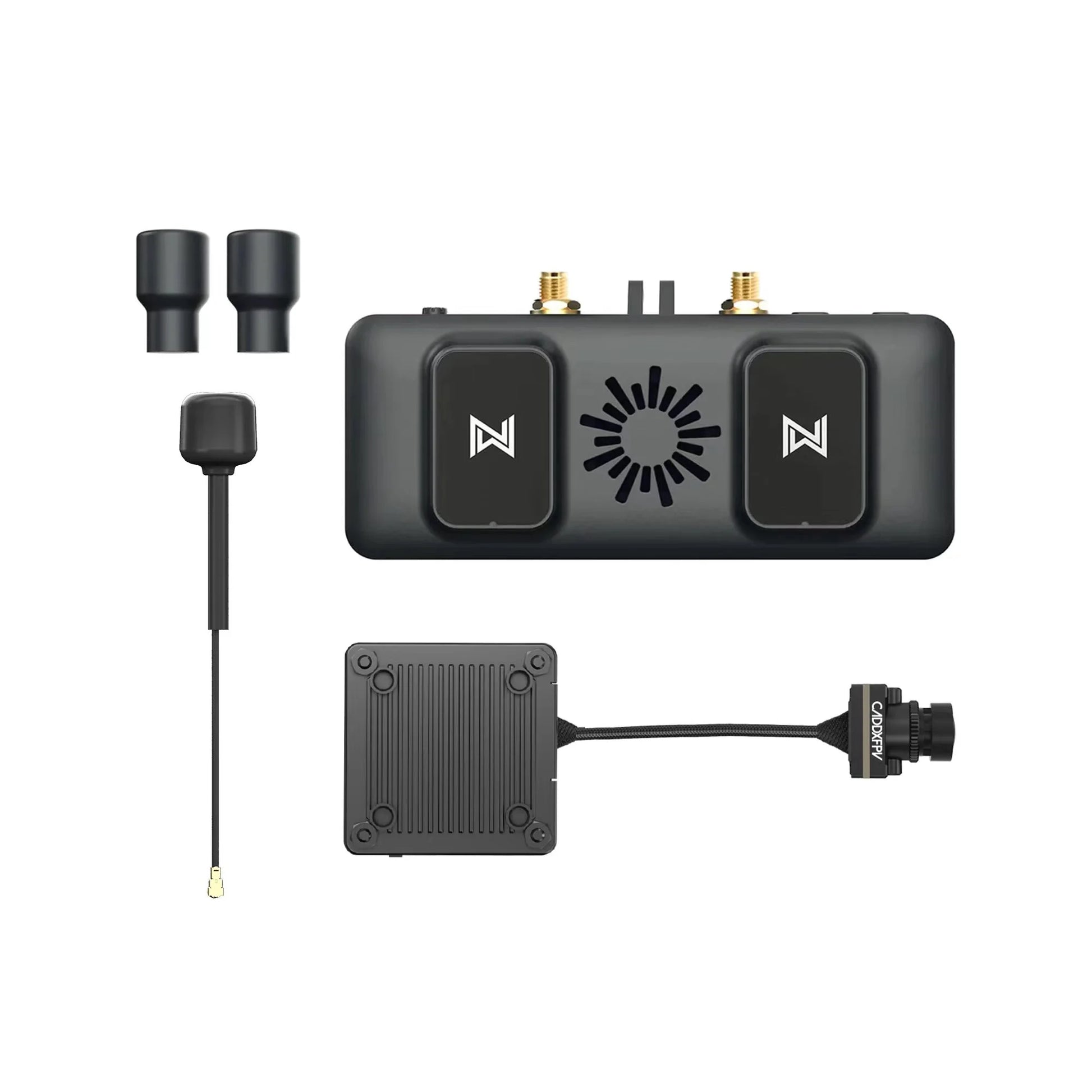

  • Avatar FPV VRX receiver top view with two SMA antenna ports, plus nano camera and antenna accessories
  • Receiver and camera kit layout on white background, with antenna accessories and RCDrone watermark
1 3

Walksnail Avatar FPV VRX Receiver with Avatar HD Nano Kit V3 (14cm) HDMI Out 5.8GHz 1080p60 H.265 22ms

Walksnail Avatar FPV VRX Receiver with Avatar HD Nano Kit V3 (14cm) HDMI Out 5.8GHz 1080p60 H.265 22ms

Walksnail

$367.60 USD
$367.60 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Style
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Walksnail Avatar FPV VRX is a digital FPV VRX receiver for the Avatar HD System. This listing is named “Walksnail Avatar FPV VRX With Avatar HD Nano Kit V3 (14cm)”.

Key Features

  • Light, thin form factor: 83 g; 114 x 55 x 22 mm (also shown: 19 mm height).
  • 4-antenna design; stated max transmission distance up to 10 km.
  • HD video output modes: 1080p60fps, 720p100fps, 720p60fps (also shown: FullHD 1920 x 1080 and HD 1280 x 720).
  • Canvas Mode support for Betaflight full OSD display; compatible with Betaflight, iNav, and KISS full OSD systems. Canvas Mode menu items shown include: PROFILE, PID PROF, PID, MISC PP, FILT PP, RATE PROF, RATE, FILT GLB, COPY PROFILE, SAVE, EXIT.
  • Example OSD overlay items shown: 25.4V, 7.4V, 25Mbps, 22ms, 259m, CH1.
  • HDMI output; labeled HDMI port.
  • Compatible with analog goggles (via HDMI out).

Range note: A test note states the maximum 10 km distance was achieved using a fixed-wing, Avatar GT VTX, Avatar VRX, and Goggles X.

Specifications

Avatar FPV VRX

Model Avatar FPV VRX
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
I/O Interface HDMI, micro SD card slot, DC5.5*2.1mm
HDMI Output 1080p60fps, 720p100fps, 720p60fps
Power Input 7-25.2V (2S-6S)
SD Card Support 256G
System Avatar HD System
Weight 83 g
Dimensions 114*55*22mm (also shown: 19mm)

Red Bird Antenna

Model Red Bird
Polarization LHCP
Bandwidth 5.6GHz-6.0GHz
Average Gain 1.9dBi
Radiation Efficiency >=97%
VSWR <=1.3
Cross-Polar Rejection -15 to -30dB
Connector RP-SMA
Dimension H24.8mm*R15.3mm
Weight 4.2g

What’s Included

  • Avatar FPV VRX x1
  • Red Bird Antenna x2
  • HDMI Cable x1
  • 2-in-1 DC Power Cable x1

Applications

  • Adding an Avatar HD System receiver to FPV goggles or an external display via HDMI
  • Digital FPV builds requiring Canvas Mode OSD integration (Betaflight / iNav / KISS)

For compatibility questions and setup support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

Walksnail Avatar FPV VRX slim receiver dimensions and weight overview (114×55×22 mm, 83 g)

The compact 83 g receiver keeps external HD setups light, with a slim 114 × 55 mm footprint.

Four-antenna design on the Walksnail Avatar FPV VRX for stable digital FPV reception (max 10 km claim)

A 4‑antenna layout is built for robust reception and long-range testing up to 10 km under specific conditions.

HDMI output to external display with 1080p60 and 720p100 video modes

Connect over HDMI for crisp HD output up to 1080p60, with high-frame-rate 720p options for smoother flying.

HDMI port close-up and analog goggle compatibility via HDMI output on the receiverCanvas Mode OSD menu and telemetry overlay example for Betaflight/iNav/KISS integration

Canvas Mode enables full OSD menus and telemetry overlays when paired with supported flight controllers.
